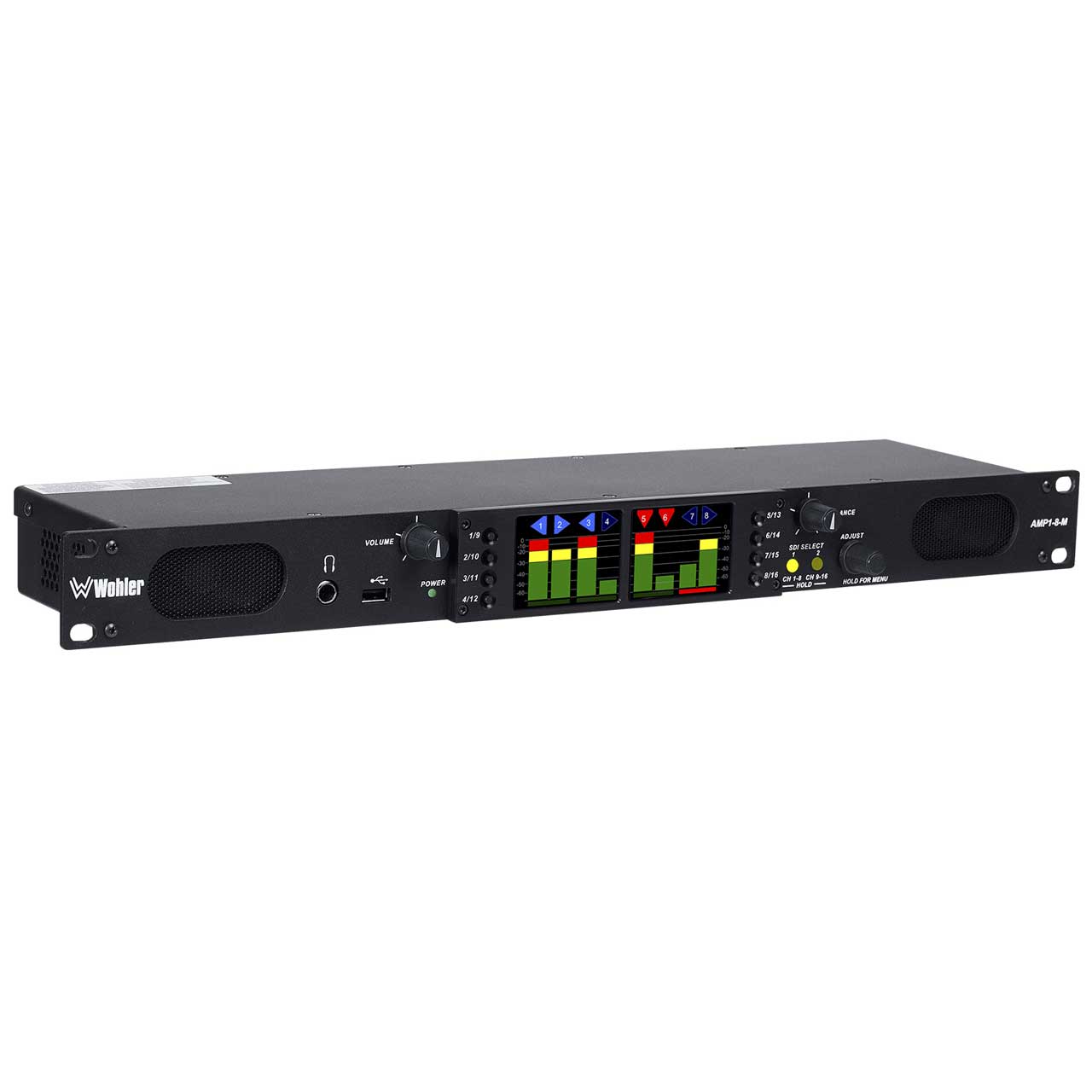

Wohler AMP1-8-M 8 Channel Dual Input 3G/HD/SD-SDI Audio Monitor - 1RU

ITEM #: WOH-AMP1-8-M MFG #: AMP1-8-M

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$2,895.00

Our Price:

$2,669.00

Availability: In Stock
iAvailability Description Popup


    AMP1-8-M - Overview

    8 Channel SDI Audio Monitor that provides Value for Money

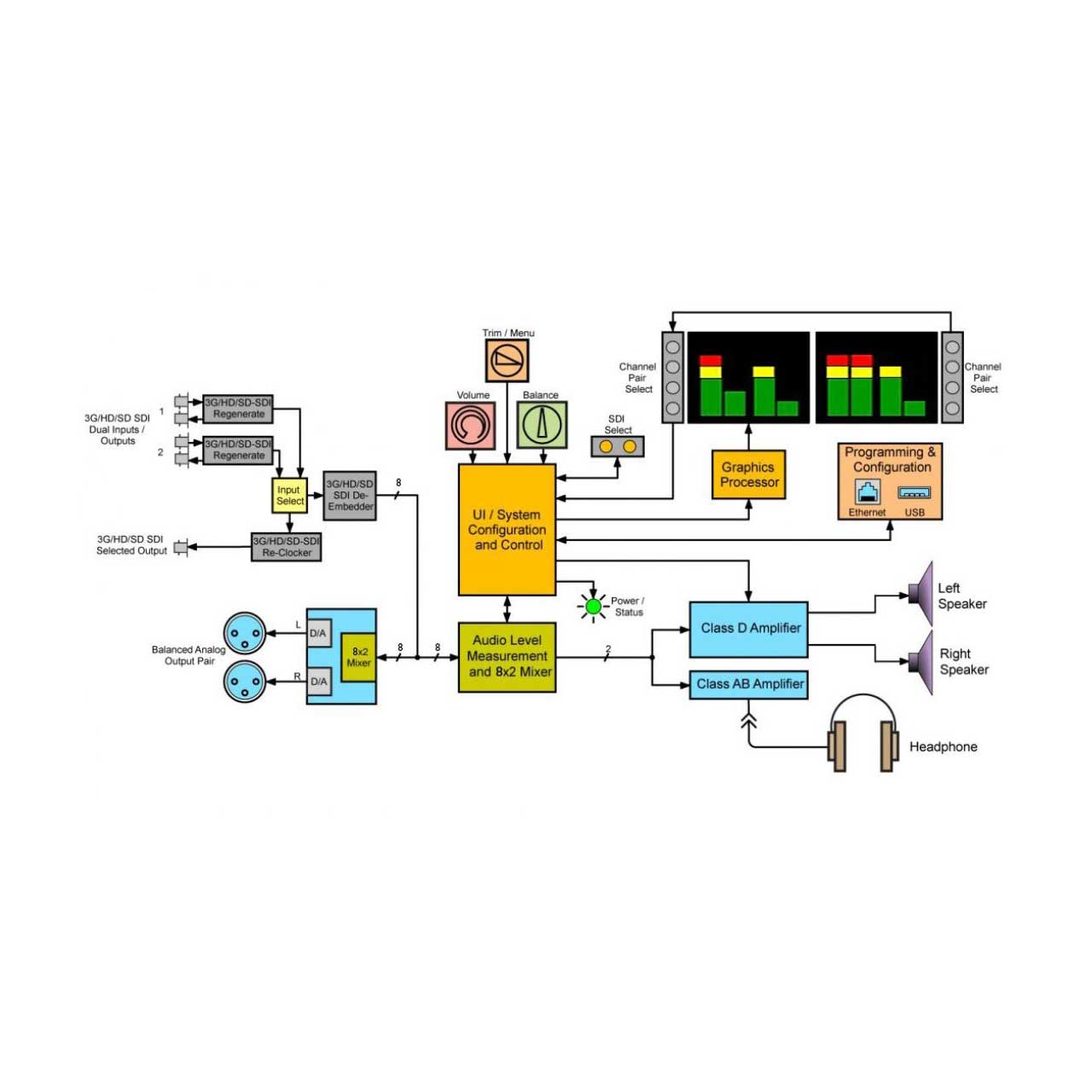

    Whether you are in the studio or on the road, the Wohler AMP1-8-M is an SDI audio monitor that offers fast and easy monitoring of 3G, HD, or SD formats. Above all, Wohler has designed it for the most demanding environments. First, with automatic frame rate detection, you get instant selection and summing of up to 8 audio channels. Next, you can choose between two SDI inputs and then toggle selection of channels 1 thru 8 OR channels 9 thru 16. Additionally, other standard features include volume and balance controls, push-button selection of audio channels, SDI looped outputs, and conversion to analog on XLR. Finally, level meters and phase display on two bright LCD's.

    • Features:

      • Choose between two SDI inputs (3G, HD or SD SDI)
      • Automatic SDI frame rate detection and selection
      • Shallow sub-5 inch depth for easy installation in Outside Broadcast vehicles and consoles
      • Both SDI inputs are looped and re-clocked
      • The selected and active SDI input is also re-clocked out on a 3rd dedicated BNC connector
      • Monitor Channels 1-8 or Channels 9-16
      • Sum, mute or solo audio channels using quick and easy push-buttons
      • High resolution metering on two LCD's with 166-segment displays
      • Monitor audio through built-in speakers, headphones or analog outputs, with optional muting for internal speakers
      • Stereo or mono monitoring
      • Stereo phase indicators
      • Adjustable Volume and Balance
      • Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
      • Totally digital system architecture with high fidelity Class D amp
      • Selectable line level or front panel volume control and outputs

    • Specifications:

      • Speaker Power Output: RMS Each Side: 6W Continuous/12W Peak
      • Peak Acoustic Output @ 2 feet: 90 dB SPL at 2 feet
      • Frequency Response: 150 Hz to 16 kHz (+/- 5 dB)
      • Hum and Noise: Better than -68 dB below full output
      • Meter Dynamics: Configurable up to simultaneous VU & PPM
      • Display Type: LCD
      • Number of screens: 2
      • Diagonal Display Size: 2.4 Inch
      • Display Resolution (HxV): 320 x 240
      • Rack Height: 1RU
      • Power Consumption: 60 Watts
      • Power Supply: Internal IEC Connector, Universal Input, 100-240VAC, 50/60Hz, CE & UL approved.
      • Dimension Width: 19.0" (483mm)
      • Dimension Height: 1.75" (45mm)
      • Dimension Depth: 4.25" (108mm)
      • Net Weight: 7 lbs (3.2 kg)
      • Shipping Weight: 7 lbs (3.2 kg)
      • Shipping Dimensions: 23 x 12 x 6 in (LxWxH)

    • Warranty:

      • 2 Years
