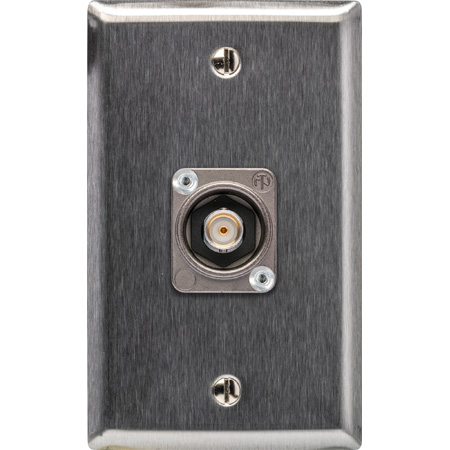

My Custom Shop 1-Gang Stainless Steel Wall Plate with 1 Neutrik 12G-SDI Recessed BNC Barrel

ITEM #: WPL-1103-NB MFG #: WPL-1103-NB

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$41.95

Our Price:

$37.95

Availability: In Stock
iAvailability Description Popup


    WPL-1103-NB - Overview

    When performance and quality matter, nothing compares to a hand crafted wall plate from My Custom Shop. The WPL-1103-NB 1-Gang Stainless Steel wall plate features One (1) 75 Ohm 12G BNC feed through barrel connector so there's no soldering necessary and it's ready to pass your UHD signals.

    The My Custom Shop. The WPL-1103-NB is centered around Neutrik NBB75DFIX connectors. Each is an isolated UHD BNC offering low return loss values at high frequencies specifically designed to meet high resolution video standards. They deliver long term use and are recessed to offer additional protection.

    • Features:

      • Handy Wall Plates Designed for 4K UHD, 12G-SDI Equipment Patching
      • Protective Recessed Design
      • Low Return Loss Neutrik 75 Ohm BNC Connectors
      • Beryllium Copper Center Contact for Superior Spring Characteristics
      • SMPTE ST 2082-1, ST 2081-1, ST424, ST292 Compliant

    • Specifications:

      • 1-Gang Stainless Steel Wall Plate
      • Neutrik NBB75DFIX 75 Ohm BNC Connectors
      • Return loss: ≤1.06/&g;30dB up to 6 GHz, ≤1.13 / &g;24dB up to 12 GHz
      • Insulation Resistance: &g; 5GΩ

    • Warranty:

      • 1 Year
