Xantech XT-4K-VIP-RX 4K Video Over IP Receiver with Audio Breakout
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Xantech XT-4K-VIP-RX 4K Video Over IP Receiver with Audio Breakout

    Manufacturer: Xantech LLC

    Item #: XAN-XT-4K-VIP-RX   •   MFG #: XT-4K-VIP-RX


    List Price:$1,010.00
    Our Price:$509.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

      California Residents:
      Cancer and Reproductive Harm -


      4K Video Over IP Receiver with Audio Breakout and Independent Signal Routing over 1Gb Network
      The Xantech Premium Video over IP (VIP) platform enables distribution of HDMI video over a 1Gb Network switch. The XT-4K-VIP-TX and XT-4K-VIP-RX are HDCP 2.2 compliant Transmitters and Receivers that use visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 and USB/KVM up to lengths of 100m over standard network architecture. The XT-4K-VIP-TX/RX can be powered via PoE from a Network switch or powered locally should a switch either not be used or not support PoE. With multiple configuration options available, this Video over IP solution is ideal for both commercial and residential installations.

      • Features

        • Advanced UHD video over 1Gb Network
        • Virtually unlimited system size
        • Connect to any supported Layer 2 / Layer 3 Managed Switch for HDMI video distribution
        • Supports up to 4K HDR UHD video (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz4:2:0)
        • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
        • Video up-scaling and down-scaling
        • Features 4 operational modes:
          Matrix distribution (Requires 1Gb network switch)
          Video wall (Requires 1Gb network switch)
          One-to-one HDMI extender (No network switch required)
          One-to-many HDMI splitter (No network switch required)
        • HDCP 2.2 Compliant
        • Advanced EDID management
        • Analog L/R audio embedding and de-embedding on XT-4K-VIP-TX Transmitter
        • Analog L/R audio breakout on XT-4K-VIP-RX Receiver
        • Bi-directional RS-232 and IR pass through
        • USB 2.0 connectivity (backwards compatible with USB 1.1) for KVM and other USB devices
        • PoE (Power over Ethernet) to power Xantech products from PoE switch
        • Local 24V 1A power input should network switch not support PoE, sold separately
        • Simple configuration via web-GUI through the XT-4K-VIP-ACM
        • HDMI audio embedding supports up to 192 Khz, XT-4K-VIP-RX analog audio output supports up to 96Khz only
        • RS-232, IR and Telnet/IP integration for control of the VoIP system using Xantech XT-4K-VIP-ACM
      • Specifications

        • Shipping Info
        • Length: 10 (Inches)
        • Width: 6.4 (Inches)
        • Height: 2.1 (Inches)
        • Weight: 1.75 (Lbs)

          Other Specifications

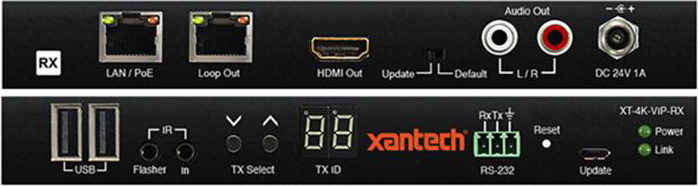

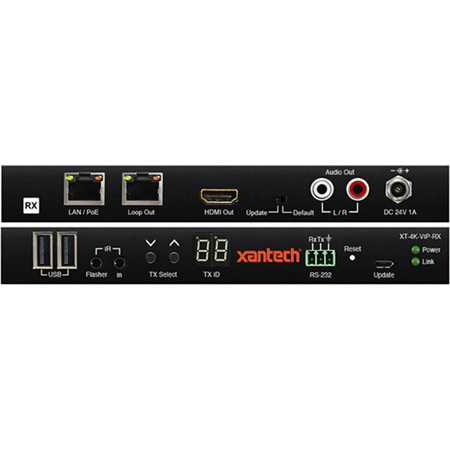

        • Video output: 1 x HDMI Type A, female
        • Audio output: 2 x RCA L/R analog audio
        • Video input/Ethernet port: 1 x LAN RJ45 connector
        • Video/Ethernet extension: 1 x LAN RJ45 connector (PoE 9W)
        • USB / KVM: 2 x USB, Type A
        • RS-232 serial port: 1 x 3-pin Phoenix connector
        • IR input: 1 x 3.5mm stereo jack
        • IR flasher: 1 x 3.5mm mono jack
        • Firmware update: 1 x USB Micro B
        • Accessories: Mounting kit included
        • Operating temperature: 32°F to 104°F
        • Storage temperature: -4°F to 140°F
      • GTIN:
