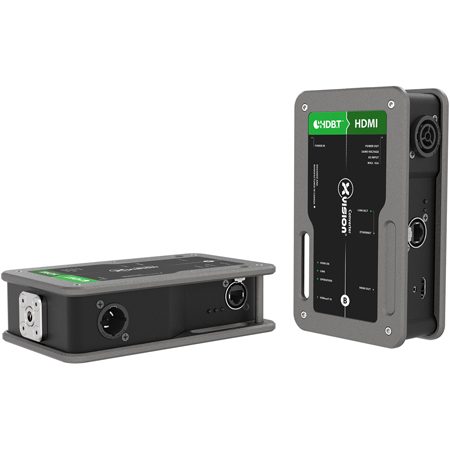

Theatrixx XVV-HDBT2-HDMIT1 xVision Video Converter - HDBaseT1.0 to HDMI1.4 Receiver - PowerCON True1 In/Out

ITEM #: XVVHDBT2HDMIT1 MFG #: XVVHDBT2HDMIT1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$715.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    XVVHDBT2HDMIT1 - Overview

    The Theatrixx XVV-HDBT2-HDMIT1 is an xVision Video Converter for handling HDBaseT to HDMI True1. Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment. Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the xVision Video Converters.

    • Features:

      • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
      • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector. Using a power bar to power both the converter and device not required anymore.
      • Magnetic stacking system and non-skid rubber pad for tabletop application. Saves at least 10 gaffer tape rolls a year.
      • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
      • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
      • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
      • Clear and ample status LED indicators for quick troubleshooting.
      • Easy on-the-field identification with unique color and alphabetic coding system.
      • Locking HDMI & EtherCON ports prevent accidental disconnection.
      • Fully compliant with HDBaseT 1.0 devices.
      • Transmits 4K30P signals over up to 100 meters of CAT6 cable with HDCP support.
      • Built-in Ethernet channel for projector control, LAN extension and more.
      • Proudly designed and assembled in Canada.

    • Specifications:

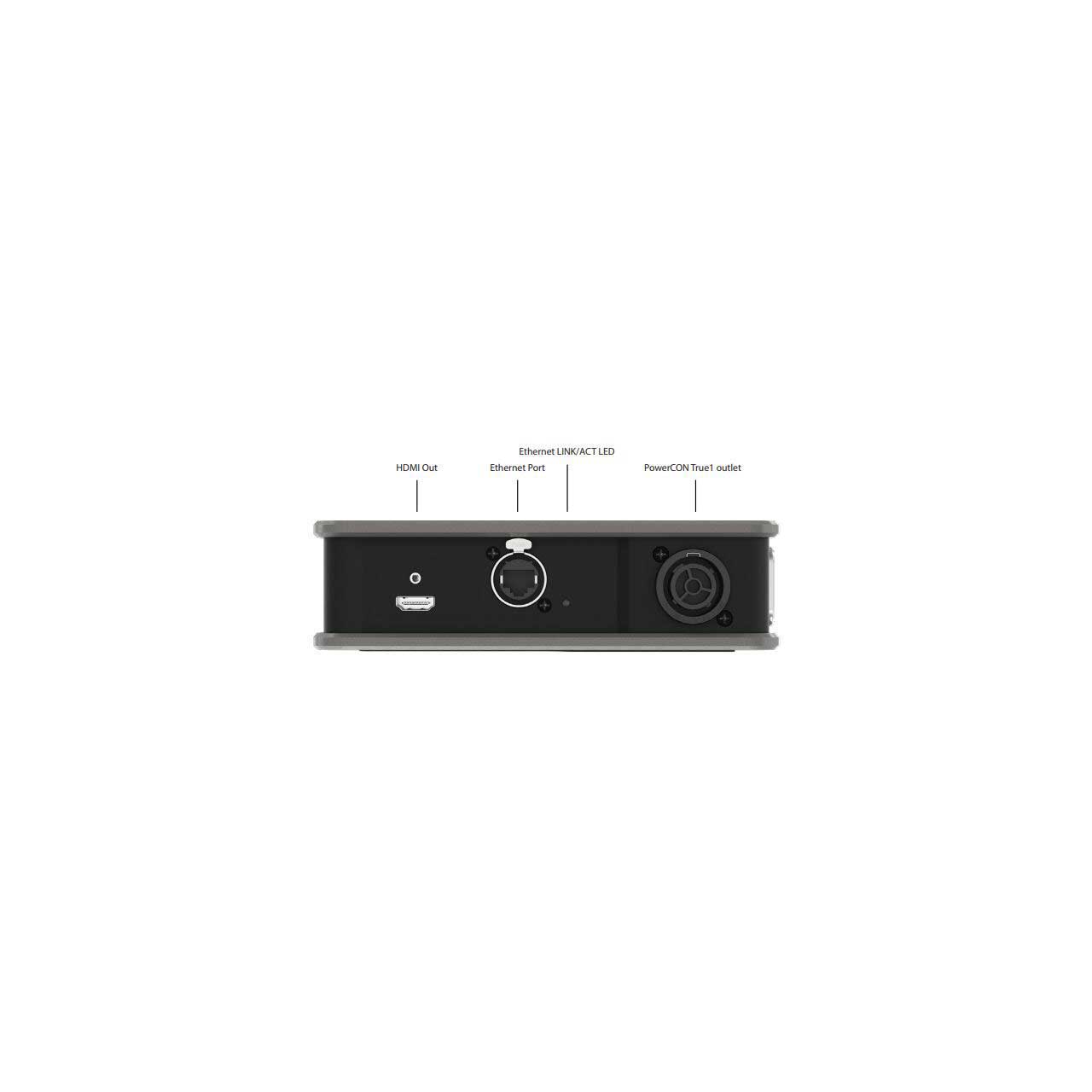

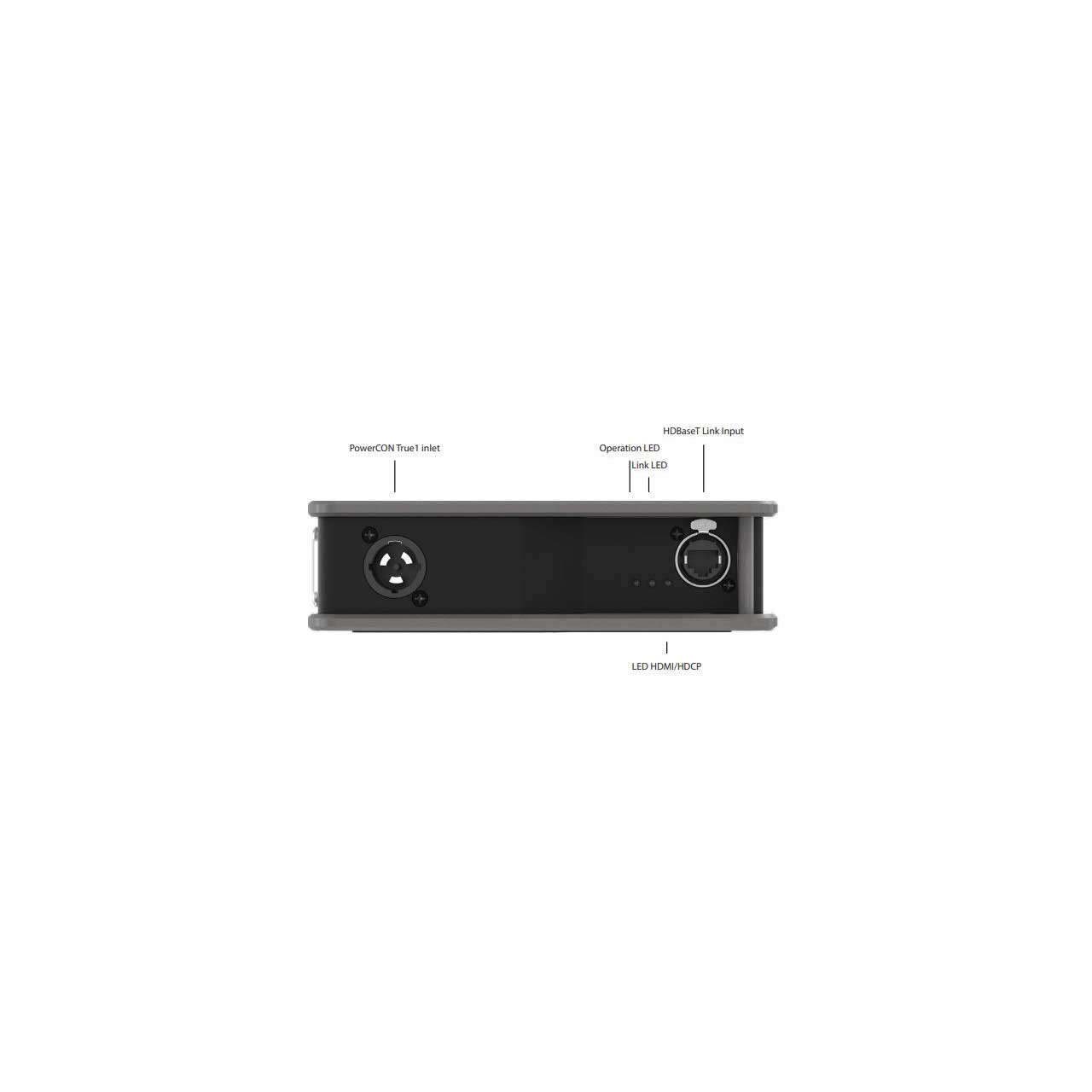

      • Connections
      • Video Input: 1 x HDBaseT 1.0 on shielded EtherCON connector
      • Ethernet Port: 1 x 1 Gbps Ethernet on Neutrik EtherCON
      • Video Output: 1 x HDMI 1.4 type A with locking system
      • Recommended cable: UTP CAT6a with EtherCON connectors

      • Supported Signals
      • Video Format Support: HDMI 1.4
      • HDCP Compliance: HDCP 1.4
      • Ethernet Support: 100 Mpbs

      • Physical Specifications
      • Height: 53 mm (2.09 in)
      • Depth: 180 mm (7.08 in)
      • Width: 107 mm (4.21 in)
      • Weight: 1 kg (2.2 lbs)
      • Alternate Form Factor: Also available as a Reversible Module

      • Environnemental Specifications
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C

      • Power Requirements
      • Power Supply: Built-in power supply
      • PowerCON True: 1 input
      • PowerCON True: 1 output (loop-thru)
      • Power Consumption: 15W
      • Voltage Range: 100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
      • Courtesy Outlet: Max 10A, same voltage as input

    • Item Includes:

      • 1x xVision Converter HDBaseT to HDMI True1
      • 1x Locking HDMI male to DVI male cable (1m)
      • 1x US AC Mains PowerCON True1 cable (1.5m)
