Theatrixx XVVRM-SDI2HDMI-12G Reversible Rack Module - 12G-SDI to HDMI for XVVRF8 Frame

ITEM #: XVVRMSDI2HDMI12G MFG #: XVVRM-SDI2HDMI-12G

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$599.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    XVVRM-SDI2HDMI-12G - Overview

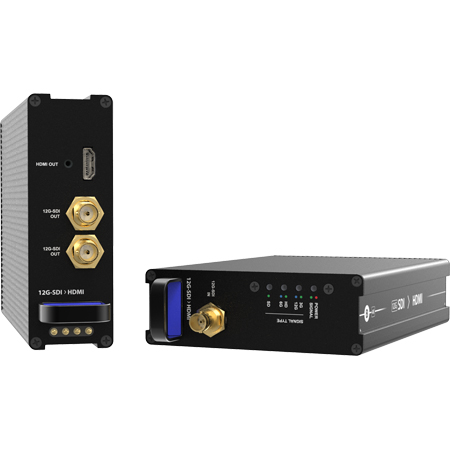

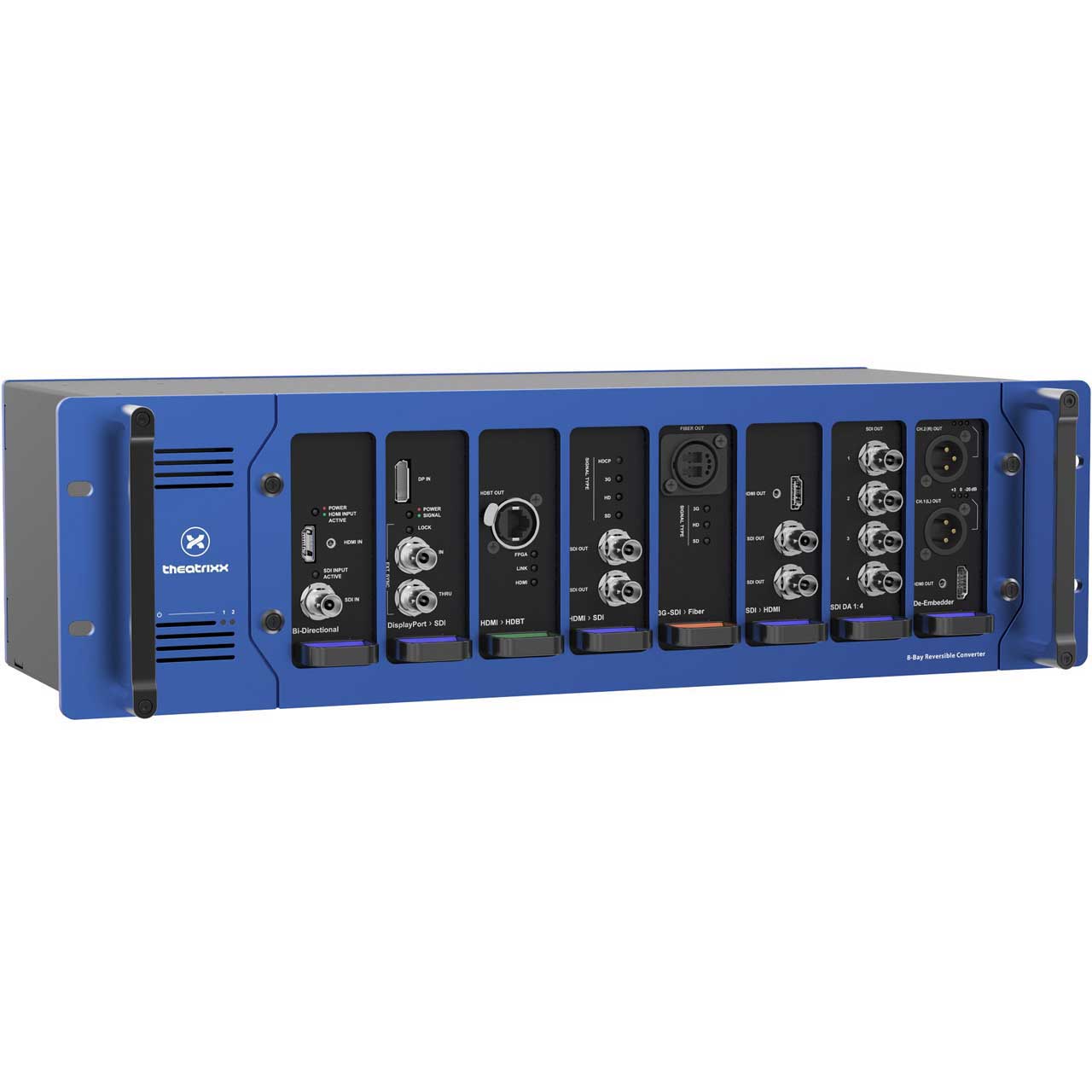

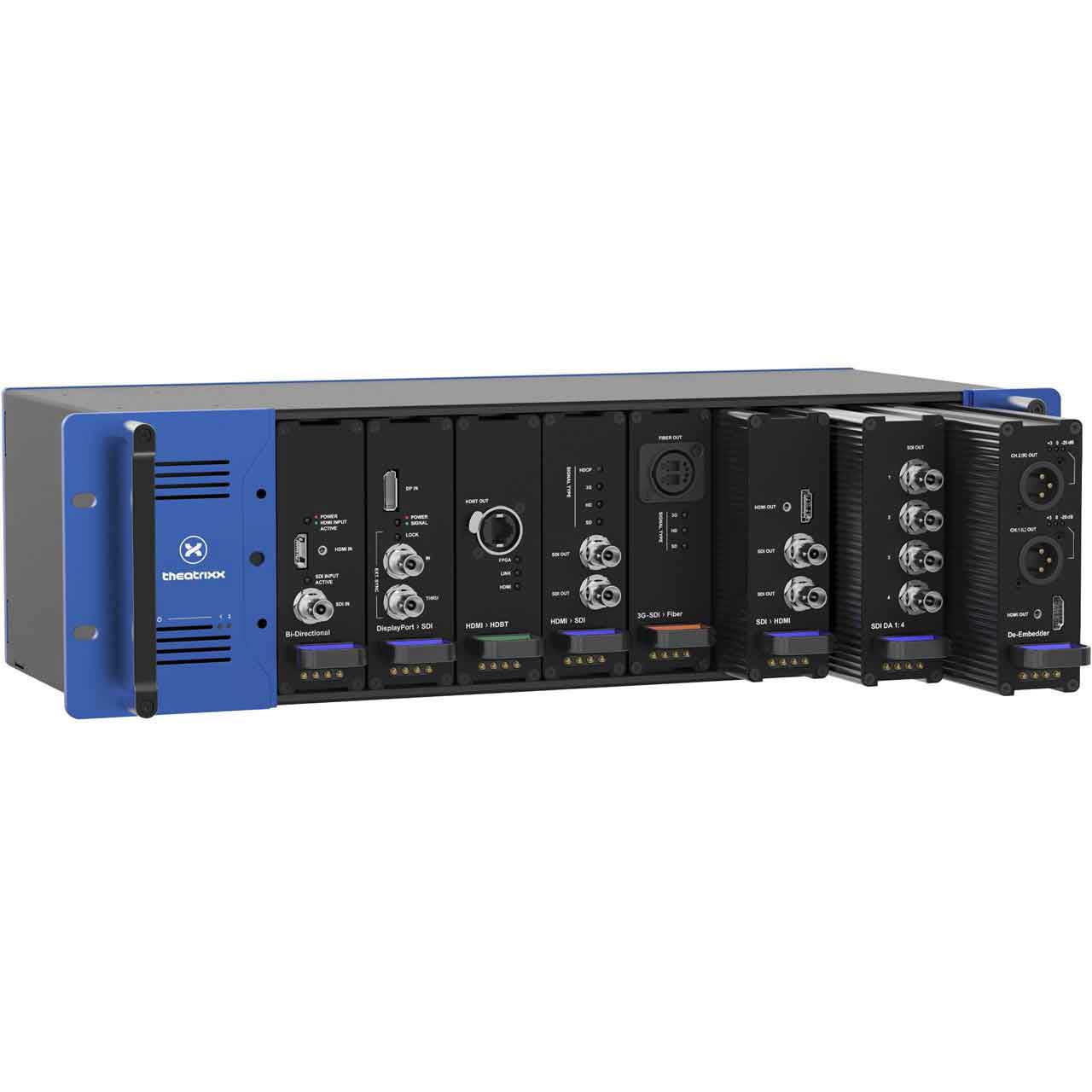

    The Theatrixx XVVRM-SDI2HDMI-12G module can be inserted in the XVVRF8 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

    • Specifications:

      • Connections:

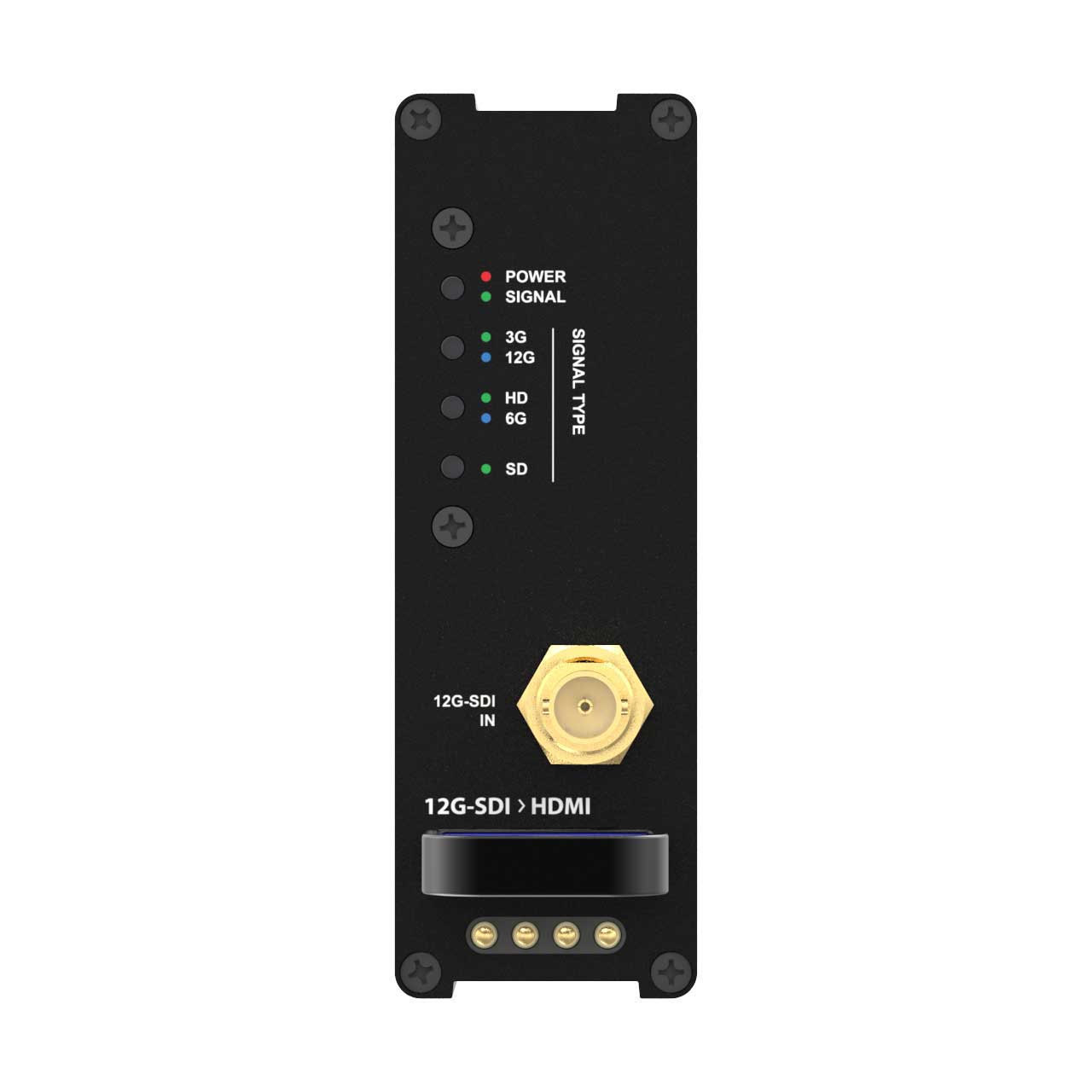

      • Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
      • Video Output: 1 x HDMI 2.0 type A with locking system, 2 x 12G/6G/3G/HD/SD SDI BNC

        Supported Signals:
      • 12G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
      • 6G Format Support: 4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
      • 3G Format Support: 1080p50, 1080p59.94, 1080p60
      • HD Format Support:
        720p50, 720p59.94, 720p60, 1080i50,
        1080i59.94, 1080i60, 1080p23.98,
        1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
        1080PsF25, 1080p29.97, 1080PsF29.97,
        1080p30, 1080PsF30
      • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Sample rate of 48kHz and 24 bit
      • SDI Color Space: YUV and RGB
      • SDI Auto Switching: Automatically detects incoming signal format
      • SMPTE Standards: 425 M Level A & B, 424 M Level A, 292 M, 259 M

        Physical:
      • Height: 121.5 mm (4.78 in)
      • Depth: 225 mm (8.85 in)
      • Width: 41 mm (1.61 in)
      • Weight: 710 g (1.56 lbs)
      • Alternate Form Factor: Also available as a standalone converter

        Environmental:
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C
      • Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
      • Power Consumption: 20W
      • Voltage Range: 12VDC

    • Item Includes:

      • 1x Theatrixx Reversible Module 12G-SDI to HDMI


    XVVRM-SDI2HDMI-12G - Required Accessories

    XVVRM-SDI2HDMI-12G - Recommended Accessories
