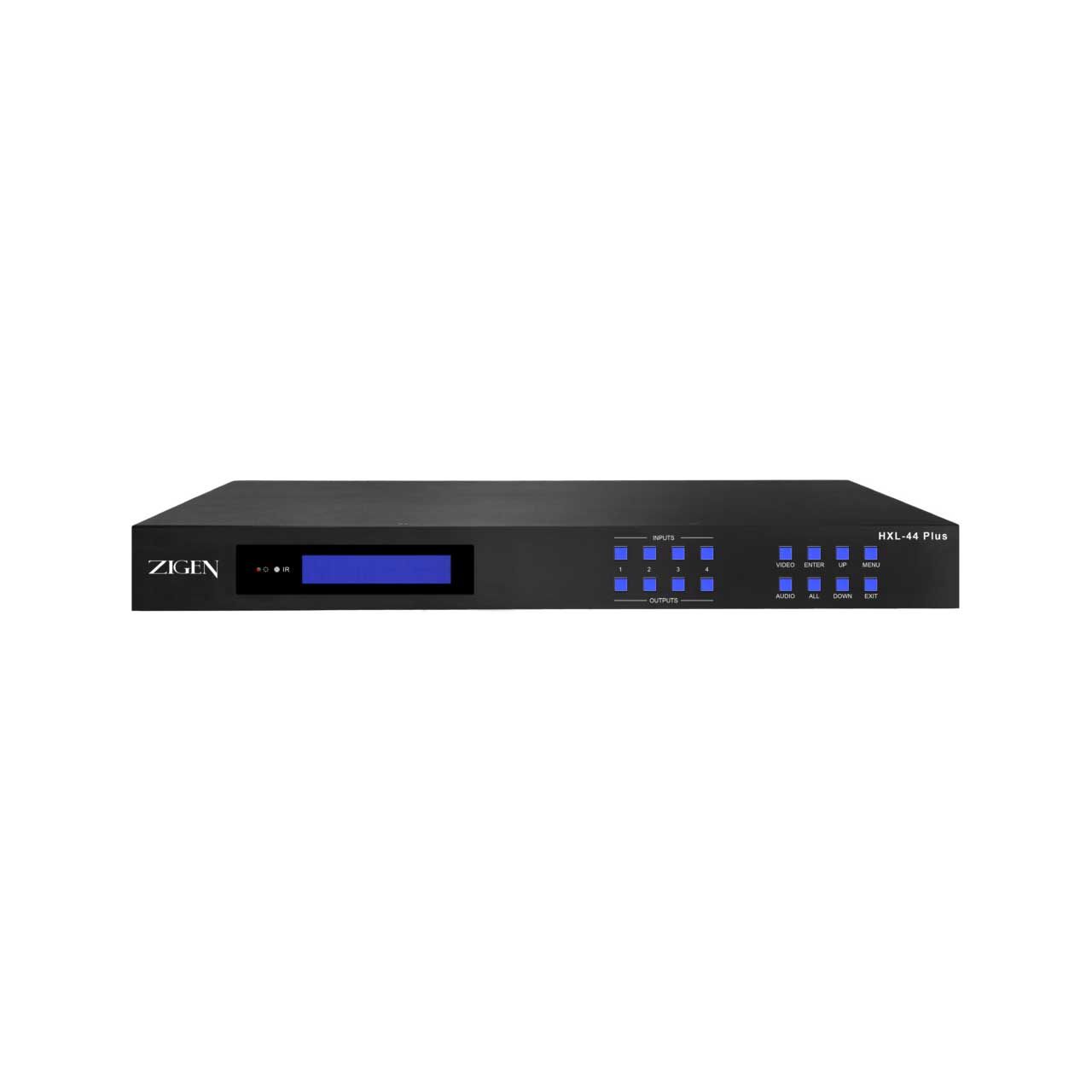

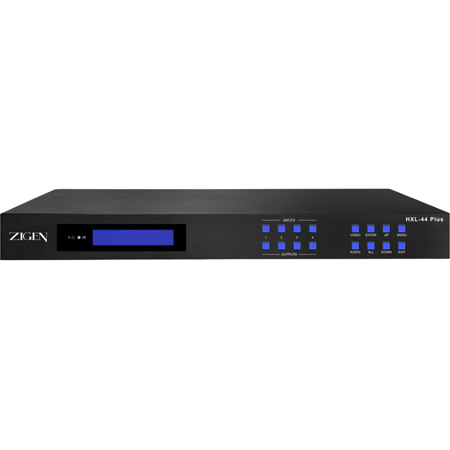

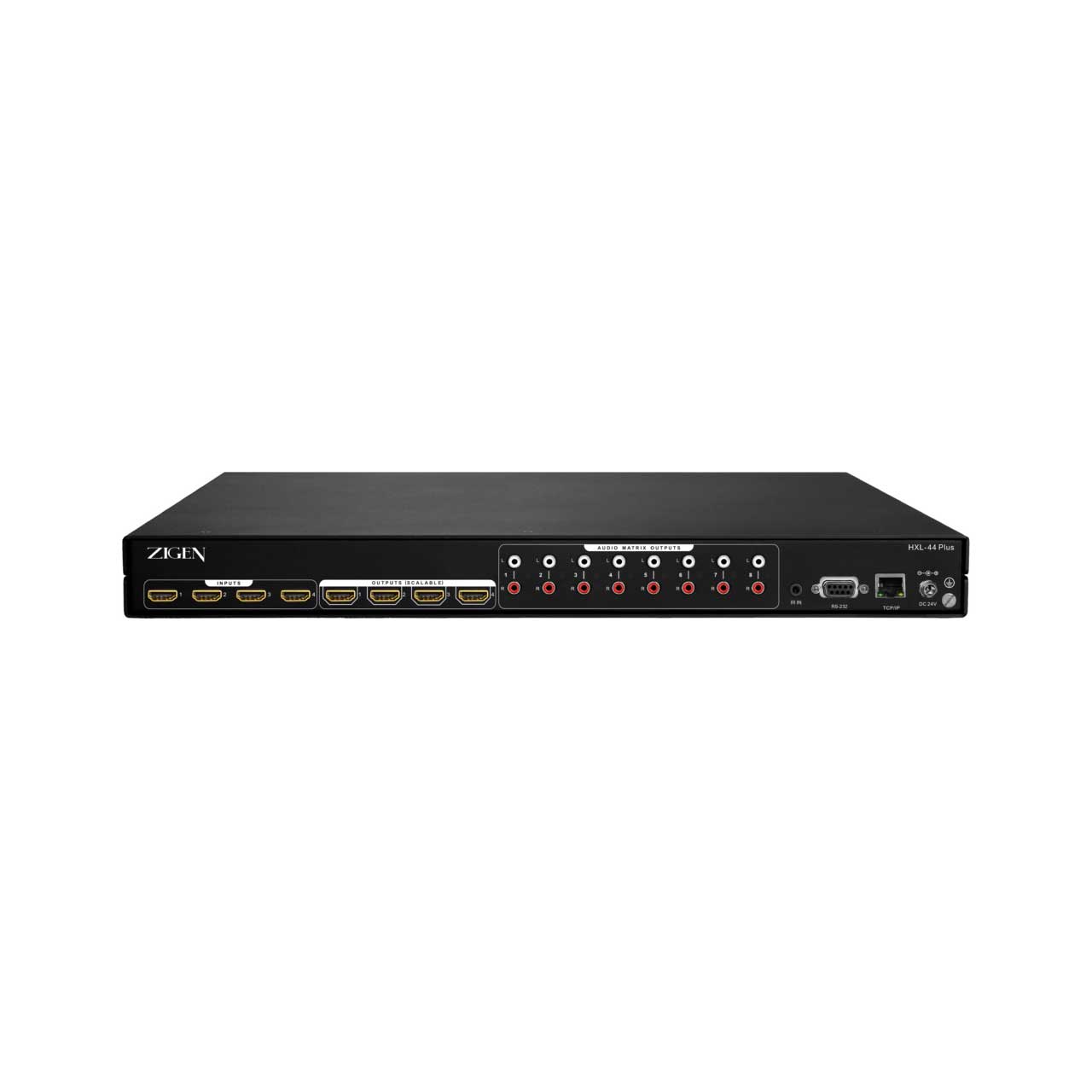

Zigen HXL-44PLUS HDMI 2.0 4x4 Matrix 4-In/4-Out with 4K/18G / IP / Diagnostics & 8-Zone Audio Matrix Out


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    HXL-44PLUS - Overview

    Today's 4K content requires 18-Gbps cross point switching with 12-bit Dolby Vision and 10-bit HDR support. Zigen has been a pioneer in the 4K video distribution space since 2010 with a multitude of award-winning products. Continuing that trend today, Zigen presents the HXL-44Plus series. The first 18-Gbps Matrices with built-in web diagnostics, Audio matrix, and independent scaled outputs for mixed resolution display environments.

    HXL-44Plus series matrix router allows you to de-embed audio from all HDMI sources and route it to any and all 8-zone outputs independently. All zones allow for independent control of 5-Band EQ, Preset EQ, Volume Attenuation, Tone control, L/R Balance, and Surround Effect.

    ZigNet, their free built-in diagnostics analyzer tool pulls real time data from all sources/displays and provides a visual overview of problems you may encounter with distributed systems. It eliminates the need for costly analyzers and time-consuming step by step troubleshooting. ZigNet may also be set-up to send system trouble alerts so that you can address issues before it becomes a problem.

    • Features:

      • Dolby Vision and ULTRA HD 4K Certified
      • HDMI 2.0 ([email protected] Hz (YUV 4:4:4, 8-bit)
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
      • Support 4x4 Video Matrix
      • Supports Independent Scaler per Output
      • Support 4x8 Audio Matrix
      • 5-Band EQ, Preset EQ, Volume Attenuation, Tone control, L/R Balance, Surround Effect.
      • Supports uncompressed PCM, Dolby Atmos, Dolby Digital, DTS, Dolby
      • TrueHD, DTS HD-Master Audio and more.
      • Supports Dolby Vision , HDR-10, HDR-10+ and HLG
      • Built in IR sensor plus 3.5mm jack and remote control
      • RS-232 - Control or integrate with 3-rd party control.
      • ZigNet Diagnostics
    • Specifications:

      • Video
      • Video Bandwidth: 18 GBPS
      • Video Resolutions: [email protected] Hz (YUV 4:4:4, 8-bit)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • HDMI: 2.0
      • HDCP: 1.4 / 2.2
      • Color Space: RGB, YUV
      • Color Bit Depth: 8-bit, 10-bit, 12-bit
      • HDR: Dolby Vision, HDR, HDR-10 and HLG
      • Input/Output: 4x4 I/O HDMI Interface
      • Scaler: Independent for each of the outputs
      • Scaler Options: From 4K to 1080p

      • Audio HDMI IN & OUT: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and All DTS-HD Master formats (HDMI Path)
      • Audio Sampling Rates: Up to 192 KHz (HDMI Path)
      • Analog Audio Sampling Rate: 96-KHz (RCA Path)
      • Audio IN: (HDMI ONLY)
      • Audio Out: 8x Unbalanced RCA L/R
      • Audio DSP: 5-Band EQ, Preset EQ, Volume Attenuation, Tone control, L/R Balance, Surround Effect

      • ESD Protection: Human Body Model: ±8kV (air-gap discharge), ±4kV (contact discharge)
      • EDID Management: Internal EDID bank or pull EDID from each display
      • Resolution Range: [email protected] to [email protected] 4:4:4
      • HDMI Cable Length: HDMI Up to 5M @ 4K/60Hz
      • HDMI Cable Distance (Using Zigen Premium Cable): HDMI- Up to 10M @ 4K/60Hz
      • Dimension (WxHxD): 17.20 x 1.73 x 9.31" (437x44x236.5mm)
      • Temperature: 14° to 122°F (-10° to 55°C)
      • Reference Humidity: 10 to 90%
      • Weight: 3.85Lbs (1.75kg)
      • Power Consumption: 14W (Max)
      • Power Supply: 24VDC, 1.25A
