Telecast PY3-AAAA-ST16 Python 3G Transmitter 16 HD-SDI - No WDM
  • Telecast PY3-AAAA-ST16 Python 3G Transmitter 16 HD-SDI - No WDM
  • Telecast PY3-AAAA-ST16 Python 3G Transmitter 16 HD-SDI - No WDM

Questions? Ask a Markertek Expert:
800-522-2025 Email

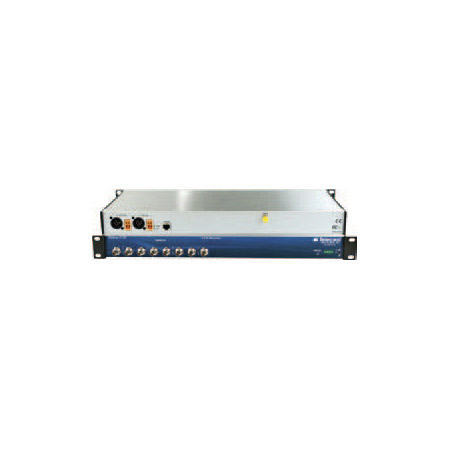

Telecast PY3-AAAA-ST16 Python 3G Transmitter 16 HD-SDI - No WDM

Item #: PY3-AAAA-ST16   •   MFG #: PY3-AAAA-ST16



List Price:$10,000.00
Our Price:$9,759.55

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Required Accessories

The Python 3G is your answer to lowering the cost of digital video distribution, simplifying your cable plant and eliminating all concerns about distance, interference and grounding. The Python 3G converts up to 2 groups of 8-channels of HD-SDI to fiber optic transport,
all in a compact 1RU frame. Select a transmitter and a receiver frame for eight or sixteen channels, for example, in one direction. Select two transceiver frames for eight channels in each direction.
In addition, Python 3G uses CWDM optical multiplexing options to carry up to 16 HD signals on a single optical fiber.
The Python 3G offers the industry's broadest range of digital transmission rates while maintaining the quality that broadcasters demand. It supports numerous interface standards, including applicable SMPTE, ATSC, and DVB recommendations. No matter what your format, from 19.4 Mbps to 3 Gbps, the Python 3G allows you to implement it.

143 Mbps NTSC composite
177 Mbps PAL composite
270 Mbps serial component
DVB/ASI
360 Mbps serial component and compressed HDTV
540 Mbps proprietary


  • Features

    • Economical, low profile packaging
    • 4 to 16 channels per 1RU
    • Wide range of digital formats
    • 19.4 Mbps to 3 Gbps transport
    • Compatible with digital TV standards
    • SMPTE 292M, 259M and 424M
    • Handles DVB/ASI signals
    • Immune to pathological data errors
    • Equalizes coax up to 3 Gbps
    • BNC I/O
    • Wide optical budget
    • Low system jitter
    • Low power consumption
    • High reliability, durable design
    • CWDM multiplexing options
    • Compatible with other Telecast Series
    • HD/SD-SDI transport systems

  • Specifications

    • Transmission method: Digital
    • Input level: 800 mV p-p
    • I/O impedance: 75 ohm
    • Return loss >15 dB, 5 Mhz - 1.5 GHz
    • >10dB, 1.5GHz-3GHz
    • Coaxial Input
    • equalization: Maximum rate: 3 Gbps
    • Equalization at 3 Gbps: 120 m of
    • Belden 1694A
    • Bit-error rate at -22 dBm
    • Rx optical power: 10-12
    • Jitter (using pathological data pattern): <0.2 UI
    • Operating wavelength: 1310 nm or 1550 nm, optional
    • CWDM available
    • Link margin: Up to 22 dB
    • Transmitter output
    • power options: -7 dBm
    • Receiver sensitivity: -20 dBm
    • Optical source: Laser diode
    • Optical detector: PIN
    • Fiber type: Single-mode
