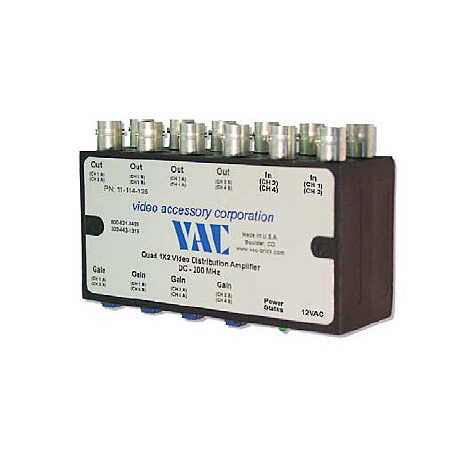

VAC 11-514-125 Composite Quad DA

ITEM #: 11-514-125 MFG #: 11-514-125

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the 11-514-125

11-514-125 - Overview

Quad four 1x2 Composite Video DAs, Std. Input, Ind. Var. Gain, BNC Connectors, FlexPwr

  • Specifications:

    • Bandwidth DC - 200 MHz (-3dB)
    • Input Signal Level 0.5 - 2Vpp (OV DC offset)
    • Input Configuration Standard (75 Ohms)
    • Input Coupling DC
    • Input Connectors BNC
    • Output Connectors BNC 8 Outputs
    • Gain Individual Variable
    • Output Series Impedance Standard (75 Ohms)
    • Mounting Two threaded 6-32 Brass inserts
    • Power Supply FlexPwr
    • Power Connector Type Terminal Block
    • Power Status Power LED indicator
    • Temperature -40°C to 80°C
    • Humidity 0% - 95%
    • Dimensions 2.2" x 4.4" x 1.4"
    • 56mm x 112mm x 36mm
    • (Epoxy only without connectors)
    • Shipping Weight 3 lbs
    • 1.4 Kg
    • (Includes wall transformer)
