VAC 11-911-102 1x2 Composite Video Distribution Amplifier
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

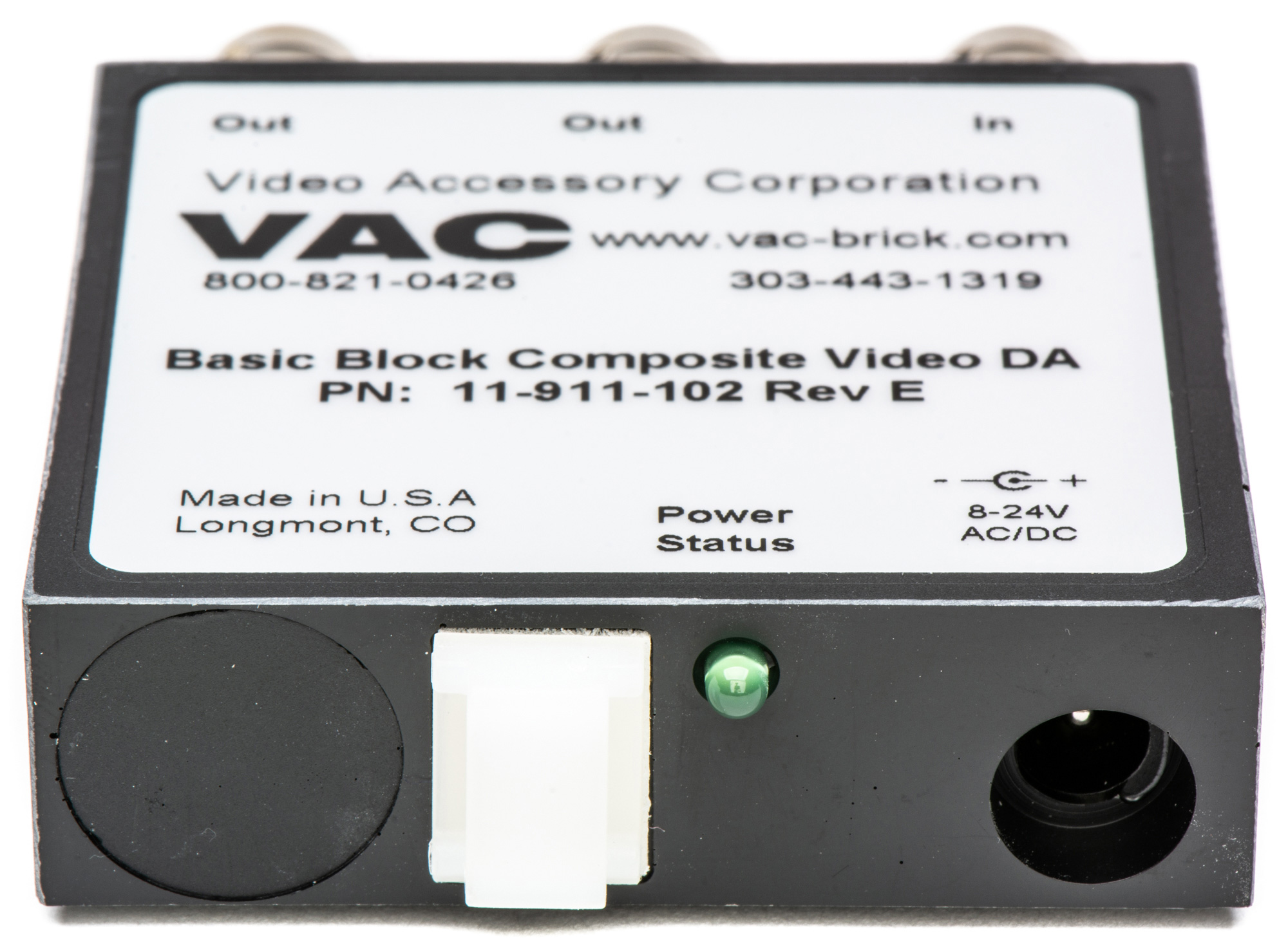

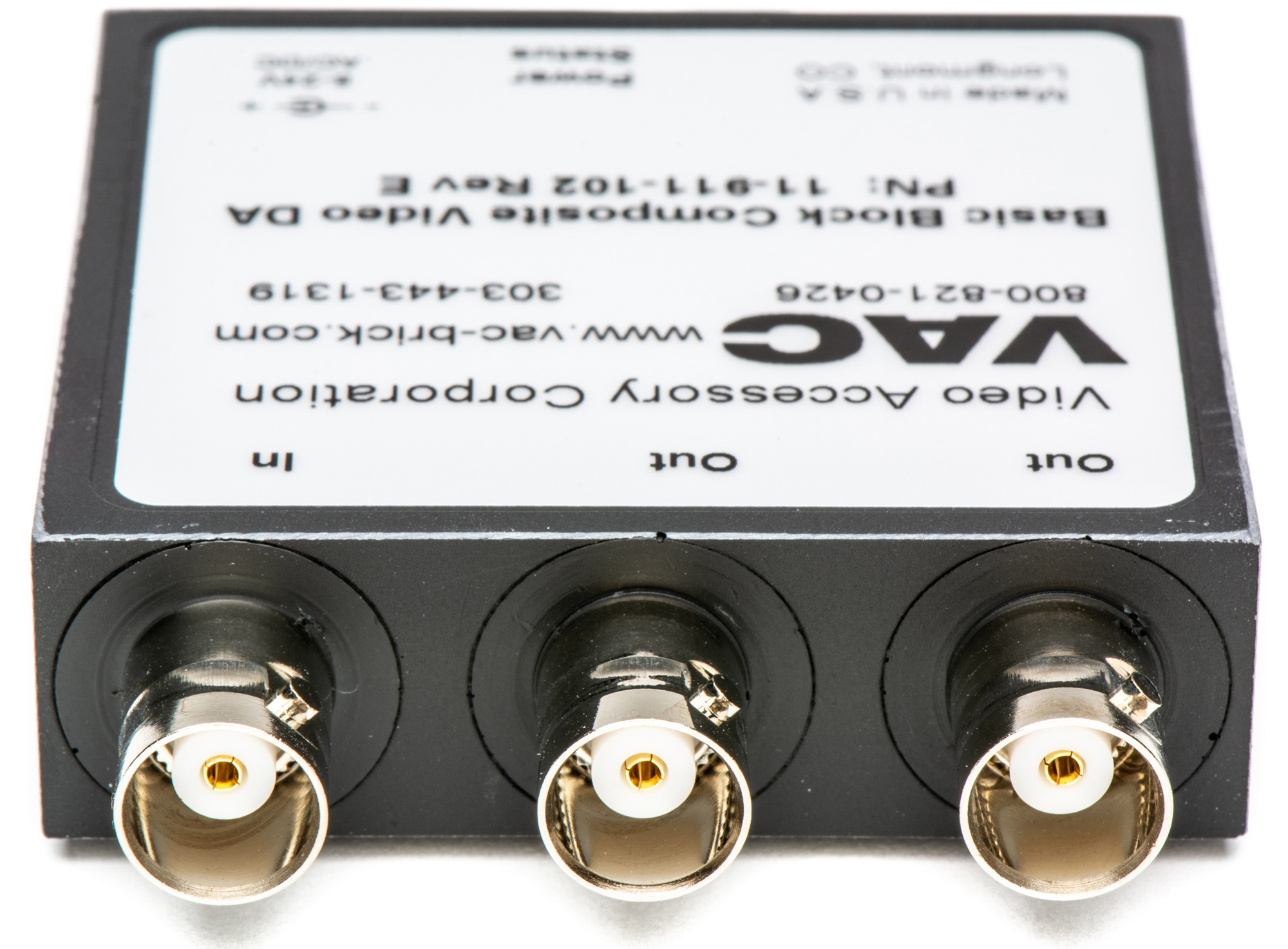

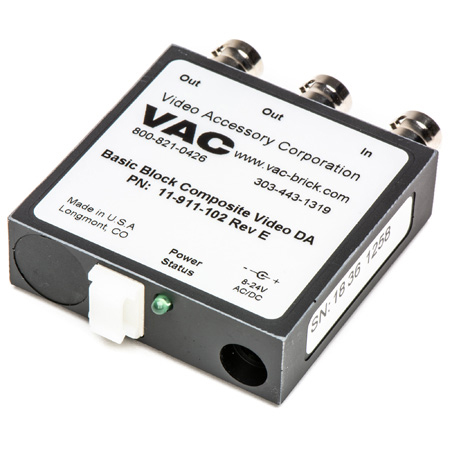

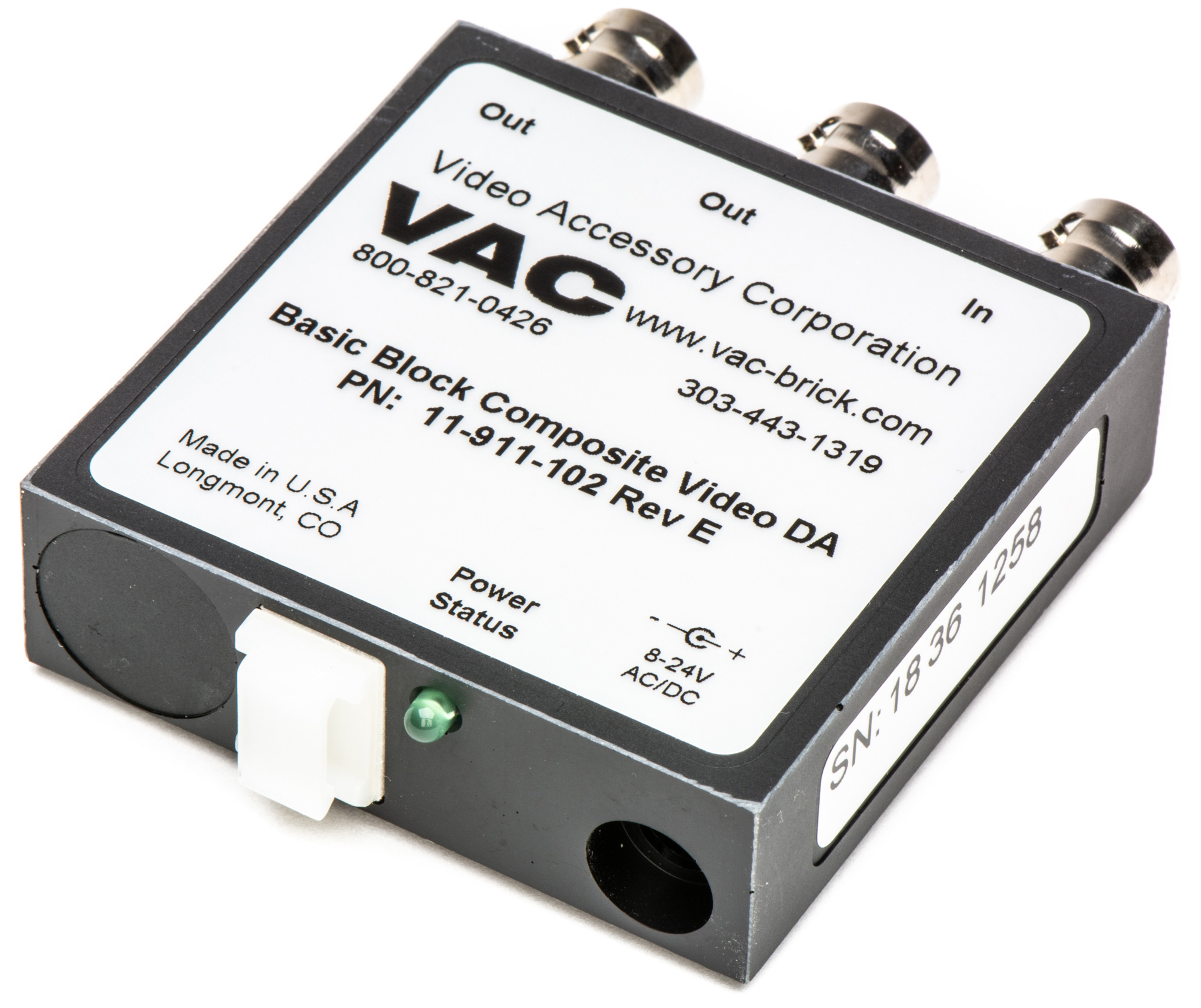

    VAC 11-911-102 1x2 Composite Video Distribution Amplifier

    Manufacturer: VAC

    Item #: 11-911-102   •   MFG #: 11-911-102


    List Price:$244.00
    Our Price:$229.49

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)



    1x2 Composite Video DA, Std. Input, Unity Gain, BNC Connectors, 10-24V AC/DC (Basic Block)

    • Features

      • Bandwidth DC - 200 MHz @ -3dB (1Vpp input signal)
      • Input Signal Level 0.5 - 2.0Vpp (within -1V to +1V range from ground)
      • Input Configuration Standard (75 Ohm)
      • Input Coupling DC
      • Input Connectors BNC
      • Output Connectors BNC 2 Outputs
      • Gain Unity
      • Output Series Impedance 75 Ohms
      • Mounting Two threaded 6-32 inserts
      • Power Supply 8-24V AC/DC
      • Power Connector Type P5 Connector
      • Power Status Power LED indicator
      • Temperature -40°C to 50°C
      • Humidity 0% - 95%
      • Dimensions 2.2" x 2.2" x 0.65"
      • 56mm x 56mm x 18mm
      • (Epoxy only without connectors)
