61-111-504 - Overview

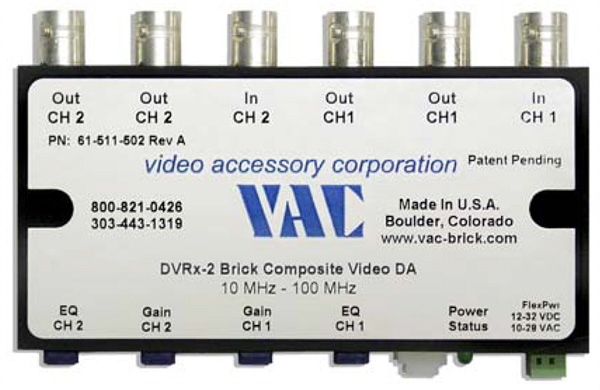

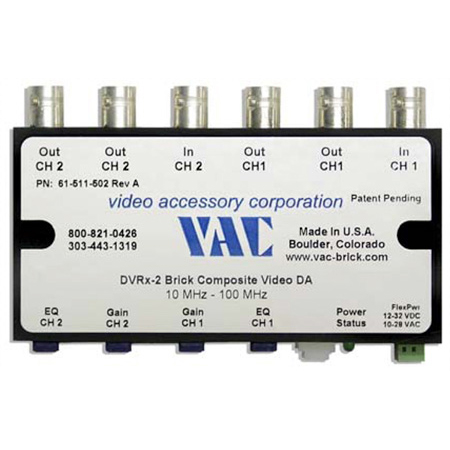

This DVRx brick is designed to allow easy conversion of a composite video signal from analog to digital. It provide optimization of the analog signal before sending it to the conversion source, like a DVR. This allows for higher quality signal without many of the problems encountered when trying to convert a poor quality analog signal. This unit ships with a 12V AC power transformer included.

  • Features:

    • Four 1x2s in same unit
    • Power 12V AC
    • Differential Input
    • Variable Global Gain
    • Variable Global Equalization
    • DC Restore
    • Operating temperature range: -40C to +50C
    • Fully encapsulated in epoxy
    • Size: 4.4"W X 2.2"D X 1.4"H (not including connectors)
    • Unit has two 6-32 threaded inserts for mounting
    • Configuration: four input, eight outputs


  • Specifications:

    • Mounting: Two threaded 6-32 inserts
    • Power Supply: 12V AC
    • Power Connector Type: P5
    • Temperature: -40C to +50C
    • Humidity: 0 - 95%
    • Size: Brick
    • Dimensions: 2.2" x 4.4" x 1.4"
    • Shipping Weight: 3 lbs
