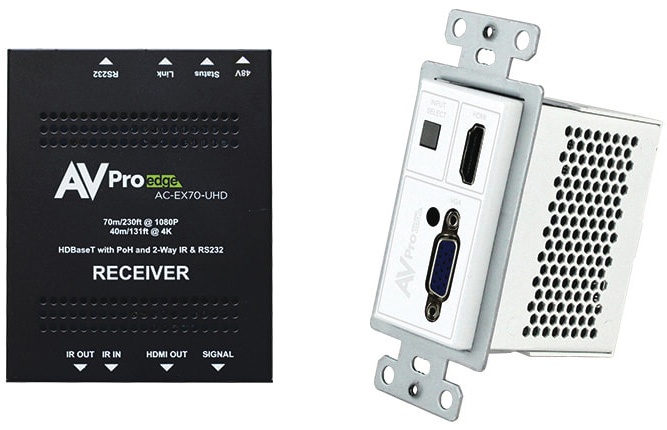

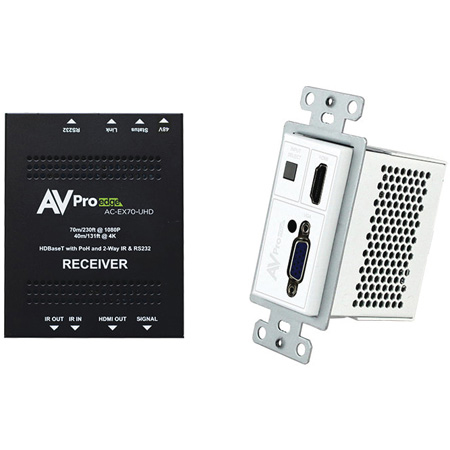

AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White
  • AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White
  • AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White
  • AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White
  • AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White
  • AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White


AVPro Edge AC-CXWP-VGA-70KIT VGA/HDMI Single Gang Decora Style Wall Plate HDBaseT Extender Kit - 70M HD/40M 4k- White

Manufacturer: AVPro Edge

Item #: AC-CXWP-VGA70KIT   •   MFG #: AC-CXWP-VGA-70KIT



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the AC-CXWP-VGA70KIT

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





AVPro Edge's auto-switching HDBaseT wall plate is a single-gang, dual input VGA & HDMI auto sensing HDBaseT (over single CAT5e or better) Transmitter. Simplify installations in schools, offices, meeting rooms and huddle rooms with the AC-CXWP-VGA-70KIT Transmitter/Receiver kit. Once integrated into your client's system he now has the perfect solution for sharing information from any computer or source. This unit is designed to work flawlessly with all PC, VESA and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. VGA supports DCI 2K, 1080P, 1920x1200x60. In addition to its compact and robust design, it transmits the digital signal up to 100 meters (328') giving you ultimate flexibility, especially in large rooms like libraries or auditorium style rooms/classrooms. AVPro Edge's Military grade performance insures system stability for years to come.

Key benefits of using AC-CXWP-VGA:

  • Ultra High Defenition: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user. Our AC-CXWP-VGA-T supports 4K up to 70M (230ft) with crystal clear 4K Resolution & 100M (330ft) on 1080P
  • Distance: By using AC-CXWP-VGA-T, the transmission distance for HD 1080P is 100 meters (330ft) & 4K is up to 70 meters (230ft)
  • Auto Sensing: This wall plate is designed to be a "Set it & forget it" piece of hardware. When the user plugs in their device (BYOD), the wall plate automatically senses the signal and makes it active. If both inputs are in use, there is a simple button on the front to toggle inputs.
  • Control: IR & RS-232 allow control of a rack or standalone projector or display.
  • Power: No local power required when you use the AC-EX100-UHD-R. Power is provided by ultra-stable PoE technology. Optionally you can power it locally for use with any HDBaseT Receiver.
  • Single Gange: Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever!
  • 4K Wall Plate Extender Applications:

  • Conference/huddle room configurations where many sources types can be used, like computers, players, etc...
  • Extends VGA and HDMI up to 100M (330FT) for large auditorium type scenarios.
  • To carry the control signals (IR/RS232) for third party control integration for turning components on and off and switching channels, etc.
  • Create simple presentation venues, with audio, that are plug and play and reliable
  • Auto sensing, so the end user has ZERO configuration - Anywhere where non-technical users will access the system.
  •
    • Features

      • HDMI 2.0 & VGA Inputs
      • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
      • HDR 4:2:2 12 Bit Support
      • DCI 2K, 1080P, 1920x1080x60 VGA Support
      • HDCP 2.2 & Earlier Supported
      • 70M (230ft) 0n 1080P, Up to 40m (131ft) on 4K (Cat6a)
      • CEC Pass Through
      • No Local Power Necessary (Powered by AC-EX100-UHD-R)
      • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
      • Rugged, long-life chassis
      • Plug & Play auto input sensing
      • Select-able input (If both are plugged in)
      • Designed for the conference/classroom room so your customer can focus on their meetings, not their video system.
      • 3.5mm Input for audio (with VGA input only)
      • Single UTP/STP LAN cable (CAT-5E/6A) for all signals
      • ESD protection circuitry (Inputs / Outputs) till 7KV.
      • Single Gang Construction (Fits Decora Type USA single gang boxes and mud rings)
      • Transfer IR & RS-232 signals from Tx to Rx (From Control Processor)
      • I-Pass Feature for control system "pass-through IR"
      • 3-20v protection circuit built in for safe IR transport
      • Compatible with HDBaseT displays, projectors, AVR's
      • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos.
      • Can Cascade for ultra-long distance

    • Specifications

        Video
      • Video Resolutions: Up to 4k60 4:2:0 & 4k30 4:4:4
      • Vesa Resolutions: Up to 2560x2048 (QSXGA)
      • HDR Resolutions: 4k24 4:2:2 12 bit, 4k24 4:2:0 10 bit
      • VGA Resolutions: Up to DCI 2K, 1080P 60, 1900x1080x60
      • Color Space: YUV, RGB (CSC:REC. 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampeling: 4:4:4, 4:2:2, 4:2:0 supported
      • Deep Color: Up to 12 bit with 4K

        Audio
      • Audio Formats Supported: PCM 2.0 CH, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dobly Atmos

        Distance
      • Distance 1080p: 70M (230 feet)
      • Distance 4K & HDR: 40M (131 feet) (with Cat6A/7)

        Other
      • Bandwidth: 10.2 GBPS
      • CEC: Yes
      • HDCP: HDCP 2.2 and earlier

        Environment
      • Operating Temperature: 23 to 125°F (-5 to 51°C)
      • Storage Temperature: - 4 to 140°F (-20 to 60°C)
      • Humidity Range: 5-90% RH (no condensation)

        Power
      • Power Consumption: 8 watts (16.5 when paired)
      • Power Supply: Input - AC 100-240V ~ 50/60Hz; Output - DC 5V 2A (mini USB)

        Dimensions
      • Unit Only (H x D x W): 2.75 inch x 2.55 inch x 1.22 inch (70 x 65 x 31 mm)(without wall decora cover)
      • Wall Space: Single gange
      • Compatible Box Types: Mud rings, stud mount, clamp mount, metal & plastic boxes, LV boxes.
      • Weight: .3 lbs / .14 kg
      • Packaged Weight: .8 lbs / .36 kg

    • Item Includes

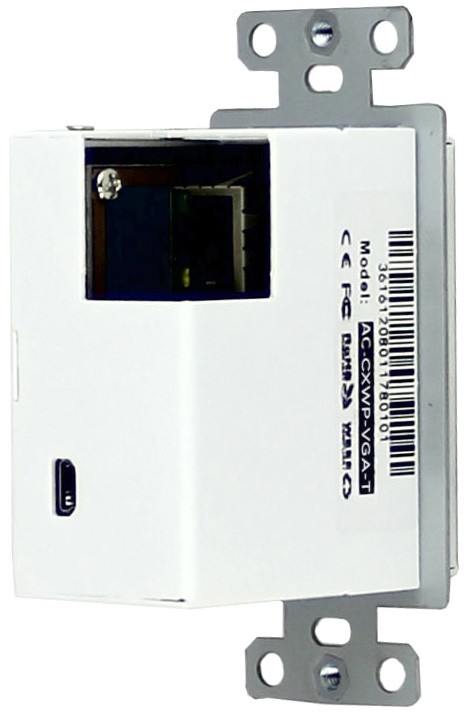

      • AC-CXWP-VGA-T (Transmitter)
      • Decora Wall Plate Cover (White)

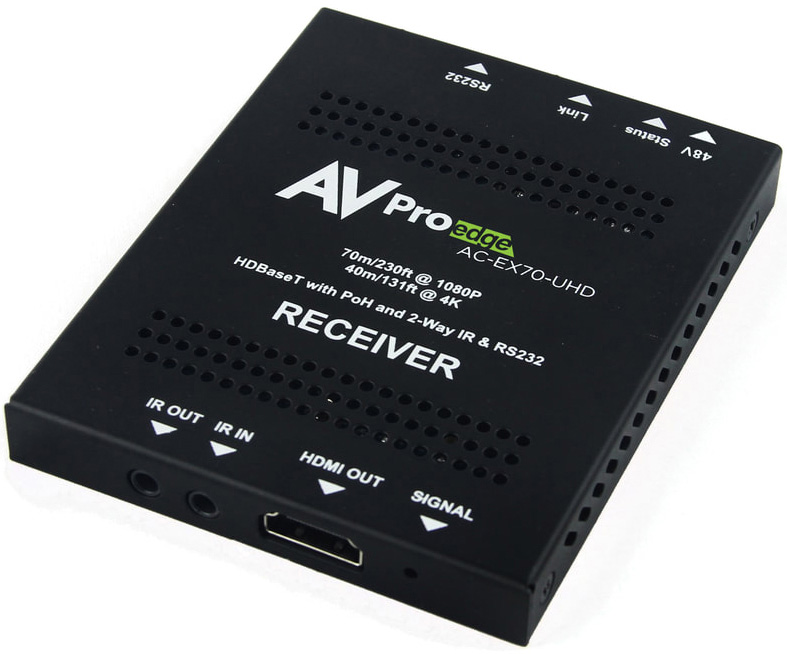

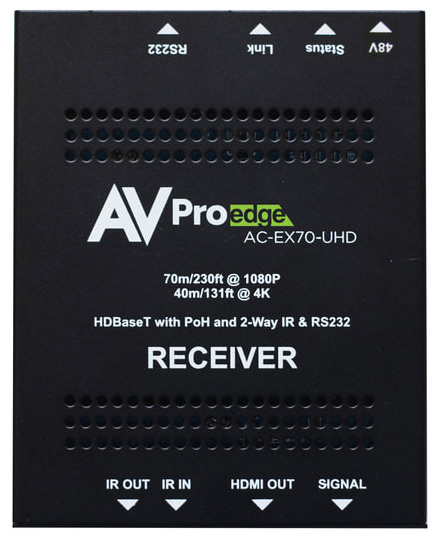

      • AC-EX70-UHD-R
