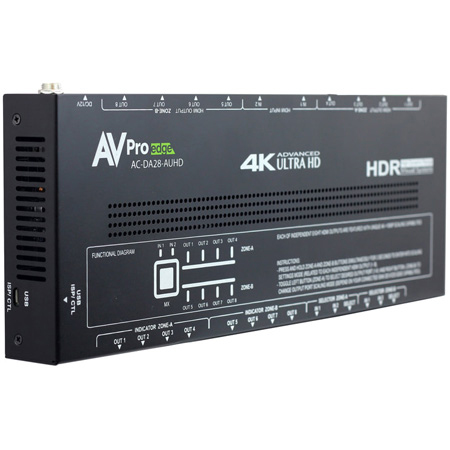

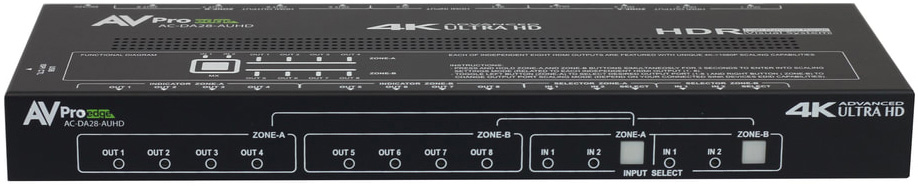

AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones
  • AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones
  • AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones
  • AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones
  • AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones
  • AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones

Questions? Ask a Markertek Expert:
800-522-2025 Email

AVPro Edge AC-DA28-AUHD 18Gbps 4K60 (4:4:4) Dual Input 8 Output Distribution Amplifier with Two Output Zones

Manufacturer: AVPro Edge

Item #: AC-DA28-AUHD   •   MFG #: AC-DA28-AUHD




Our Price:$885.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

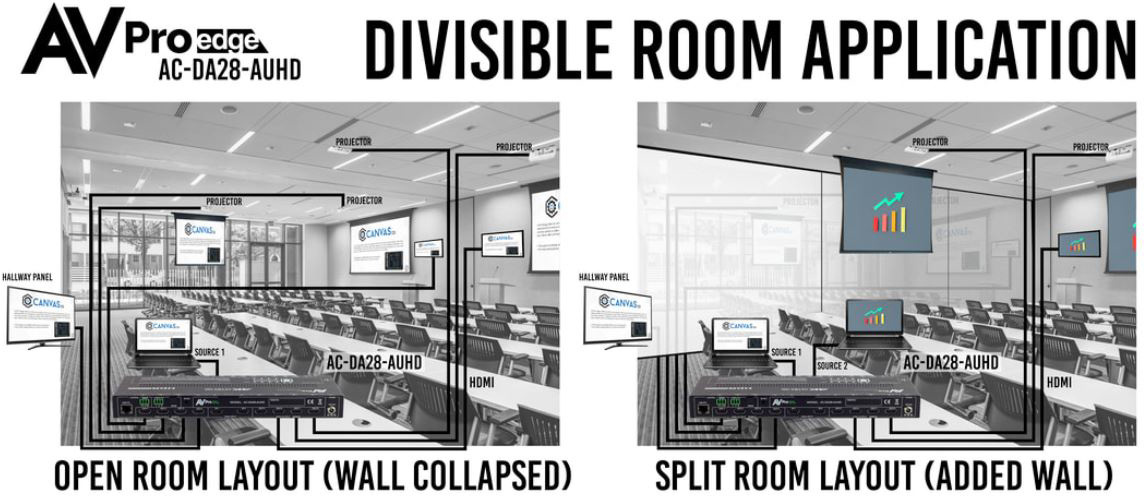

    The AC-DA28-AUHD is a member of the true 18Gbps Distribution Amplifier family. What makes this D.A. so unique is the ability to switch it's inputs between two independent zones. Take advantage of this 2x8's capabilities with built in scaling, EDID management and audio extraction. This amplifier is ready for all of todays highest bandwidth content, the AC-DA28-AUHD is able to handle 4K60 (4:4:4) with every type of HDR including Dolby Vision. This power house comes in a nice slim chassis allowing you hide the device anywhere in your installation.

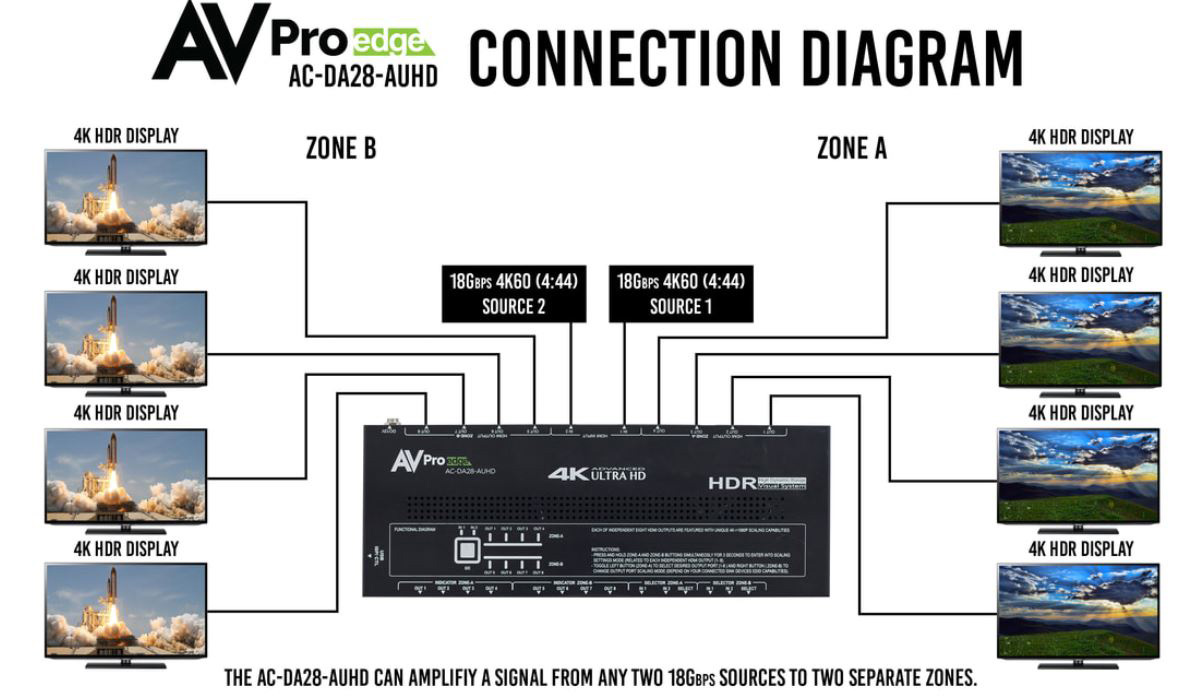

    This 2x8 distribution amplifier is ideal on all applications where stable signaling is key. This distribution amplifier can also be cascaded. Meaning you are able to come out of the output of your first unit, into a second unit's input to give you 8 additional outputs ports. Now you have the ability turn this 2x8 into a 2x64 or even larger by adding additional AC-DA28-AUHD's.

    Full 18Gbps and HDR support ensures military grade stability even at the highest of bandwidths. Install the distribution amplifier with confidence in your next bar, restaurant, digital signage, commercial or residential install and see the difference.

    Where Do These Fit?
    These devices are used in almost any 1 to many applications. The fact that we are 18 Gbps means anyone who wants to distribute 4K UHD with HDR will need to upgrade soon.

    Think:
    Retail signal distribution - Big Box Stores & Local Retail for Advertising; School's & Office's for Info-boards - 1000's of new accounts just opened up to you!
    Bars & Restaurants - a very simple way to "split" the signal to show in multiple locations.
    Digital Signage - low cost method for airports, rail, subway and more to distribute high value 4K signals
    A word on Cascading - need more displays? Just connect an output to the next devices input (all 3 are cross compatible) and keep stringing the displays together - now you have a 1 x 50 AUHD DA!


    • Features

      • HDMI 2.0(a/b)
      • 18Gbps Bandwidth Support
      • 4K60 4:4:4 Support
      • Full HDR Support (HDR 10 & 12 Bit)
      • Dolby Vision, HDR10 (10+) and HLG Support
      • HDCP 2.2 (and all earlier versions supported)
      • 2 HDMI Inputs
      • 2 Switchable Output Zones
      • LAN Web GUI Control and full API
      • Remote Status Monitoring
      • Advanced EDID Management
      • Digital Toslink Out
      • Locking Power Connector
      • Cascadable

    • Specifications

      • Video & Audio
      • Video Resolutions: up to 4k 60Hz 4:4:4
      • VESA Resolutions: up to DCI 4K (4096x2160)
      • HDR Formats/Resolutions: 420, 422, 44 (10 and 12 deep color); HDR10, HDR10+, Dolby Vision (60), HLG
      • Color Space: YUV (component), RGB (SCS: REC. 601, REC. 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 supported
      • Deep Color: up to 16 bit (1080), up to 12 bit (4K)
      • Audio Formats Supported HDMI: PCM 2.0 ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos

        Distance
      • HDMI In/Out (4K60 4:4:4): up to 50 feet (using bullet train HDMI)
      • HDMI In/Out (with AOC cable) (4K60 4:4:4): up to 130 feet (using bullet train AOC)

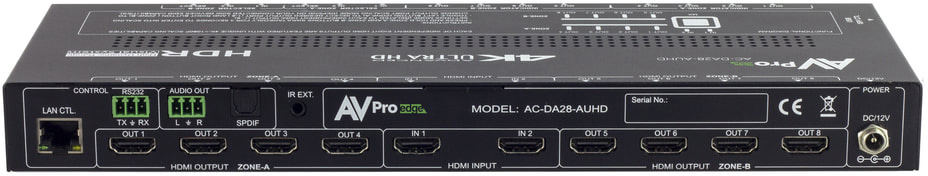

        Ports
      • LAN: RJ45 with web interface/control
      • Firmware: Mini USB

        General
      • Bandwidth: 18 GBPS
      • HDCP: HDCP 2.2 and earlier
      • Operating Temperature: 23 - 125° F (-5 - 51° C)
      • Storage Temperature: -4 - 140° F (-20 - 60° C)
      • Humidity Range: 5 - 90% RH (no condensation)
      • Power Consumption (Total): 4 Watts Max.
      • Power Supply - Matrix: Input: AC 100-240V ~ 50/60 Hz; Output: DC 12V 2A
      • Dimensions (H x D x W): 1.06" x 3.69" x 9.25" (26.9mm x 93.7mm x 234.95mm)
      • Weight: 1.36 lbs (.62 kg)

    • Item Includes

      • AC-DA28-AUHD
      • 12V Locking Power Supply (100-240v input)
      • Mounting Ears
