Allen & Heath DT164-W 16 XLR Input / 4 XLR Output 96kHz Dante Wall Mount

ITEM #: AH-DT164-W MFG #: DT164-W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    DT164-W - Overview

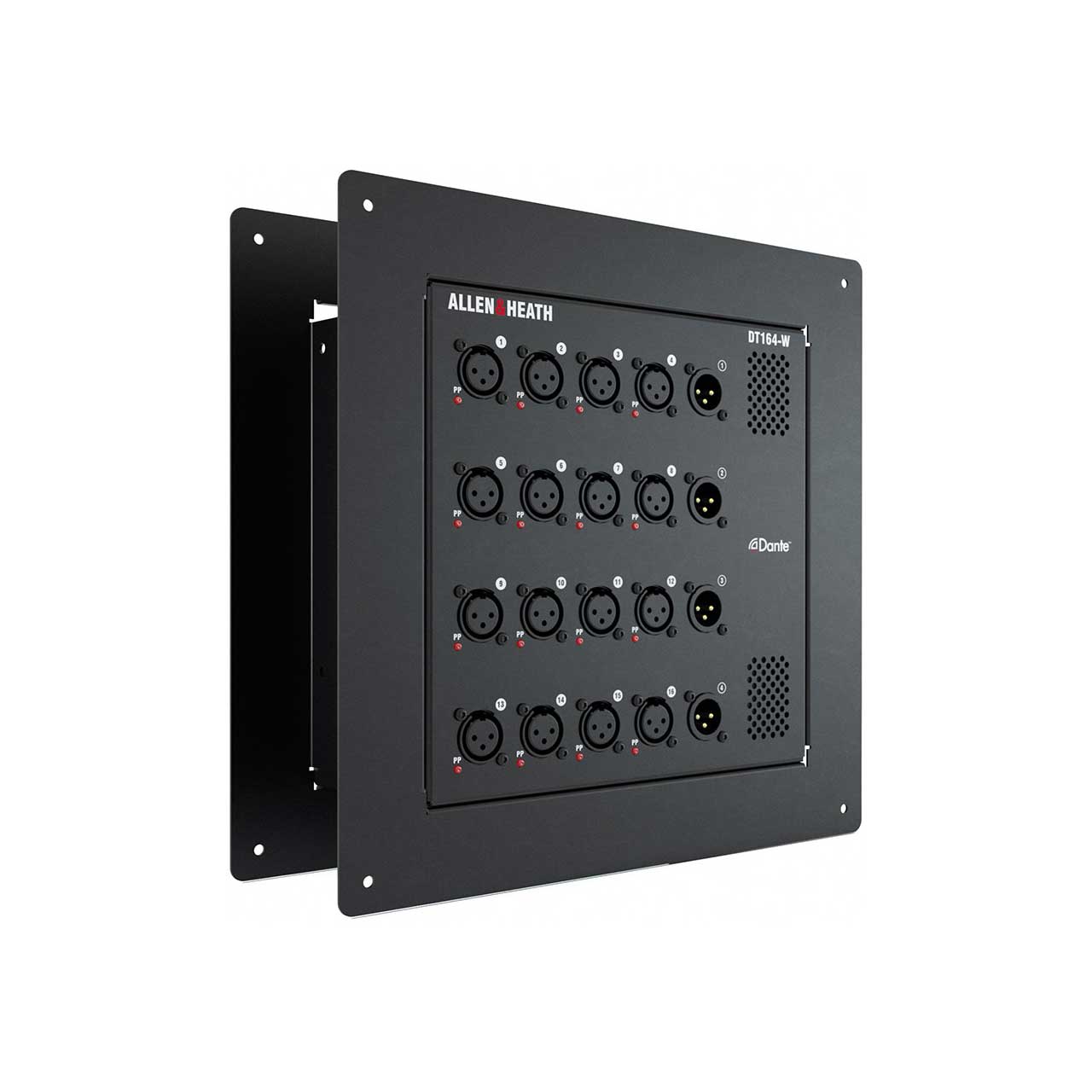

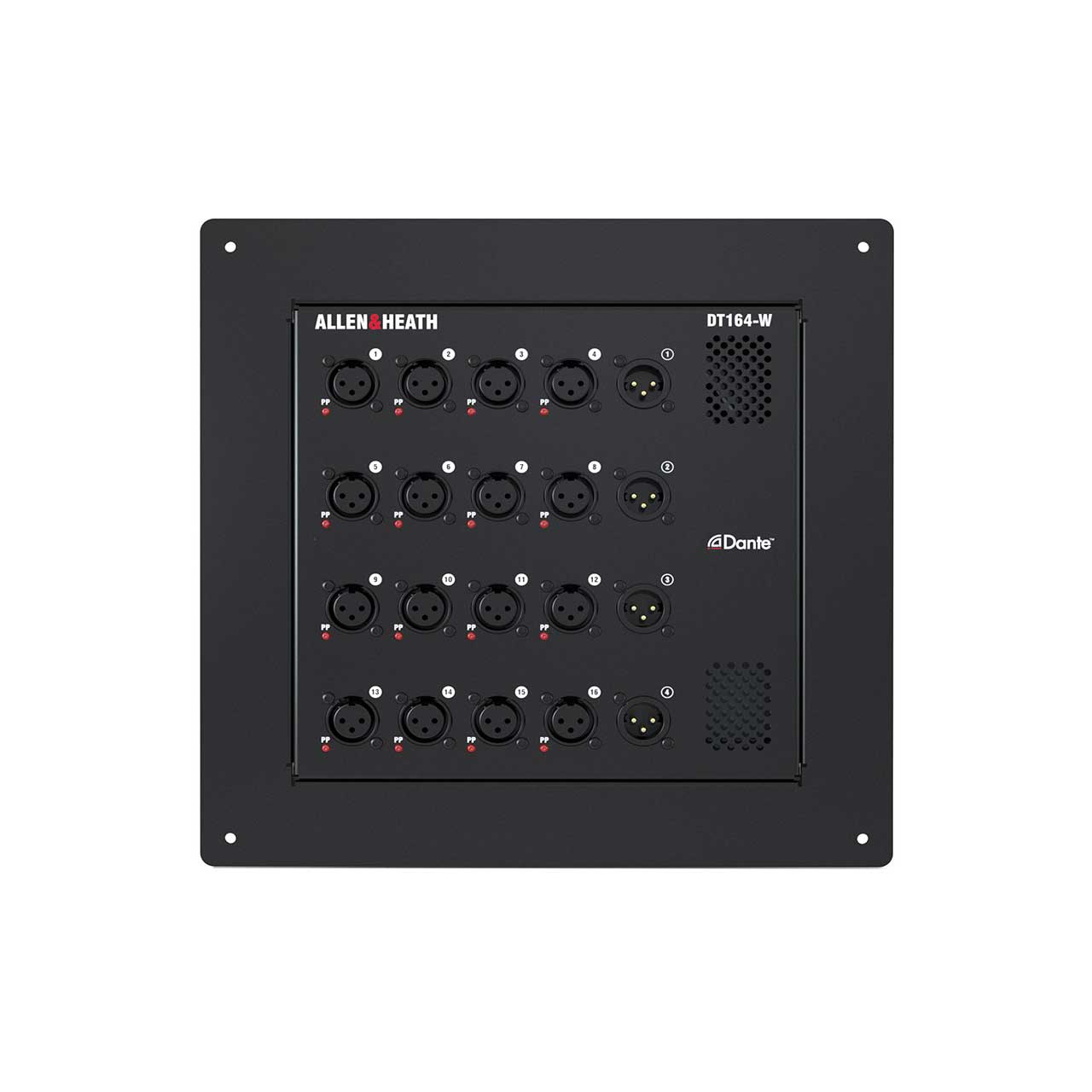

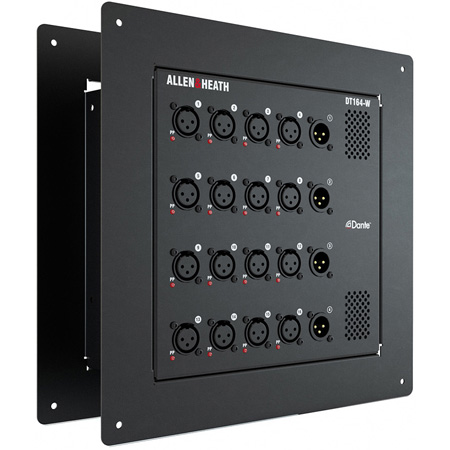

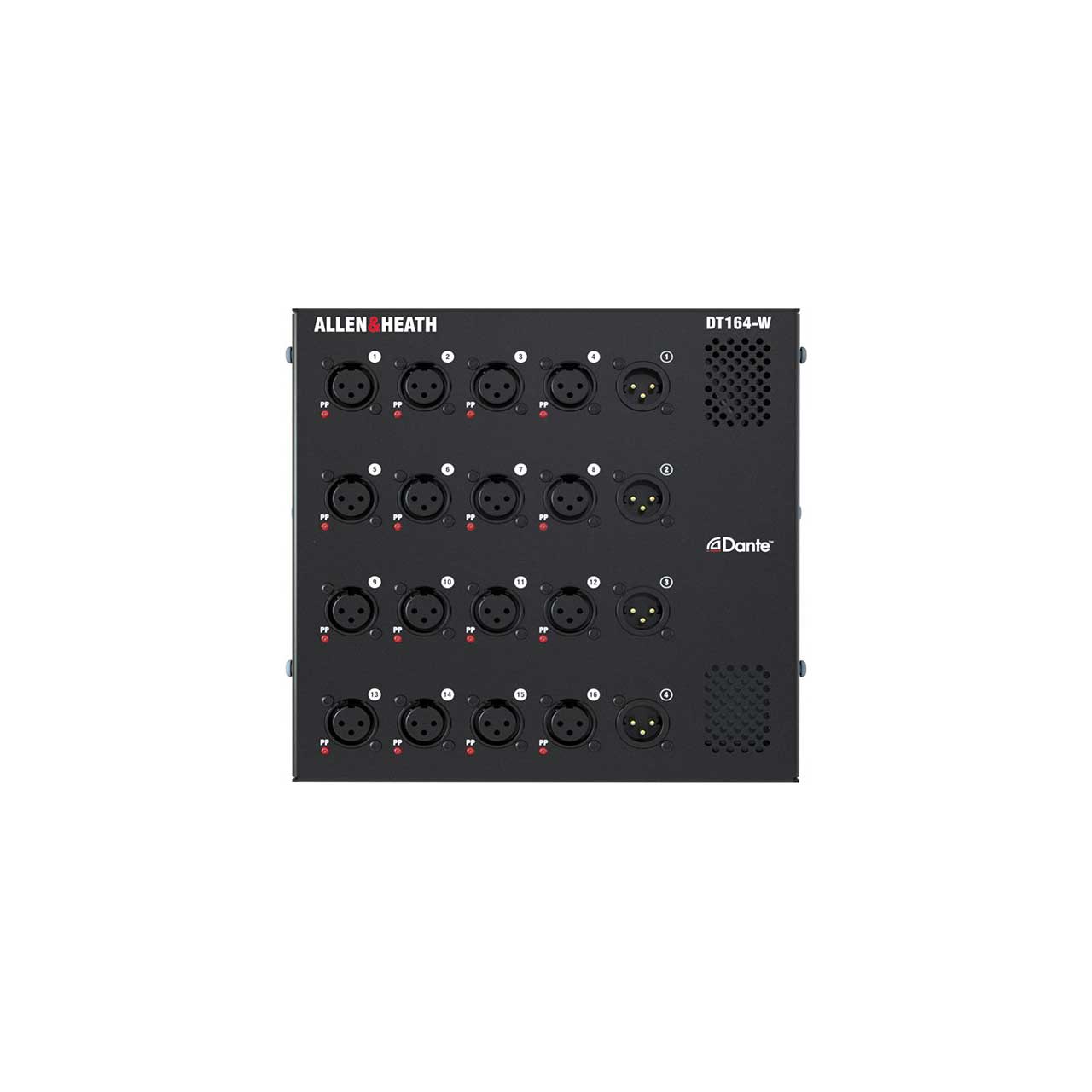

    The Allen&Heath DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided.

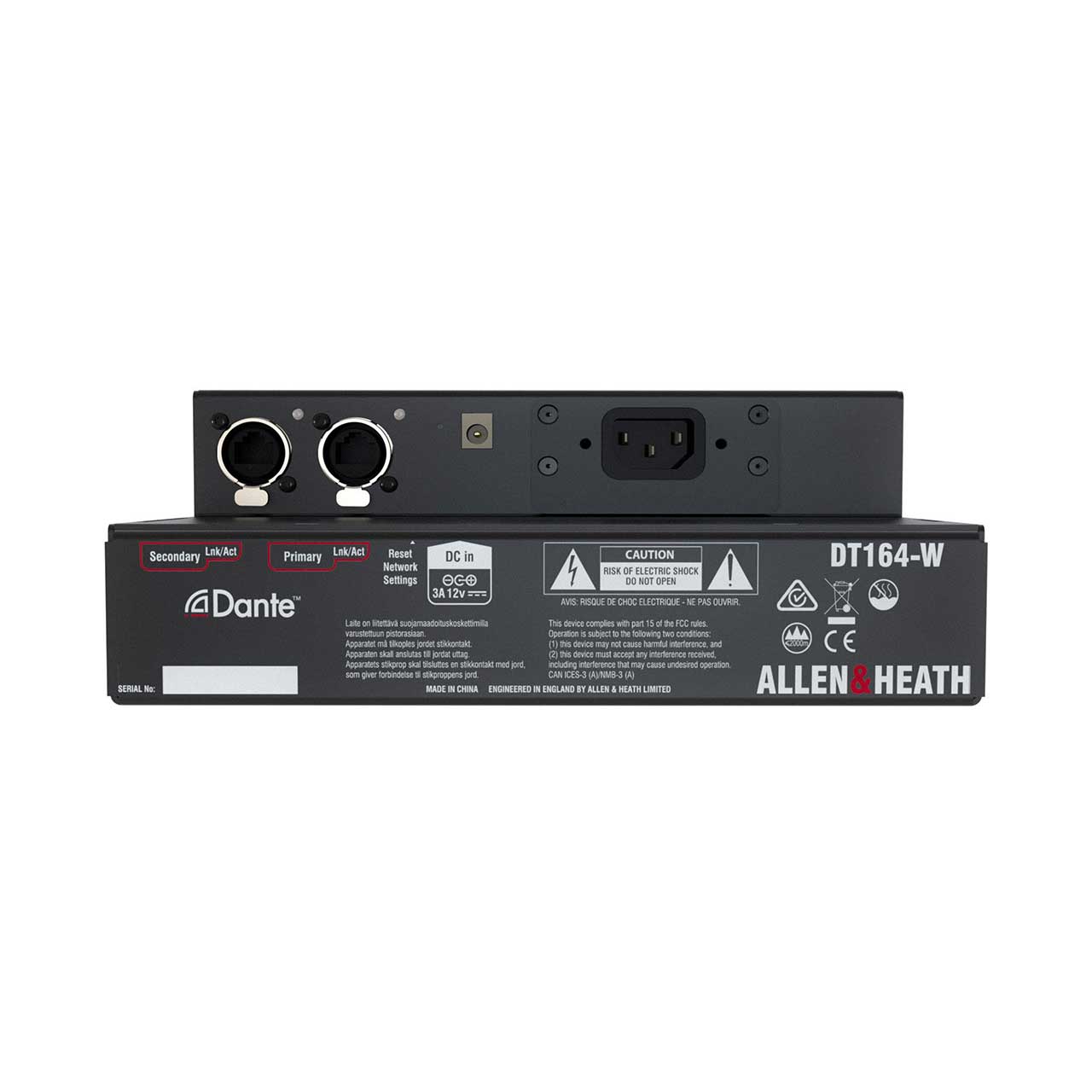

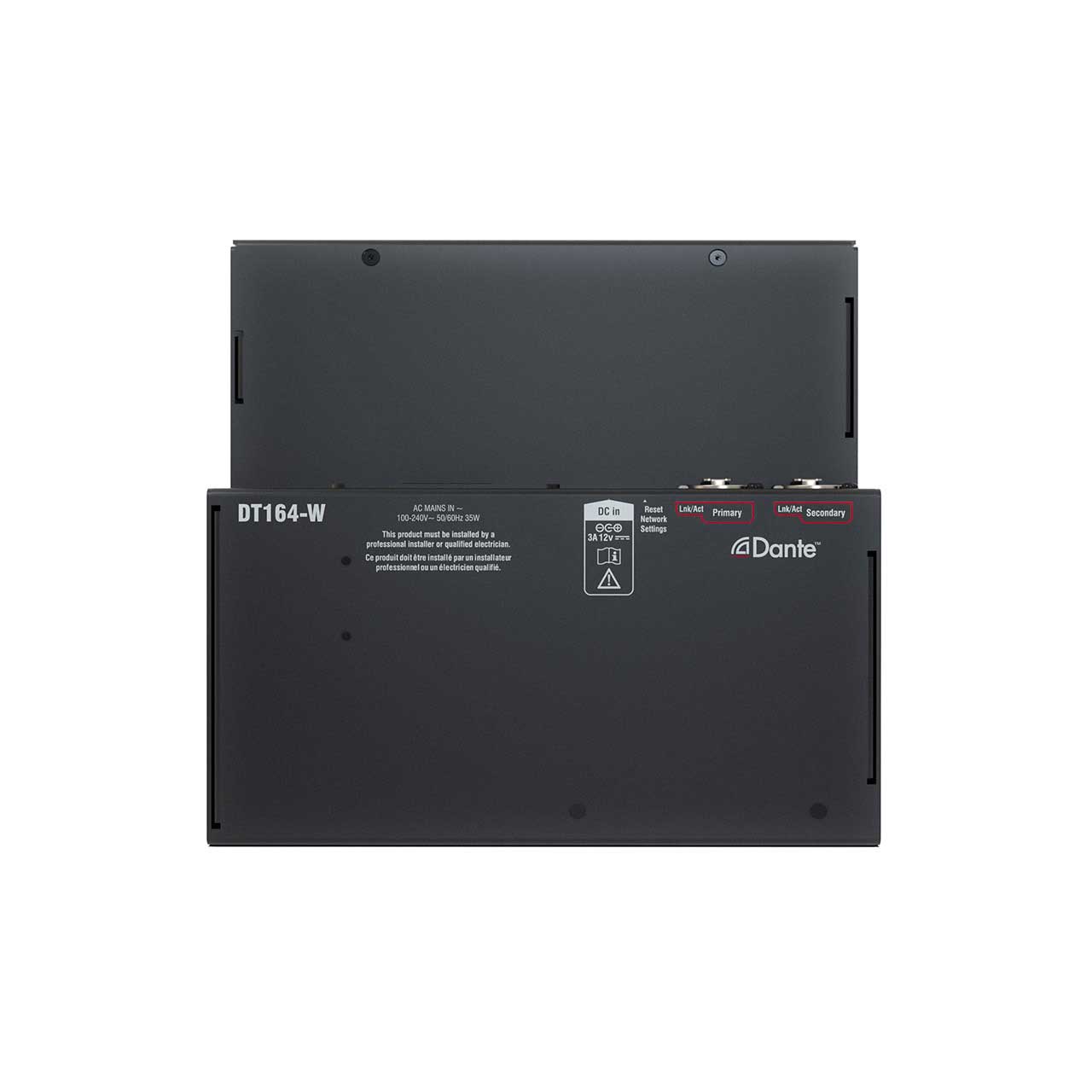

    DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.

    With dLive
    Up to 6 DX164-W units can be connected to a standard dLive system - 4 via the MixRack and 2 via the Surface - allowing up to 96 remote inputs and 24 remote outputs in addition to those provided by the MixRack and Surface. Up to 46 units can be added to a dLive system via a DX Link card or DX Hub (808 analogue inputs, 224 analogue outputs).

    The DX164-W connects via a single Cat5e cable (Ethernet based Layer 2) to the dLive Surface, MixRack, DX Hub or upstream DX164-W / DX168 via a secure etherCON port. A second locking etherCON port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX164-W or DX168 for additional remote I/O.

    With AHM-64
    Two units can be daisy chained and connected directly to an AHM-64 SLink port. Up to 8 DX164-W units can be added to an AHM-64 system via a DX Hub and freely patched to the 64 input channels.

    With Avantis
    Two units can be daisy chained and connected directly to an Avantis SLink port. Up to 16 DX164-W units can be added to an Avantis system via DX Link card and/or DX Hubs.

    With SQ
    Two units can be daisy chained and connected directly to an SQ SLink port, with the optional SLink card for SQ enabling more connections. For a more distributed system, a DX Hub can handle up to 8 DX164-W or DX168 units in any combination, which can be freely patched to the SQ's 48 input channels.

    • Features:

      • Dante audio expander, 96kHz / 48kHz
      • Wall mount or dip trap installation
      • 16 mic preamps on XLR with Phantom Power status LEDs
      • 4 XLR Line Outs
      • Primary and Secondary Dante ports with locking EtherCon
      • Redundant or Switched mode
      • Direct preamp control from dLive, Avantis and SQ
      • 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
      • DC power can be used as redundant power supply
      • Can fit in a standard NEMA box (custom brackets required)
      • Compatible with ACE Backstage 174SLBK stage pocket system
      • AES67 compatible
      • Dante Domain Manager ready
    • Specifications:

      • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
      • Mic/Line Preamp: Fully recallable
      • Input Sensitivity: -60 to +15dBu
      • Analog Gain: +5 to +60dB, 1dB steps
      • Pad: -20dB Active PAD
      • Maximum Input Level: +30dBu (PAD in)
      • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
      • Mic EIN: -127dB with 150? source

        Analog XLR Outputs - Balanced, Relay protected
      • Output Impedance: <75Ω
      • Nominal Output: +4dBu = 0dB meter reading
      • Maximum Output Level: +22dBu
      • Residual Output Noise: -92dBu (muted, 20-20kHz) -90dBu (muted, 20-40kHz)

      • Mains Voltage Operating Range: 100-240V AC, 50/60Hz
      • Mains Power Consumption: 35W max
      • DC Input: 12V DC, 3A max

      • Operating Temperature Range: 0°C to 35°C (32°F to 95°F)
      • Dimensions and Weight: 210 x 87 x 210 mm x 3.2kg (8.25" x 3.5" x 8.25" x 7lbs)
