AIDA Imaging AIDA-HD-NDI-CUBE FullHD NDI|HX / SRT / RTSP & RTMP / IP POV Camera with 3 Inch Progressive Scan CMOS Sensor

ITEM #: AIDA-HD-NDI-CUBE MFG #: AIDA-HD-NDI-CUBE

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$395.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AIDA-HD-NDI-CUBE - Overview

    Making NDI|HX even smaller..

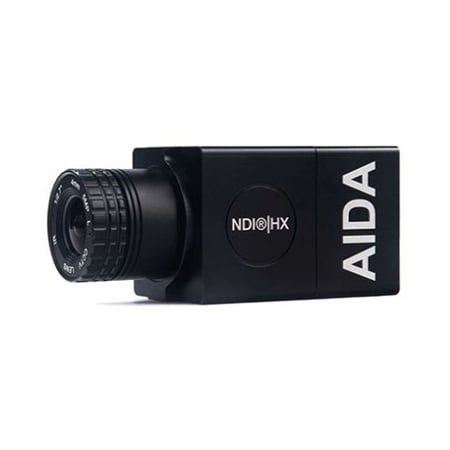

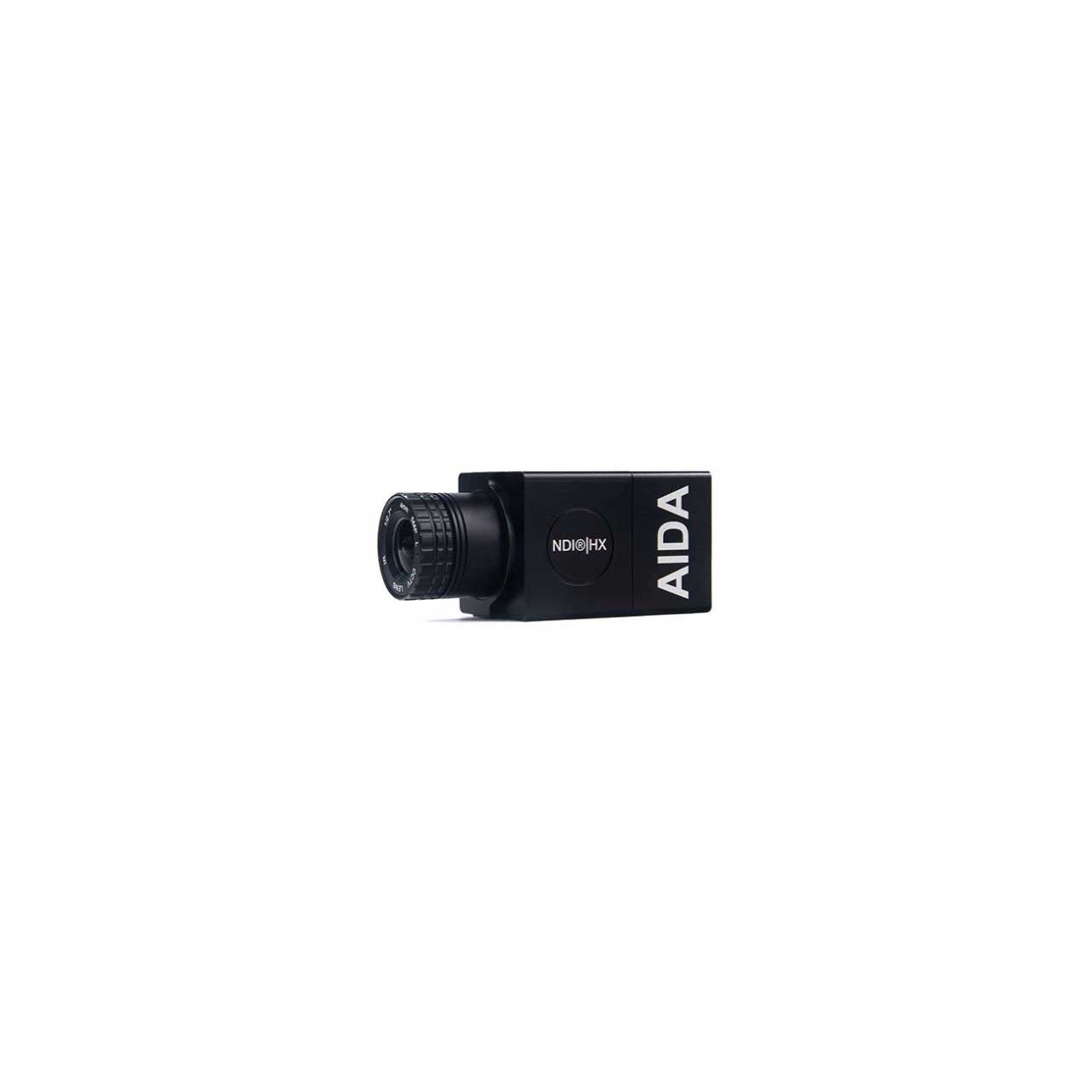

    Don't let the AIDA HD-NDI-CUBE fool you. Its tiny form factor does not compromise any FULL-HD quality seen in our world renowned POV line-up. The Cube boasts a Sony Progressive CMOS sensor, which captures crispy 1080 60p video with ease over SRT, RTSP, RTMP, and of course - NDI|HX. Its interchangeable CS-mount design allows for the flexibility of CS/C mount lenses to capture that exact viewing angle you need. With the affordable price point, its no wonder the HD-NDI-CUBE is a production game-changer.

    The camera may look rectangular, but we can assure you it will square up to the competition.

    No-Hassle Integration
    The HD-NDI-CUBE comes pre-equipped with its NDI|HX license. Never waste a moment!

    Simultaneous IP Streaming
    Enjoy 1080 60p NDI|HX, SRT, RTSP, and RTMP simultaneous over one wire!

    Perfection in its Simplest Form

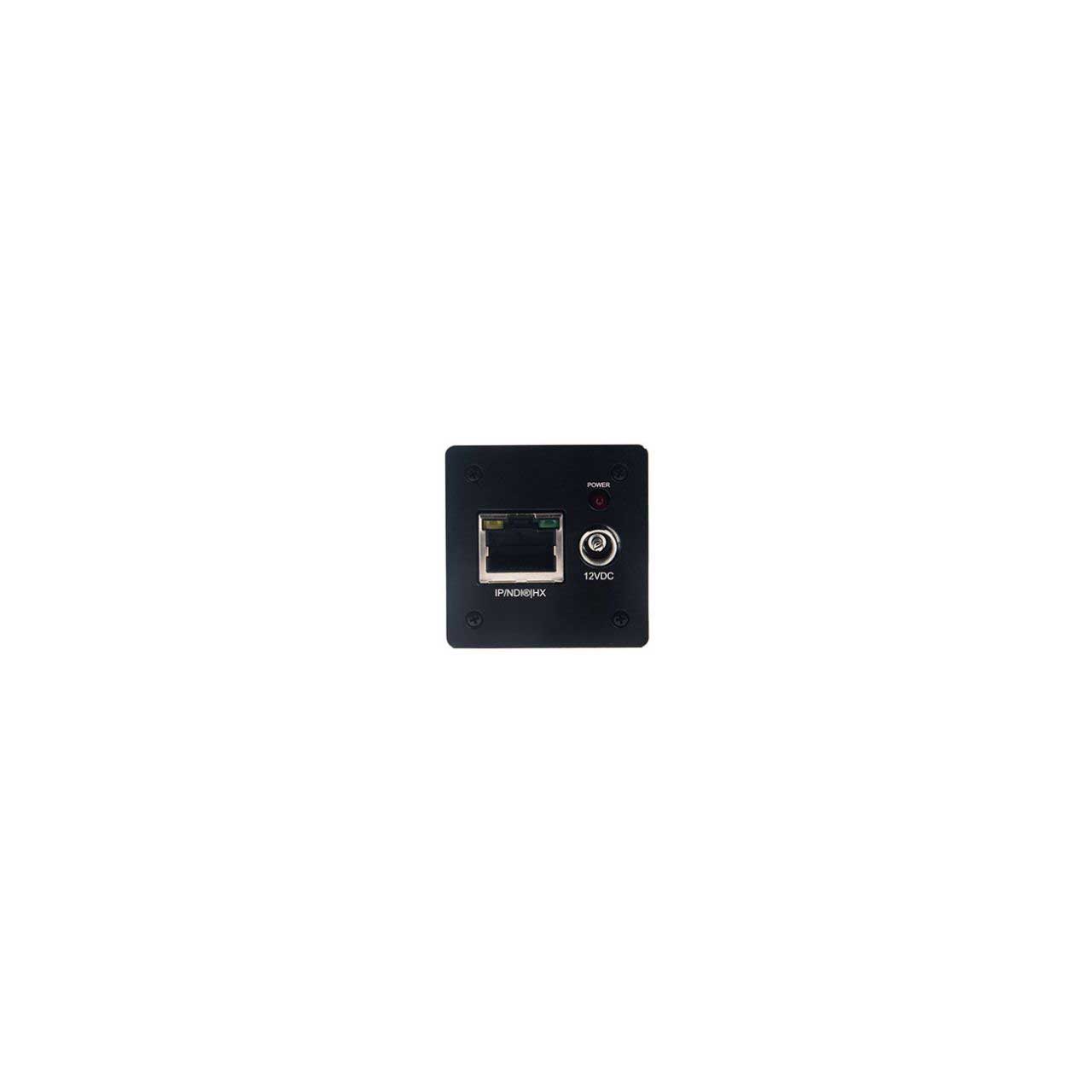

    Sometime less is best! The backside of the camera is minimal, with a RJ45 output and 12VDC plugin for power.

    Full Control from a Distance
    The HD-NDI-CUBE joins the workflow with its controllable Web UI, and VISCA over IP compatability.

    Any Lens, Any Time
    The best part about the Cube is the unlimited possibilities of lens options. Whether it be a static lens, fixed lens, or adaptable lens, get creative with your shots anytime!

    PoE+ Adaptable
    Each purchase of the HD-NDI-Cube comes with a PoE+ adapter, allowing you to run 1 cable for video, power and control!

    • Features:

      • Full-HD 1/3" Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
      • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
      • Versatile design with top and bottom tripod mounts for unique shot creation.
      • USB SVC port for easy network setting adjustments and updates.
      • Small form-factor makes it placeable in discreet places
      • Perfectly suited as extra angles for any new or existing NDI®|HX setup.

    • Specifications:

      • Video
      • Image Sensor: 1/3" Progressive CMOS
      • Sensor Size: 5.346mm x 3.003mm (16.9)
      • Effective Pixels: Horizontal: 1920, Vertical: 1080
      • Pixel Size: 2.75 µm (H) x 2.75 µm (V)
      • Resolution: 1080p, 1080i, 720p
      • Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p, 24p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p
      • Output: IP (NDI|HX/SRT/RTMP/RTSP)
      • Color Space: 4:2:2 (YCbCr) 10bit
      • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
      • White Balance: Auto & Manual (9000 - 11,000 K)

        Lens
      • Lens: C/CS Mount (Default 4mm HD Lens)

        Standard
      • IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

        Physical
      • Camera Control Protocol: VISCA Over IP
      • Operation Temp: 32°F - 104°F
      • Dimension: 86mm x 40mm x 40mm / 3.38" x 1.57" x 1.57" (with default 4mm lens)
      • Weight: 180g / 0.39lbs (with default 4mm lens)
      • Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)

    • Item Includes:

      • 1x PoE Dongle Adapter
      • 1x USB Cable
      • 1x DC 12v Power Supply & Sockets Adapter
      • 1x C-Mount Cap Adapter
      • 1x 4mm 5MP Lens (Pre-Installed)
      • 1x Sensor Cap
