AJA Corvid HEVC 4K 3G-SDI and Multi-Channel HEVC Encoding

ITEM #: AJA-CORVID-HEVC MFG #: CORVID HEVC

close - X

free ship

Our Price:

$5,879.00

Availability: Temporarily Out of Stock
iAvailability Description Popup


    CORVID HEVC - Overview

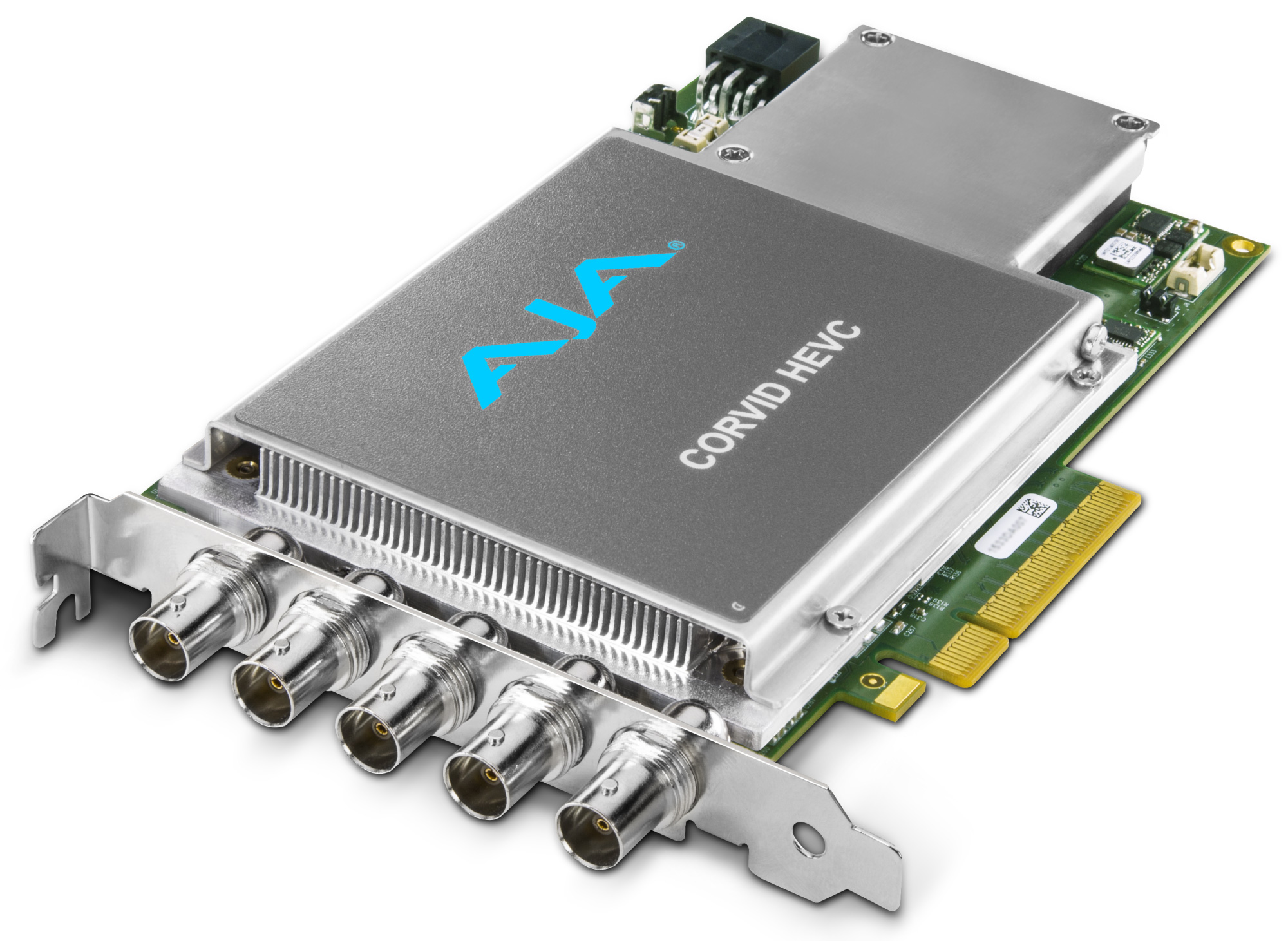

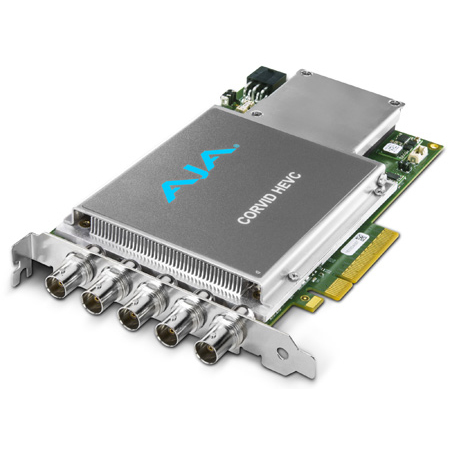

    AJA's Corvid HEVC is a 8-lane PCIe 2.0 video encoder card providing real time, low latency HEVC encoding at 4K, 1080p HD and lower resolutions. Development partners can use AJA's powerful SDK to integrate Corvid HEVC directly into their Windows and Linux applications using a flexible API for a variety of use cases.

    4K/UHD encoding
    In this workflow, Corvid-HEVC accepts a baseband 4K signal via the four 3G-SDI inputs either as quadrants or sample interleaves. The embedded audio and metadata are extracted while the image is sent to the encoder. The encoded image, audio and metadata are then passed to the host system for use in the software application.

    Multi-channel encoding
    In this mode, each input is treated as a separate and independent channel. The overall processing is similar to the 4K mode, just duplicated for each incoming channel. Scaling and encoding to standard video resolutions can be performed on each channel asynchronously, allowing individual channels to stop and start at any time.

    File-to-file encoding
    For this workflow, the incoming video is read from a file on the host system, rather than input via the hardware BNC connections on Corvid-HEVC. The image can be scaled and de-interlaced onboard before being transferred to the encoder. Up to four simultaneous, independent files can be read, decoded, scaled and encoded using a single Corvid-HEVC card.

    Audio and Metadata
    Audio and metadata information are processsed in parallel with video HEVC encoding and passed via the SDK to the host software. This gives Corvid HEVC the unique advantage of being able to deliver all the source data to your software directly from the card instead of having to use multiple pathways.

    Video Ingest
    In addition to real time encoding, Corvid HEVC can also work as a standard video capture card to bring SDI video and embedded audio into the system. All supported video input formats can be captured directly to the host system in a variety of file formats.

    CORVID HEVC - Required Accessories
