AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver
  • AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver
  • AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver

Questions? Ask a Markertek Expert:
800-522-2025 Email

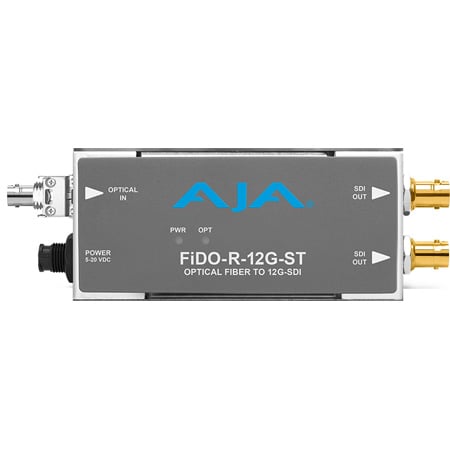

AJA FiDO-R-12G-ST 1-Channel Single Mode ST Fiber to 12G-SDI Receiver

Manufacturer: AJA Video

Item #: AJA-FIDO-R-12GST   •   MFG #: FIDO-R-12GST




Our Price:$895.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    12G-SDI from Camera to Fiber, Edit and More
    Explore how AJA's latest (FiDO-R-12G-ST) 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate, and deep color content over a single cable.

    Learn more about the FiDO 12G-SDI/optical fiber Mini-Converters, 12GDA distribution amplifier, 12GM Muxer/Demuxer, FS-HDR converter/frame synchronizer, and Io 4K Plus ThunderboltT 3-equipped audio and video I/O device with 12G-SDI support.

    Universal Power Supply
    All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

    Compact and Portable
    AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.


    • Features

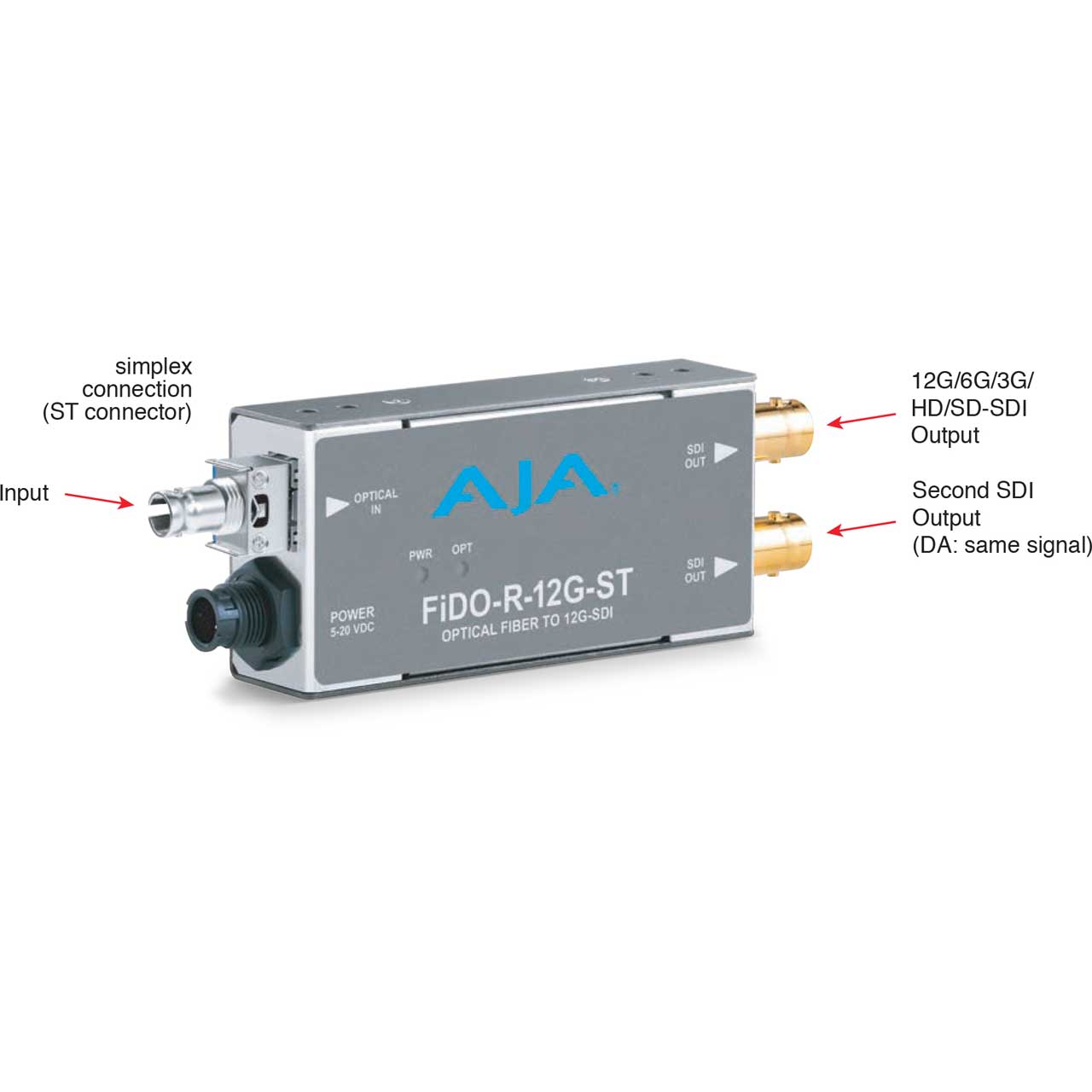

      • 1-Channel Single Mode ST Fiber to 12G-SDI Receiver
      • Simplex connection (ST connector)
      • 12G-SDI output, which also supports 12G/6G/3G/HD/SD-SDI
      • Second SDI output (DA: same signal)
      • Dual, matching SDI outputs
      • Uses 5-20VDC power (DWP-U-R1 universal power supply included)

    • Specifications

      • Video Formats
      • 270 Mbps - 12 Gbps, format agnostic

        Video Input Digital
      • 1-channel independent Single Mode ST Fiber connector, SMPTE 297/259/292/424/2081/2082
      • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
      • Optical Sensitivity: -10 dBm (max 12 Gbps), -14 dBm (max 3 Gbps)
      • Overload Power: -2 dBm (min)

        Video Output Digital
      • 1-channel dual matching 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082

        Reclocking
      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        Dimensions (WxDxH))
      • 4.6 x 1.71 x .85" (117 x 43.5 x 21.6mm)

        Weight
      • 0.4Lbs (0.2kg)

        Power
      • 2 watts (max)
      • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

        Environment
      • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
      • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <3,000 meters (<10,000 feet)

    • Warranty

      • 5-Year Warranty

    • GTIN:

      0812321032307
