Amphenol 031-70547-12G BNC Straight Crimp Jack for Belden 4694R Cable 12G Optimized 75 Ohm

ITEM #: AMPH-0317054712G MFG #: 031-70547-12G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$13.00

Our Price:

$11.27

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

031-70547-12G - Overview

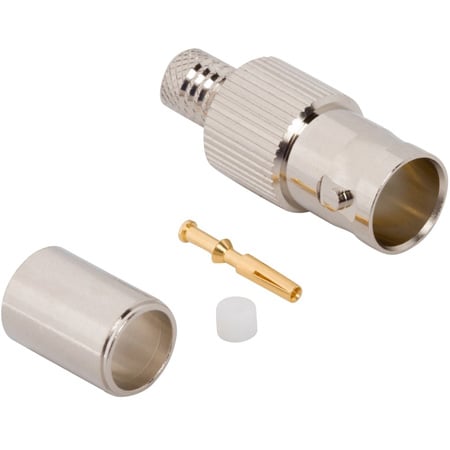

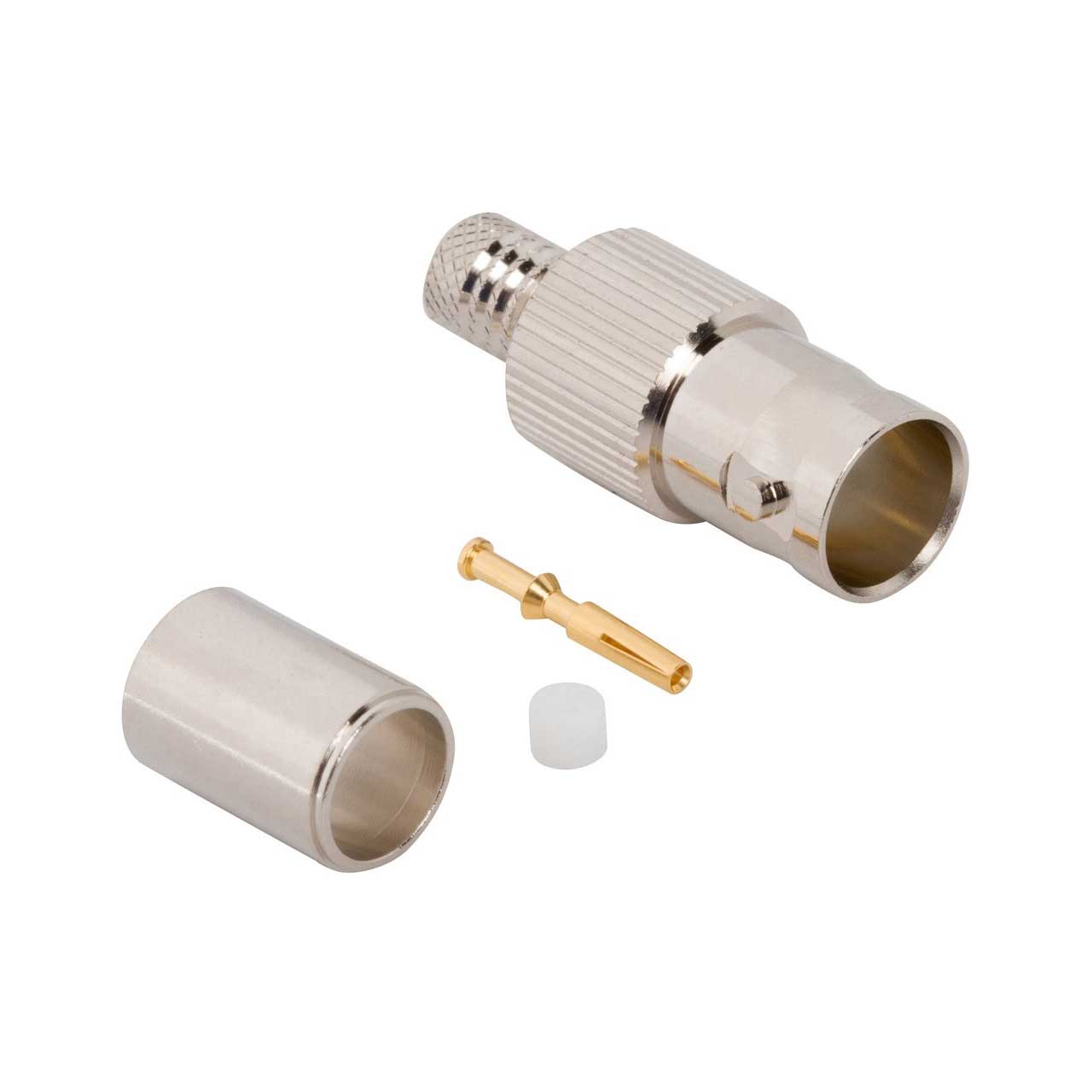

The Amphenol 031-70547-12G is a BNC straight crimp jack for Belden 4694R cable.

  • Specifications:

    • Gender: Jack
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Phosphor Bronze
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: Special
    • Cable Type : Belden 4694R
    • Crimp Tool: CTL-14
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 12
    • Polarity: Standard
    • Min. Temp.: -85°F (-65°C)
    • Max. Temp. (Celsius): 329°F (165°C)
    • Mating Cycles: 500
