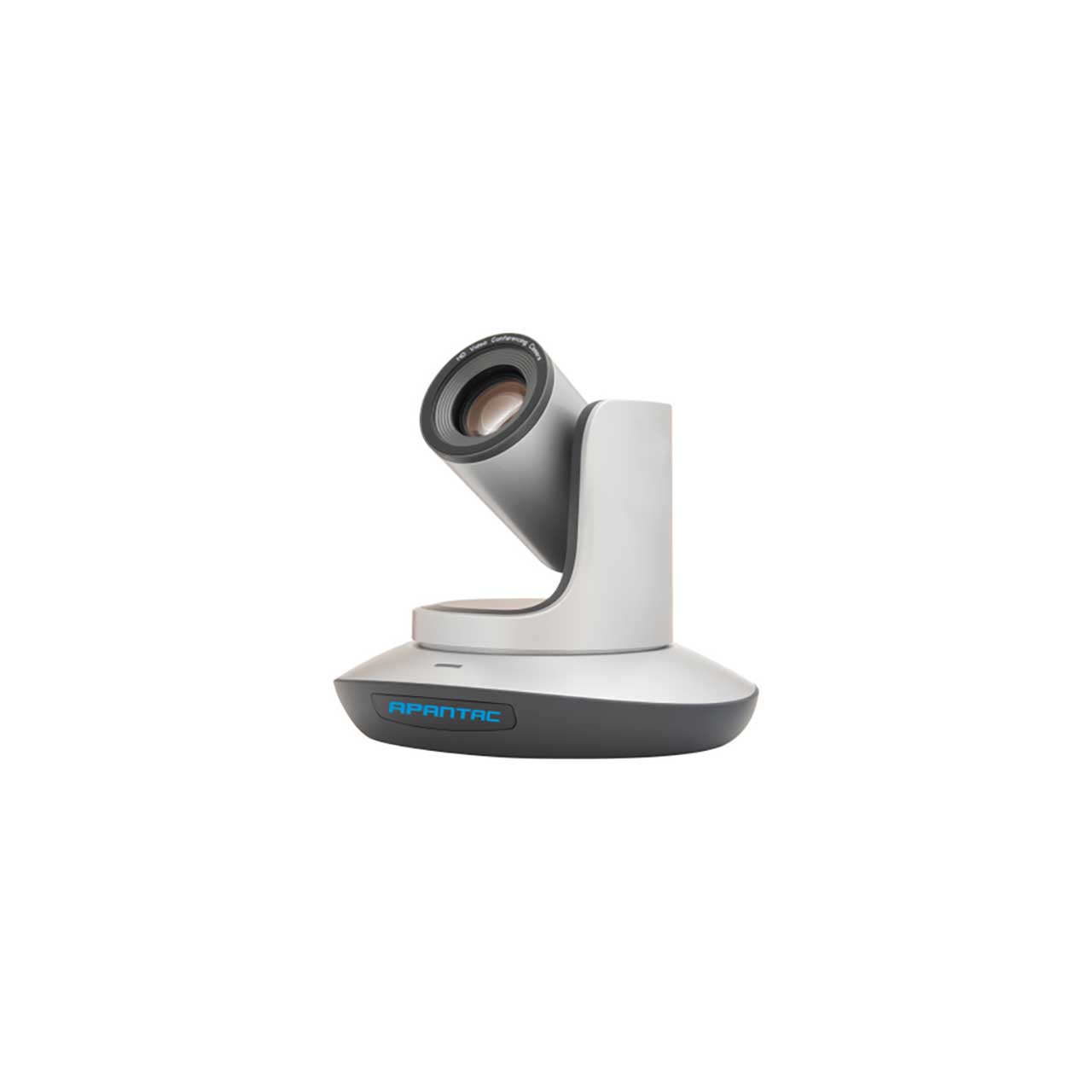

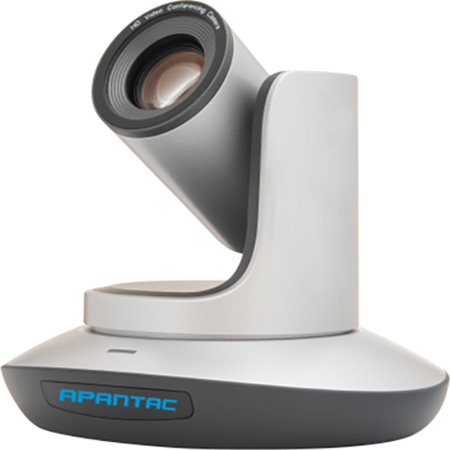

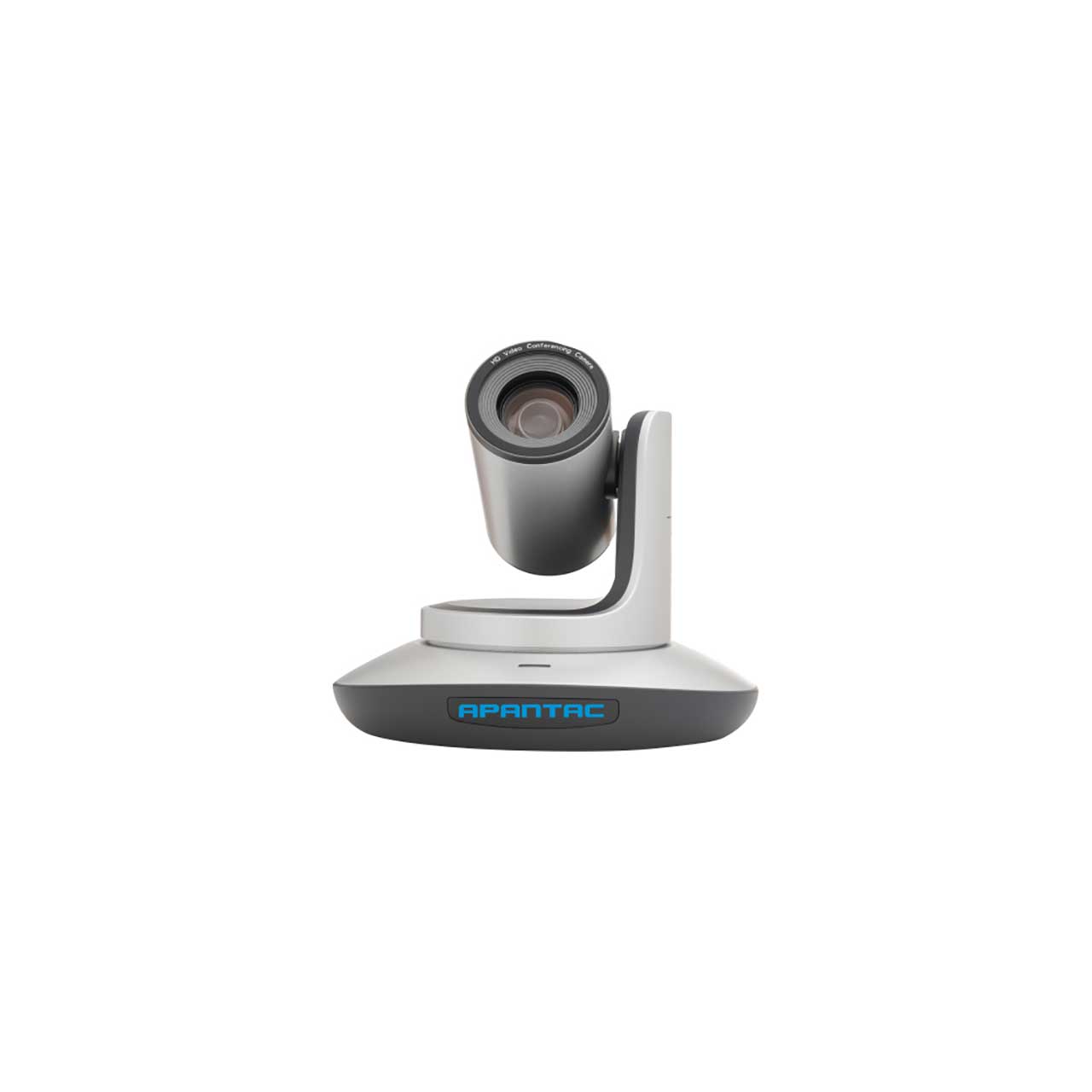

Apantac AP-1080P-PTZ-20x Professional Grade 1080P PTZ Camera with HDMI - 3G-SDI - USB 3.0 & NDI

ITEM #: APA-AP1080PPTZ20 MFG #: AP-1080P-PTZ-20X

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    AP-1080P-PTZ-20X - Overview

    Apantac's AP-1080P-PTZ-20x (NDI) is designed for capturing video up to 1080P and offers 3G SDI, HDMI, USB 3.0, and HD video over IP decoding. This camera is ideal for educational and corporate applications, and by incorporating NDI, it communicates using the NDI protocol and allows bi-directional distribution and access of live video over existing IP LAN infrastructure. It also seamlessly integrates with most video conferencing and other software applications.

    Apantac has integrated NDI into its new 1080P PTZ camera to be recognizable as a source by other NDI-enabled applications and devices connected to a standard Ethernet local area network. It joins the industry's largest IP ecosystem of products and the rapidly expanding number of companies enabling IP-based customer workflows.

    • Features:

      • Compatible with most leading video conferencing software
      • 20x Optical Zoom + 2x Digital Zoom with 61 degree FOV
      • Supports NDI, USB, IP, HDMI and SDI output
      • Supports USB 3.0 output
      • Full HD video over IP supports H.264, H.265 decoding
      • NDI output
      • Supports POE
      • Standard IP VISCA, Serial VISCA, Pelco-P/D control protocol
      • IP VISC over TCP/IP
    • Specifications:

      • Sensor
      • 1/2.8 inch, 5 mega pixel high quality CMOS

      • 1920x1080P60/50/30/25; 1280x720P60/50/30/25; 1920x1080i60/50

      • 1080P60/50/30/25, 720P60/5030/25, 1080i60/50

      • Main Stream [email protected]; 1280x720p30-1
      • Sub stream: 1280x720p-30-1; [email protected]; [email protected]

        USB 3.0
      • 1920x1080P60/50/30/25
      • 1280x720P60/50/30/25
      • 1024x576P30

        USB 2.0
      • 1024x576P30
      • 960x540P30
      • 640x360P30
      • 512x288P30
      • 352x288P30
