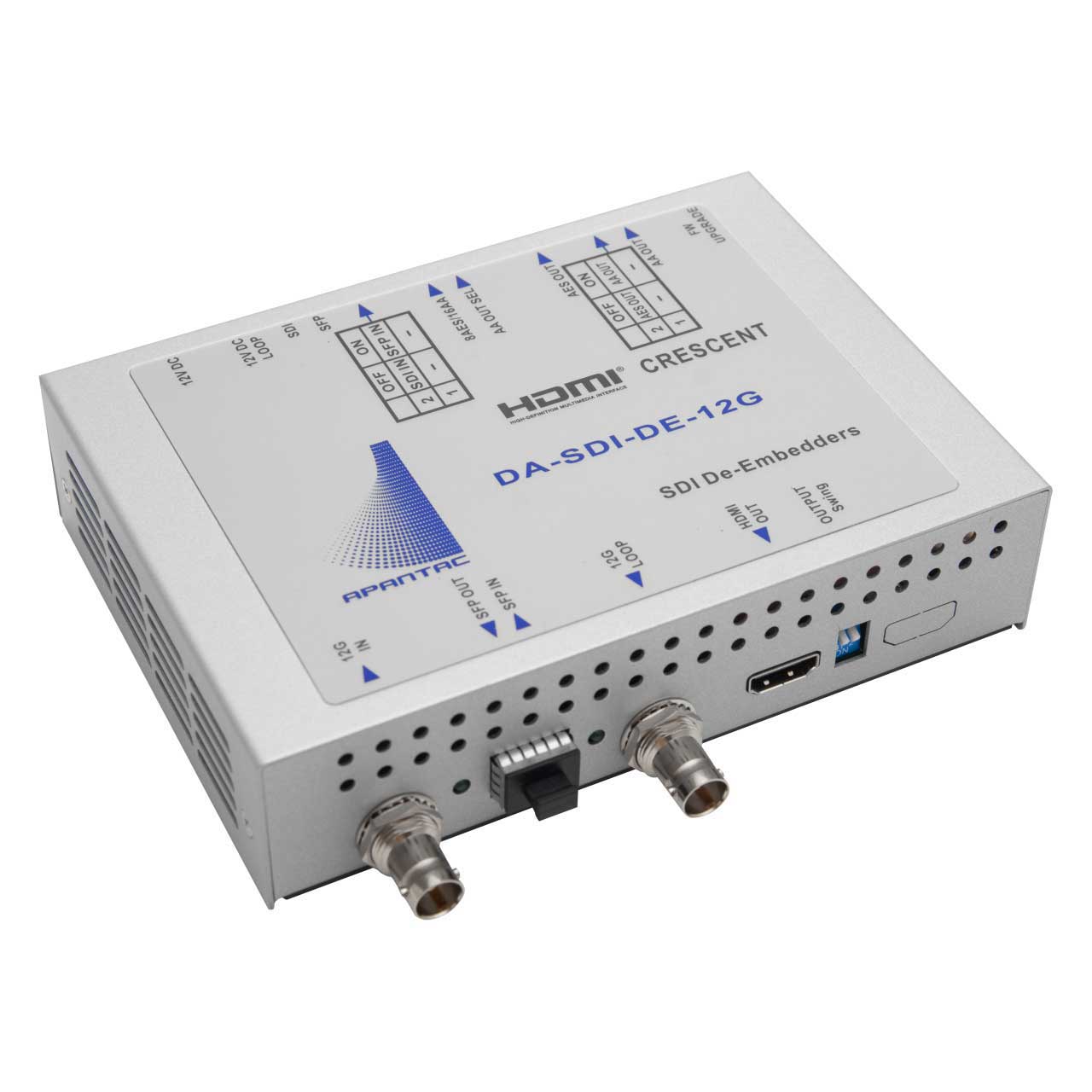

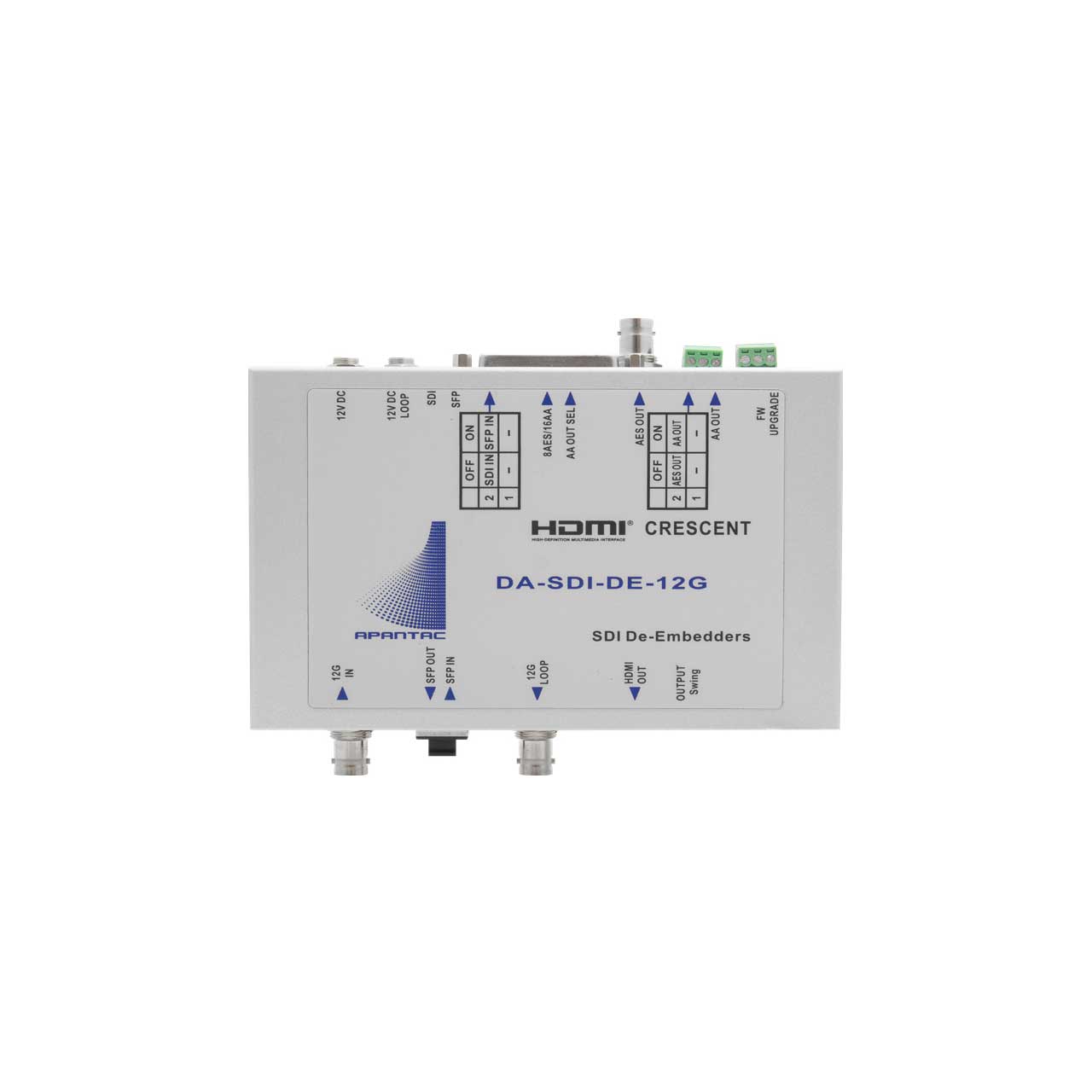

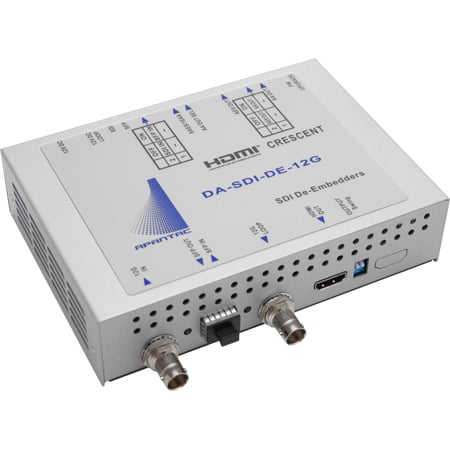

Apantac DA-SDI-DE-12G SDI Audio De-embedder with 1 x 2 12G SDI Distribution Amplifier (with reclocking)

ITEM #: APA-DA-SDI-DE12G MFG #: DA-SDI-DE-12G

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$1,650.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    DA-SDI-DE-12G - Overview

    Apantac DA-SDI-DE12G is a 12G SDI de-embedder with loop outs. On-board LED meters for displaying audio presence and LED indicator for displaying of group association.

    • Features:

      • De-embeds 12G/3G/HD/SD-SDI with 16 channels of audio
      • Outputs 8 AES pairs or 16 mono analog audio

    • Specifications:

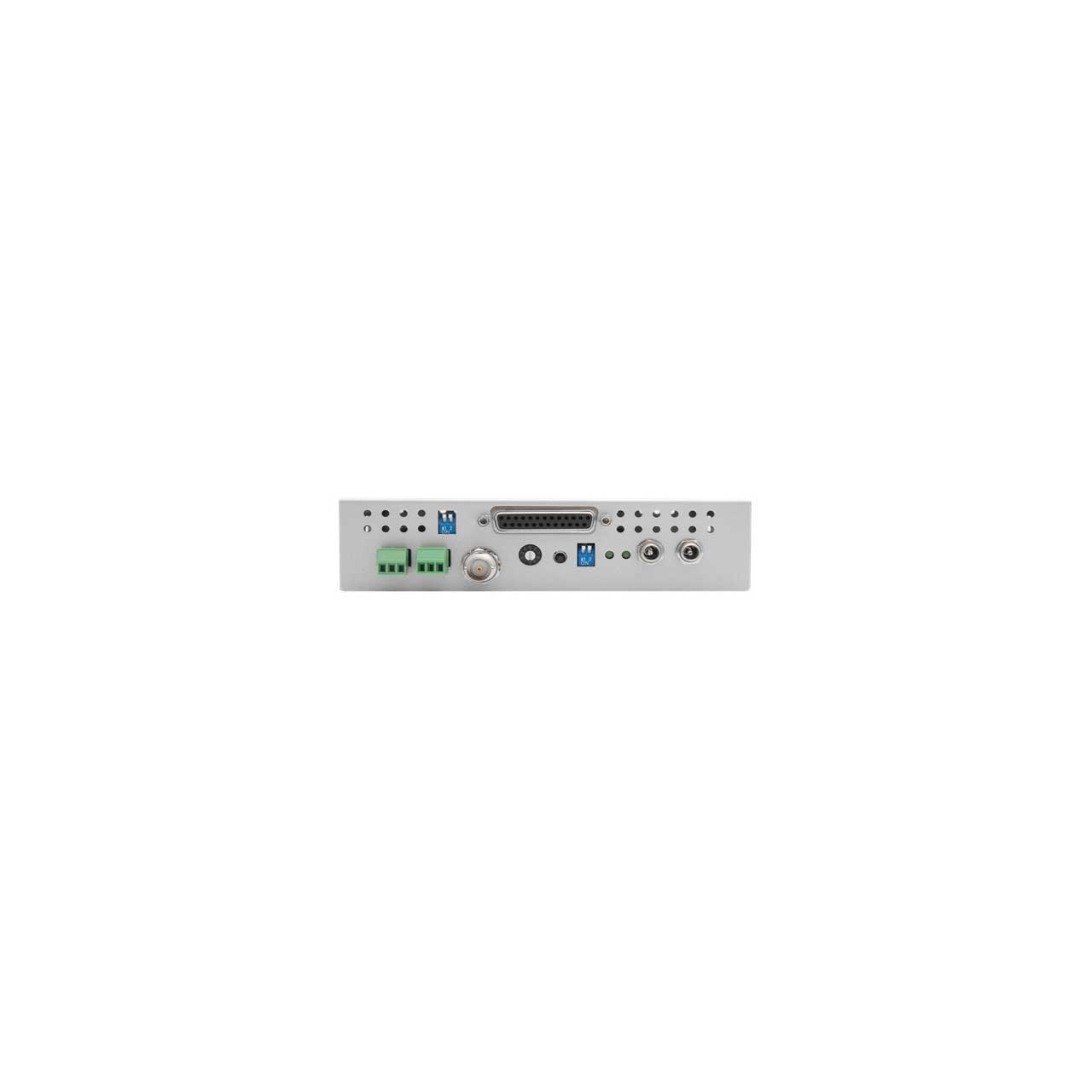

      • Front View:
        RS232 for FW upgrade
        Analog audio monitoring output
        AES audio monitoring output
        Rotary selector for analog and AES monitoring audio pair
        DB25 for analog audio / AES audio breakout cable
        12V DC power cascading output and power input

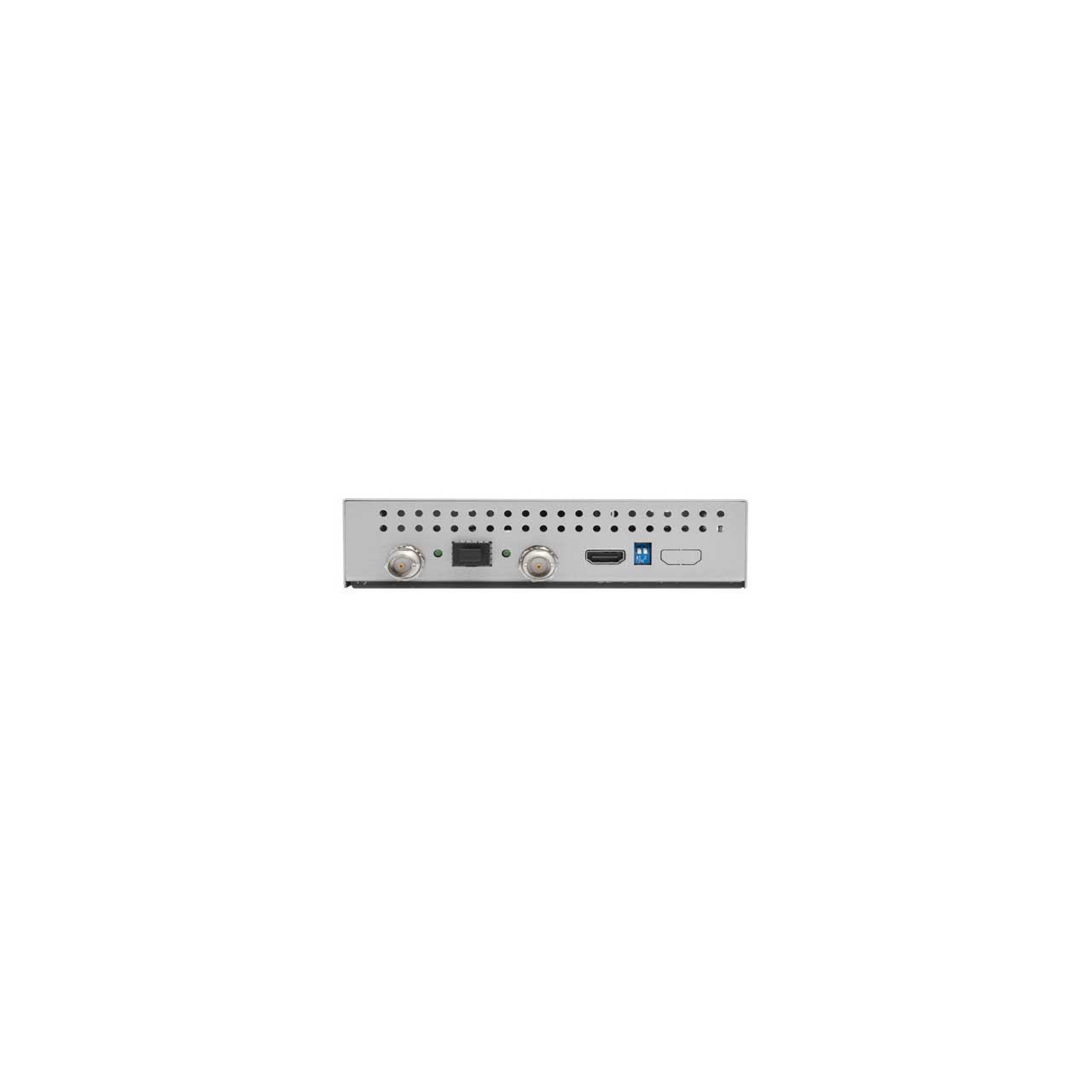

      • Rear View:
        SDI input
        Optional Fiber SFP input
        SDI loop out and HDMI output
      • Inputs: 12G/3G/HD-SDI
      • Outputs: 1 x loop out
      • Audio: De-embeds 16 channels of AA, 8 pairs of AES, balanced or unbalanced
      • Power: 12V 1A
      • Weight: 1Lbs (0.45kg)
      • Dimension (WxDxH): 2.44 x 4.45 x 1.57" (62 x 113 x 40mm)


    DA-SDI-DE-12G - Required Accessories

      DA-SDI-DE-12G - Recommended Accessories
