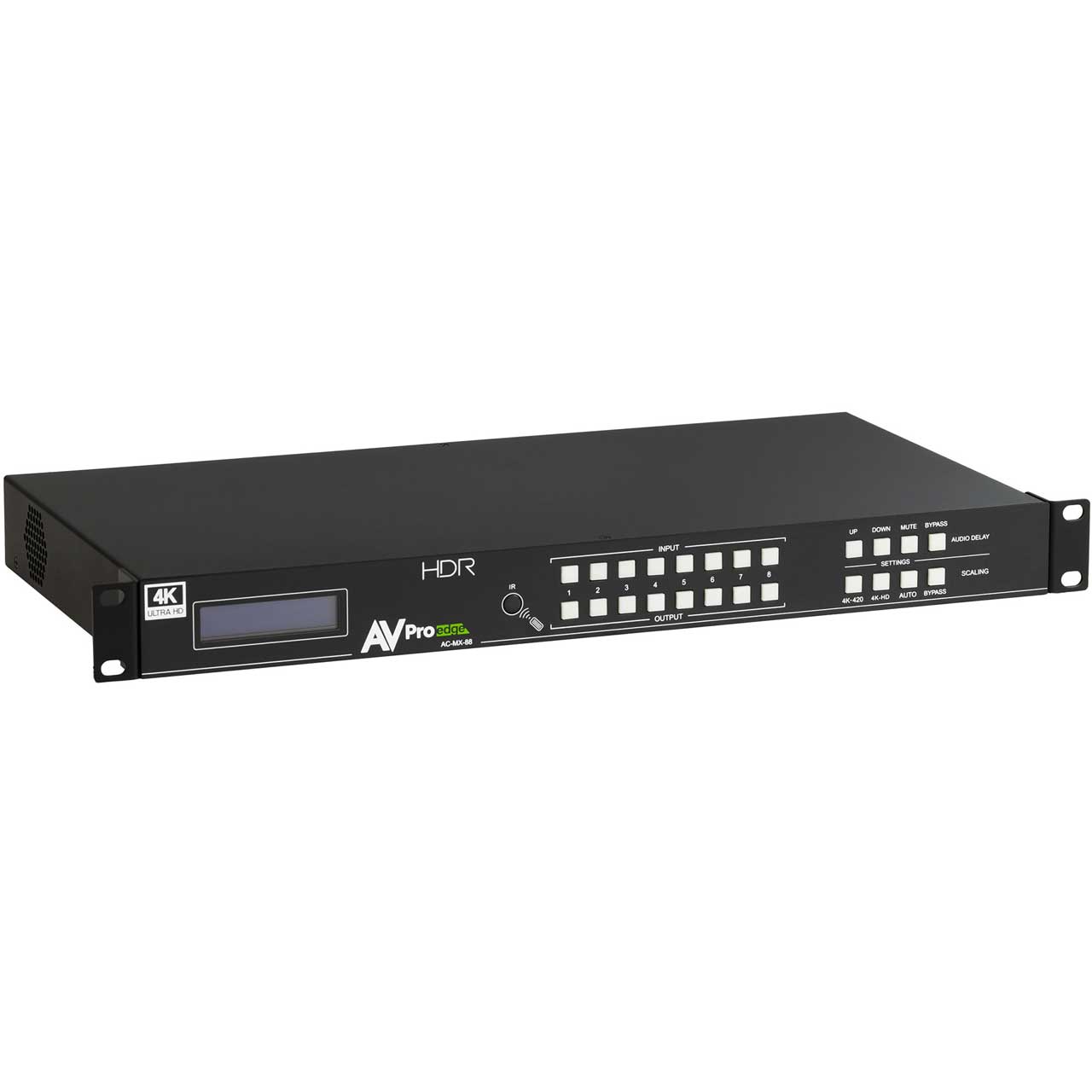

    AC-MX-88 - Overview

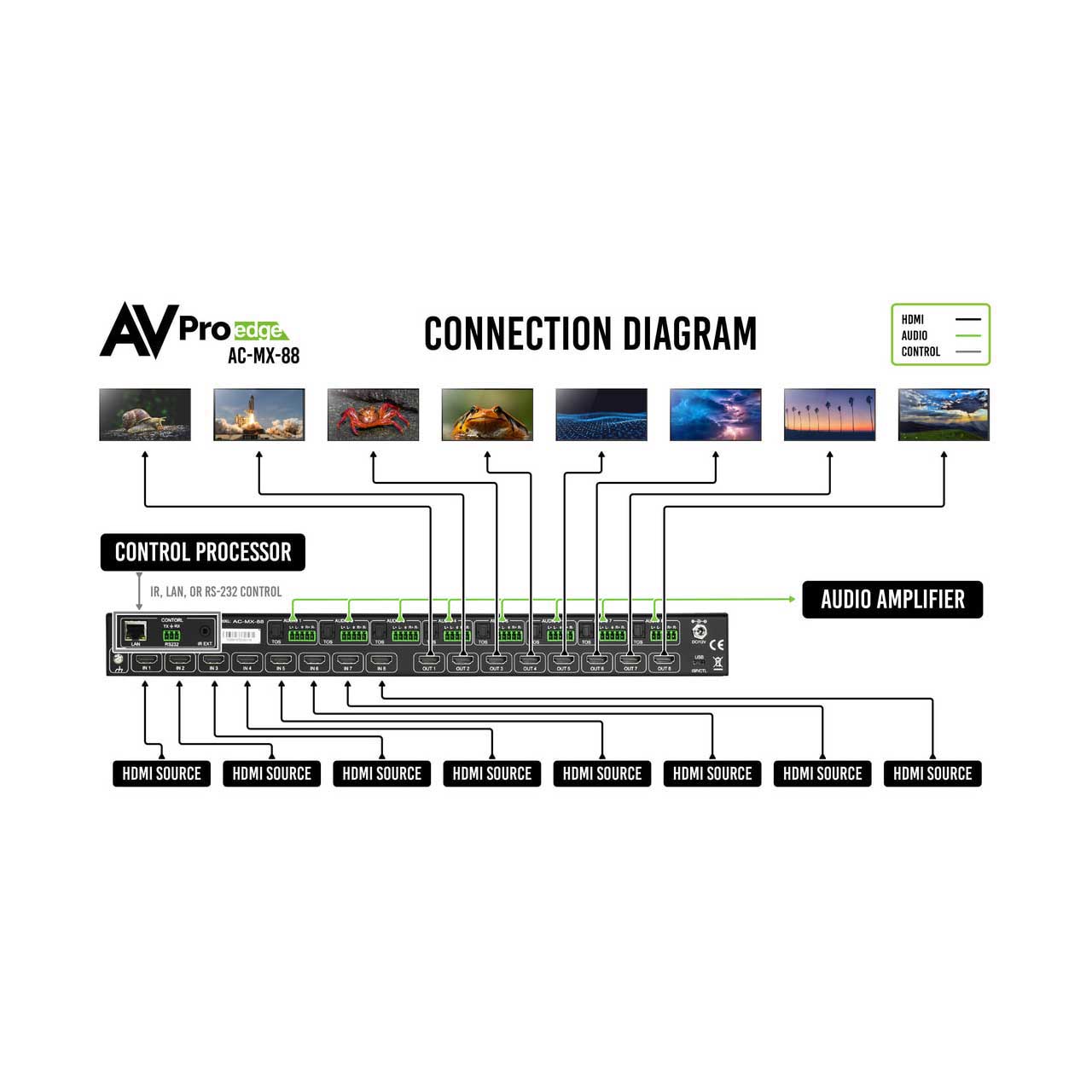

    The AC-MX-88 is an 8x8 HDMI matrix switch that supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18 Gbps bandwidth. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ..) to show on any connected displays. This matrix equalizes and amplifies the output to ensure the HDMI signal transmits through long HDMI cables without losing quality.

    Audio Delay is "On-Board" so integrators can manage lip-sync issues before they become a problem. Video signal management is also possible with built-in scalers. So, if the installation has a couple of older displays, integrators don't need to forfeit 4K signals to pass the signal to all of the displays. In addition to scalers, this matrix supports complete EDID management, allowing maximum flexibility with today's broad mixture of sources and displays.

    Avpro Edge User Interface
    Managing HDMI signals can be challenging, from interoperability between sources and displays, changes in signal type coming from different types of content, to Hollywood protection with HDCP; each one of these things can cause havoc on the installation. With AVPro Edge's User Interface, we put the power back in the hands of the installers. Integrators can create their custom EDID strings to perfect the signal coming from the source or scale an image to work with a legacy display, all from an easily accessible and navigatable interface.

    HDBaseT Compatibility Mode (HDBT-C)
    Convert high bandwidth signals between 9Gbps-18Gbps to be used with HDBaseT transmitters. The conversion uses a proprietary algorithm that impacts the original image a little as possible, so integrators can transmit HDR and high bandwidth signals over long-distance transmission devices like HDBaseT Extenders or for use on a display that does not support 18Gbps. Best of all, integrators manage this setting on a per output basis, so they have complete control over which individual runs are "down-clocked."

    4K Down Scaling
    This technology is managed on each output. Scaling will allow integrators to downscale 4K sources on outputs going to displays that may not support 4K. Additionally, this matrix switcher can scale chroma subsampling from 4:4:4 down to 4:2:0, ensuring compatibility with legacy devices. Other matrix switchers force a signal to work by "dumbing down" the entire system even if there is only one old 1080P display.

    • Features:

      • HDMI 2.0(a/b)
      • 18Gbps Bandwidth Support
      • 4K60 4:4:4 Support
      • Full HDR Support (HDR 10 & 12 Bit)
      • Dolby Vision, HDR10+ and HLG Support
      • HDCP 2.3 (and all earlier versions supported)
      • 4K > 1080p Down Scalers on each output
      • Advanced EDID Management
      • IR, RS-232 and LAN Control Options
      • Digital Toslink Out (7CH PCM, DD, DTS)
      • Balanced Analog Out (2CH PCM)
      • Audio Delay for Digital & Analog Out
      • HDBaseT Compatibility mode for mixed systems
      • Driver Support For Crestron, C4, RTI, ELAN and more
      • Extracted Audio Now Has 3 Operating Modes. Bound to Input, Bound to Output, or Independent Matrix
      • Built in Test Pattern on Each Output to Verify Infrastructure

    • Specifications:

      • Video
      • Video Resolutions: up to 4K 60Hz 4:4:4
      • VESA Resolutions: up to DCI 4K(4096x2160)
      • HDR Formats/Resolutions: 420, 422, 444 (10 and 12 deep color) HDR10, HDR10+, Dolby Vision, HLG
      • Color Space: YUV (component), RGB (CSC: REC 601, REC 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 supported
      • Deep Color: up to 16bit (1080), up to 12bit (4K)
      • HDMI Scalers Per Output (optional): 4K to 1080p down-scaling (resolutions only, framerate stays the same), and 4:4:4 to 4:2:0

        Audio
      • Audio Formats Supported HDMI: PCM 2.0 CH, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digial Plus, Dolby TrueHD, DTS-HD master audio, DTS-X, Dolby Atomos
      • Audio Formats Supported Extracted (TOSLINK): PCM 2.0 CH, LPCM 6 CH, LPCM 7 CH, Dolby Digital, Dolby Digital Plus, DTS-Master Audio
      • Audio Formats Supported Extracted (2CH PORT): PCM 2CH
      • Audio Extraction Location: Bind to input, bind to output, or matrix (independent)
      • Audio Delay: up to 630MS

        Distance
      • HDMI In/Out (4k60 4:4:4): up to 50 feet (using Bullet Train HDMI)
      • HDMI In/Out (w/ AOC cable) (4k60 4:4:4): up to 130 feet (using Bullet Train AOC)

        Other
      • Bandwidth: 18GBPs uncompressed
      • HDCP: HDCP 2.3 and earlier

        Control
      • Ports: LAN, RS232, IR
      • Drivers: C4, RTI, ELAN, CRESTRON, URC
      • LAN WebUI: yes

        Ports
      • HDMI: Type-A
      • LAN: RJ45 w/ web interface/control

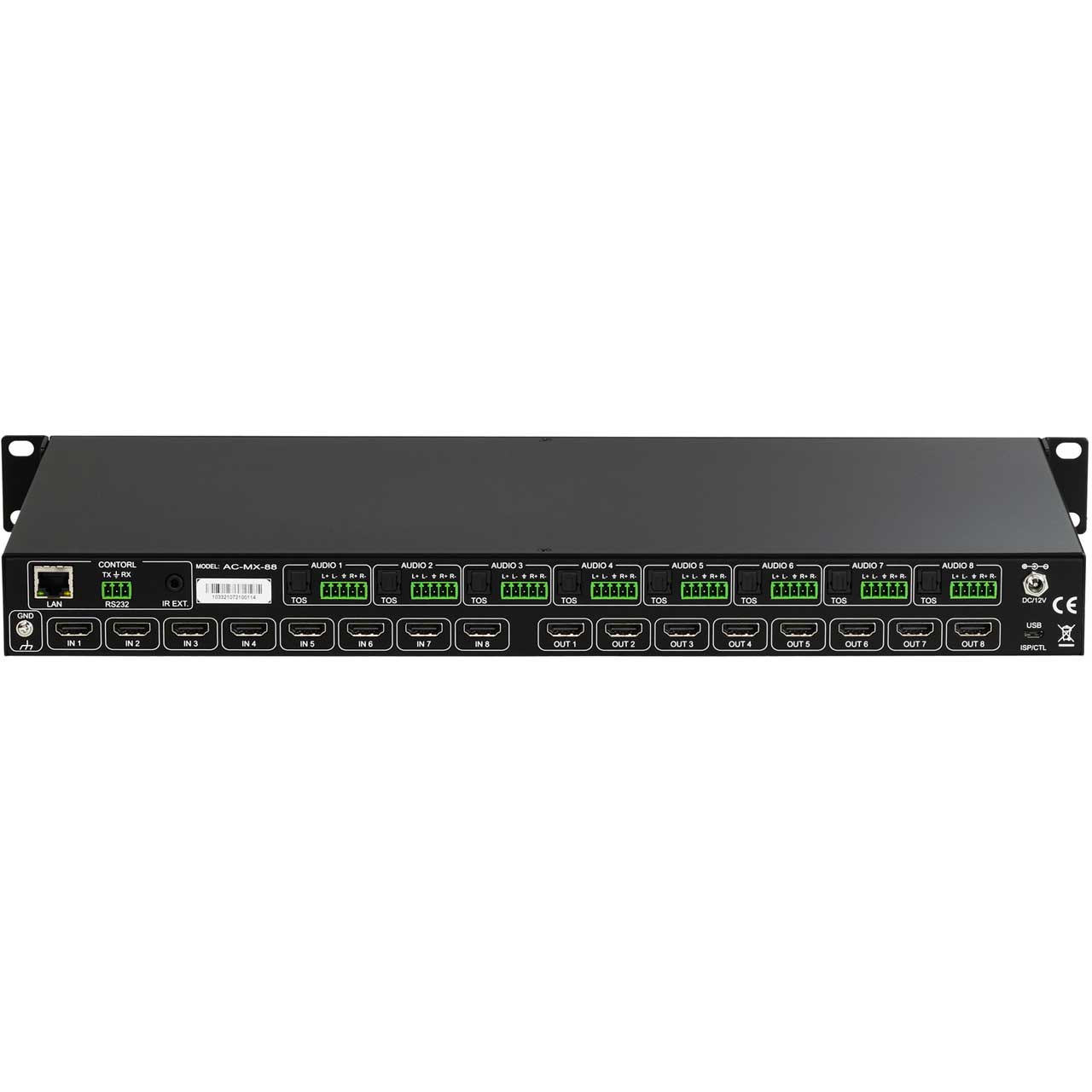

      • Audio (extracted digital): TOSLINK
      • Audio (extracted analog): 5-pin terminal block (balanced)
      • IR EXT: 3.5mm stereo (3 conductor)
      • RS232: 3-pin terminal block

        Environmental
      • Operating Temp: 23 to 125°F
      • Storage Temp: -4 to 140°C
      • Humidity Range: 5-90% RH (no condensation)

        Power
      • Power Consumption (total): 30 watts max
      • Power Supply - Matrix: AC 100-240V input ~ 50/60Hz, DC 12 V 5A output

        Dimensions
      • Unit Only: 1.75 x 9 x 17.38"
      • Packaged: 5 x 14.8 x 22.5"
      • Rack Units: 1RU
      • Unit Weight: 7lbs
      • Weight Packaged: 10.2lbs

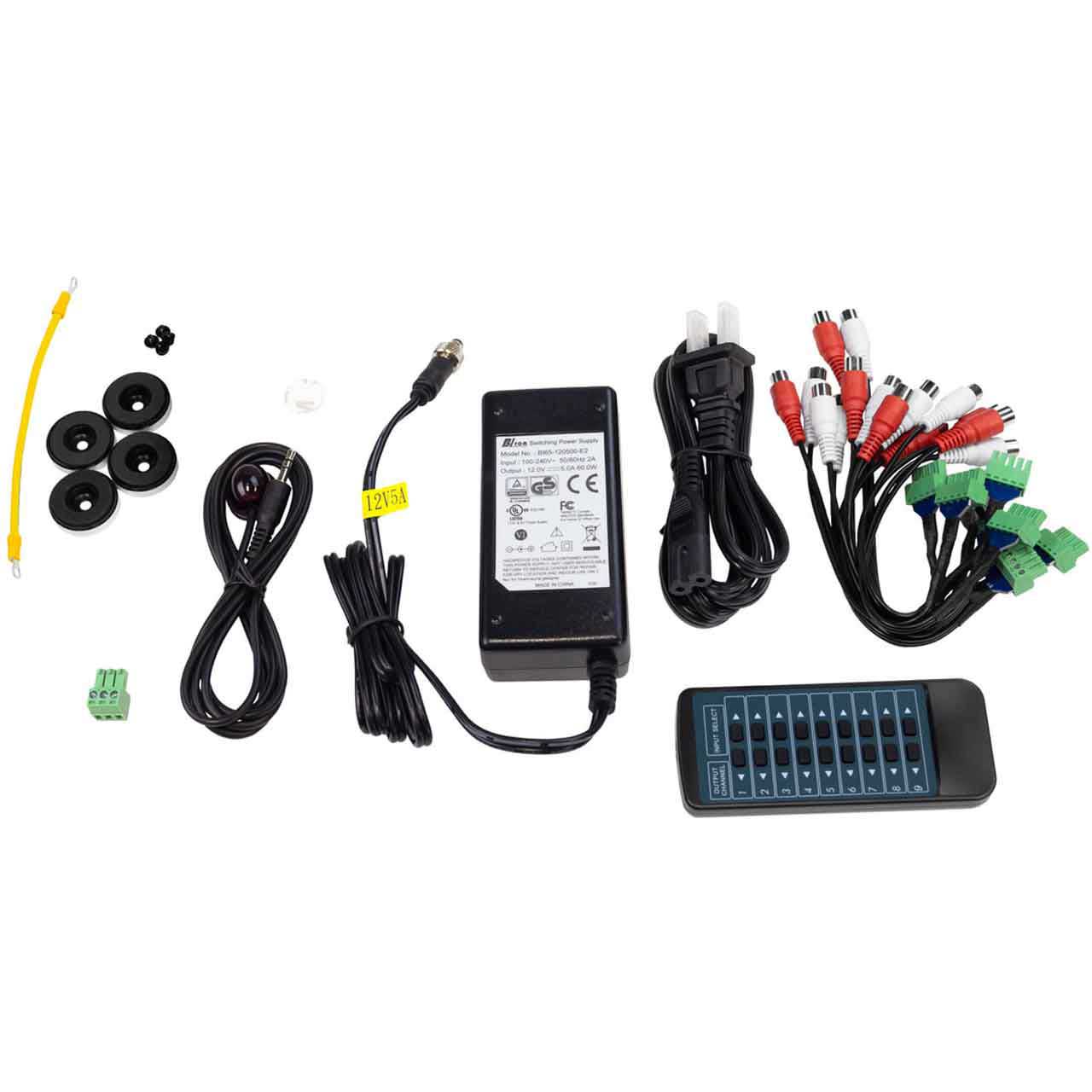

    • Item Includes:

      • 1x AC-MX-88 (Matrix Switch)
      • 1x 12V/5A Locking Power Supply
      • 1x IR Remote Control
      • 1x IR Extension Cable
      • 8x 5-Pin to 2ch Audio Extraction Cable
      • 1x 3-Pin Terminal Block
      • 2x Rack Ears
      • 4x Rubber Feet
