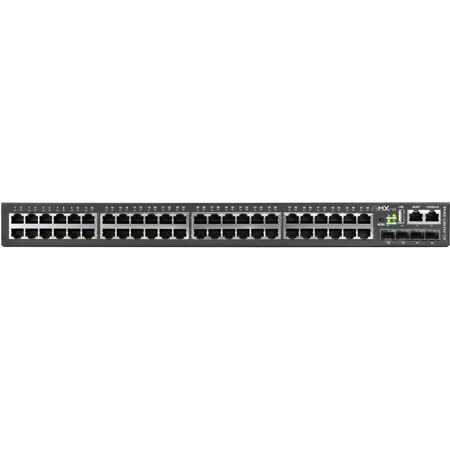

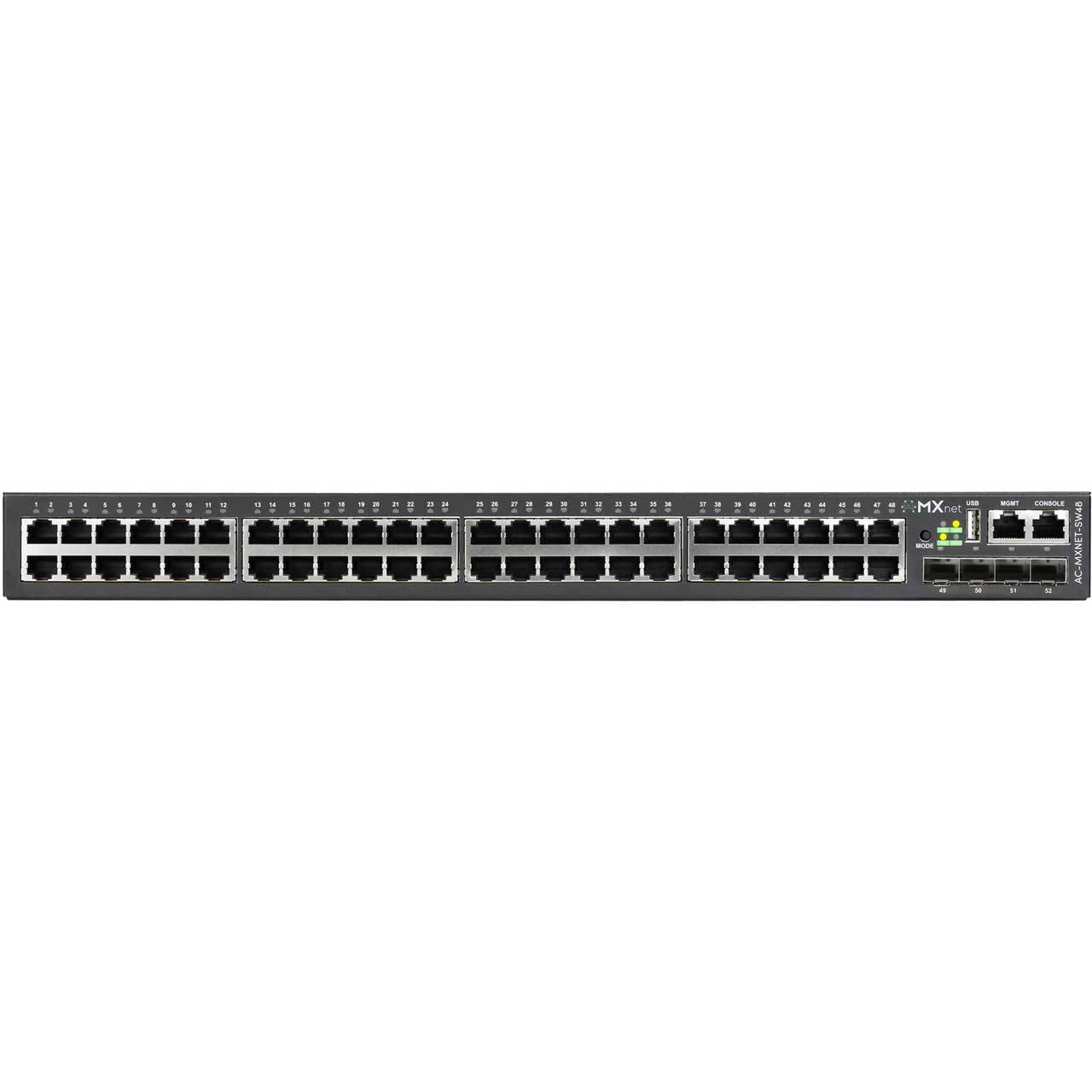

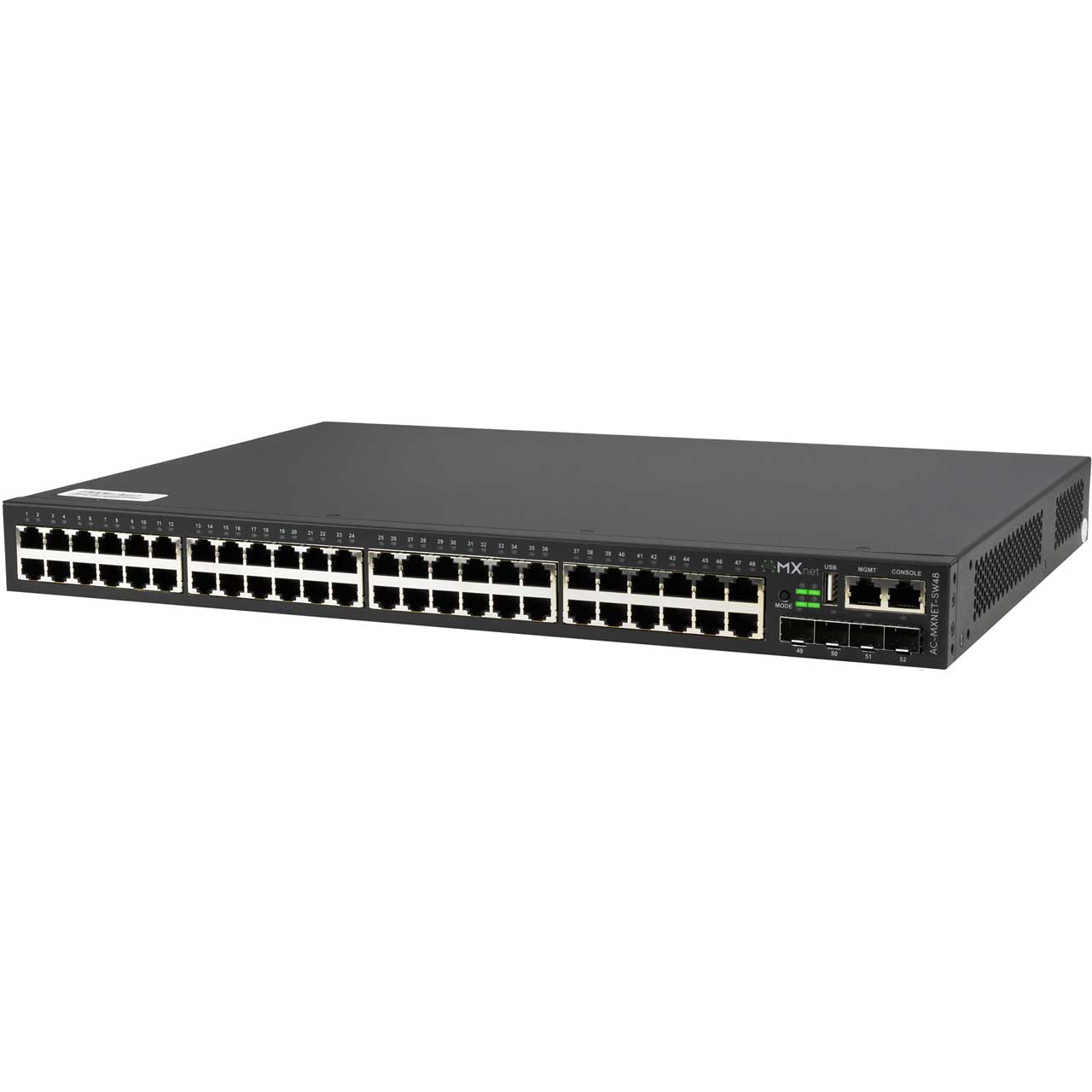

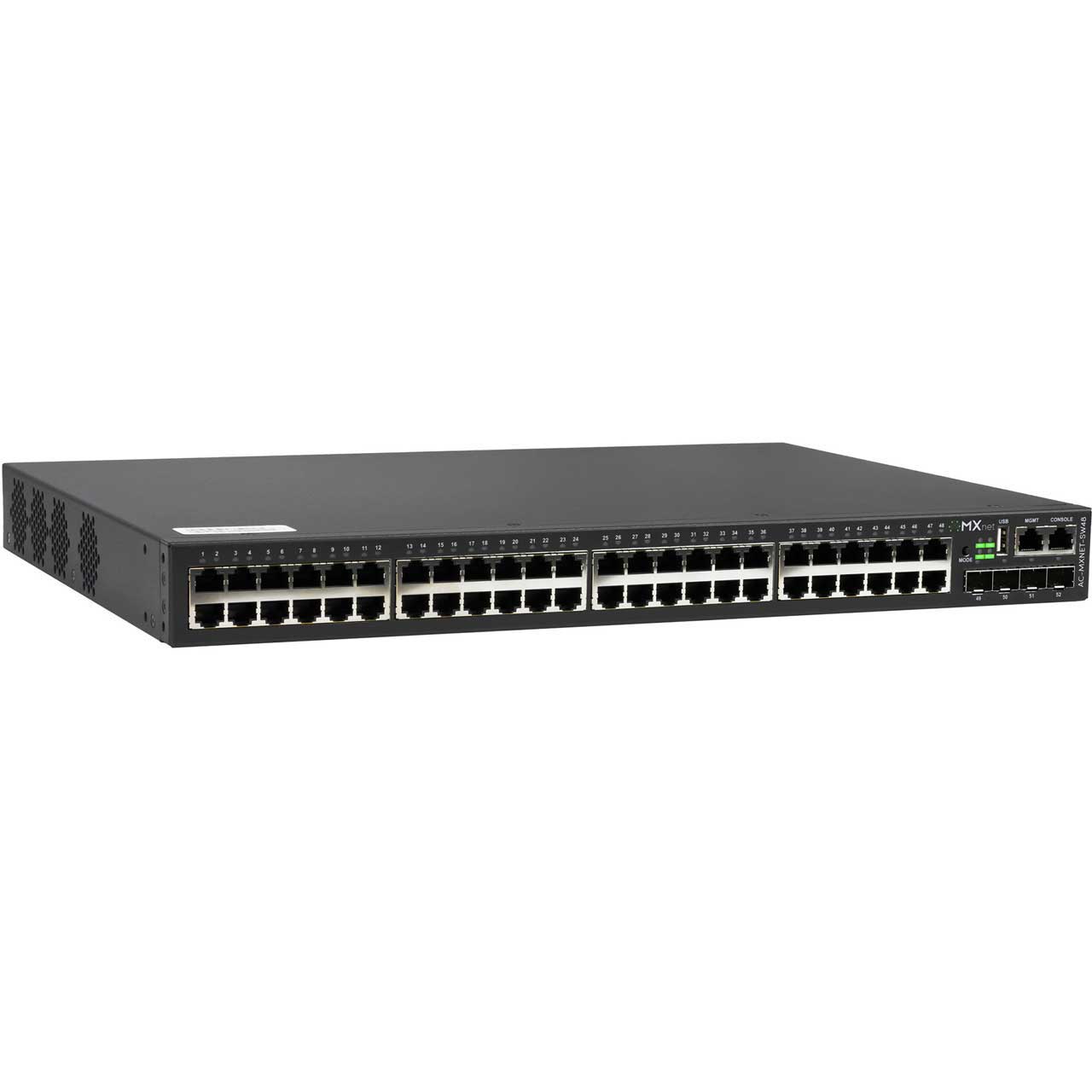

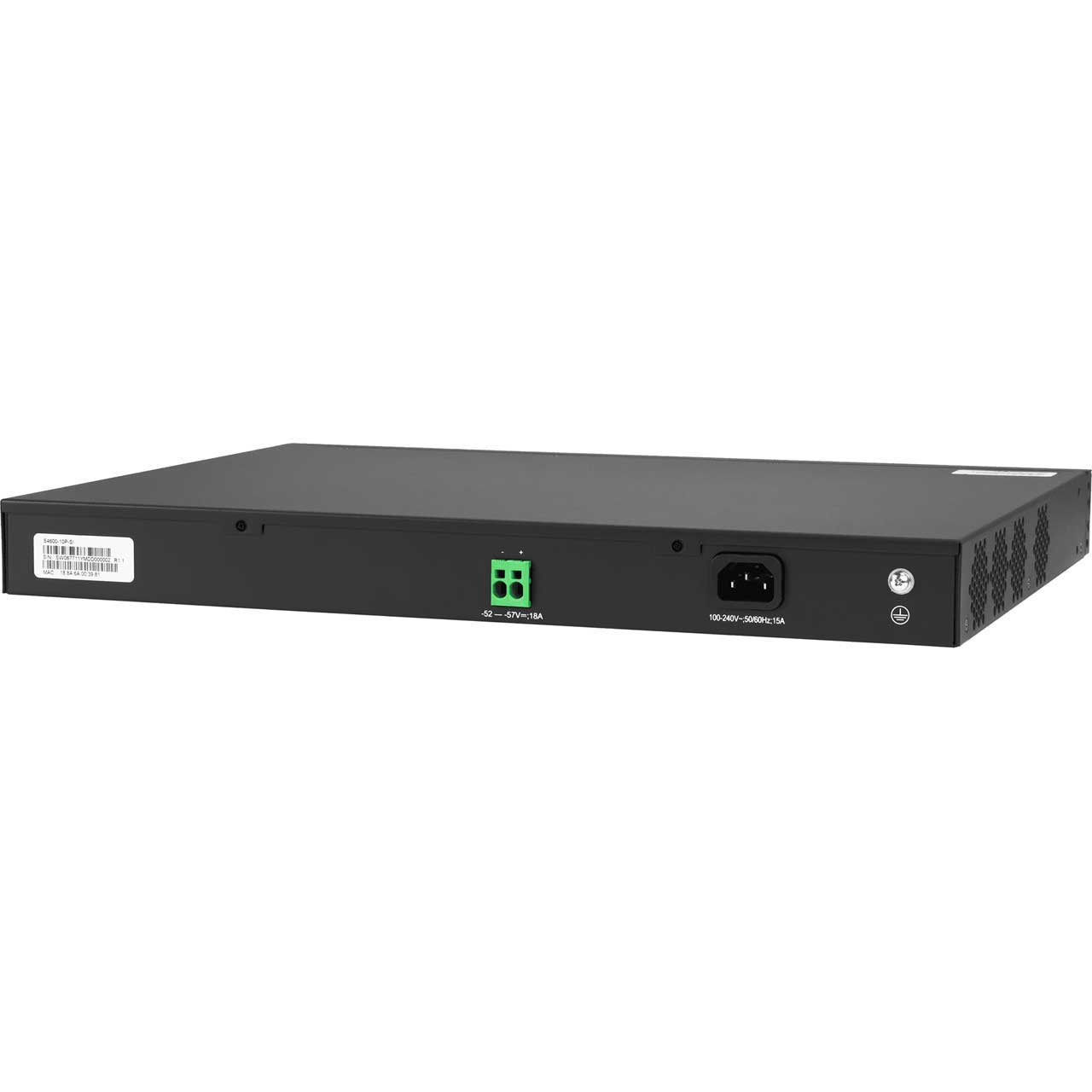

AVPro Edge AC-MXNET-SW48 Copper PoE Network Switch - 48 Ports


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    AC-MXNET-SW48 - Overview

    The MXNet 48 Port Network Switch is the center from which all other MXNet Ecosystem platform components revolve. The AC-MXNET-SW48 (and also AC-MXNET-SW24) pack a serious A/V performance punch with the addition of AVPro Edge's proprietary design and engineering efforts. This isn't your father's network switch, and it's also not just a simple re-configuration of multicast switch components. The AC-MXNET-SW48 includes a whole new AVPro developed network switch operating system (NOS) designed to reduce multicast processor loads and adds unique AVPro developed Intelligent A/V Processing (IAVP) technologies for more efficient multicast routing.

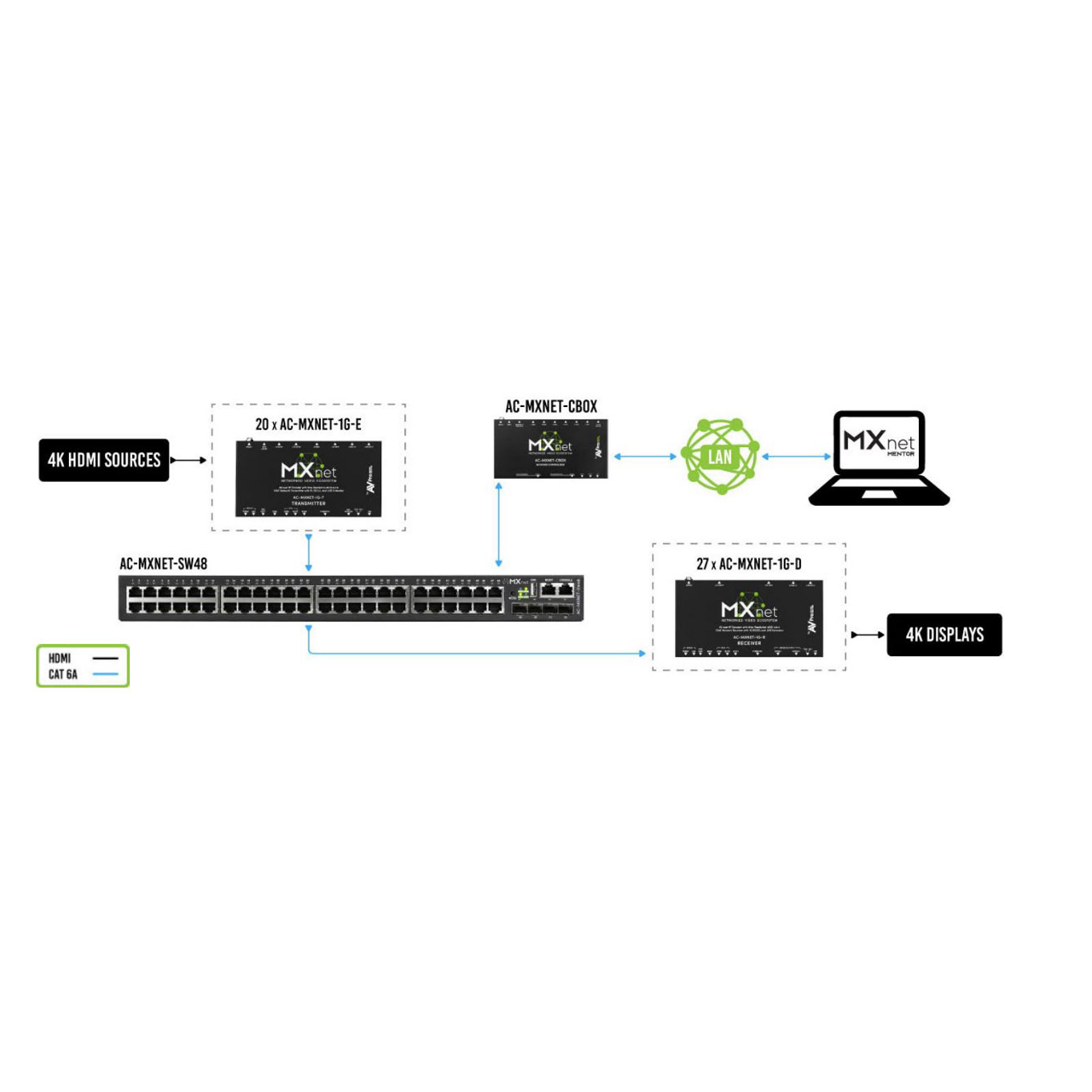

    The AC-MXNET-SW48 Network Switch is only one part of the MXNet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXNet's Ecosystem includes formatting such as resolution scaling, full EDID management, HDR and Dolby Vision metadata, multifaceted video walls, and includes the MXNet MENTOR setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client.

    • Features:

      • Full 48 port POE+ 740 Watts
      • Four 10GB SFP fiber ports for stacking
      • Less than 2 seconds switching time
      • Less than 40ms latency
      • "Whisper" Quiet Operation
      • AVPro Edge engineered and optimized Multicast A/V firmware modules
      • IAVP - Intelligent A/V Processing
    • Specifications:

      • Ports
      • Physical Port: 48 x 10/100/1000BaseT + 4 x 10GE (SFP+)

      • Switching Capacity: 176 Gbps
      • Forwarding Rate: 131 MPPS
      • Jumbo Frame: 10K
      • Mac Address: 16K
      • ARP Table: 512
      • Routing Table: 512
      • ACL Table: 512

        Management Ports
      • Ports: 1 x RJ45 Ethernet, 1 x Console Port, 1 x Reset Port, 1 x USB2.0 Interface

      • Relative Humidity: 10%-90% Non-Condensing, Storage 95%
      • Temperature: Working 32°-122°F, Storage -40°F-158°F

      • Power Supply: AC: 100-240VAC, 50-60Hz
      • Power Consumption: <897W
      • PoE: IEEE 802.3AF, IEEE 802.3AT, Total PoE Power: 740W

      • Dimensions: 17.3 x 1.73 x 12.6 Inches
      • Weight: 14.4 Lbs
      • Regulatory: CE/FCC/UL
      • Warranty: 10 Years
    • Item Includes:

      • 1x AC-MXNET-SW48 (Network Switch)
      • 1x Grounding cable, rubber feet
      • 1x RS232 to ethernet connector
      • 1x Zip Ties
      • 1x Rack Mount Brackets
      • 4x Larger Silver Screws
      • 8x Rack Mount Screws
    • GTIN:
