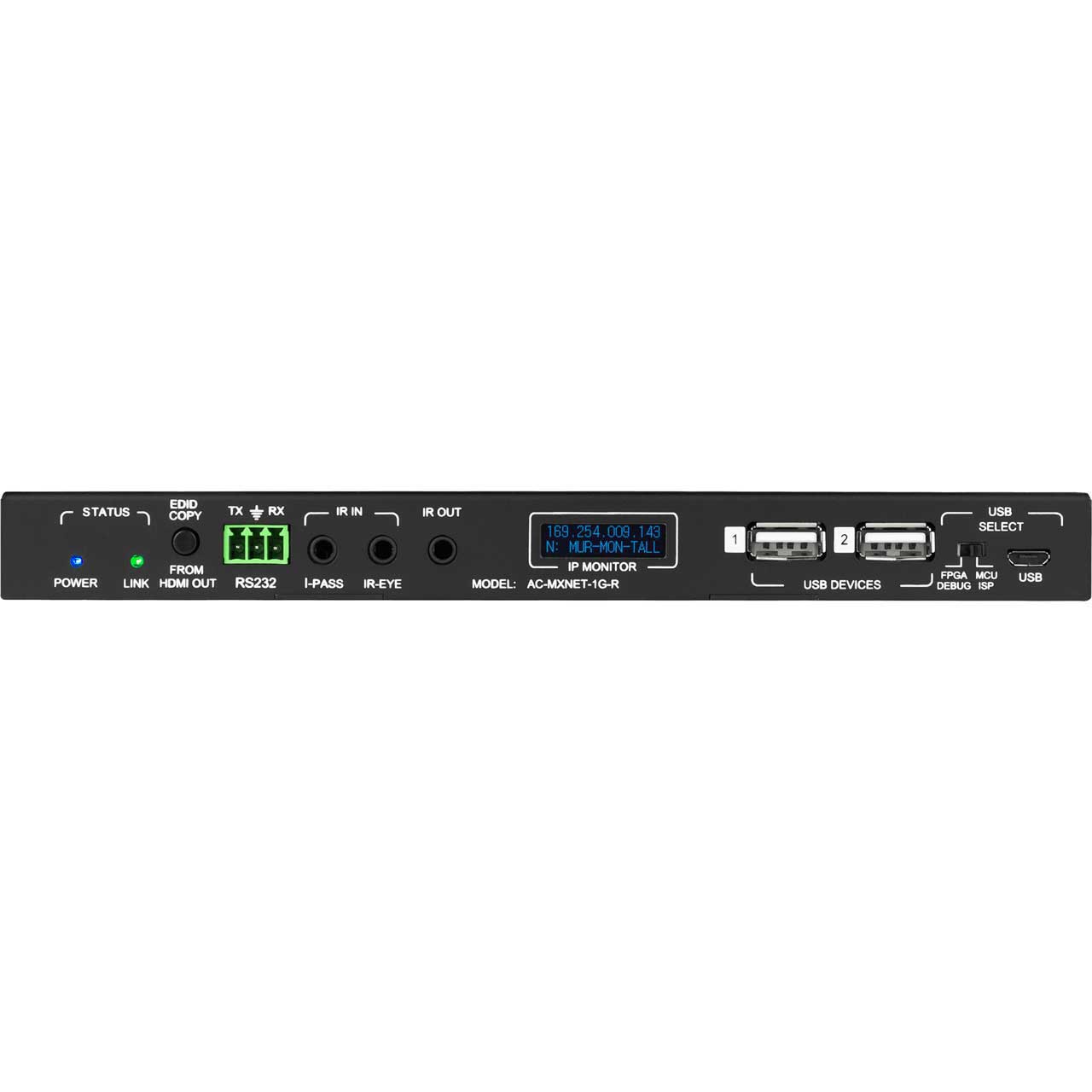

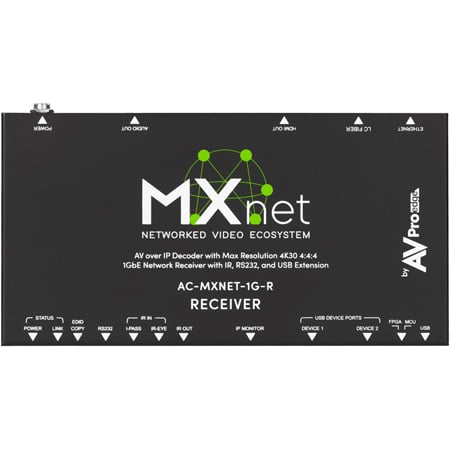

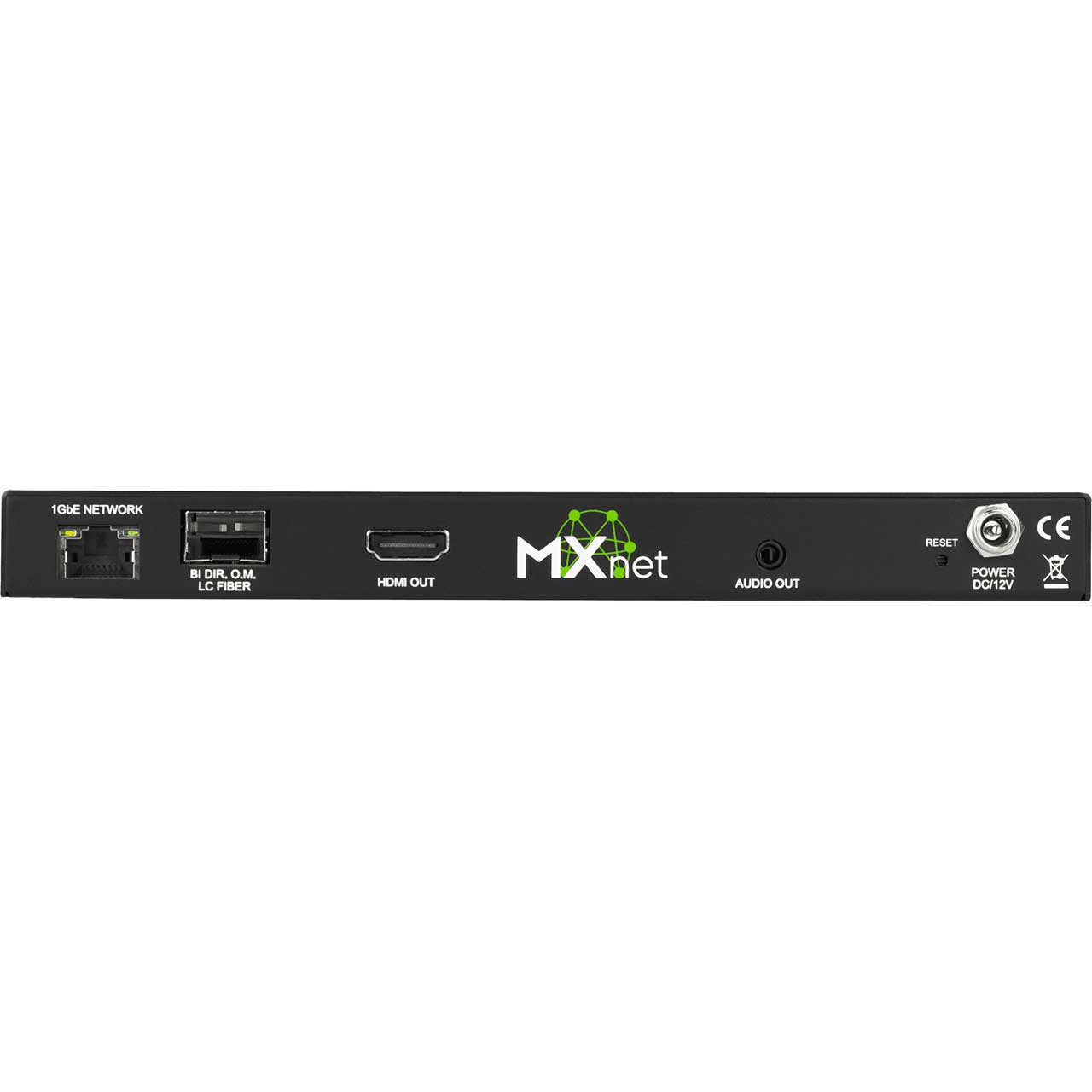

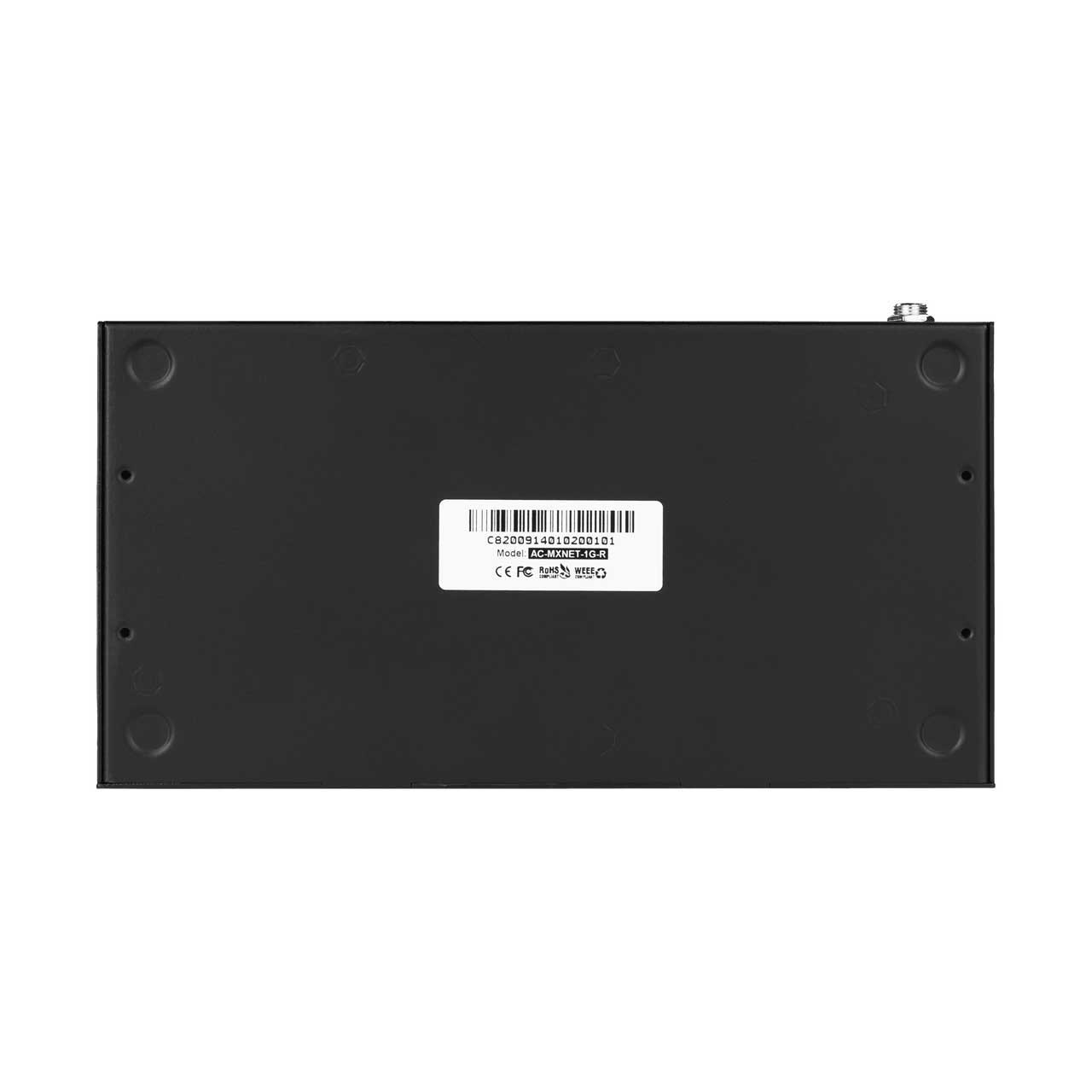

AVPro Edge AC-MXNET-1G-D 4K 4:4:4 60Hz HDMI 1G Decoder/Receiver with LC Fiber SFP

ITEM #: APR-AC-MXNET-1GD MFG #: AC-MXNET-1G-D

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Our Price:

$1,098.90

Availability: In Stock
iAvailability Description Popup


    AC-MXNET-1G-D - Overview

    This is where the signal arrives - the MXNet Decoder/Receiver device. Connect this to any HDMI display device, and it will decode and receive the incoming audio/video signal changing it back to an image or picture. This device connects directly via category wires (CAT 6A recommended) or fiber optics to the MXNet Switch (AC-MXNET-SW48) or any other compatible multicast-capable managed L3 network switch. The AC-MXNET-1G-D is a part of the MXNet family of AV-over-IP products from AVPro Edge.

    The AC-MXNET-1G-D will Decode a full 4K 4:4:4 60Hz HDMI video signal - along with audio, control, power, and HDR metadata signals. These signals are routed and passed from a single Encoder source via multicast routing through an MXNet or multicast compatible L3 managed network switch. And, it does all this with next to zero latency. MXNet Decoders decode IP packets to visually lossless audio/video signals. The AC-MXNET-1G-D Decoder also supports stand-alone point-to-point applications when connected directly to an AC-MXNET-1G-E Encoder.

    The AC-MXNET-1G-D Decoder is only one part of the MXNet Ecosystem that includes Encoders, Network Switches, Control Processors, and other various components designed to facilitate the building of a custom A/V distribution system. MXNet's Ecosystem includes formatting such as resolution scaling, full EDID management, HDR and Dolby Vision metadata, multifaceted video walls, and includes the MXNet MENTOR setup and control tool - making installations easy on the integrator, while also presenting a major WOW factor for your client.

    • Features:

      • 1G Maximum Data Rate
      • SFP Fiber Connection for Long Runs
      • Built-In "Data Window" OLED display
      • USB/KVM device support
      • Full Exterior Light Control
      • RS-232 and IR Direct Routing end point
      • Encapsulated RS-232 over IP serial passthrough

    • Specifications:

      • Video
      • Signal Type: DVI 1.0, HDMI 2.0B
      • Video Resolution: [email protected] 4:4:4, [email protected] 4:4:4, [email protected] 4:2:0
      • HDR Format: HDR 10, HLG, DV
      • Chroma Subsampling: 444, 422, 420
      • BIT Depth per Color: 1080P (16BIT), 4K (10, 12 BIT)

        Audio
      • Audio Format: PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby DIgital Plus, DTS 5.1 Channel, DTS-ES
      • Embedded Audio: N/A
      • De-Embedded Audio: Balanced Analog Audio

        Ports
      • Ethernet: 1 x Female RJ-45, PoE
      • SFP: 1 x SFP Slot
      • HDMI: 1 x HDMI Type A 19-Pin, Female, One HDMI Output
      • Audio: 1 x 3.5 MM Mini Stereo Jack, Audio Out
      • IR: 3 x 3.5 MM Mini-Stereo Jack, One IR-PASS, One IR-Eye, One IR-Out
      • RS232: 1 x 5 Pin Terminal Block
      • USB: 2 x USB 2.0 Type-B for USB Extension and KVM, 1 x USB Micro Type-B for MXNET Service

        Distance
      • Ethernet: 100 Meter / 330 Feet over CAT5E and Above
      • SFP and Fiber: 1000Base-SX SFP Transceiver Module

        Power
      • Max Power Consumption: 9W
      • PoE: IEEE 802.3AF (15.4W)

    • Item Includes:

      • 1x AC-MXNET-1G-D (Decoder/Receiving Device)
      • 1x IR Emitter
      • 1x IR Eye
      • 2x Rack Ears
      • 4x Screws
      • 1x 3 pin phoenix connectors

    • GTIN:

      0850015330292
