Artel 3312-KIT-B7L FiberLink 4K 12G/6G/3G/ASI LC Optical Fiber Extender/Transceiver Kit with 2x Transceivers/PSUs & SFPs
  • Artel 3312-KIT-B7L FiberLink 4K 12G/6G/3G/ASI LC Optical Fiber Extender/Transceiver Kit with 2x Transceivers/PSUs & SFPs
  • Artel 3312-KIT-B7L FiberLink 4K 12G/6G/3G/ASI LC Optical Fiber Extender/Transceiver Kit with 2x Transceivers/PSUs & SFPs

Questions? Ask a Markertek Expert:
800-522-2025 Email

Artel 3312-KIT-B7L FiberLink 4K 12G/6G/3G/ASI LC Optical Fiber Extender/Transceiver Kit with 2x Transceivers/PSUs & SFPs

Manufacturer: Artel Video Systems

Item #: ARTL-3312-KITB7L   •   MFG #: 3312-KIT-B7L




Our Price:$2,950.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

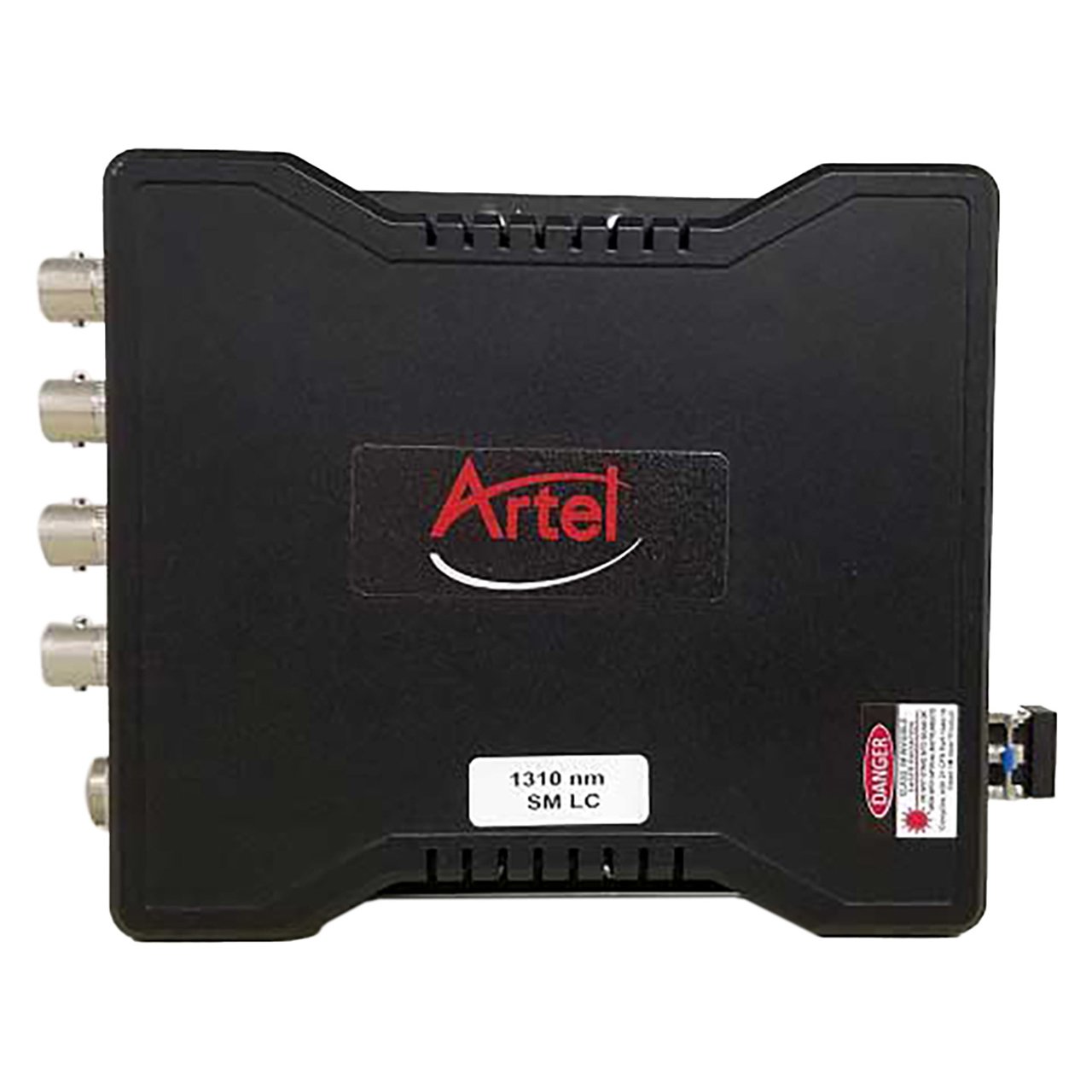

    Artel Fiberlink 3312-KIT-B7L is a 12G SDI optical extender/tranciever kit for high resolution 4K video for broadcast applications that includes two transceivers, two power supplies and two SFP's.

    The FiberLink 3312 is a compact, but powerful fiber optic link capable of extending high resolution video for 4K broadcast applications. It can extend signals from 270 Mbps to 12 Gbps up to 10 km on a single SM fiber and meets SMPTE SDI standards maintaining error free transmission of SMPTE 424M, 297M, 292M, 259M, 2081, 2082 and ASI over the entire 10 km distance.

    Additionally, the Fiberlink 3312 provides error free transmission with RP-198 pathological patterns. The units are built with a solid stand-alone compact enclosure with mounting flanges, making it the perfect solution for OB trucks, remote broadcast or any other application that might need a "throw down", wall mount or shelf mounted fiber optic link. The kit includes two 12 VDC, lA power supplies that have a mini-XLR locking power connector for a more secure connection.


    • Features

      • 12G-SDI long distance extension

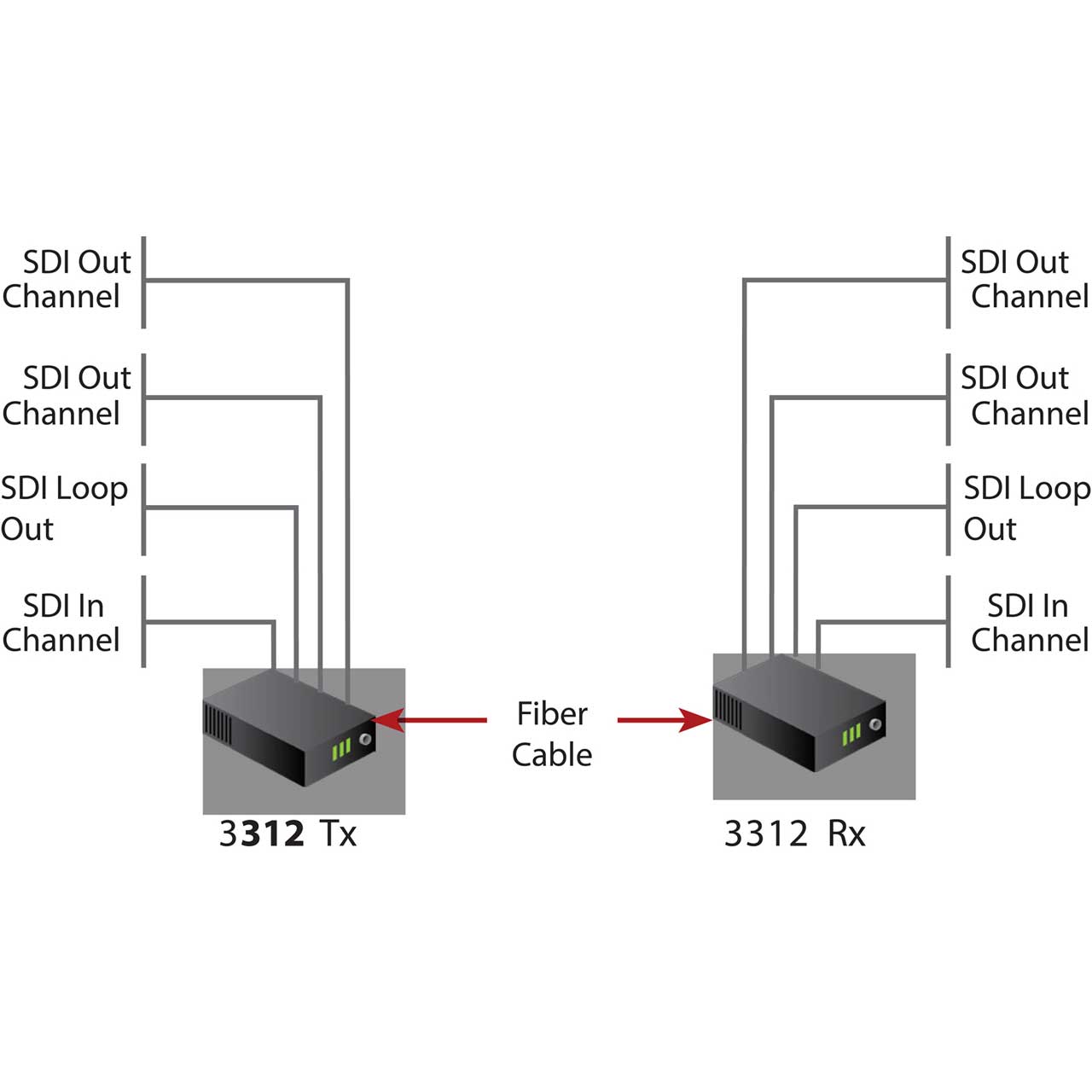

      • Bidirectional transmission supported
      • One LC optical connection needed for one-way transmission
      • Resolution support for 4K broadcast
      • Data rate from 270 Mbps up to 12G-SDI
      • Up to 10 km on one SM fiber
      • Compact flange-mount design

    • Specifications

      • Optical Specifications
      • Connectors: LC
      • Distance: Up to 10 km distance
      • Optical Power (Nominal): -5 to +5 dBm for Power Output and Input Power of -10 dBm
      • Re-Clocking: At 270 Mbps, 1.485 Gbps, 2.97 Gbps, 5.94 Gbps & 12 Gbps
      • Wavelength: 1310nm Tx and 1260 to 1620nm Rx (nominal)

        Serial Video BNC Interfaces
      • Data Rate Range: 270Mbps, 1.485, 2.97, 5.94, 12Gbps
      • Number Of Interfaces: 2 SDI Output channels, 1 SDI Loop channel, and 1 SDI Input Channel
      • Re-Clocked Data Rates:
        270 Mbps (SMPTE 259M)
        1.485 Gbps (SMPTE 292)
        2.97 Gbps (SMPTE 424M)
        5.94 Gbps (2081)
        12 Gbps (2082)
      • Supported Standards: SMPTE 2082, 2081, 424M, 297M, 292M, 259M support

        General Specifications
      • 4K/UHD Support: up to 60 fps
      • Box Version Dimensions: 4.92" x 4.33" x 1.16"
      • Operating Temperature: 0° C to +50° C
      • Power Consumption: < 3 watts
      • Weight: 8 ounces

    • Item Includes

      • 2x FiberLink 3312 transceivers
      • 2x SM LC SFPs 1310nm
      • 2x 12 VDC, lA power supplies with mini-XLR locking power connector
