ATEN UC3022 CAMLIVE PRO - Dual HDMI to USB-C UVC Video Capture/Production & Livestreaming

ITEM #: ATEN-UC3022 MFG #: UC3022

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$276.89

Our Price:

$249.20

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    UC3022 - Overview

    A Professional One-Person Production Studio
    Providing the most fluid video streaming workflow for dual camera / single operator setups, CAMLIVE™ PRO (UC3022)is a video capture and switch device that can turn any professional 4K camera, camcorder, or GoPro into an HDMI video source for a computer or mobile device to stream, coupled with the incredibly feature-rich DVE (Digital Video Effect) options and chroma keyer. Just connect a camera, mic, and laptop, and you are ready to stream and switch between two video inputs.

    4K Capture, Stream, and Switch Instantly
    CAMLIVE™ Pro is designed to easily connect with two 4K video sources and mix and stream in FHD format to a worldwide audience with outstanding video effects and professional full HD quality. It's completely plug and play and compatible with any streaming software and social media platform, such as Skype, Teams, Zoom, OBS, YouTube, and Facebook. For streamers who want to make interviews, presentations, or even live events, using CAMLIVE™ PRO is easy and fast!

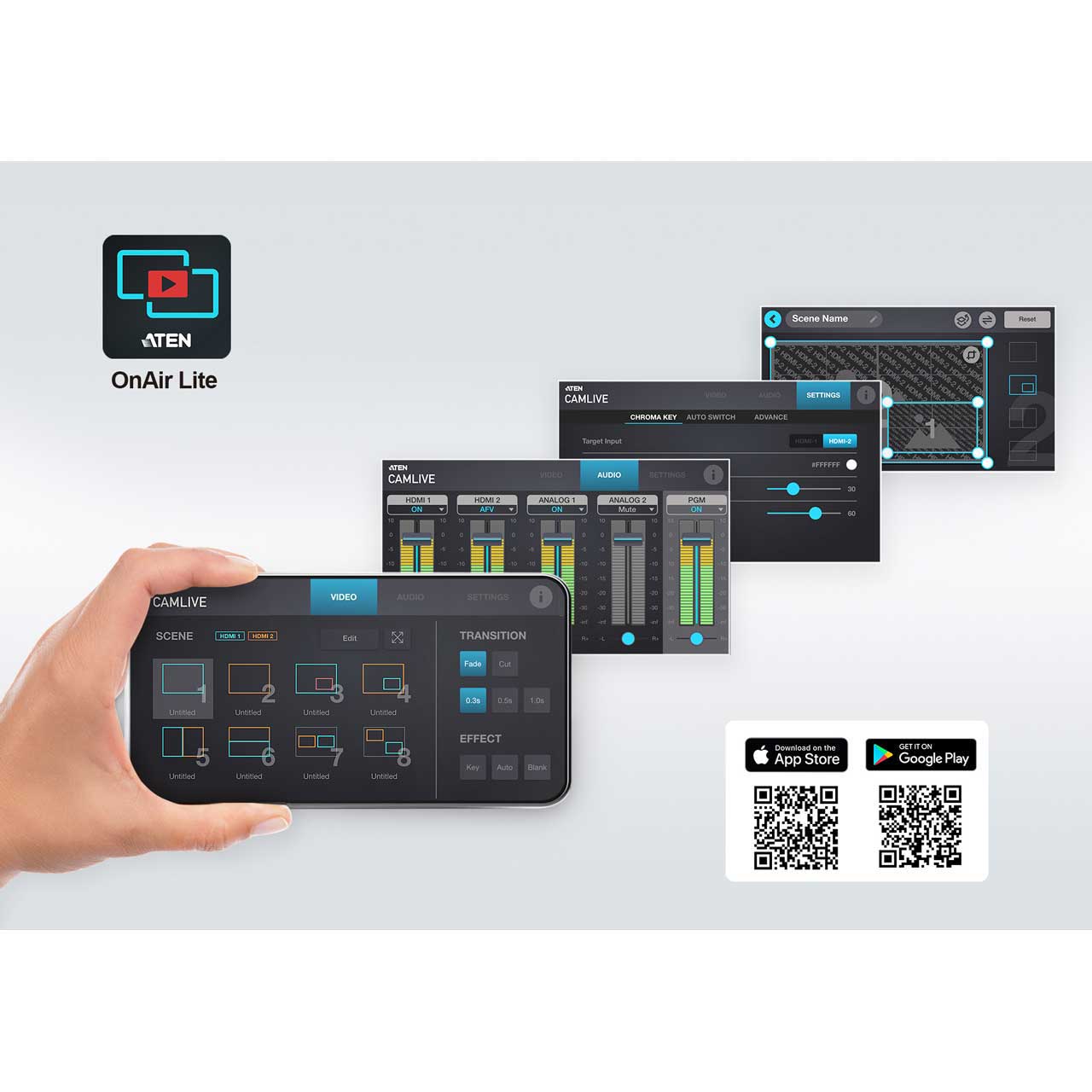

    Free ATEN OnAir Lite Control App with Continuous Updated Features
    The ATEN OnAir Lite control app allows for controlling remotely, editing in real-time, chroma keying, and arranging multi-elements into your program mix. You can switch and mix video/audio, change settings and effects, and save up to 8 scene presets for quick switching. Upcoming new features will include command shortcuts for chats, animations, and sound effects, all to help streamline your workflow.

    • Features:

      • Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via USB 3.x interface with seamless transition
      • Intuitive Android / iOS App control - set up your camera gear and direct your show from anywhere
      • Supports real-time HDMI program video preview
      • Easily identifiable chroma keys - can make the video look like you are anywhere by changing the background

    • Specifications:

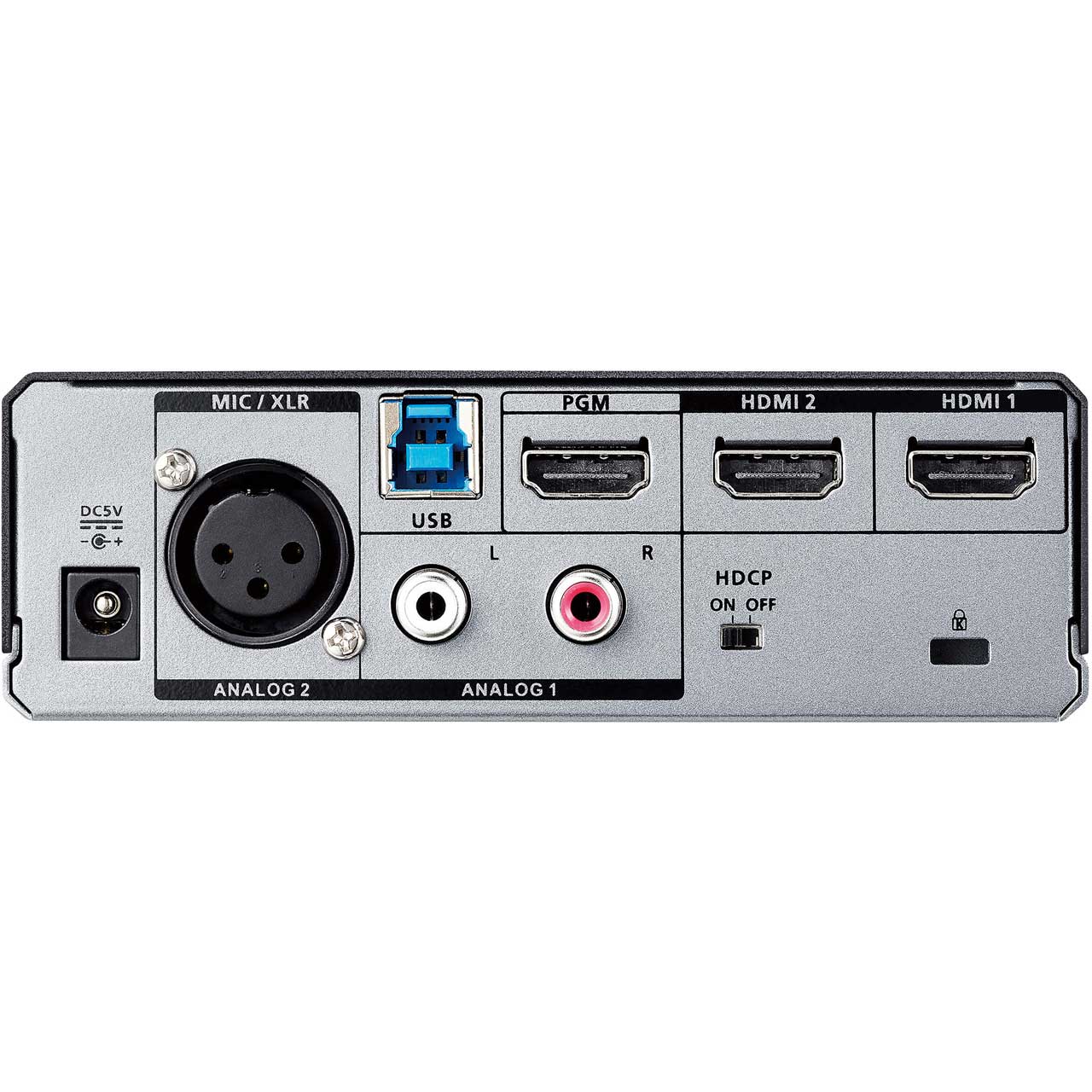

      • Connectors
      • Video In: 2 x HDMI Type A Female (Black)
      • USB Port: USB 3.2 Gen1 Type-B Male (Blue) (USB-B to USB-C and USB-B to USB-A cable package included)
      • Video Output: 1 x HDMI Type A Female (PGM Video, Black)
      • Audio Inputs: 1x balanced analog audio via XLR connectors; 1x unbalanced audio via RCA connectors.

        Video Resolution
      • Video Input: 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50, HDMI 1.4b support
      • PGM video out: 1080p60/50/30/25/24, 720p60/50, HDMI 1.4b support (unencrypted) (Support encrypted PGM output at 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 with UVC capture disabled)

        Audio Sampling
      • 16-bit PCM audio, 44.1KHz and 48KHz

        Output
      • Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)

        Environmental
      • Operating Temperature: 32° to 104°F (0 to 40°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Humidity: 0 to 80% RH, (non-condensing)

        Minimum Hardware Requirements
      • PC/Mac:
      • CPU: Intel® i3 Dual Core 2.8Ghz or higher
      • RAM: 4GB or more
      • One USB-C interface or USB-A interface
      • Smartphone: Android device with UVC support and USB-C interface

        Connection
      • Bluetooth Low Energy(BLE) technology

        OS Support
      • Windows 10 and above (Window 7 requires driver installation)
      • Mac OS X 10.13 and above
      • Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE)

        Physical Properties
      • Housing: Metal
      • Weight: 1.5Lbs (0.68kg)
      • Dimensions (LxWxH): 5.12 x 5.98 x 1.67" (13 x 15.18 x 4.25cm)

        Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

    • Item Includes:

      • 1x UC3022 CAMLIVET PRO Dual HDMI to USB-C UVC Video Capture
      • 1x USB-B to USB-C Cable
      • 1x USB-B to USB-A Cable
      • 1x Power Adapter
      • 1x User Instructions

    • GTIN:

      0672792011474
