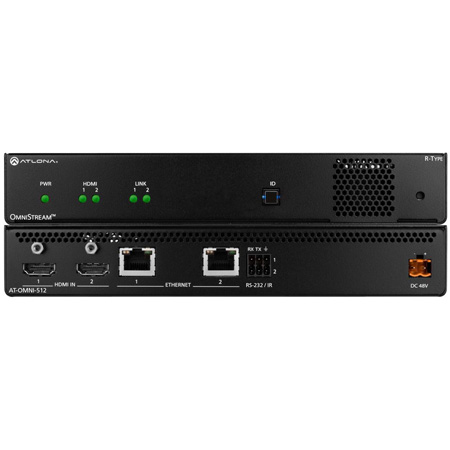

Atlona AT-OMNI-512 Dual Channel OmniStream R-Type AVoIP Encoder

AT-OMNI-512 - Overview

• Features:

  • Dual-channel AV encoder for HDMIr up to 4K/UHD, plus embedded audio and RS-232 or IR control pass-through
  • Supports UHD @ 60 Hz plus HDR formats
  • High performance, visually lossless video compression
  • Simplify integration with plug-and-play network switch compatibility
  • Local or PoE (Power over Ethernet) powering
  • AES67-compatible audio over IP streaming


• Specifications:

  • UHD/HD: 4096x2160@24Hz, 3840x2160@24/25/30Hz (UHD), [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@25/29.97/30Hz, 720p@30/50/59.94/60Hz
  • Latency: 0.5 frames
  • Bitrate: 900 Mbps
  • Color Space: YUV, RGB
  • Color Depth: 8-bit, 10-bit, 12-bit
  • Digital IN: LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™
  • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • Bit Depth: up to 24-bit
  • CEC: Yes
  • HDCP: 2.2
  • Scrambling: AES 128-bit for HDCP sources
  • Protocol: RTP
  • Ethernet Speed: 10/100/1000 Mbps
  • Address : DHCP, static
  • Bit Rate: 2400-115200 bps
  • Connector: Molex - 2 x 3 pin
  • Operating Temperature Fahrenheit: 14 to 122
  • Storage Temperature: -14 to 140
  • Humidity (RH): 20 to 95% non-condensing
  • Consumption: 12 W
  • Output: 12 V DC, 1 A
  • SKU: AT-PS-48083-C
  • Dimensions: Inches Millimeters
  • H x W x D: 1.34 x 8.19 x 4.41 Inches
  • Weight: 3.08 lbs


• GTIN:

  0846352005641
