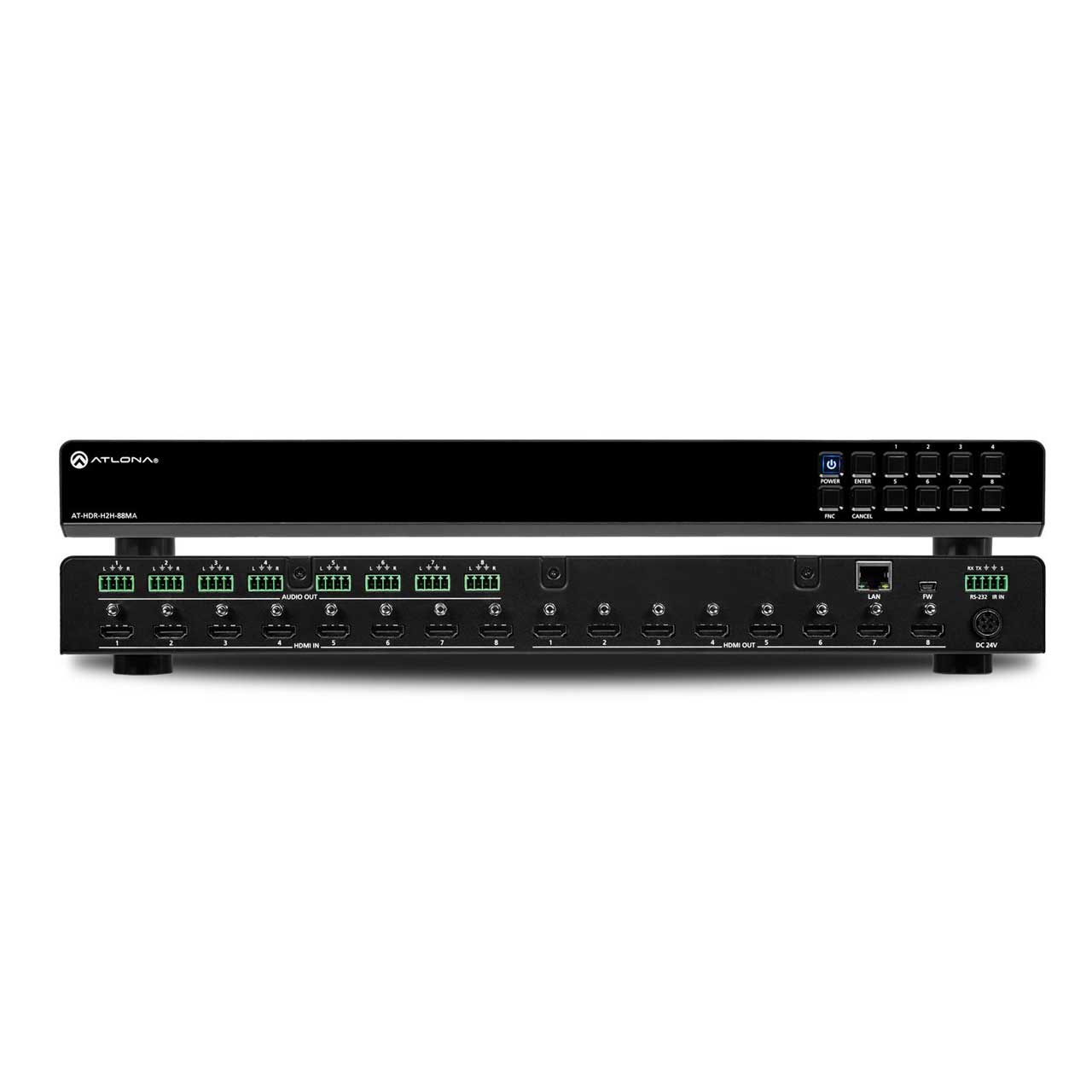

Atlona HDR-H2H-88MA 4K HDR 8x8 HDMI to HDMI Matrix Switcher

Manufacturer: Atlona Technologies

Item #: ATNO-HDR-H2H88MA   •   MFG #: HDR-H2H-88MA




Our Price:$4,000.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

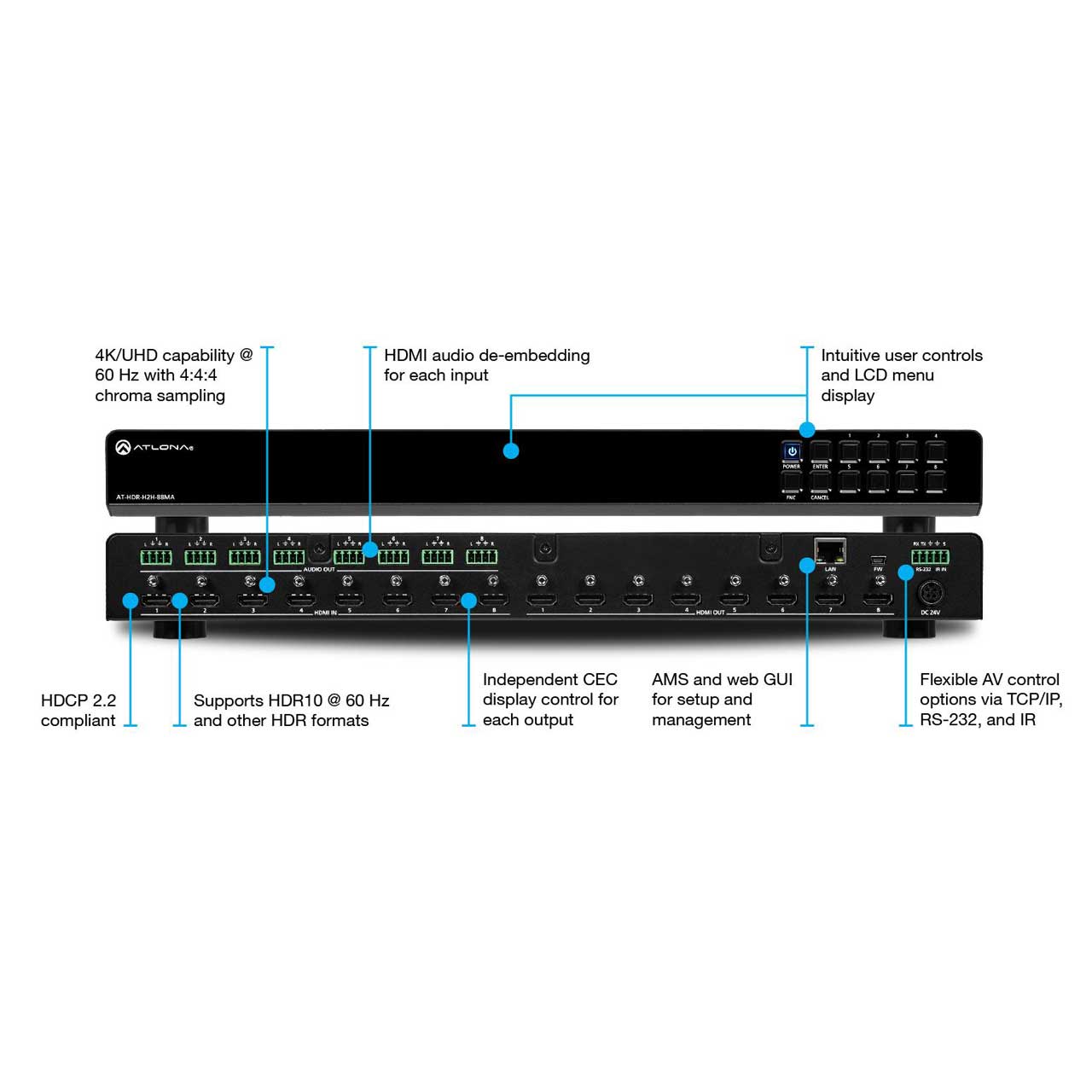

    The Atlona HDR-H2H-88MA is an 8x8 HDMI matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-88MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-H2H-88MA includes EDID and HDCP management features, and can send CEC display control independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-88MA can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

    The HDR-H2H-88MA is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications. It includes Atlona's award-winning 10 year limited product warranty and customer support services, so that integrators can specify, purchase, and install with confidence.


    • Features

      • Delivers high performance, reliable HDMI signal matrix switching
      • Easy to install and deploy in residential and commercial applications
      • Fast input selection switching eliminates video blinking in other zones
      • Eliminates long wait times caused by handshaking and HDCP key validation for an uninterrupted viewing experience in all zones
      • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
      • Compatible with 4K HDR10 and Dolbyr VisionT @ 60 Hz
      • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
      • Adheres to latest specification for High-bandwidth Digital Content Protection
      • Allows protected content stream to pass between devices
      • Sends display power on/off control to a specific HDMI output
      • Enables independent control of displays connected to the matrix switcher
      • CEC control can be triggered by IP or RS-232 control commands
      • Manages EDID communications with the source through a display's EDID or internally stored EDID
      • Ensures desired audio formats and video resolutions are provided to the AV system
      • HDCP compliance can be disengaged through AMS or a control system
      • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
      • Extracts HDMI two-channel PCM audio to an unbalanced analog audio output paired with a corresponding HDMI input
      • Provides an additional integration option for whole-house as well as commercial audio systems
      • Flexible control options for compatibility with third-party control systems
      • Reduces integration time and costs
      • Includes a convenient handheld IR remote control
      • Offers menu-based configuration of network settings, RS-232 settings, matrix switching, EDID and HDCP management, and audio
      • Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
      • Configured and managed by AMS (Atlona Management System)
        This IP-controllable product is remotely managed by the Atlona Management System software
      • Integrates product configuration, management, and updates to reduce installation time and enable remote support
      • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
      • Allows any multi-channel audio stream to be used within a residential or professional audio system
      • Rear panel USB port provides an easy means for device updates
      • Ensures long-term system return on investment
      • Matrix switcher can conveniently be controlled, configured, and monitored from the front panel
      • Provides easy setup, user operation, and troubleshooting
      • Rack mountable 1U, full-rack width enclosure
      • Installs easily in rack mounted systems with included 19? rack mount brackets
      • Reduces installation time and cost
      • Ensures long-term product reliability and performance in residential and commercial systems

    • Specifications

      • Color Space: YUV, RGB
      • Chroma Sampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10 and Dolby® Vision™ @ 60Hz
      • HDMI IN / OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD
      • Master Audio™, Dolby Atmos®, DTS:X®
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: up to 24-bit
      • Bandwidth: 18 Gbps
      • CEC: Yes
      • HDCP: 2.2
      • Operating Temperature: 32°F to 122°F, 0°C to 50°C
      • Storage: -40°F to 158°F, -40°C to 70°C
      • Humidity (RH): 20% to 90%, non-condensing
      • Consumption: 43.3 W
      • Idle Consumption: 21.7 W
      • Supply Input: 110 - 240 VAC, 50 / 60 Hz
      • Output: 24V DC, 2.7 A
      • Dimensions inches H x W x D: 1.73 x 17.24 x 10.00
      • H x W x D, w/feet/ears: 2.18 x 18.93 x 10.23
