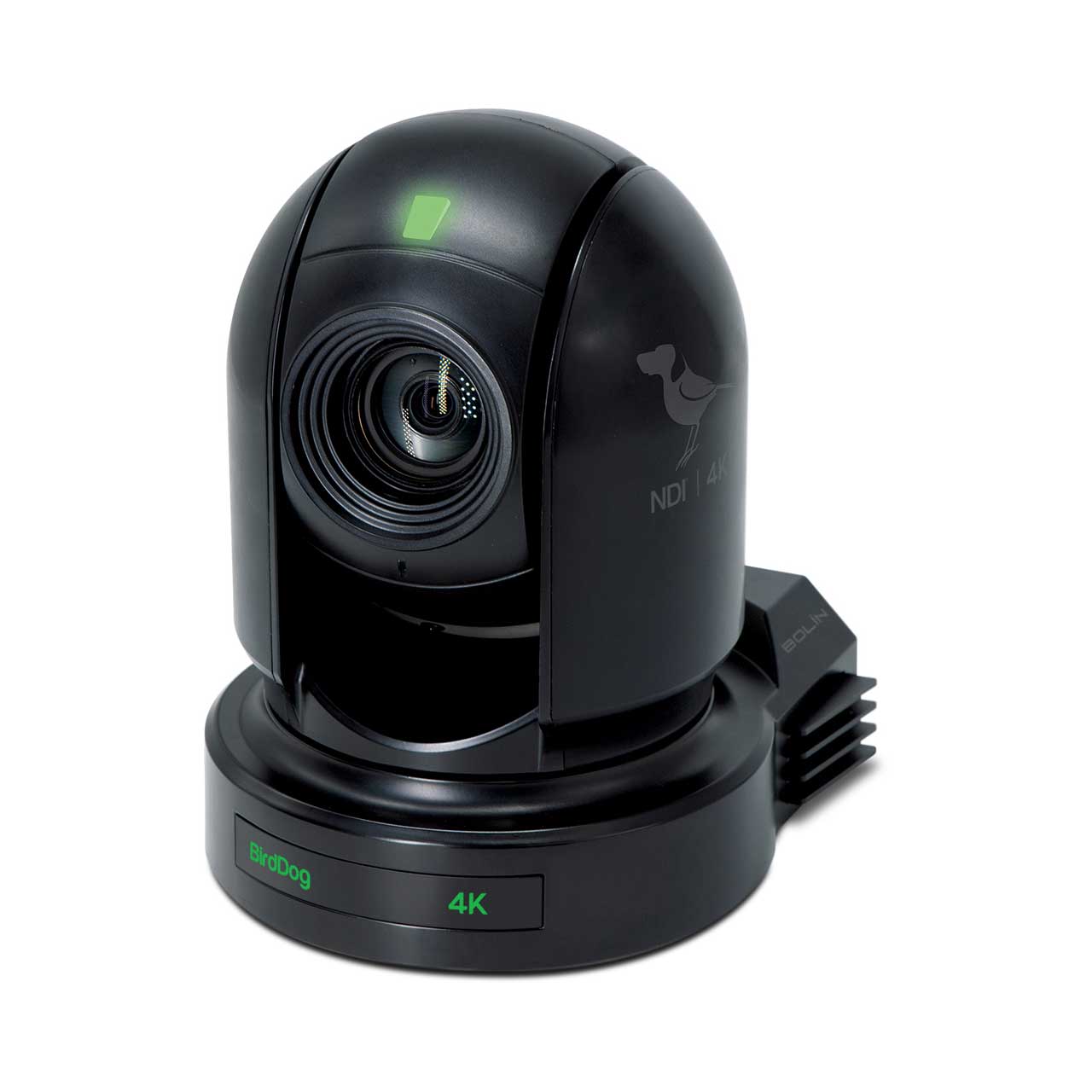

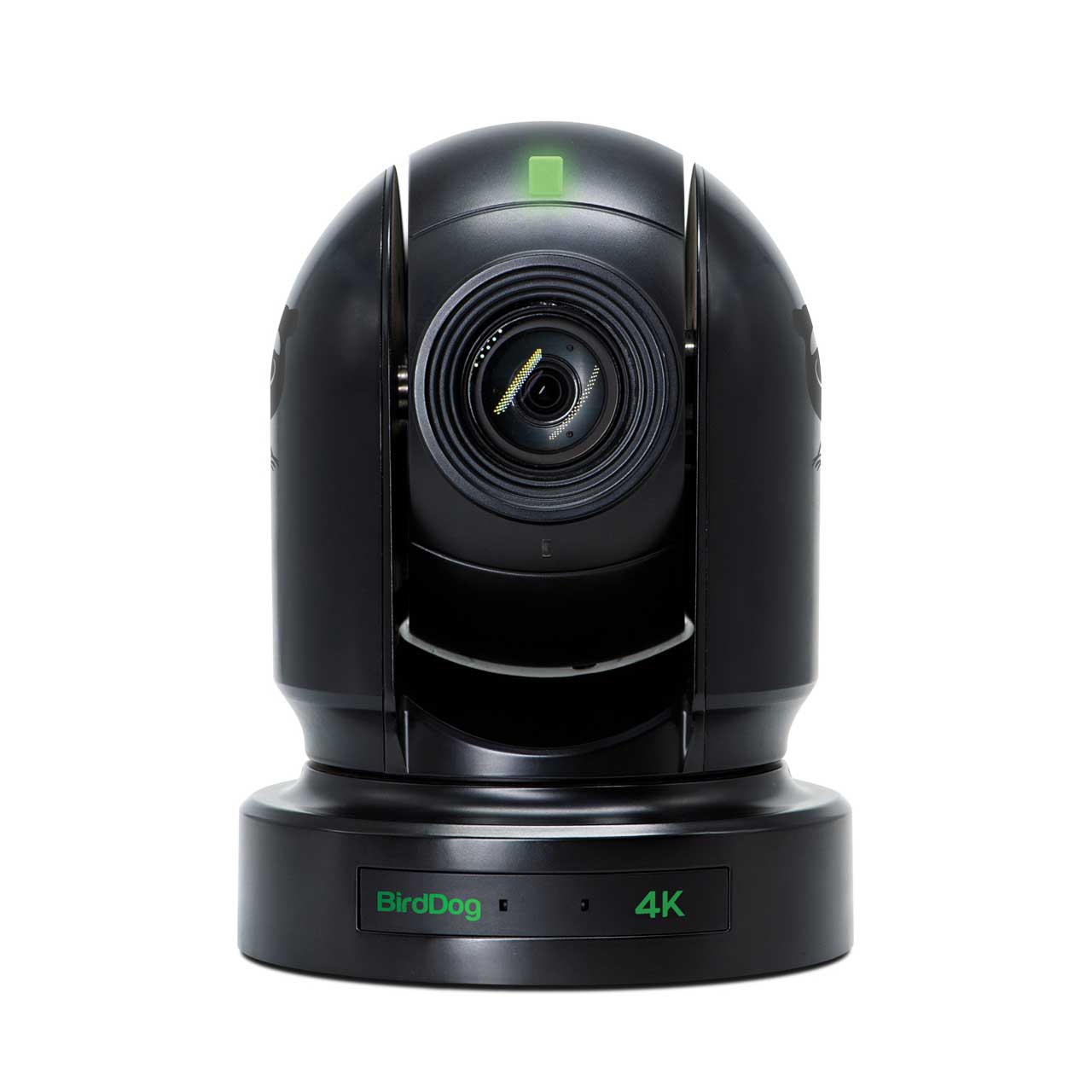

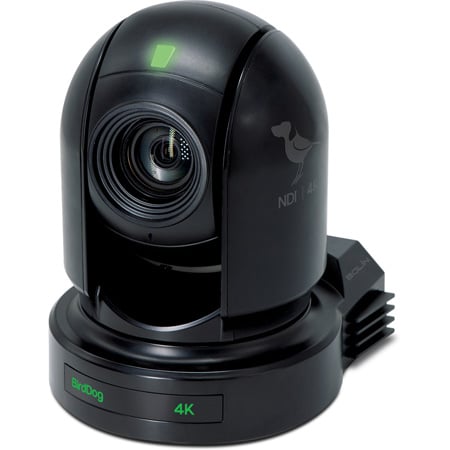

BirdDog Eyes P400 4K Full NDI PTZ Camera with Sony Sensor - Black


Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Availability: Sold Out
iAvailability Description Popup

    BDP400B - Overview

    Stunning 4K NDI® with incredible color tools!

    Wow - P400 features stunning 4K resolution NDI and allows chroma subsampling in your choice of 4:2:0 or 4:2:2.
    Double Wow - P400 teams up BirdDog's custom NDI® silicon chip, a 4K Sony CMOS Backlit sensor, and a true Sony Image Module.
    Triple Wow - P400 includes professional-level color tools including Color Matrix control, Black level and Gamma including 512 pre-set gamma positions.

    Full NDI®. No compromises.
    In the world of NDI® there are two flavors, NDI® and NDI/HX. NDI® is a variable bit rate, I-Frame codec that reaches around 140Mbits at 1080p60 and is visually lossless. NDI/HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P400 is a Full NDI® camera.

    4:2:2 4K. Numbers matter.
    P400 debuts the world's first 4K NDI with chroma subsampling at 4:2:2 which can be decoded natively in hardware by BirdDog's 4K Family of NDI Encoders and Decoders. If decoding with a 4:2:0 receiver the stream will automatically serve 4:2:0 and this is what will be decoded. Think of it as an automatic and virtual handshake.

    Free Cam Control. Shade like a pro, bro.
    BirdDog Cam Control allows full access to the entire color matrix, black levels, and even the gamma to be able to shade your P400's like a total pro. Right click to view camera full screen on a secondary monitor to really dial in the look you want and then copy the settings to color match cameras in seconds. Yes, that's right. Color match cameras in seconds. And it's 100% FREE with all BirdDog PTZ cameras.

    Incredible low light performance.
    In low light conditions, the camera automatically switches from day to night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness.

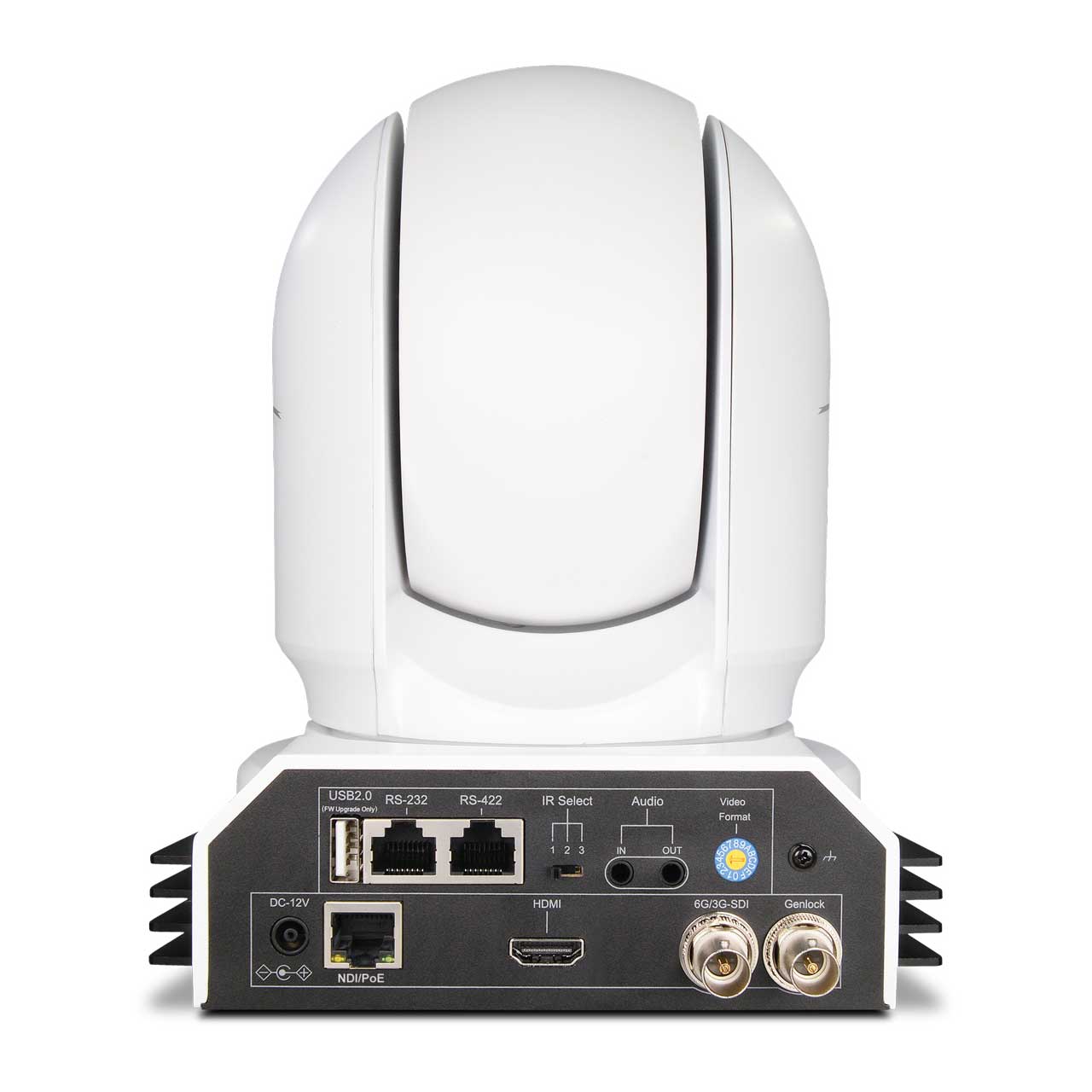

    Triple output. NDI®, 6G-SDI and HDMI.
    With NDI®, 6G-SDI, and HDMI simultaneous outputs, the P400 is ready to go live with your full NDI® workflow today or if you are still in an old school SDI workflow you can use it as an SDI camera and ease your way into the world of NDI® when you are ready. BirdDog will be here to welcome you into the future with open arms.

    Genlock. Let that sync in.
    With Genlock you can now synchronize multiple cameras using the Genlock input. Now all your cameras can be hitting your NDI® enabled vision mixer at the same time and lets you eliminate the need to add frame buffers.

    • Features:

      • Superfine Robotics allows precise control at your fingers.
      • 20x Optical Zoom. Fast and Crisp.
      • RESTful API. DIY automation.
      • PTZ Keyboard. Take control.
      • PoE or DC. You have the power.
      • Tally light that just works.
      • Defog (Auto, 3 levels)
      • Visibility enhancer
      • Black & White
      • E-Flip
      • Mirror
      • Color enhancement
      • Black level gamma
      • Sat/Hue Adjust
      • HLC
      • Color Bar
    • Specifications:

      • Camera
      • Image Sensor: 1 / 2.5 Inch Cmos 8.5mp
      • Lens: 4.4-88.4mm
      • Optical Zoom: 20x
      • Srz (Super Revolution Zoom): 30x In 4k, 40x In Full Hd
      • Horizontal Angle Of View: 70.2° (W) - 4.1° (T)
      • Aperture: F2.0 (W) - F3.8 (T)
      • Min. Illumination:
      • Color:
        0.4lux (1/30s, 50%, High Sensitivity Mode On)
        1.6lux (1/30s, 50%, High Sensitivity Mode Off)
        0.06lux(1/4s(1/3s),50%, High Sensitivity Mode On)
      • Shutter Speed: 1/1 - 1/10000s
      • WDR: Yes (130db)
      • ND Filter: Yes
      • Image Stabilizer: Yes
      • Color Gain: Yes (16 Step)
      • Color Hue: Yes (16 Step)
      • Gamma: Standard, Straight, 512 Pattern
      • Gamma Level: Yes (72 Step)
      • Black Level: Yes (97 Step) - Flicker Cancel: Yes
      • Noise Reduction: On/Off (Level 5 To 1/Off, 6 Steps), 2d/3d
      • S/N Ratio: ≥50db
      • Focus: Auto Focus (Trigger/Interval), Manual Focus (Variable Speed), One Push Trigger, Near Limit
      • White Balance: Auto, Atw, Indoor, Outdoor, One Push Wb, Manual Wb, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
      • Exposure: Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright, Slow Shutter, Max/Min Shutter Limit, Slow Ae
      • Backlight Compensation: Yes

      • Pan Movement: Horizontal: ±175 Degrees Continuous Pan (Zoom Adaptive Speed Range: 0.05°-100°/S)
      • Tilt Movement: Vertical: +90 Degrees To -30 Degrees (Zoom Adaptive Speed Range: 0.05°-50°/S)
      • Preset Positions: 128 Speed Adjustable: Up To 150°/S, 6 Presets On Remote Controller)
      • Environmental: Indoor
      • Operating Temperature: 14 - 104°F
      • Operating Humidity: ≥80%

        Video Interface
      • Video Output: NDI/HDMI/6G-SDI
      • 4k Video Formats: 4Kp 29.97, 25, 24, 23.98, 23.97
      • HD Video Formats: 1080p 60, 59.94, 50, 29.97, 25, 24, 23.97 1080i 60, 59.94, 50/720p 60, 59.94, 50
      • Audio I/O: 3.5mm Audio In (Stereo), 3.5mm Audio Out (Stereo)

        Control Interface
      • IP PTZ Control: NDI Control (Auto Configuring), Visca Over IP
      • Serial PTZ Control: 2x RJ45: RS232 / RS422 / RS485 Connectors
      • Serial Control Protocol: Visca / Pelco D

        Power & Dimensions
      • Power Input: 12v DC, PoE++ (IEEE 802.3bt)
      • Dimensions: 5.5 x 6.25 x 8.54 Inches
      • Weight: 5.95 Lbs

      • Video Compression: Full NDI - i-frame high quality low latency NDI for production
      • Network Protocol: NDI - Discovery, configuration and control
      • Web Control Interface: Full control via Web/Mobile UI including Scene presets
      • Optional Mounts: Ceiling mount, Wall mount
    • Warranty:

      • 2 year warranty
    • GTIN:
