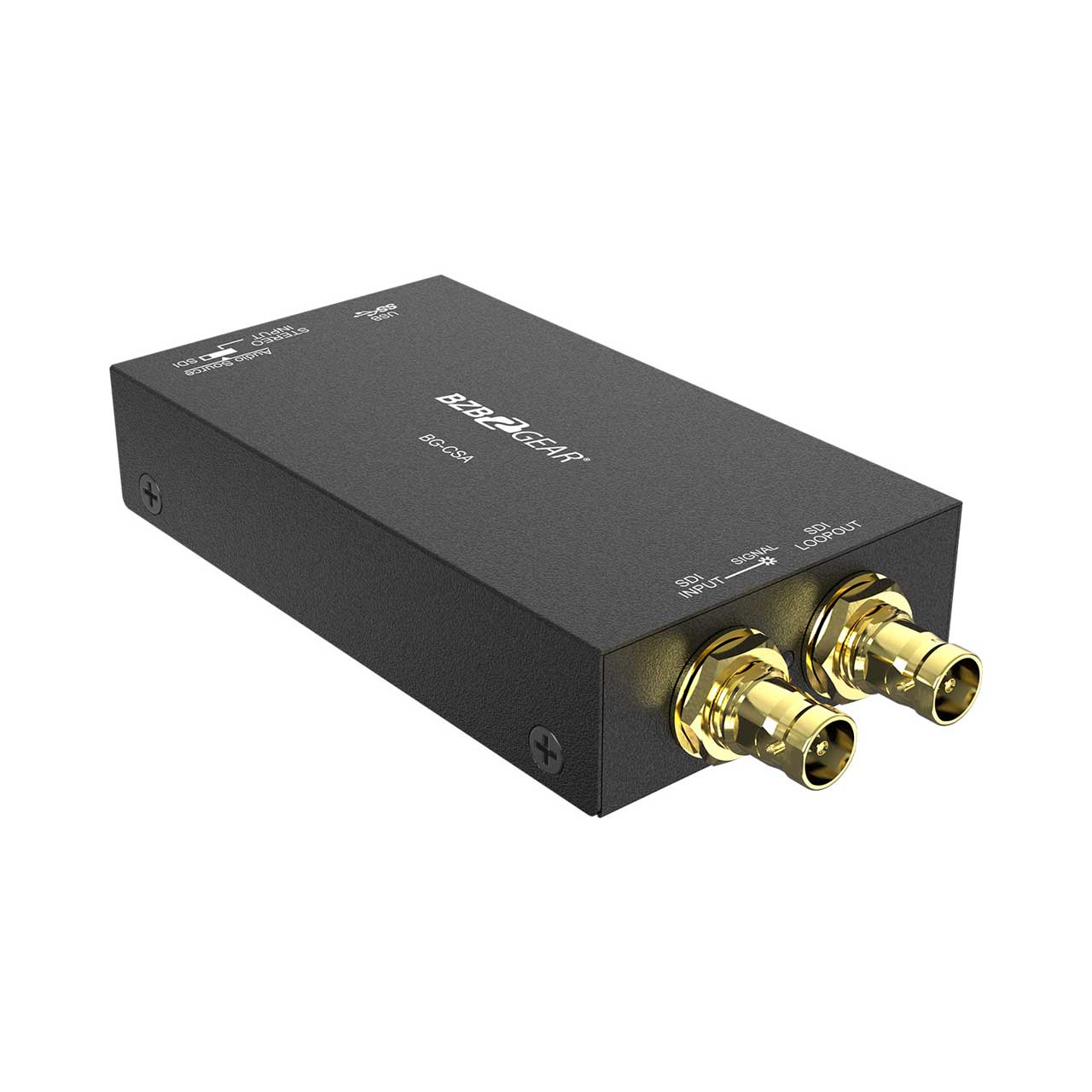

BZBGEAR BG-CSA USB 3.1 Gen 1 3G-SDI Capture Device with Scaler and Audio

ITEM #: BG-CSA MFG #: BG-CSA

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$199.00

Availability: In Stock
iAvailability Description Popup


    BG-CSA - Overview

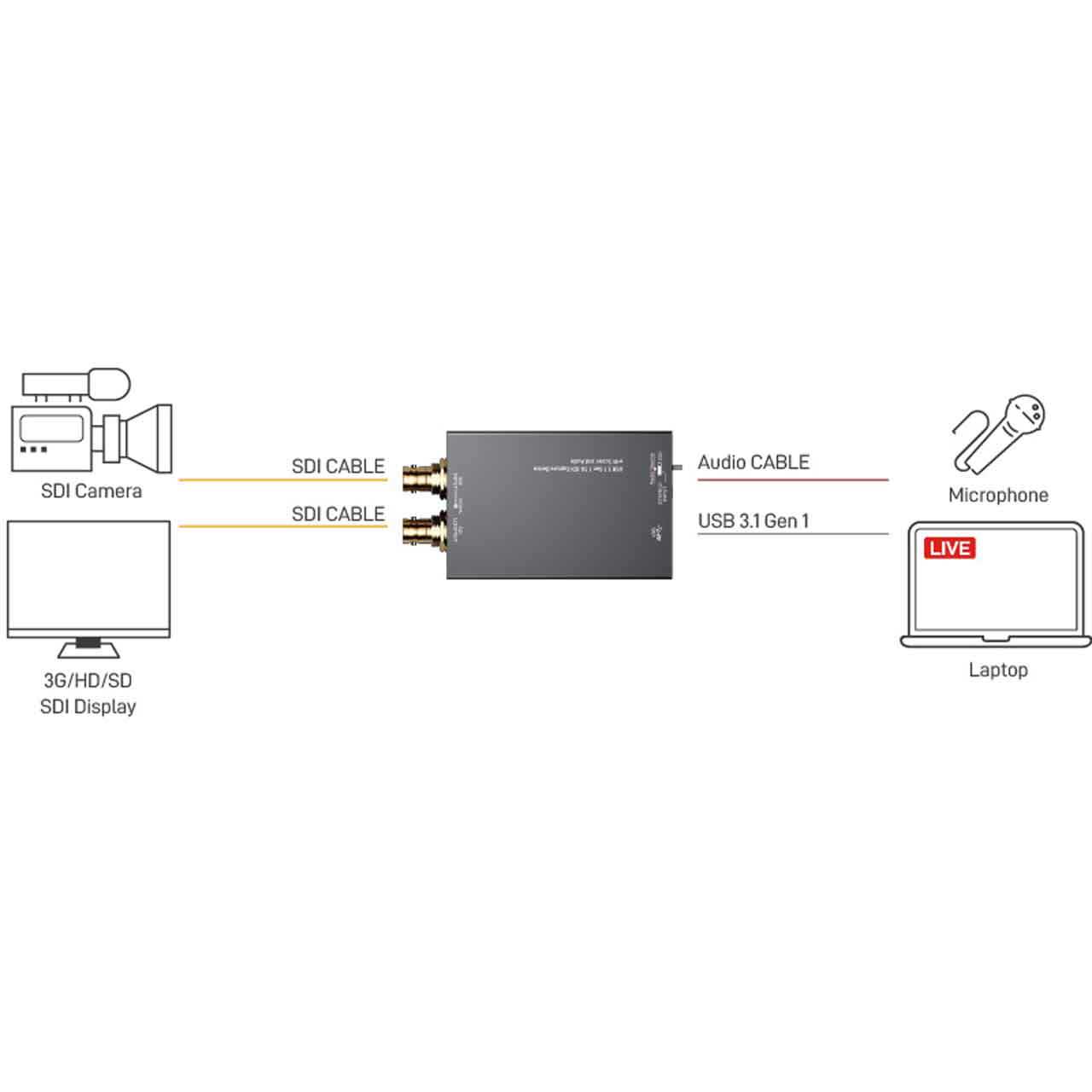

    The BG-CSA lets you easily capture a 3G-SDI source and save it on your computer or storage device via USB. It's portable and easy to use, capturing uncompressed signals at resolutions up to 1080p 60Hz. The loop output ensures your display remains uninterrupted. It utilizes large volume image buffering to eliminate video tearing while the high sampling rate ensures you receive a pristine image. The USB cable supplies power to the unit, meaning no extra power cables to carry.

    • Features:

      • 1080p/60 Support - Crystal clear image with resolutions up to up to 1080p@60Hz.
      • Audio Input - Embed audio from microphone or other source.
      • Easy to Use - Simple for anyone to learn.
      • Portable - Ideal for recording in the field or on the go.
      • USB Data Transfer - There are multiple USB standards based on release date of new USB technologies.

    • Specifications:

      • Technical
      • Max. Data Rate: 350 Mbps
      • UAC Video Output Resolution
        SMPTE 424M-2.97 Gbps 3G-SDI: - 1080p at 50/59.94/60 Hz (4:2:2)
        SMPTE 274M-1.485 Gbps HD-SDI: - 1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz
        SMPTE 292M-1.485 Gbps HD-SDI: - 1080i at 30 Hz, 720p at 60 Hz
        SMPTE 296M-1.485 Gbps HD-SDI: - 720p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
        SMPTE 259M-270 Mbps SD-SDI: - NTSC 525 at 59.94 Hz, PAL 625 at 50 Hz
      • UAC Audio Output Format: Stereo / 16-bit / 48000Hz
      • Recording Video Format: YUY2 (USB3.1 Gen 1), MJPG (USB2.0/3.1 Gen 1)
      • Audio Input: SDI Embedded Audio, 3.5mm Analog Stereo Audio
      • Operating System Compatibility: Windows 7, 8, 10, Mac OS X 10.9 or above, Linux
      • 3rd-Party Software Compatibility: OBS Studio (Windows, Linux)/AMCap (Windows), Potplayer (Windows)/Skype (Windows, OS X) Hangout
        (Windows)/TeamViewer (Windows)
      • Hardware Requirements: Desktop: Intel Core i5-3400+NVIDIA GTX660 or higher, Notebook: Intel Core i7-4810MQ+NVIDIA GTX870M or
        higher+4GB RAM or higher
      • ESD Protection: 8 KV - Contact Discharge, 15KV - Air Discharge

        Mechanical
      • Housing Design: Aluminum
      • Casing Style: Portable
      • Power Connection: Micro-USB Port
      • Power Supply: 5V DC, 1A
      • Power Consumption: 4 watts (Max)
      • Operating Humidity: 20-90% RH (no condensation)
      • Operation temperature: 0~40°C (32~104°F)
      • Product Weight: 135g (0.3 lb)
      • Package Weight: 270g (0.6 lb)
      • Certifications: CE, FCC, RoHS

    • Item Includes:

      • 1x BG-CSA
      • 1x USB 3.1 Gen 1 A to A Cable (host to device)
      • 1x User Manual

    • GTIN:

      0850023208231
