Belden 4505RX5-B59 12G-SDI 4K UHD 75 Ohm 20 AWG Precision Video Cable - Black - Per Foot

ITEM #: BL-4505RX5-FT MFG #: 4505RX5 B59CUT

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$9.48

Our Price:

$8.94

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    4505RX5 B59CUT - Overview

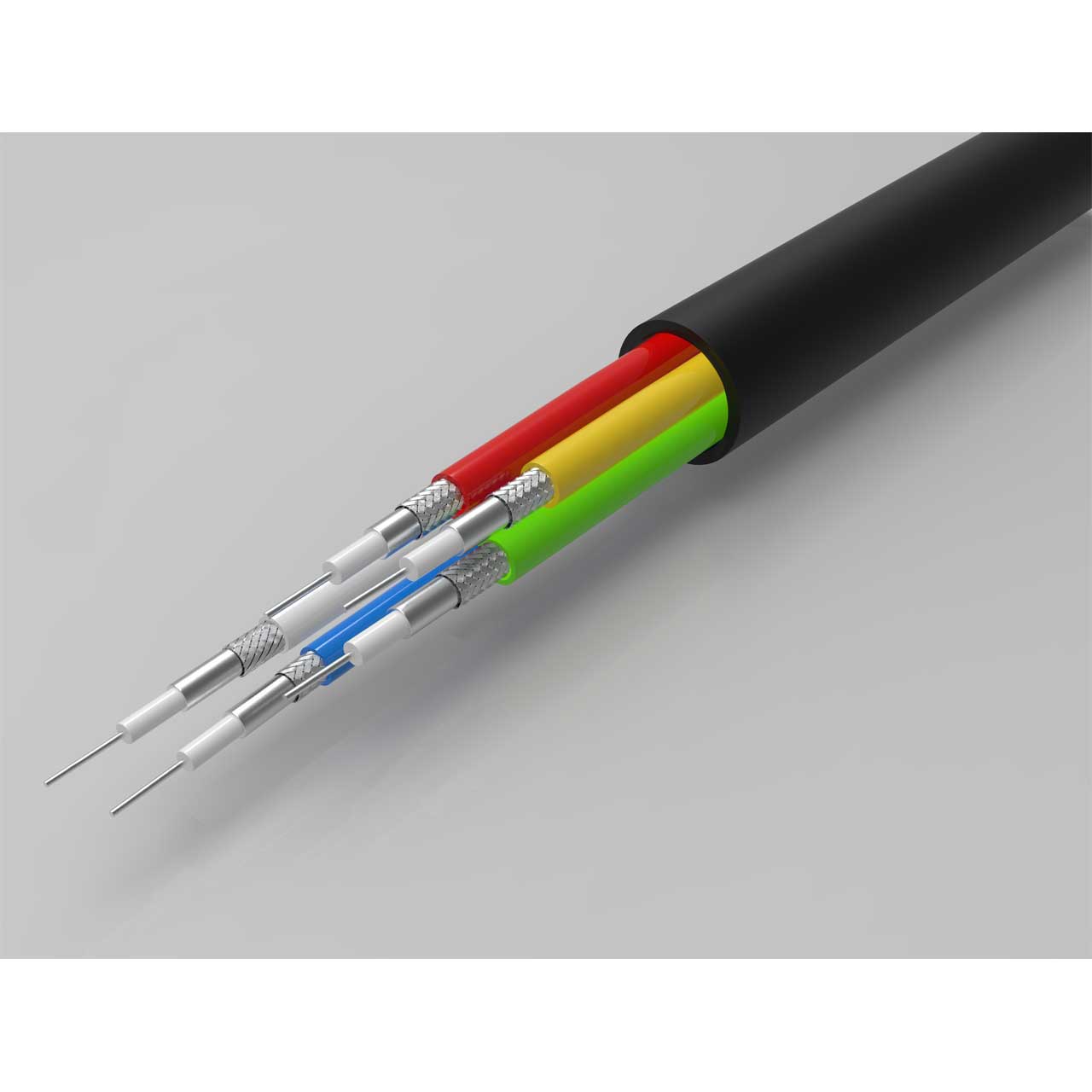

    Belden 4505RX5-B59 is a 12 GHz, 4K UHD Precision Video Cable - RG-59 Type with 75 Ohm 5 Coax 20 AWG solid 0.032" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), and PVC inner and outer jackets.

    Belden 4K UHD Coax Cables for 12G-SDI maximize 4K signal transmission distance over a single coax, minimizing weight and space utilization compared to multi-link solutions. Full breadth of portfolio allows for flexibility in various applications and environments.

    Applications:
    SMPTE 2082-1 12 Gb/s UHDTV
    SMPTE 2081-1 6 Gb/s UHDTV
    SMPTE 424M 3 Gb/s HD-SDI 1080p

    • Specifications:

      • AWG: 20
      • Stranding: Solid
      • Material: Silver Plated Copper
      • Nominal Diameter: 0.032 in
      • No. of Coax: 5
      • Conductor Size: 20 AWG
      • Nominal Conductor DCR: 10.2 Ohm/1000ft
      • Outer Conductor DCR: 3.4 Ohm/1000ft
      • Nom. Capacitance Conductor to Shield: 16.1 pF/ft
      • Nominal Inductance: 0.107 µH/ft
      • Nominal Characteristic Impedance: 75 Ohm
      • Nominal Delay: 1.22 ns/ft
      • Nominal Velocity of Propagation (VP) [%]: 83.0 %
      • UL Voltage Rating: 300 V RMS
      • UL Temp Rating: 60°C
      • Operating Temp Range: -20°C to +75°C
      • Bulk Cable Weight: 260 lbs
      • Max Recommended Pulling Tension: 210 lbs
      • Min Bend Radius (Overall): 7.9 in
      • Min Bend Radius (Each Coax): 2.4 in
      • NEC/(UL) Specification: CMR
      • CEC/C(UL) Specification: CMG
      • RG Type: 59/U Type
      • Series Type: 59/U
      • Suitability - Aerial: Yes - Black only, when supported by messenger wire
      • Suitability - Burial: No
      • Suitability - Hazardous Locations: No
      • Suitability - Indoor: Yes
      • Suitability - Outdoor: Yes - Black only
      • C(UL) Flammability: FT4
      • UL Flammability: UL1666 Vertical Shaft
      • Plenum (Y/N): No


    • Item Includes:

      • 1x Belden 4505RX5-B59 12 GHz 4K UHD 75 Ohm 20 AWG Precision Video Cable - Black - Per Foot
