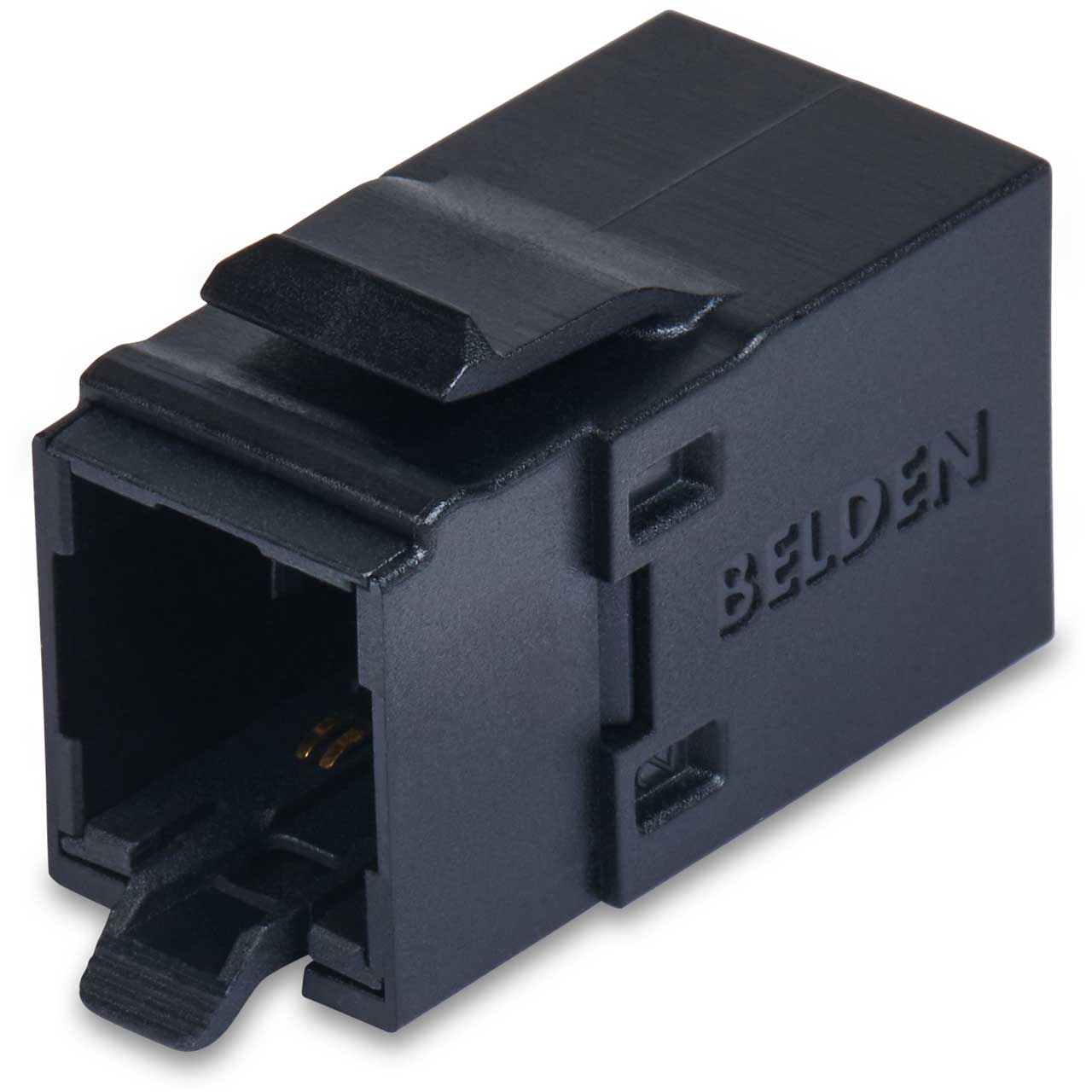

Belden RVACPKUBK-B24 10GX REVConnect Coupler - T568A/B - Black - 24/Pack Includes 25 Cores

RVACPKUBK-B24 - Overview

• Specifications:

  • Related Parts: Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels
  • Dimensions: 0.868 x 0.634 x 1.433 inches
  • Color: Black
  • Wiring Scheme: T568A/B
  • Weight: 0.360 lbs.
  • Packaging: Packaged in bulk pack of 24
  • Footprint/Type: KeyConnect
  • Plug / Jack Compatibility: REVConnect Core
  • Cable/Connector Retention: 11.250 lbs.
  • Connector/Hardware Retention: 20 lbs.
  • Plug/Connector Retention: 11.250 lbs.
  • Storage Temperature Range: -40°C To +70°C
  • Installation Temperature Range: -10°C To +60°C
  • Operating Temperature Range: -10°C To +60°C
  • Suitability - Indoor: Yes - Indoor
  • Dielectric Strength: 1,000 V RMS @ 60 Hz
  • Current Rating: 1.500 A
  • Insulation Resistance: 500 M-Ohm Minimum
  • Max. Contact Resistance: 20 m-Ohm
  • Termination Resistance: 2.5 m-Ohm
  • Tool Compatibility: REVConnect Termination Tool (p/n RVUTT01)
  • UL Rating: UL94V-0, UL1863, UL2043
  • IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
  • EU Directive 2002/95/EC (RoHS): Yes
  • Telecommunications Standards: Category 6A - ISO/IEC 11801:2002 Ed.2, TIA 568.2-D
  • Safety Listing: c(UL)us Listed
  • Other Specification: IEC 60603-7, FCC PART 68-F


• Item Includes:

  • 1x Belden RVACPKUBK-B24 10GX Modular Connectors with REVConnect Coupler - T568A/B Wiring - 25 Cores - Black - 24/Pack
