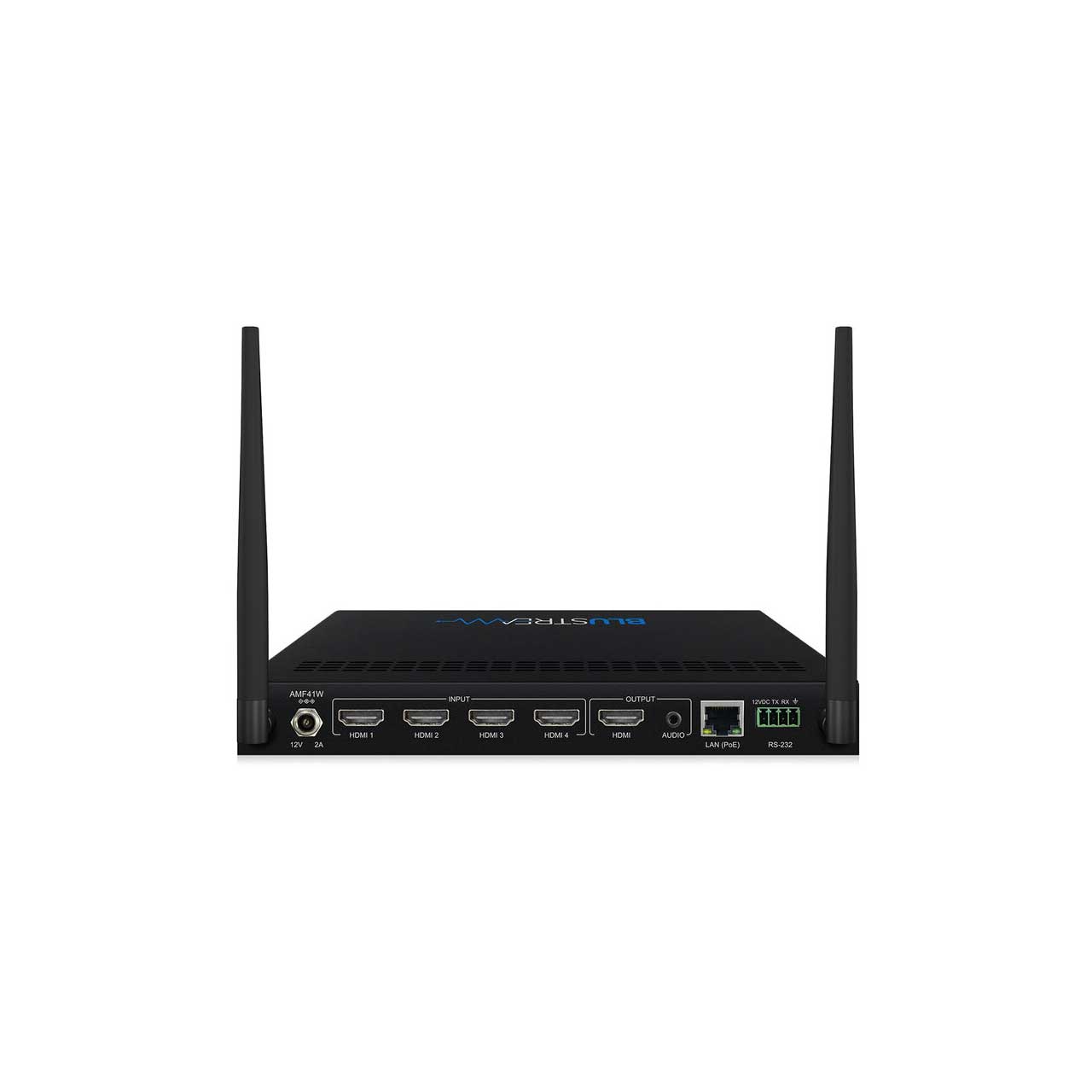

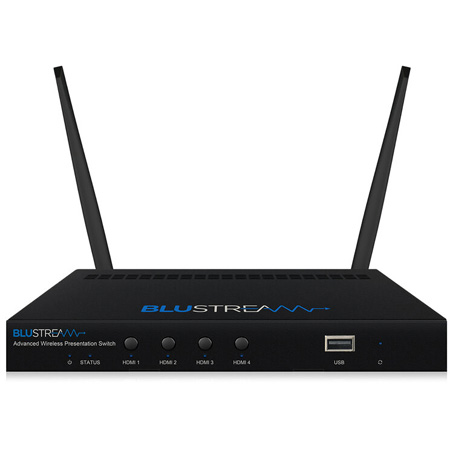

Blustream AMF41W 4x1 Advanced Wireless Presentation Switch

AMF41W - Overview

• Features:

  • Features 4x HDMI, AirPlay and Miracast inputs which can be switched to a single HDMI output
  • Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracastr local streaming to AMF41W
  • Multiview presentation with up to 7 concurrent video signals and configurable screen layout
  • Seamless switching of sources in both single or multiview mode
  • In-built video scaler with output timing up to 4K 60Hz 4:4:4
  • HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4
  • Supports AirPlay mirror and Miracastr point-to-point mode (up to 1080p)
  • Audio breakout to analogue L/R audio
  • LAN connection for integration to existing network infratructures
  • Auto display on/off feature allowing control of display via RS-232
  • Web interface module for control and configuration of switch
  • Control via front panel, RS-232 and TCP/IP with manual or auto source selection


• Specifications:

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1x 3.5mm stereo jack
  • RS-232 serial port: 1x 4-Pin Phoenix connector
  • TCP/IP Control: 1x RJ45, female
  • USB Connectors: 1x USB Type A female
  • WIFI: 2.4G & 5G
  • Casing Dimensions (W x H x D): 215mm x 25mm x 141mm (excluding antennas)
  • Operating Temperature: 32°F to 113°F (0°C to +45°C)
  • Storage Temperature : -4°F to 150°F (-25°C to +70°C)
  • Power Supply: 12V/2A DC


• Item Includes:

  • 1x AMF41W
  • 1x 12V/2A DC power supply
  • 1x 4-pin phoenix connector (RS-232)
  • 2x Antenna
  • 1x Mounting kit
  • 1x Quick reference guide


• GTIN:

  9340242003294
