Blustream HEX31WP-TX-US 2x HDMI & 1x USB-C Wallplate Transmitter via HDBaseT - 2-Gang Decora - White

ITEM #: BLU-HEX31WP-TX MFG #: HEX31WP-TX-US

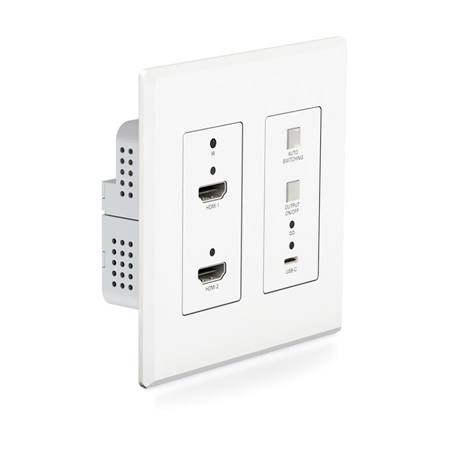

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Blustream
Free Shipping with $49 Minimum Order

List Price:

$1,349.95

Our Price:

$1,344.95

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

HEX31WP-TX-US - Overview

The Blustream HEX31WP-TX-US HDMI / USB-C wall plate HDBaseT Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX31WP-TX-US features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT receiver / matrix). The HEX31WP-TX-US has been designed to work with all Blustream HDBaseT receiver and matrix solutions, be installed in US Decora style backboxes and can be powered locally or from compatible Blustream HDBaseT products.

  • Features:

    • Features 2x HDMI & 1x USB-C inputs with manual / auto source selection
    • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
    • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
    • Extends HDMI at 1080p up to a distance of 70m
    • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
    • Manual input selection via front panel and RS-232
    • Programmable ON / OFF button utilizing IR, RS-232 or CEC for control of display device at HDBaseT receiver
    • Supports 12V-48V PoC from compatible Blustream HDBaseT receiver / matrix products
    • Bi-directional RS-232 pass through
    • Supports IR pass-through to HDBaseT device
    • Compatible with all Blustream HDBaseT receiver / matrix products
    • Magnetic faceplate surround and US Decora style backbox compatibility
    • HDCP 2.2 support


  • Specifications:

    • Video Input Connectors: 2x HDMI Type A, 19-pin, female, 1x USB-C Type C
    • Video Output Connectors: 1x HDBaseT RJ45 connector
    • RS-232 Serial Port: 1x 3-Pin Phoenix connector
    • IR Input Port: 1x 3-Pin Phoenix connector
    • Product Upgrade: 1x Micro USB female
    • Local Power Input: 1x 2-Pin Phoenix connector
    • Module Dimensions (WxHxD): 3.5" x 4.1" x 1.7" (89mm x 105mm x 44mm) (without faceplate)
    • Faceplate Dimensions (WxHxD): 4.5" x 4.5" x 0.2" (115mm x 115mm x 6mm)
    • Cut Out Dimensions (WxHxD): 3.5" x 2.75" x 1.45" (89mm x 70mm x 37mm)
    • Mounting Hole Spacing: US 97mm CTC
    • Backbox Requirements: US double gang junction box
    • Shipping Weight: 2.2lbs (1.0kg)
    • Operating Temperature: 32°F - 104°F (-5°C - 55°C)
    • Storage Temperature: -4°F - 140°F (-25°C - 70°C)
    • Power Supply: 12V/1A DC


  • Item Includes:

    • 1x HEX31WP-TX-US
    • 1x 12V/1A DC Power Supply
    • 1x Magnetic Faceplate
    • 1x RS-232 Control Cable
    • 1x Quick Reference Guide


  • Warranty:

    • 5 Year Limited Warranty


  • GTIN:

    9340242004475
