Blustream HEX70HDU-KIT HDMI/DP/USB-C HDBaseT Extender Kit - 40m (1080p 70m)

HEX70HDU-KIT - Overview

• Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection
  • Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
  • Supports DisplayPort™ up to 4K UHD @ 60Hz 4:4:4, 4K @ 30Hz 4:4:4 DP1.2
  • Audio breakout to analog L/R audio and Coaxial digital (S/PDIF) outputs concurrently
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Bi-directional IR pass-through
  • Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
  • Web interface module for control and configuration of HEX70HDU-KIT
  • Control via front panel, IR, RS-232 or TCP/IP
  • Advanced EDID and HDCP management
  • *USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device


• Specifications:

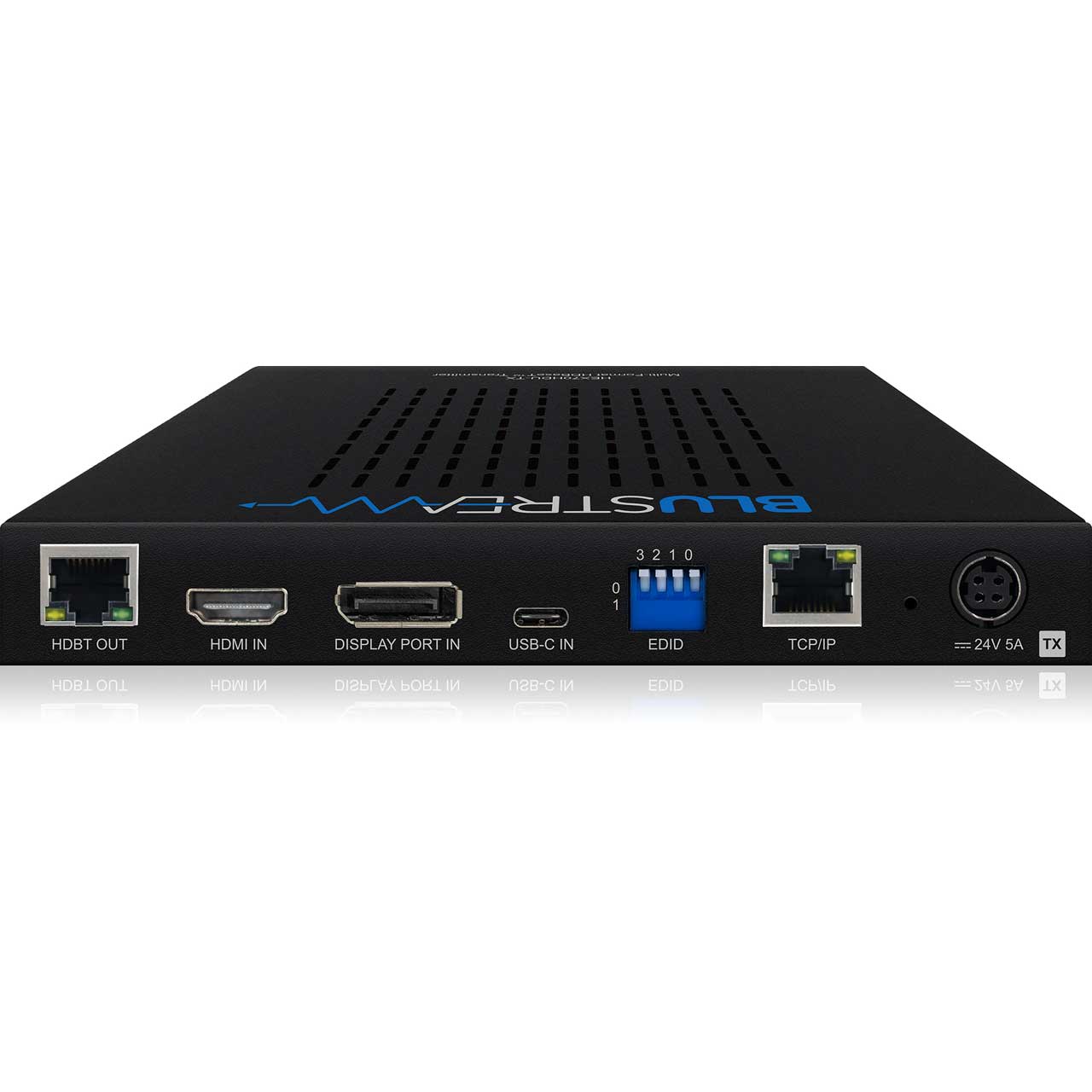

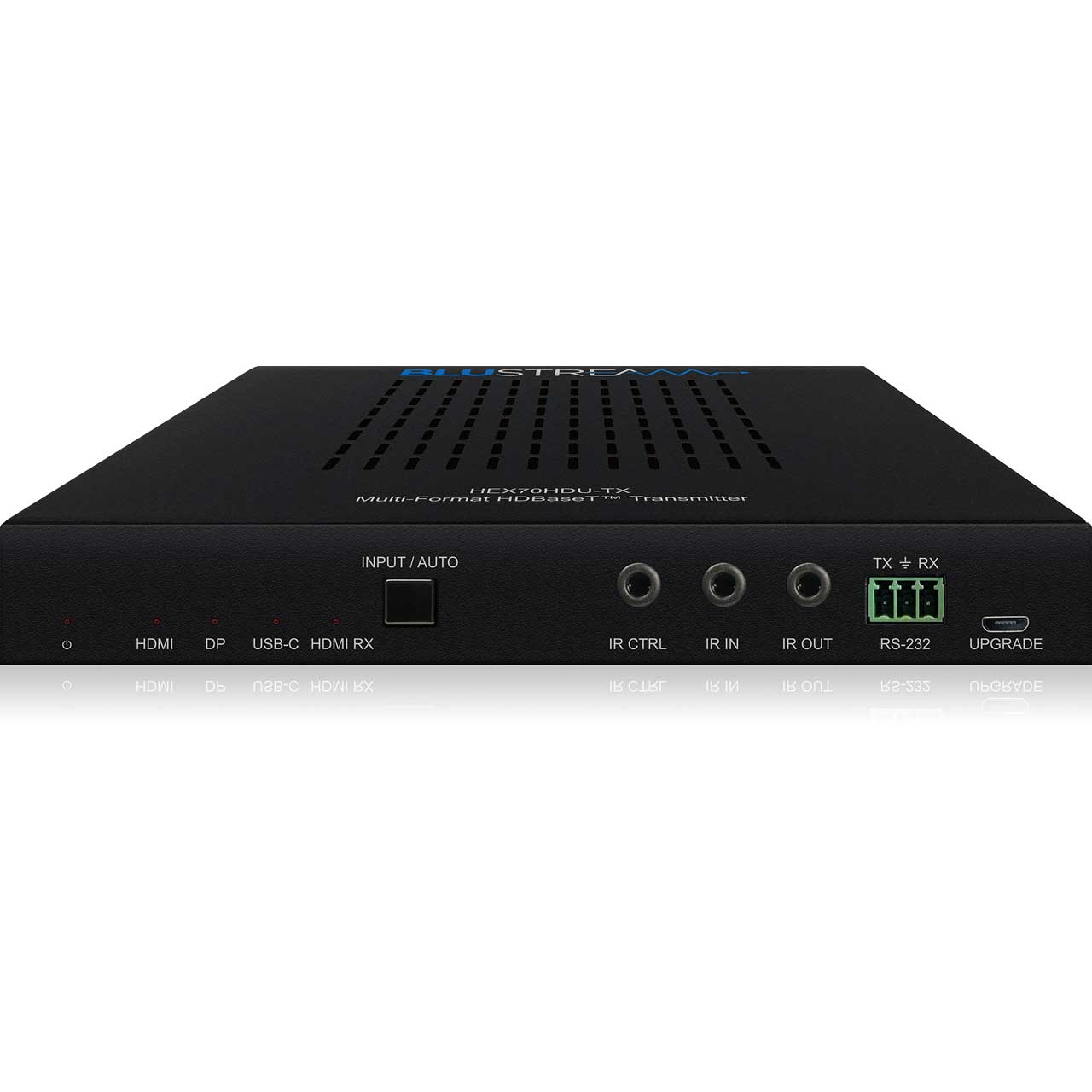

  • HEX70HDU-TX
    Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
    Video Output Connectors: 1 x HDBaseT™ RJ45 connector
    RS-232 serial port: 1 x 3-pin Phoenix connector
    TCP/IP Control: 1 x RJ45, female
    IR Input ports: 2 x 3.5mm stereo jack (1 x switching control, 1 x IR pass-through)
    IR Output ports: 1 x 3.5mm mono jack
    EDID: 4-pin DIP switch
    Product Upgrade: 1 x Micro USB, female
    Casing Dimensions (W x H x D): 175mm x 24mm x 155mm

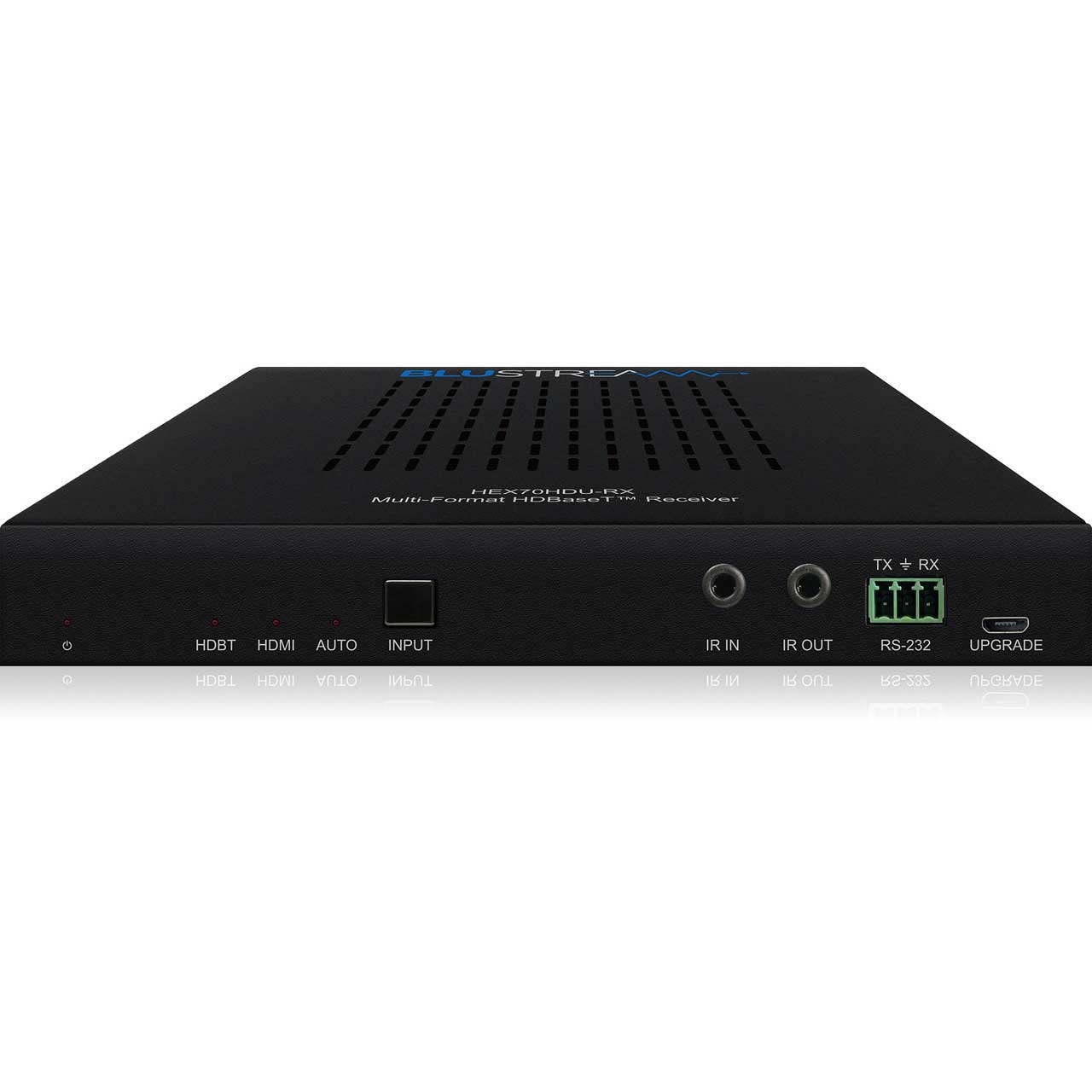

  • HEX70HDU-RX
    Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
    Video Output Connectors: 1 x HDMI Type A, 19-pin, female
    Audio Output Connectors: 5-pin Phoenix connector (2ch balanced / unbalanced analog audio), 1 x RCA (S/PDIF)
    RS-232 serial port: 1 x 3-pin Phoenix connector
    Relay Control: 2 x 3-pin Phoenix connector
    IR Input ports: 1 x 3.5mm stereo jack
    IR Output ports: 1 x 3.5mm mono jack
    EDID: 4-pin DIP switch
    Product upgrade: 1 x Micro USB, female
    Casing Dimensions (W x H x D): 175mm x 24mm x 155mm
  • Shipping Weight: 2.6kg
  • Power Supply: 24V/5A DC
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)


• Item Includes:

  • 1x HEX70HDU-TX
  • 1x HEX70HDU-RX
  • 1x 24V/5A DC Power Supply
  • 1x IR Emitter
  • 1x IR Receiver
  • 1x RS-232 Control Cable
  • 2x Mounting Kits
  • 1x Quick Reference Guide


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242003287
