Blustream MX44VW 4x4 HDMI Seamless Matrix HDMI/VGA w/VW & MV

MX44VW - Overview

• Features:

  • Features 3 operational modes:
  • - 4x4 Seamless Switching Matrix (HDMI or VGA inputs)
  • - Video Wall (2x2, 4x1 or 1x4 configuration
  • - Multi-Viewer mode with preset layouts
  • Features 4 x video inputs that can be configured as HDMI video or VGA video with associated L/R analog audio
  • instantaneous seamless video switching (Matrix and Video Wall modes)
  • Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @ 60Hz) and 480i-4K (3840x2160 @ 30Hz 4:4:4, 4096x2160 @ 24Hz 4:4:4)
  • HDMI output resolution fixed to 1080p @ 60Hz
  • Supports HDMI 2ch PCM audio only
  • Discreet IR routing
  • Supplied with Blustream IR receivers and emitters
  • Control via front panel, IR, RS-232, TCP / IP and the Blustream Matrix App
  • 3rd party control drivers available for all major home control brands
  • Advanced EDID management
  • HDCP1.4 compliant


• Specifications:

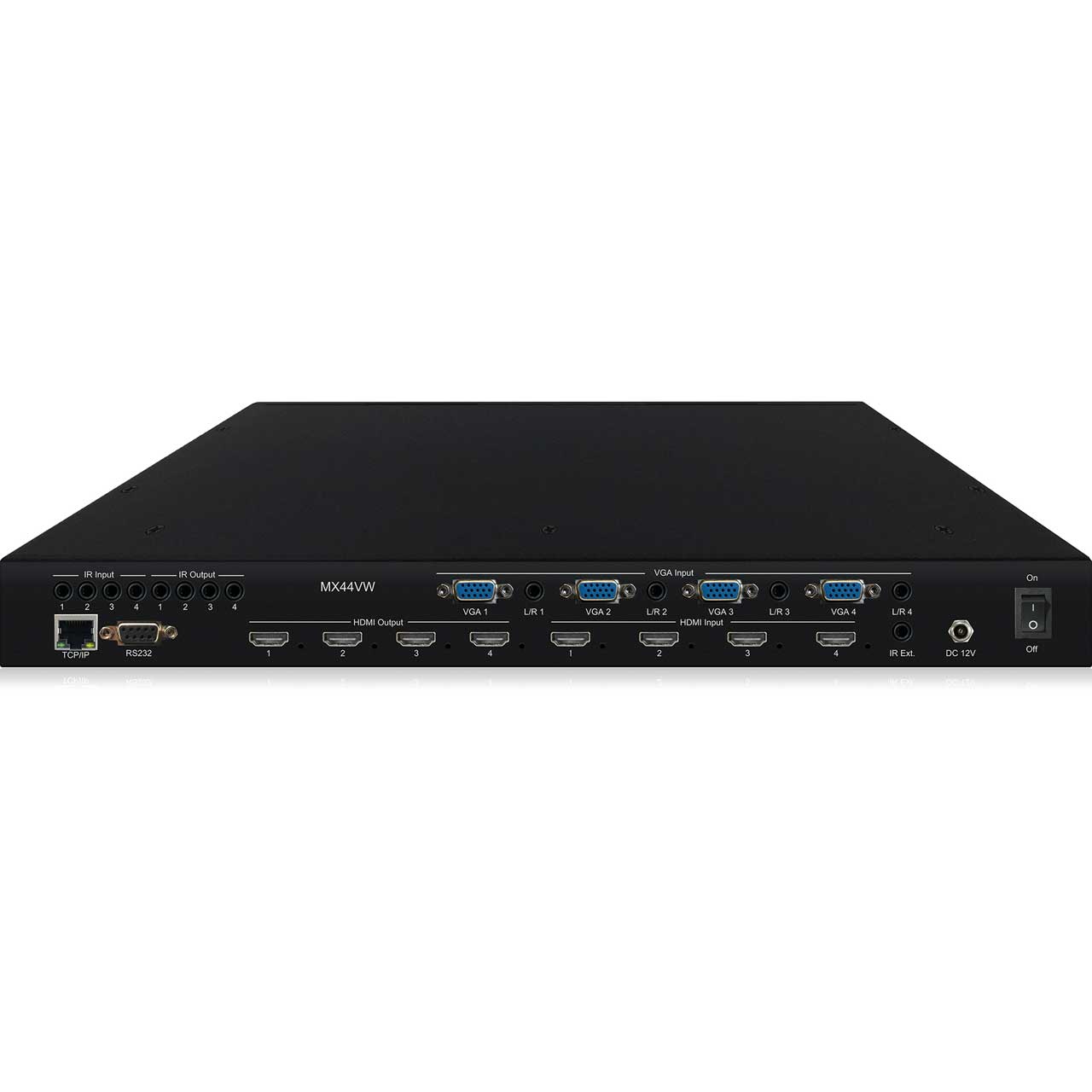

  • Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking & 4 x VGA
  • Video Output Connectors: 4 x HDMI Type A, 19-pin, female, locking
  • Audio Input Connectors: 4 x Analog audio 3.5mm stereo Jack
  • RS-232 serial port: DB-9, female
  • TCP/IP Control: RJ45, female
  • IR Input ports: 5 x 3.5mm stereo jack
  • IR Output ports: 4 x 3.5mm mono jack
  • Casing Dimensions (W x H x D): 440mm x 45mm x 180mm
  • Dimensions including connections (W x H x D): 440mm x 44mm x 187mm
  • Shipping Weight: 4.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 12V/3A DC


• Item Includes:

  • 1x MX44VW matrix
  • 1x 12V/3A DC power supply
  • 1x IR remote control
  • 4x IR emitters
  • 5x IR receivers
  • 1x Rack mounting kit
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001498
