Blustream PRO-OUT4TLS-V2 Pro Matrix 2X HDBaseT 2x HDMI 18G Output Board - 40m

Name: Blustream PRO-OUT4TLS-V2 Pro Matrix 2X HDBaseT 2x HDMI 18G Output Board - 40m
Brand: Blustream
SKU: BLU-PROOUT4TLSV2
Price: 2035.00 USD
Availability: InStock

ITEM #: BLU-PROOUT4TLSV2 MFG #: PRO-OUT4TLS-V2

Blustream

Our Price:

$2,035.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Required Accessories

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

PRO-OUT4TLS-V2 - Overview

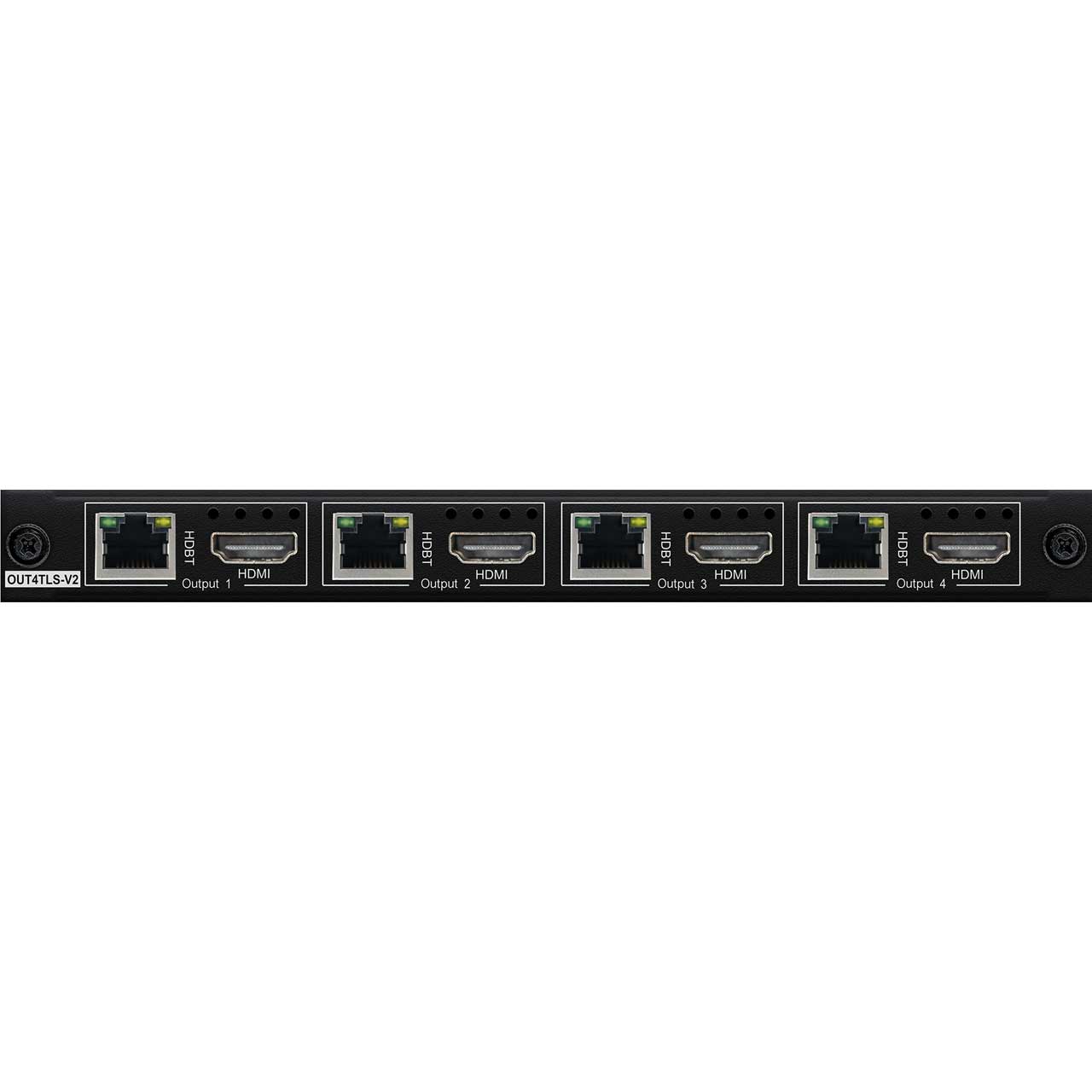

The Blustream PRO-OUT4TLS-V2 output board offers 4x dual HDBaseT™ outputs for connection to a HDBaseT™ receiver and HDMI display per zone. The PRO-OUT4TLS-V2 utilizes CSC technology allowing support of HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 70m (4K to 40m). The PRO-OUT4TLS-V2 features independent downscaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays. The PRO-OUT4TLS-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Features:
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Features 4x simultaneous HDMI/HDBaseT™ outputs for connection to HDMI displays and HDBaseT™ receivers
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
- Supports 4K @ 60Hz 4:4:4 UHD video up to 40m*
- Independent downscaling of video input resolutions up to 4K @ 60Hz 4:4:4 to the following formats:
- 1080p @ 60Hz (for screens that do not support 4K)
- 4K @ 60Hz 4:2:0 (for screens that do not support full 4K @ 60Hz 4:4:4)
- Extends HDMI 1080p video up to 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Supports PoH (PoE) to power Blustream HDBaseT™ Receivers
- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
- HDCP2.2 Support
- To be used with the HEX70CS-RX receivers
- *For HDMI 2.0 18Gbps video distribution the PRO-OUT4TLS-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board
Specifications:
- Video Output Connectors: 4x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector
- Card Dimensions (W x H x D):182mm x 22mm x 177mm
- Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
- Shipping Weight: 0.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Item Includes:
- 1x PRO-OUT4TLS-V2
Warranty:
- 3 Year Warranty
GTIN:
9340242002396
