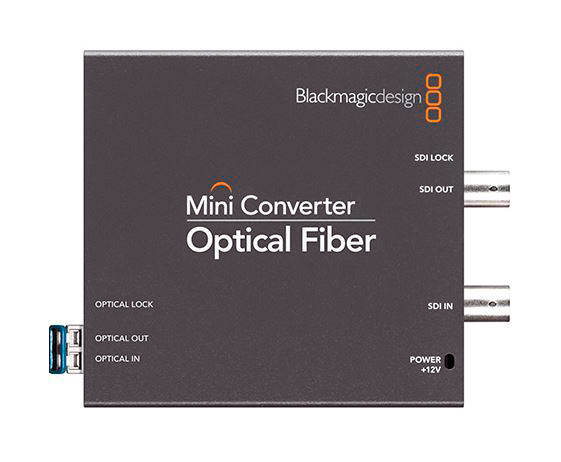

Blackmagic Design CONVMOF Mini Converter Bi-Directional Transceiver SDI to LC Optical Fiber Extender

ITEM #: BMD-MCOF MFG #: BMD-CONVMOF

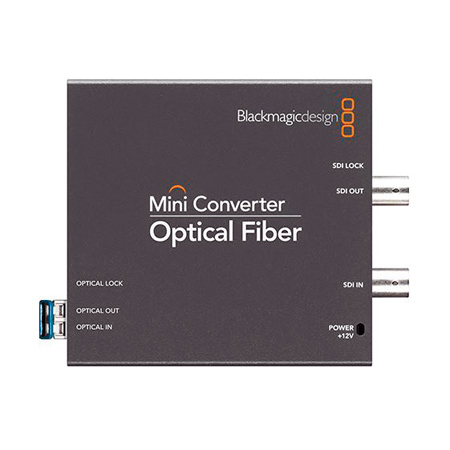

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BMD-MCOF

BMD-CONVMOF - Overview

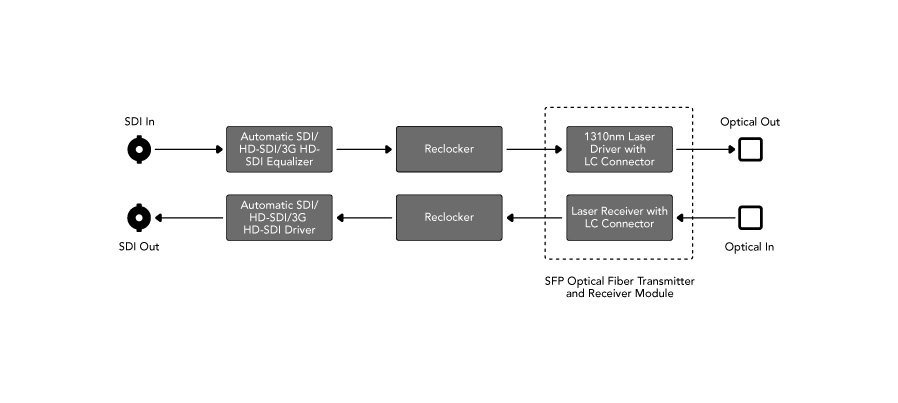

With its continued excellence in advanced broadcast conversion capabilities, Blackmagic introduces its Mini Optical Fiber Mini Converter. Designed and built with both video broadcasters and studio facility installation pundits in mind, this high-quality, cost effective conversion box offers bi-directional SDI to optical fiber conversion capabilities; and each direction can be completely independent of each other. It's capable of switching between SD, HD and 3Gb/s SDI video formats; and with optical fiber input/output LC type connections at a 10-bit rate, enjoy long cable runs up to 147,000 ft (44,805 m) in SD, and up to 82,000 ft (24,993 m) at 3Gb/s SDI. Moreover, 3Gb/s SDI technology is fully compatible with all your studio and field SD and HD SDI equipment.

Due to its identical bit-stream as conventional SDI, the Mini Converter's optical conversion provides future proof data speed protection; upgrades can be loaded via its built-in high speed USB 2.0 connection.(USB cable not included) The advantage of converting SDI to optical fiber is when SDI data speeds increase in the future, you will ensure the longevity of the optical fiber cable install as existing cables will easily handle much higher SDI data speeds.

Future Proof Data Speed Protection:

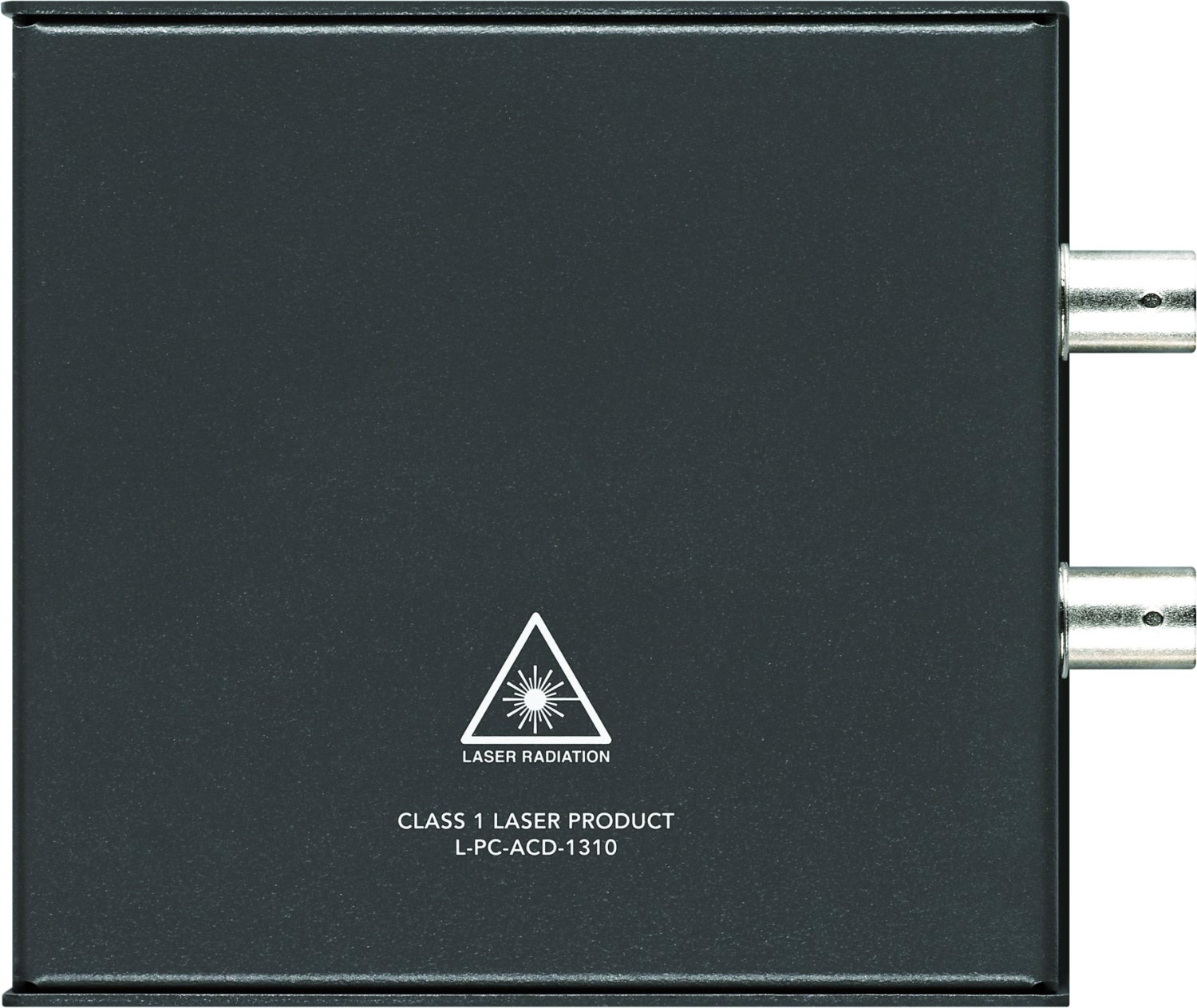

The Mini Converter Optical Fiber box eliminates the need of replacing SDI cables in your studio or facility every time a new higher-quality video standard is introduced, which will require higher data speeds - converting SDI to optical fiber ensures longer cabling distances without sacrificing quality. In addition, this box uses a SMPTE standard 1310nm optical fiber laser driver while utilizing standard LC type connectors.

Optical Fiber Conversion Advantages:
Optical fiber SDI easily switches between SD, HD and 2K, as it has an identical bit-stream to conventional SDI.

High-Speed USB 2.0 Port:
This box offers a USB 2.0 port for future software upgrades via Mac OS X and Windows (USB cable not included).

Universal Power Supply:
Included is a universal power supply with international plug adapters for international usage.

Added Protection:
The Blackmagic mini converter features a cable tie point that secures the power supply connection, thus preventing an accidental power disruption.

Effective Fiber Extender:
When bought in pairs, the Bi-directional functionality of the SFP modules makes this an amazing SDI over fiber extender.

  • Features:

    • SDI to Optical Fiber Conversion
    • Bi-Directional Capability
    • Advanced 3Gb/s SDI Technology
    • Automatic Switching SD and HD
    • High-Speed USB 2.0 Port
    • Includes Universal Power Supply

  • Specifications:

    • Type:Converter.
    • Supports:Optical Fiber, SD, HD and 3Gb/s SDI
    • (PLEASE NOTE: Only single-mode LC type fiber optic cables are recommended for all fiber optic connections below).
    • Bit Rate:10-bit
    • SDI Format Support:525/29.97 NTSC, 625/25 PAL, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
    • SDI Compliance:SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
    • Sampling:4:2:2 (SDI).
    • Analog Format Support:525/29.97 NTSC, 625/25 PAL, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
    • Input:SDI (BNC/switchable between SD, HD and 3Gb/s SDI): x1.
    • Output:SDI (BNC/switchable between SD, HD and 3Gb/s SDI): x1,Optical Fiber (switchable): x1 LC.
    • Other:USB 2.0 x1.
    • Audio:8-Channel Embedded (Optical Fiber LC).
    • Power:12VDC (supplied power supply).

  • Item Includes:

    • Blackmagic Design Mini Converter Optical Fiber
    • Universal Power Supply
    • 3-Year Limited Warranty

  • GTIN:

    9338716000610
