Blackmagic Design HyperDeck Extreme Control - Add Broadcast Deck Controls to HyperDeck Extreme 8K/4K

ITEM #: HYPERDECKEXTCONT MFG #: HYPERD/RSTEXCTR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,295.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    HYPERD/RSTEXCTR - Overview

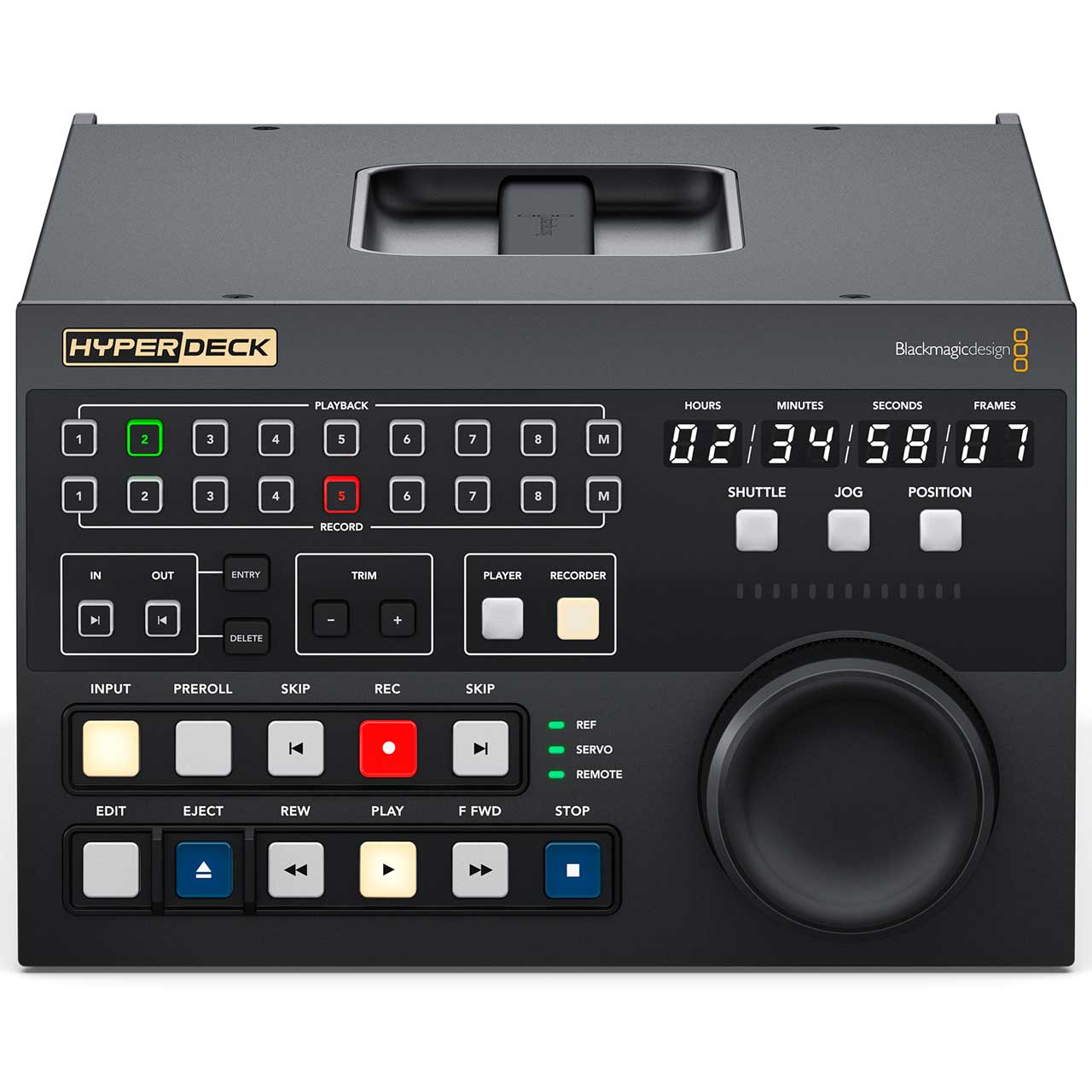

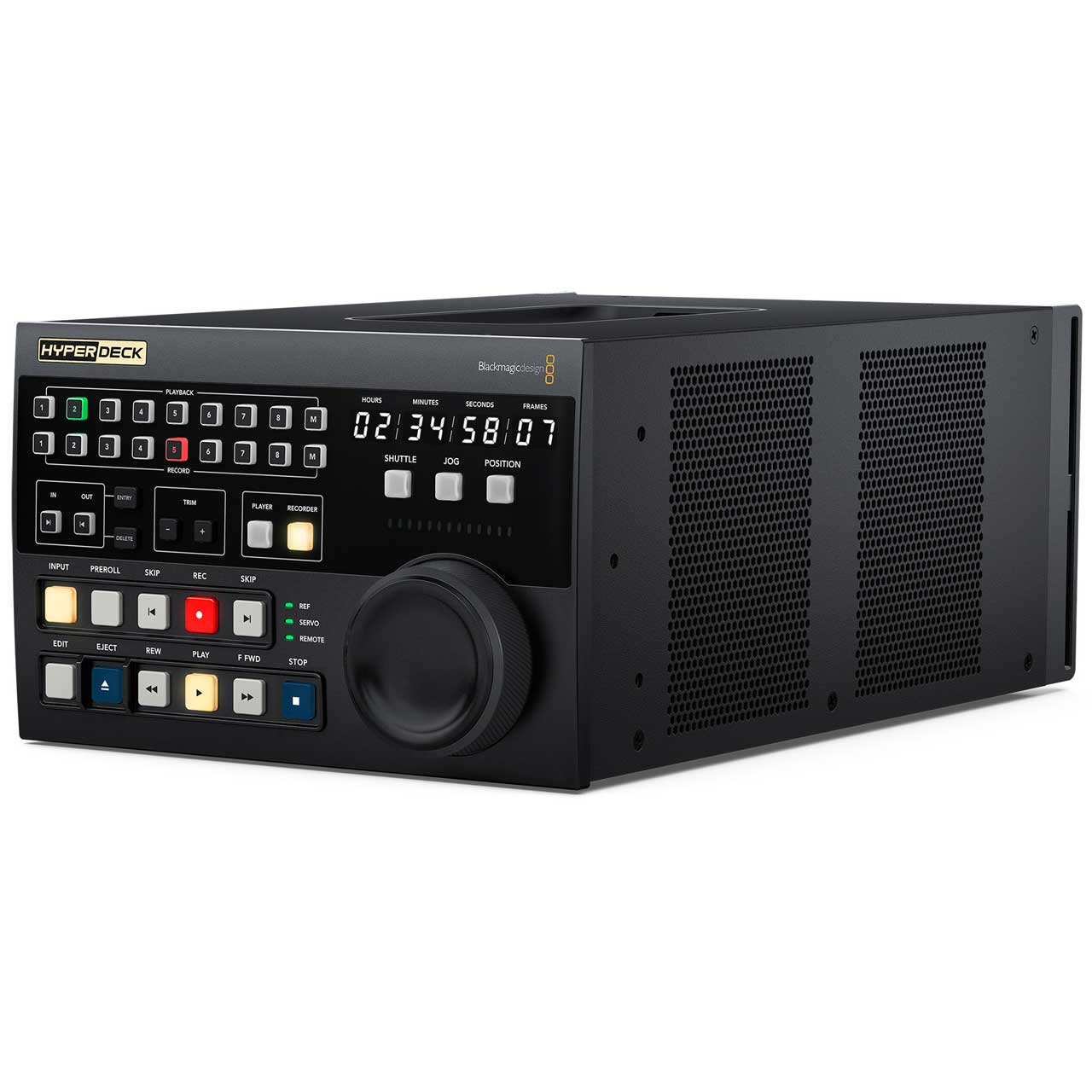

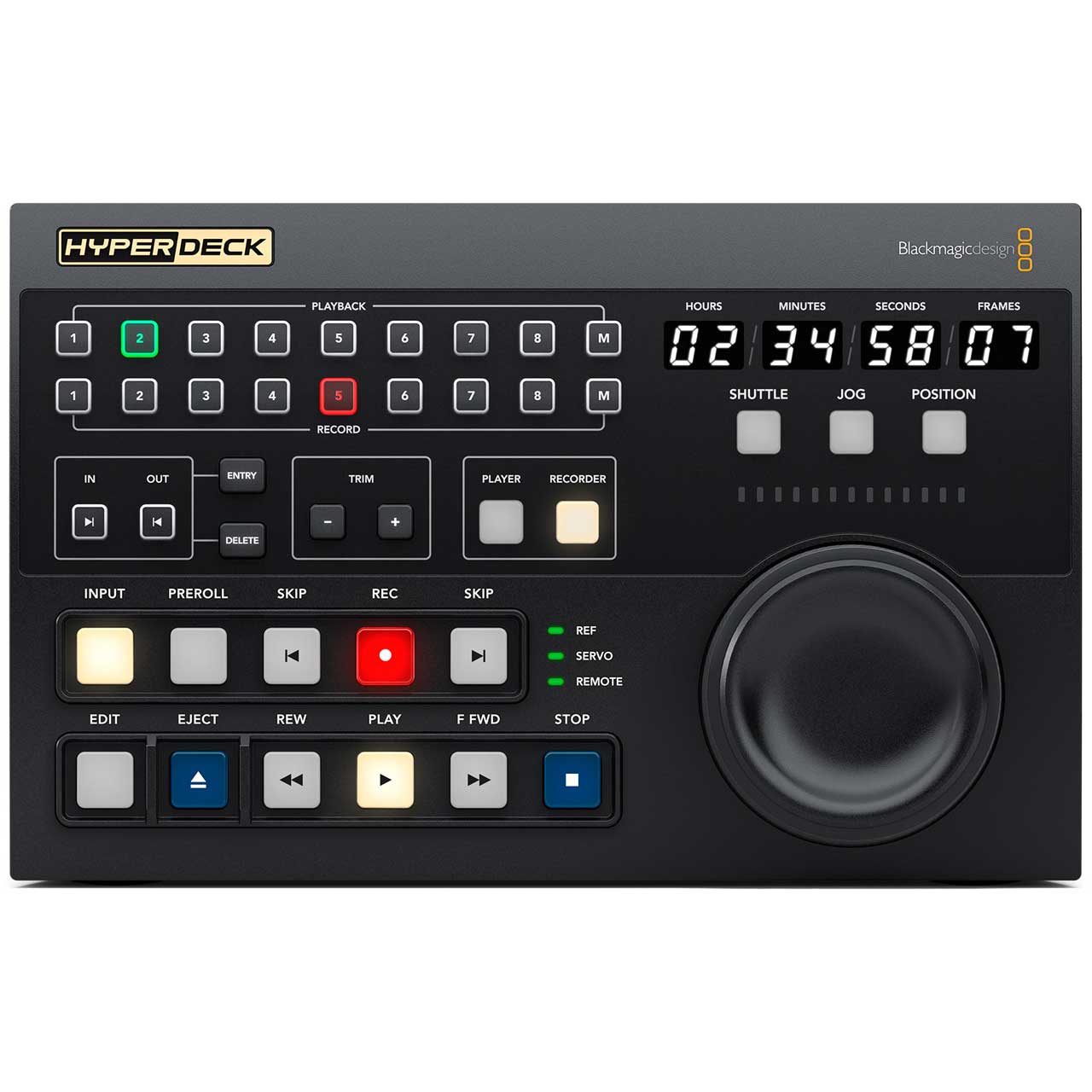

    Add Traditional Broadcast Deck Controls to HyperDeck Extreme 8K & HyperDeck Extreme 4K!

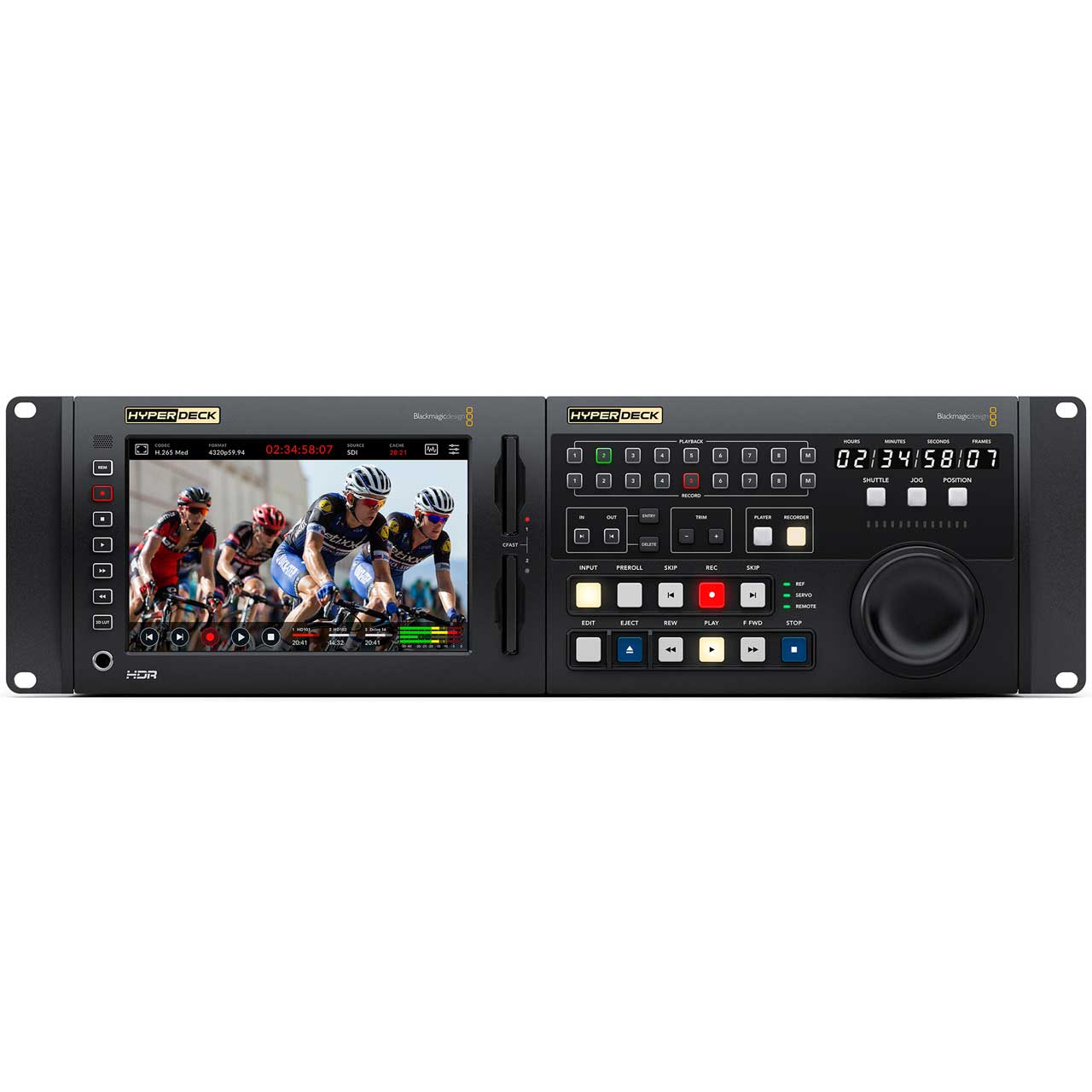

    Blackmagic's HyperDeck Extreme Control extends your HyperDeck Extreme by adding traditional broadcast deck controls. The HyperDeck Extreme Control works like a traditional broadcast deck with it's familiar layout and allows you to control up to 8 decks via an industry standard RS-422 control. You can even rack mount the unit to the HyperDeck Extreme 8K or 4K unit to create a single "broadcast deck" unit. Because it uses standard RS-422, you can control old broadcast decks and perform edits using set in and out points. That's perfect for archiving work. Plus you can even edit between frame rates if standards converting between formats. The controls have been developed by Blackmagic Design Engineers to ensure a premium feel with traditional styling.

    • Features:

      • Great Added Features!
      • In and Out Points
      • Playback and Record Select
      • Time Display
      • Shuttle/Jog Knob
      • Transport Controls

    • Specifications:

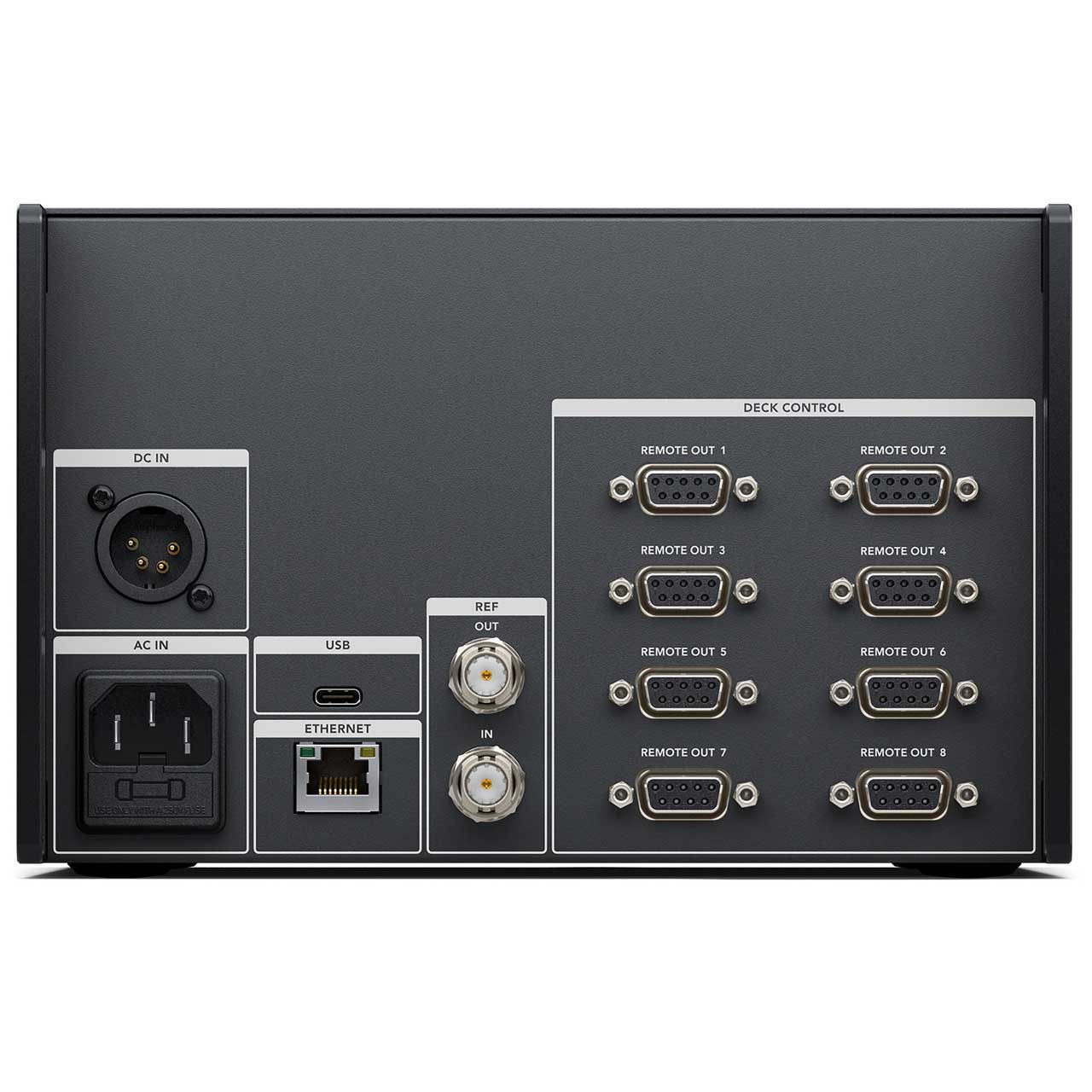

      • Connections
      • Deck Control Outputs: 8 x RS-422
      • Reference Input: Tri-Sync or Black Burst.
      • Reference Output: Follows reference input.
      • Ethernet: 1Gb/s
      • Computer Interface: 1 x USB-C for software updates.

        Supported Protocols
      • Control Protocols: Sony

        Software
      • Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.

        Operating Systems
      • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

        Displays
      • 8-digit, 7 segment LED timecode display.

        Power Requirements
      • Power Supply: 1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.

        Physical Installation
      • 3 rack units height, half rack width.

        Environmental Specifications
      • Operating Temperature: 0° to 40° C (32°to 104° F)
      • Storage Temperature: -20° to 60° C (-4° to 113° F)
      • Relative Humidity: 0% to 90% non-condensing

    • Item Includes:

      • HyperDeck Extreme Control
      • SD card with user manual.

    • Warranty:

      • 12 Month Limited Manufacturer's Warranty.

    • Operating Systems

      :

      • Mac 10.13 High Sierra, Mac 10.14 Mojave or later.
      • Windows 8.1 or Windows 10.

    • GTIN:

      9338716006216
