BOSCH PLE-1CS Plena All-Call Calling Station & Microphone

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    BOSCH PLE-1CS Plena All-Call Calling Station & Microphone

    Manufacturer: Bosch Security Systems

    Item #: BSH-PLE-1CS   •   MFG #: PLE-1CS




    Share!

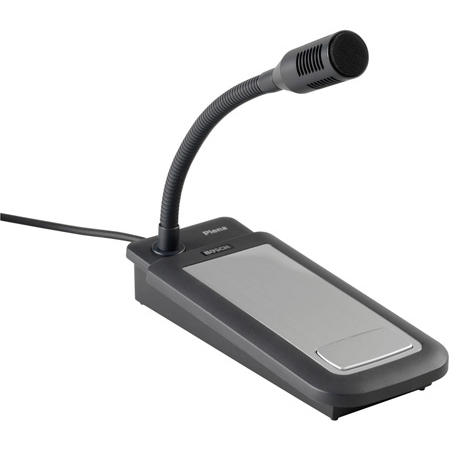

    The Plena tabletop microphone is a stylish, high-quality tabletop unidirectional condenser microphone, intended for making calls in a public address system. Its heavy metal base and rubber feet ensure stability on any flat surface. The special design also allows the unit to be neatly flush-mounted in desktops.

    The PTT-key (press-to-talk), not only switches on the microphone, but also provides priority contacts, that are compatible with the Plena range of amplifiers. The switching characteristic of the PTT-key can be configured internally for PTT-mode (on as long as pressed) or toggle-mode (press to switch on, press again to switch off).

    It is equipped with a fixed, flexible 2 m cable and a 5-pin Euro style connector for the balanced signal and the priority contact. If the priority contact is not required, the microphone can be connected to amplifiers with 3-pin Euro style connector. A green LED indicates when the microphone is active.


    • Features

      • PTT-key for calls for activation
      • Momentary or toggle
      • Green LED, indicating microphone active
      • Stable metal base design with fixed 2 m cable and lockable Euro style connector
      • Phantom powered by amplifier

    • Specifications

      • Phantom power supply Voltage range: 12 to 48 V

      • Phantom power supply Current consumption: <8 mA
      • Sensitivity: 0.7 mV @ 85 dB SPL (2 mV/Pa)
      • Maximum input sound level: 110 dB SPL

      • Distortion: <0.6% (maximum input)
      • Input noise level (equiv.): 28 dB SPLA (S/N 66 dBA ref. 1 Pa)

      • Frequency response: 100 Hz to 16 kHz

      • Output impedance: 200 ohm
      • Base dimensions (H x W x D): 1.57 x 3.97 x 9.25

      • Weight: 2.2
      • Color: Charcoal with silver
      • Stem length with mic.: 15.35

      • Cable length: 6.56
