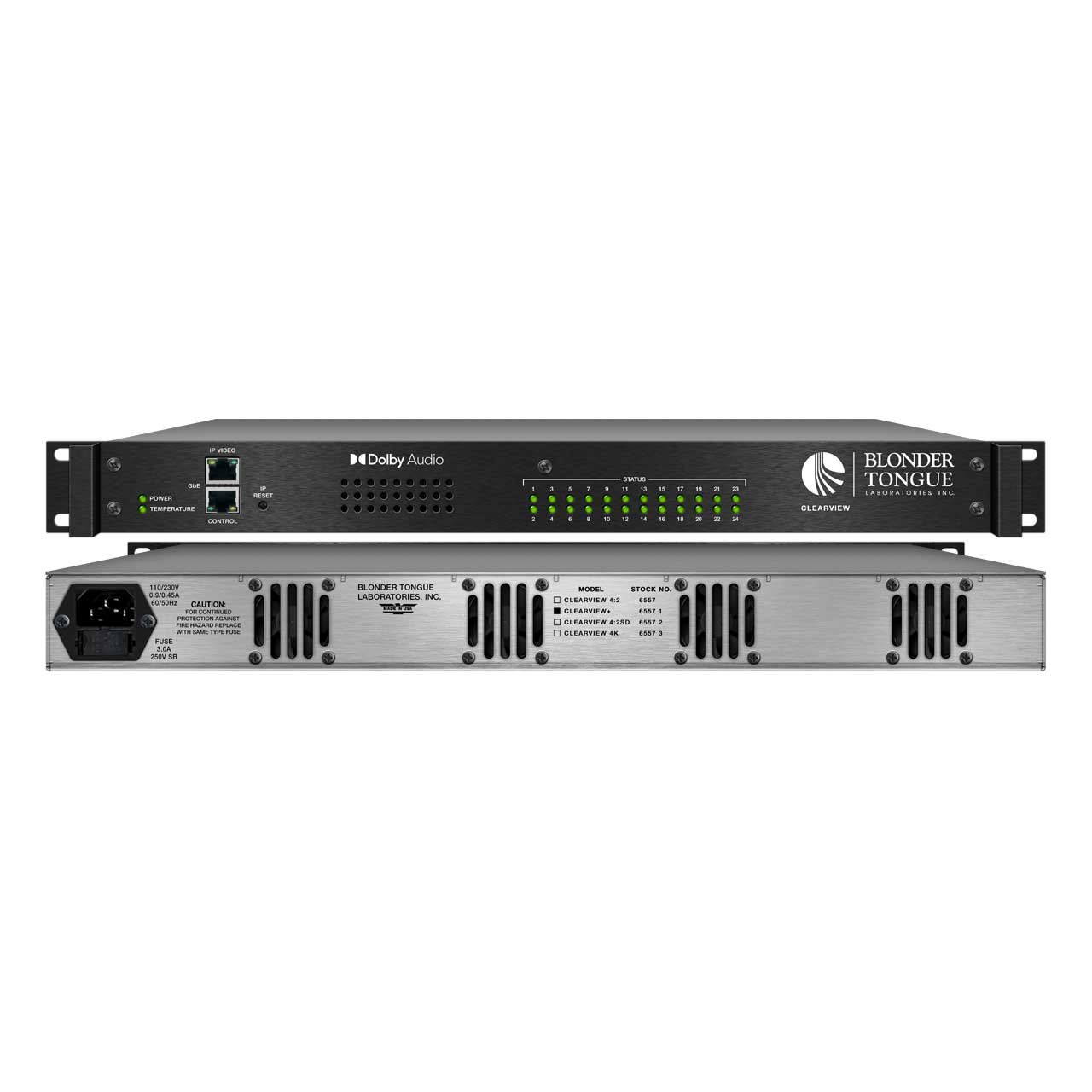

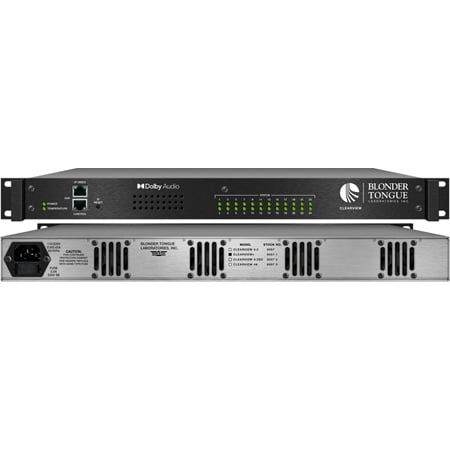

Blonder Tongue Clearview+ 24 Program HD 1080 Transcoder - 24 channels of professional Dolby & COM3000

CLEARVIEW+ - Overview

• Features:

  • Accepts up to 24 HD or SD programs in 1RU
  • DOLBY Digital Audio capability
  • Superior Transcoding quality at low bit rates
  • Stand-alone 1RU Transcoder for the Advanced Transrating of IPTV signals
  • SD to HD upscaling or HD to SD downscaling
  • IP input up to 24 SPTS MPEG-2, H.264 (AVC), H.265 (HEVC) HD programs
  • IP output up to 24 SPTS MPEG-2, H.264 (AVC), H.265 (HEVC) HD programs
  • Primary and secondary Audio types: Dolbyr Digital AC3, AAC, MPEG1-Layer2 (pass-through only), and MP3
  • 1080i to 720p or 720p to 1080i resolution conversions yields improved compatibility/bandwidth savings
  • 24 front panel Status LEDs, one (1) per each program stream
  • Front panel Temperature LED
  • Easy-to-use GUI for monitoring and control


• Specifications:

  • Inputs & Protocols
  • Connectors: 1x Bi-directional Front Panel RJ45 (IP Video Port, Input/Output), 1x Bi-directional Front Panel RJ45 (Control Interface)
  • Standard: 1000Base-T (GbE)
  • Protocols Supported: UDP
  • Standard: ISO/IEC 13818-1 Systems
  • TS Packet Length: 188 bytes
  • Sync Byte: 0x47
  • TS Supported: 24 SPTS
  • Video Format: MPEG-2, H.264 (AVC); H.265 (HEVC)
  • Video Resolution: 480i (60 FPS); 480p (30/60 FPS); 720p (30/60 FPS); 1080i (60 FPS); 1080p (30 FPS)
  • Closed Captioning: EIA608/EIA708
  • Addressing: Unicast
  • Audio Input Formats: Dolby® AC3, AAC, MPEG1-Layer2 (Pass-through/Decode only), MP3
  • SAP: Supported
  • Audio Rates: 64, 96, 112, 128, 160, 192, 224, 256, 320, and 384 Kbps

    Alarms & Monitoring
  • Local Monitoring: 1x Power LED, 1x Temperature LED, 24x Status LEDs
  • Local Control: 1x IP Reset Button
  • Remote Control: 1x RJ45 (1000Base-T GbE)

    Outputs & Protocols
  • Connector: 1x Bi-directional Front Panel RJ45 (IP Video Port, Input/Output)
  • Standard: 1000Base-T (GbE)
  • Protocols Supported: UDP
  • Standard: ISO/IEC 13818-1 Systems
  • TS Packet Length: 188 bytes
  • Sync Byte: 0x47
  • Encoding Type: CBR/Capped VBR
  • Video Bit Rates: 2-19 Mbps (0.1 Mbps increments)
  • TS Supported: 24 SPTS
  • Video Format: MPEG-2, H.264 (AVC); H.265 (HEVC)
  • Video Resolution: 480i (60 FPS); 480p (30/60 FPS); 720p (30/60 FPS); 1080i (60 FPS); 1080p (30 FPS)
  • Closed Captioning: EIA608/EIA708
  • Addressing: Unicast, Multicast
  • Audio Output Formats: Dolby® AC3, AAC, MP3 (MPEG1-Layer2 Pass-through only)
  • SAP: Supported
  • Audio Bit Rates: 128, 192, and 256 Kbps

    General Specifications
  • Dimensions: 19.0 x 19.2 x 1.75"
  • Unit Weight: 9.5 lbs
  • Shipping Weight: 12 lbs
  • Power: 110/230 VAC, 0.9/0.45 A, 60/50 Hz
  • Power Consumption: 64 W
  • Operating Temperature: 32 to 122 °F
  • Storage Temperature: -13 to 158 °F
  • Operating/Storage: 0 to 95% RH @ 35 °C max
  • Humidity: Non-condensation


• Item Includes:

  • 1x Clearview+ Transcoder
  • 1x Power Cord with IEC C13 line socket and 3-pin Type B NEMA 5 plug
