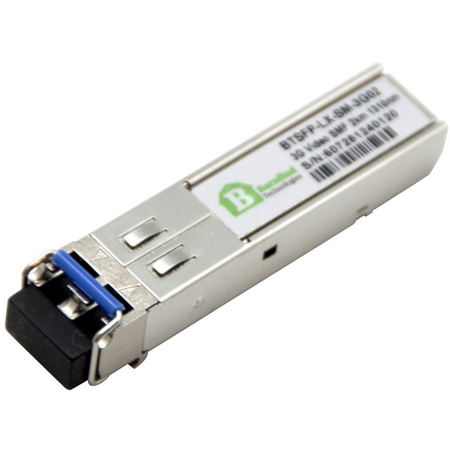

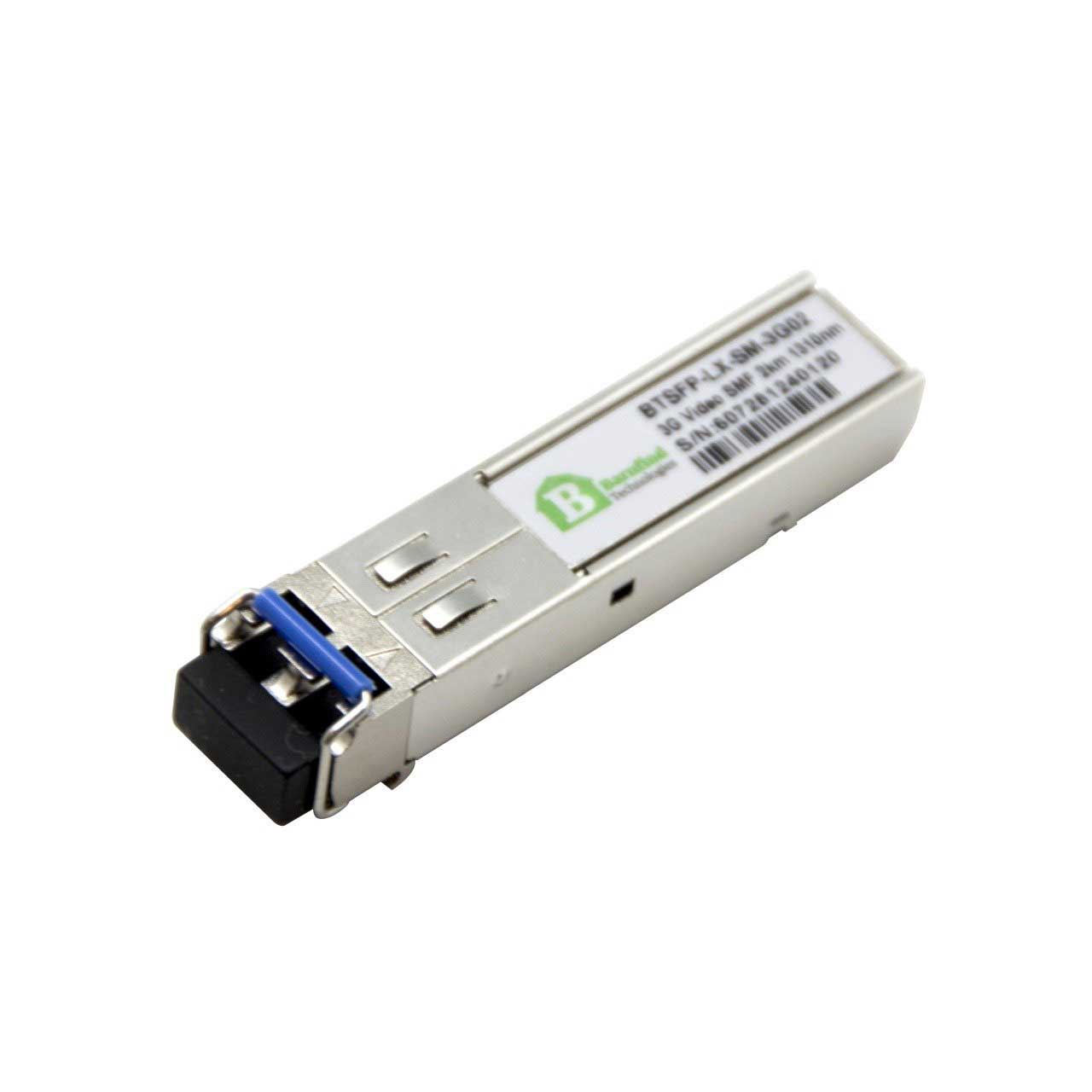

Barnfind BTSFP-LX-SM-3G10 SDI/HD-SDI and 3G-SD Maximum Data Rate Video SFP - 3G Distance 10km/6 Miles - 1310nm

ITEM #: BTSFP-LX-SM-3G10 MFG #: BTSFP-LX-SM-3G10

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$200.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    BTSFP-LX-SM-3G10 - Overview

    Barnfind BTSFP-LX-SM-3G10 is a Single mode transceiver module designed to transmit/receive optical serial digital signals as defined in SMPTE 297-2006. It supports from 50M bps to 3Gbps and is specifically designed for transmitted the SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M SDI pathological patterns. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It is with 1310nm VCSEL transmitters.logical signals.

    • Features:

      • SMPTE 297-2006 Compatible
      • Hot-Pluggable SFP Footprint LC Optical Transceiver
      • Small Form-Factor Pluggable (SFP) MSA compatible
      • Speed from 50Mbps to 3Gbps with up to 2km Single mode Fiber
      • Distance up to 2km for 3G-SDI
      • Support Video Pathological Patterns for S D-SDI, HD-SDI and 3G-SDI
      • SFF-8472 Digital Diagnostic Function


    BTSFP-LX-SM-3G10 - Required Accessories
