Barnfind BarnOne Frame BTF1-02 16 SFP Port and 16 BNC Port Fiber Router - 1RU

ITEM #: BRN-BTF1-02 MFG #: BTF1-02

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$8,000.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BTF1-02 - Overview

    The BarnOne series of routers can provide a 32 x 32 built-in routing system with a combination of BNC and SFP I/O ports to satisfy any application. Every SFP port is bi-directional and every BNC port (if equipped) can be set as an input or output and all outputs are re-clocked. Multiple reference switching can be set to different references depending on the signal being switched and the system works with most 3rd party control systems. Each BarnOne frame is contained within 1 RU space - the highest density yet that also offers the least power consumption in the industry.

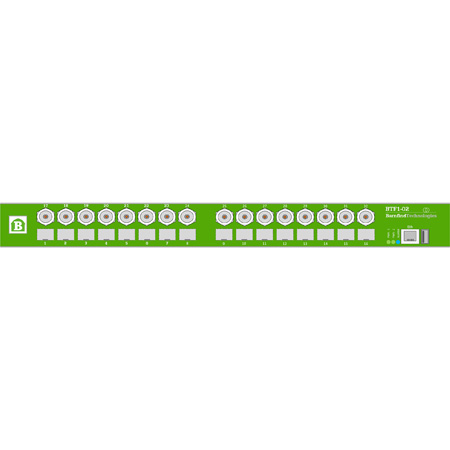

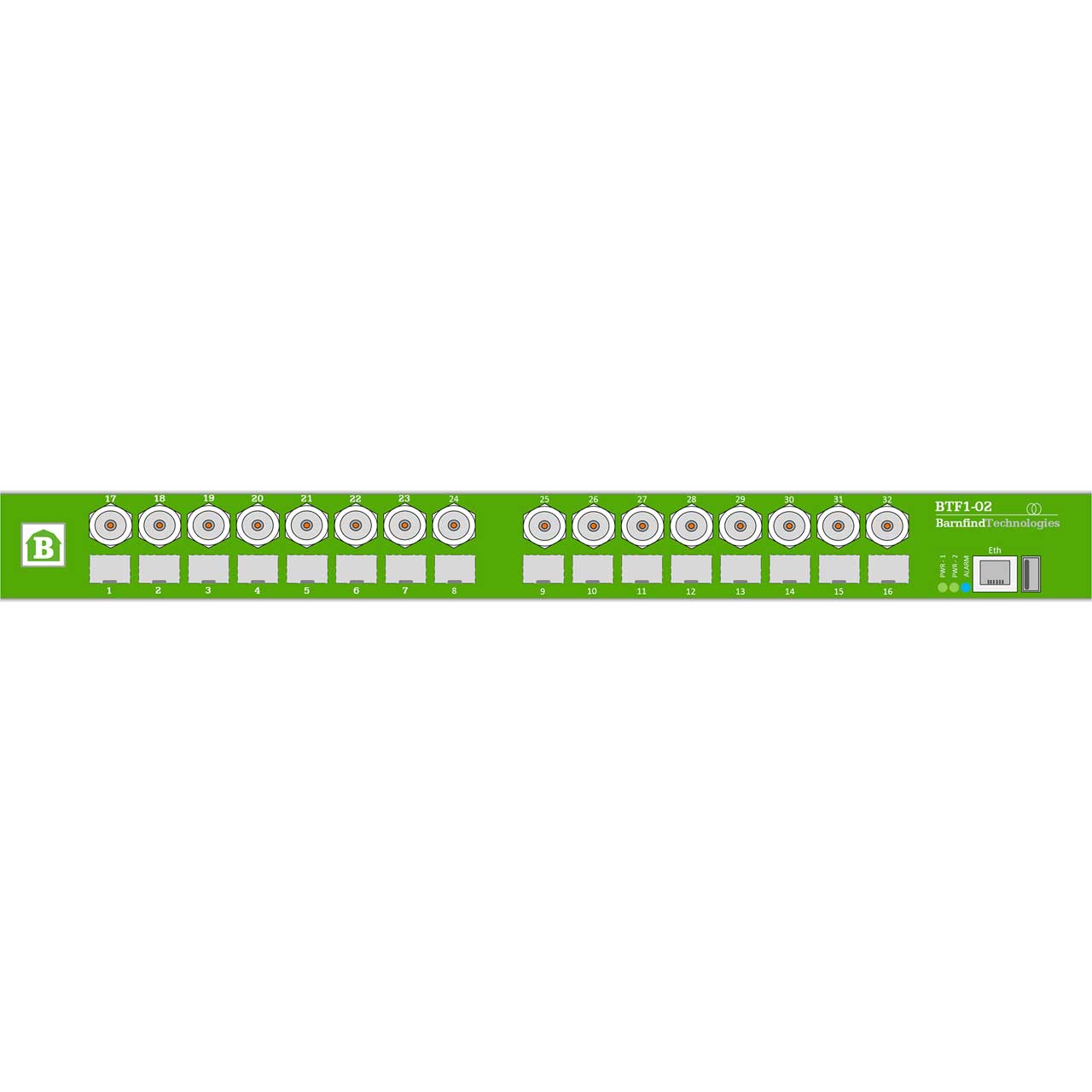

    The BTF1-02 has 16 bi-directional BNC ports and 16 bi-directional Duplex transceiver cages with LC/PC connectors in a convenient and small 1RU design. The BNC ports are 75 Ohm and feature multirate reclocking of outputs 270Mbit/s - 3Gbit/s. The SFP ports are hot pluggable/swappable and can be programmed to singlemode and/or multimode. A 12V DC 120W power supply is included to power the unit wherever you need it with the option to add redundant power.

    Please Note: BarnFind BARNSTUDIO controller software is required to operate this and all BarnOne Frames.

    • Specifications:

      • Electrical Ports
      • 16x bi-directional BNC ports
      • 75 OHM BNC connector
      • SMPTE 259M, 292M, 372M, 424M, DVB-ASI
      • Multirate reclocking of outputs 270Mbit/s - 3Gbit/s
      • Automatic cable EQ (Belden 1694A) 270Mbit/s-250m, 1.5Gbit/s-140m, 3Gbit/s-80m

        Optical Ports
      • 16x fiberoptical ports (SFP), Duplex transceivers, LC/PC connectors
      • SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
      • Hot pluggable/swappable
      • Singlemode and/or Multimode
      • 16 CWDM wavelength selections - ITU-T G.694.2
      • Multirate reclocking of outputs 270Mbit/s - 3Gbit/s

        General

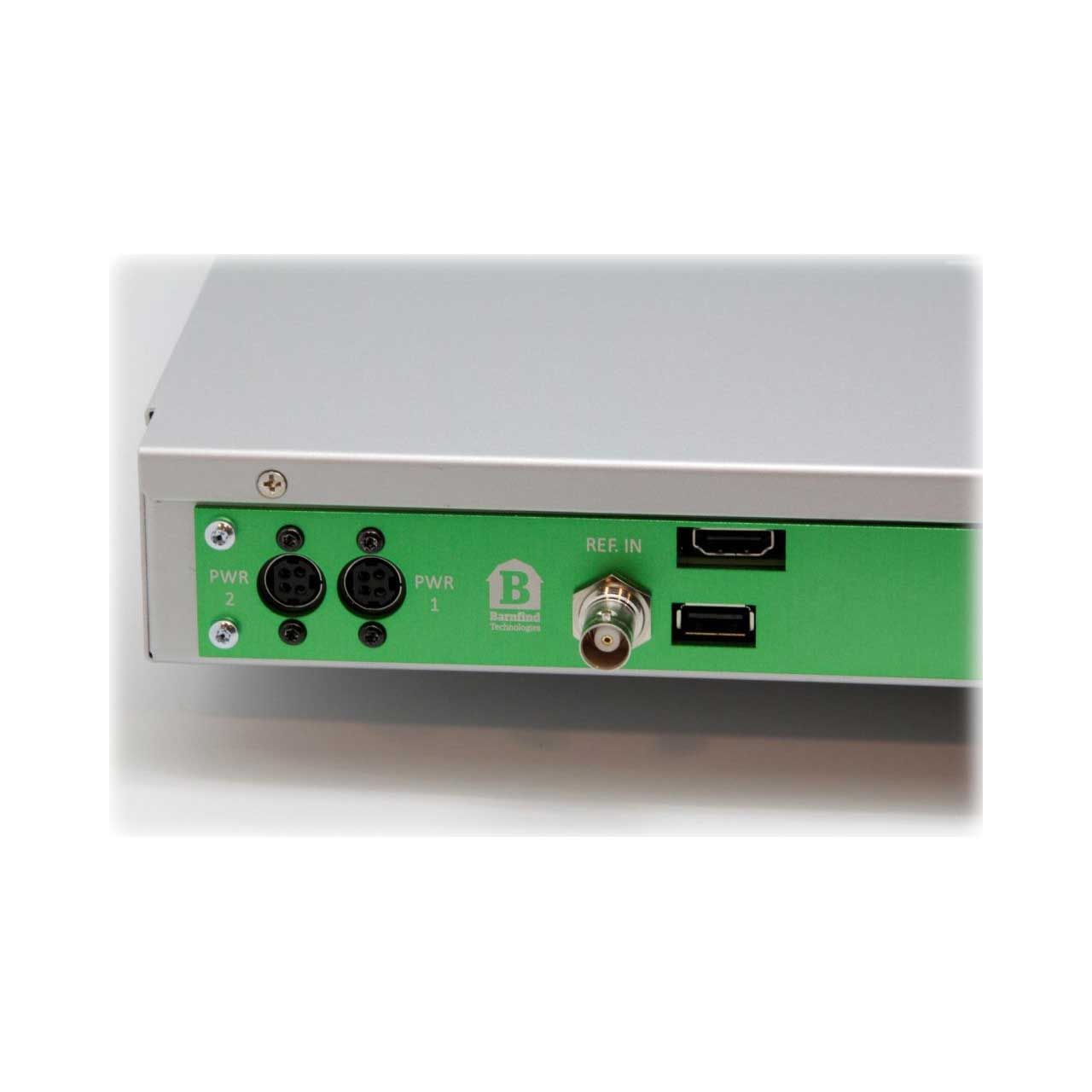

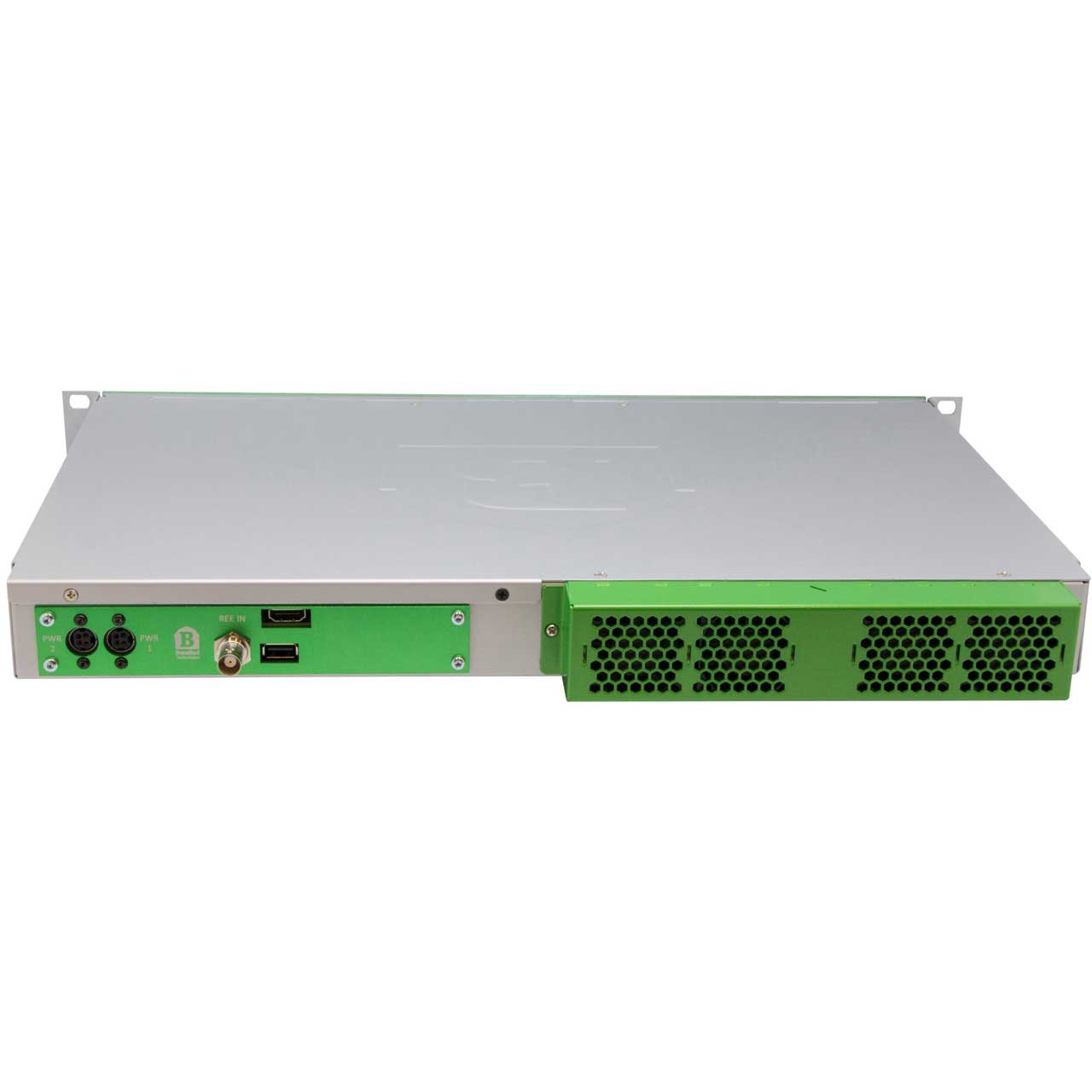

      • Power supply: 12V DC 120W (Redundant power supply optional)
      • Dimensions: 445mm x 280mm x 43.5mm (17.5" x 11" x 1.7")
      • Weight: 3.8 kg (8.3 lbs)

    • Item Includes:

      • BTF1-02 frame
      • power supply 12V DC
      • BarnStudio configuration and operation software
