Clear-Com FSII-BASE-II-5 FreeSpeak II Base II Station for up to FIVE 1.9GHz & 2.4GHz Beltpacks


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with Minimum Order Banner

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    FSII-BASE-II-5 - Overview

    Routing and configuration of up to 5 FreeSpeak II beltpacks!

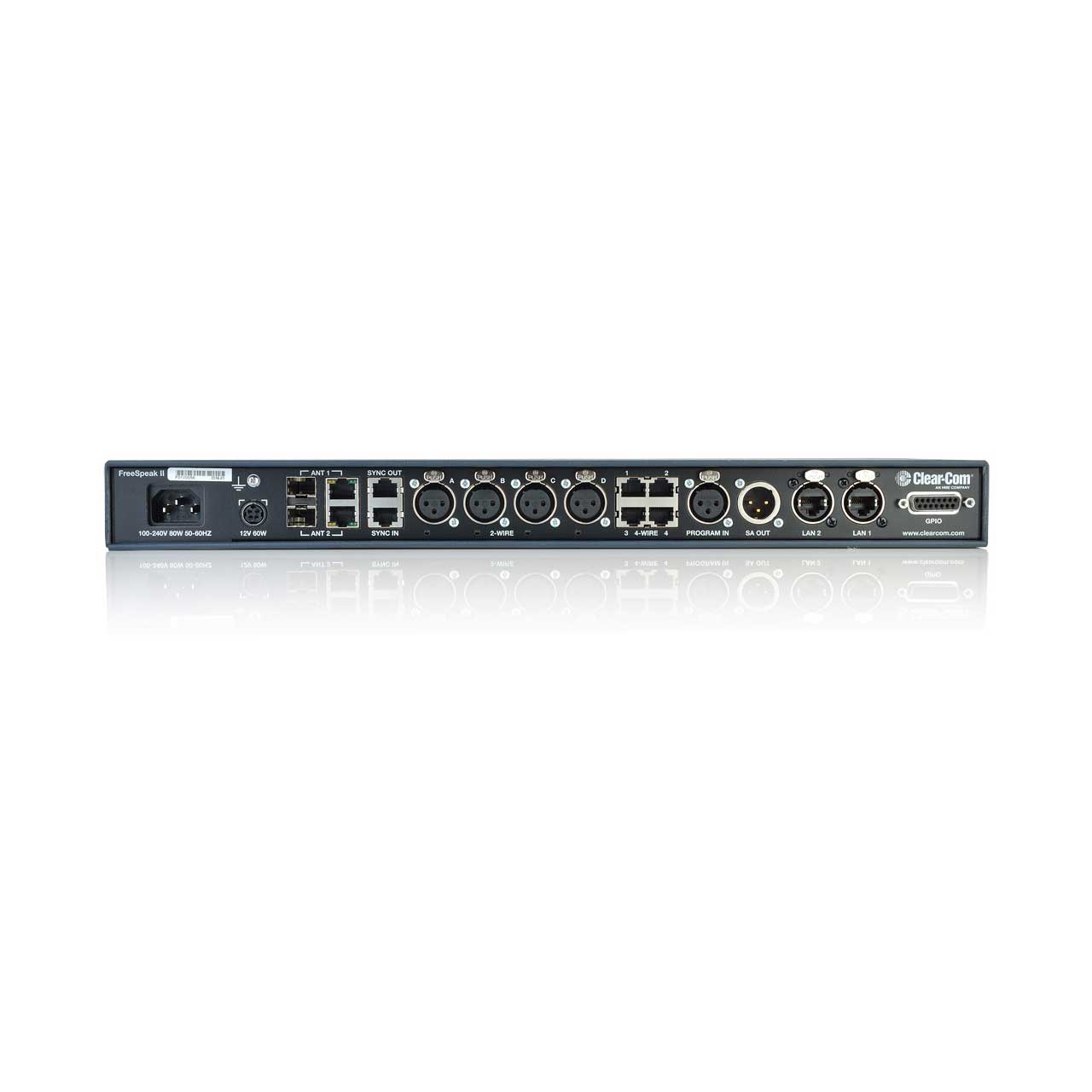

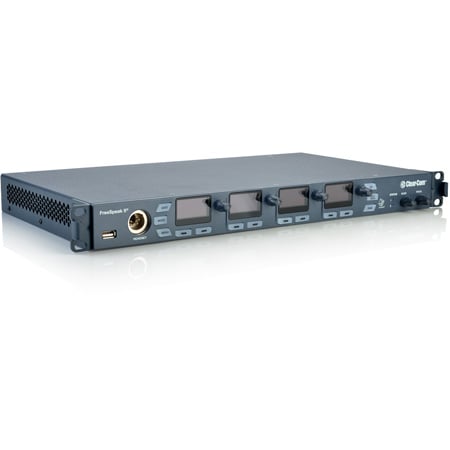

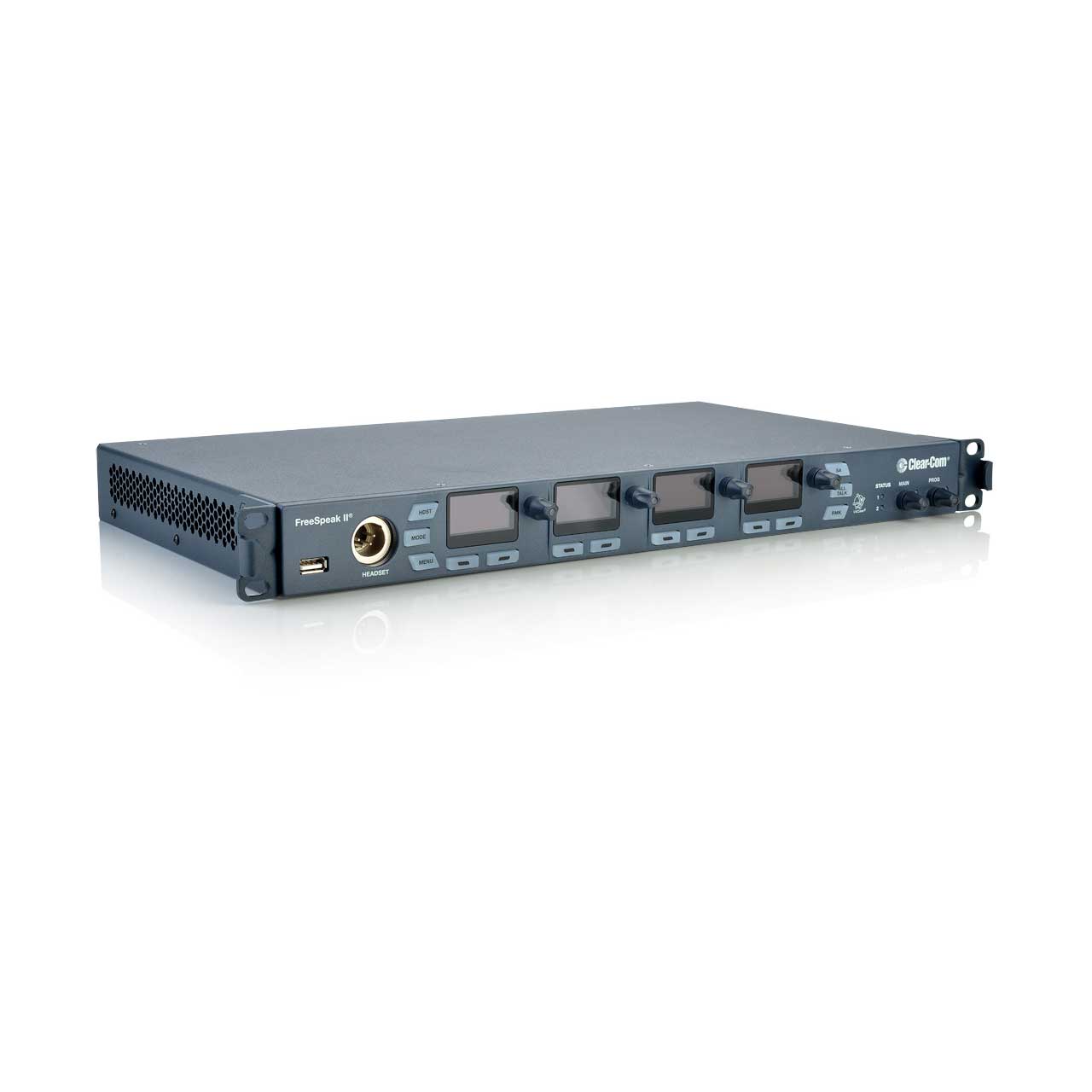

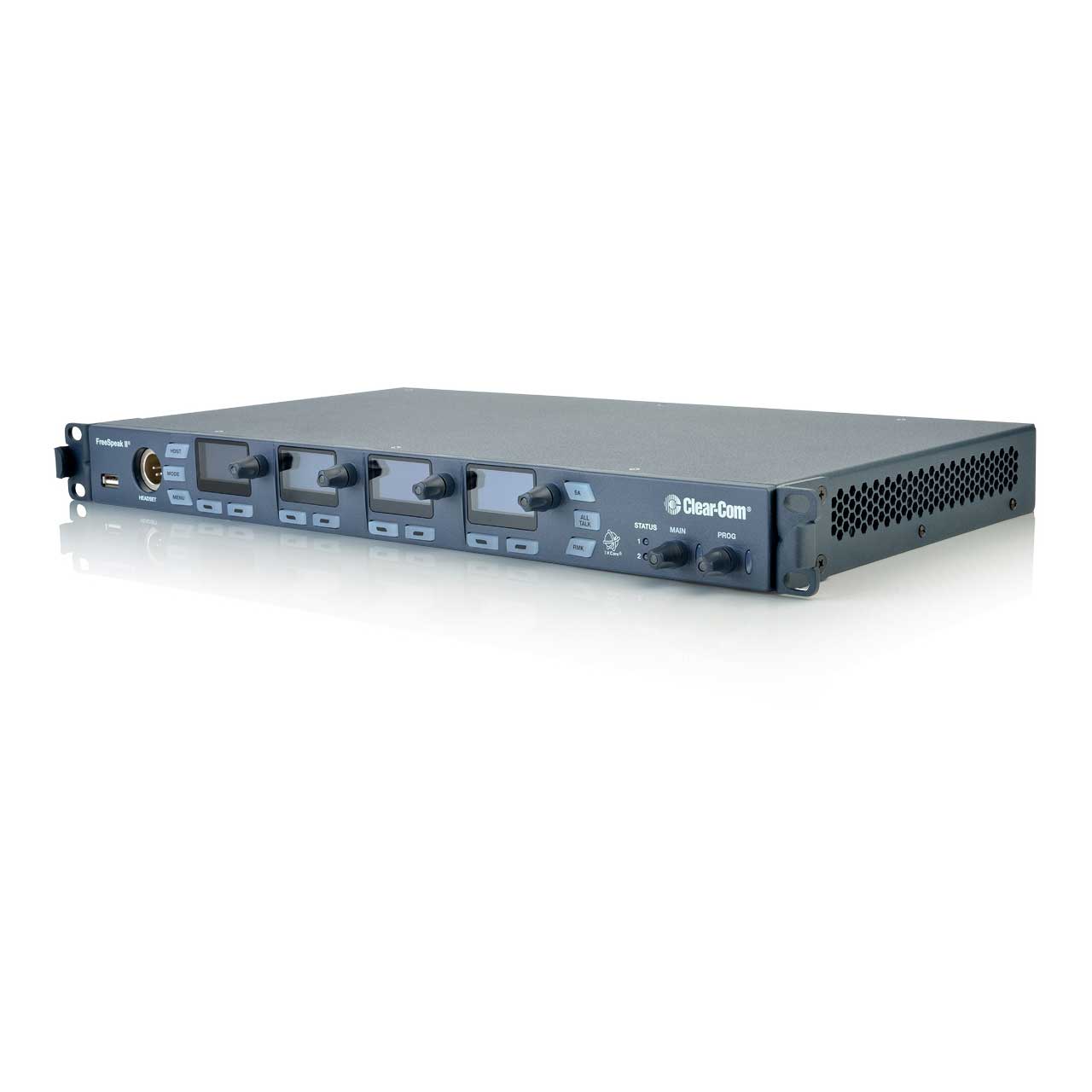

    The Clear-Com FreeSpeak FSII-BASE-II-5 is a base station for up to FIVE wireless FreeSpeak II 1.9 GHz and 2.4 GHz beltpacks and 10 active transceiver antennas (sold separately). The FSII-BASE-II has four 2-wire connections for analog partyline connection, four 4-wire audio connections, four displays with soft keys, a dedicated stage announce (SA) output and program audio input.

    A single base station can operate using a mix of both 1.9GHz and 2.4GHz FreeSpeak II active transceivers to support up to FIVE Beltpacks Transceivers and 10 active transceiver antennas via the two transceiver splitters (FSII-SPL). The user interface supports system configuration and system monitors along with a main station mode with Talk and Call soft keys. A dedicated headset jack is included for communications and monitoring from the front panel. Access to channels and other functions are assignable through the menu on the base station or through the Core Configuration Manager (CCM) browser-based tool.

    This Base Station can also be easily upgraded to 25 beltpack transceivers with the purchase of the FSIIBASEII25BPLI software license. (sold seperately).

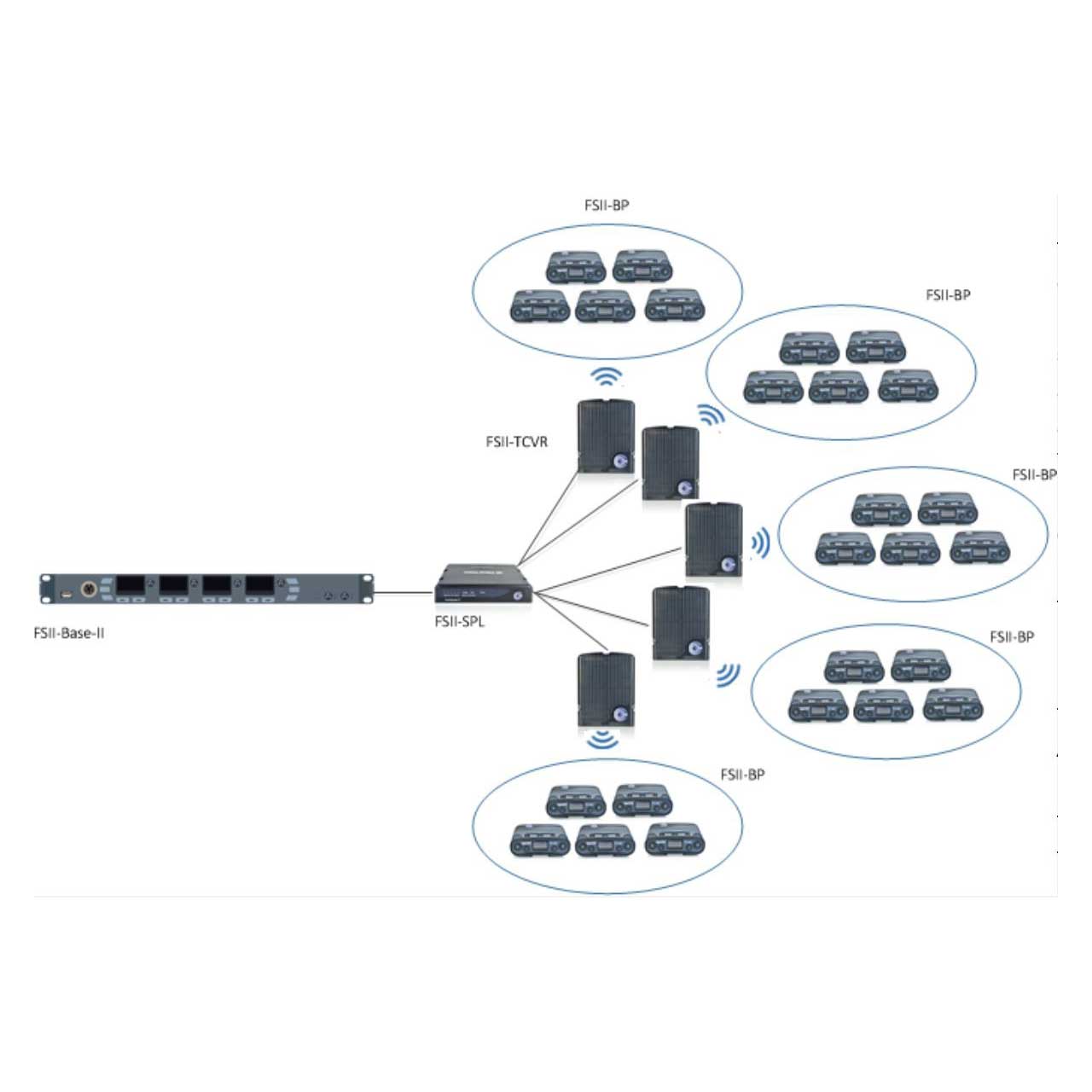

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • Routing and configuration of up to 5 FSII beltpacks
      • Fiber transceiver connections, supports two fiber enabled FSII splitters
      • Browser configuration client works on any device or PC
      • Four 2-wire ports with call signal, auto nulling (supports Clear-Com and RTS)
      • Supports 2 transceivers natively and up to 10 transceivers via FSII active splitter
      • Multi-mode user interface has monitoring, setup and main station modes with assignable soft keys
      • Supports both 1.9 GHz and 2.4 GHz FSII beltpacks on a single base station
      • Matrix and partyline configurations support up to 12 channels and/or groups
      • Easily upgrade to 25 beltpacks with the purchase of a software license
    • Specifications:

      • Base-to-Beltpack Frequency Response: 100Hz - 7.1kHz
      • No. of Beltpacks per Base Station: 5
      • No. of Transceiver/ Antennas Supported by Base: 10
      • No. of Active Transceiver Ports: 2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver PC
      • Programming Port: 2 LAN RJ45
      • RJ45 Relay Port: DB15, supports one relay assigned to the SA out
      • Partyline A ,B,C,D (each): XLR-3F, on/off termination switch, Clear-Com and RTS compatible
      • Partyline Power On/Off: A/B, C/D paired
      • Partyline Output Voltage: 26 - 28VDC, 800mA per pair (A/B or C/D)
      • Four-Wire/Matrix Connection: 4 RJ-45
      • Program Input: XLR-3F, transformer isolated, line-level input
      • Stage Announce Output: XLR-3M, transformer isolated, line-level output
      • Front Panel Headset: 4-pin male and 5-pin female options

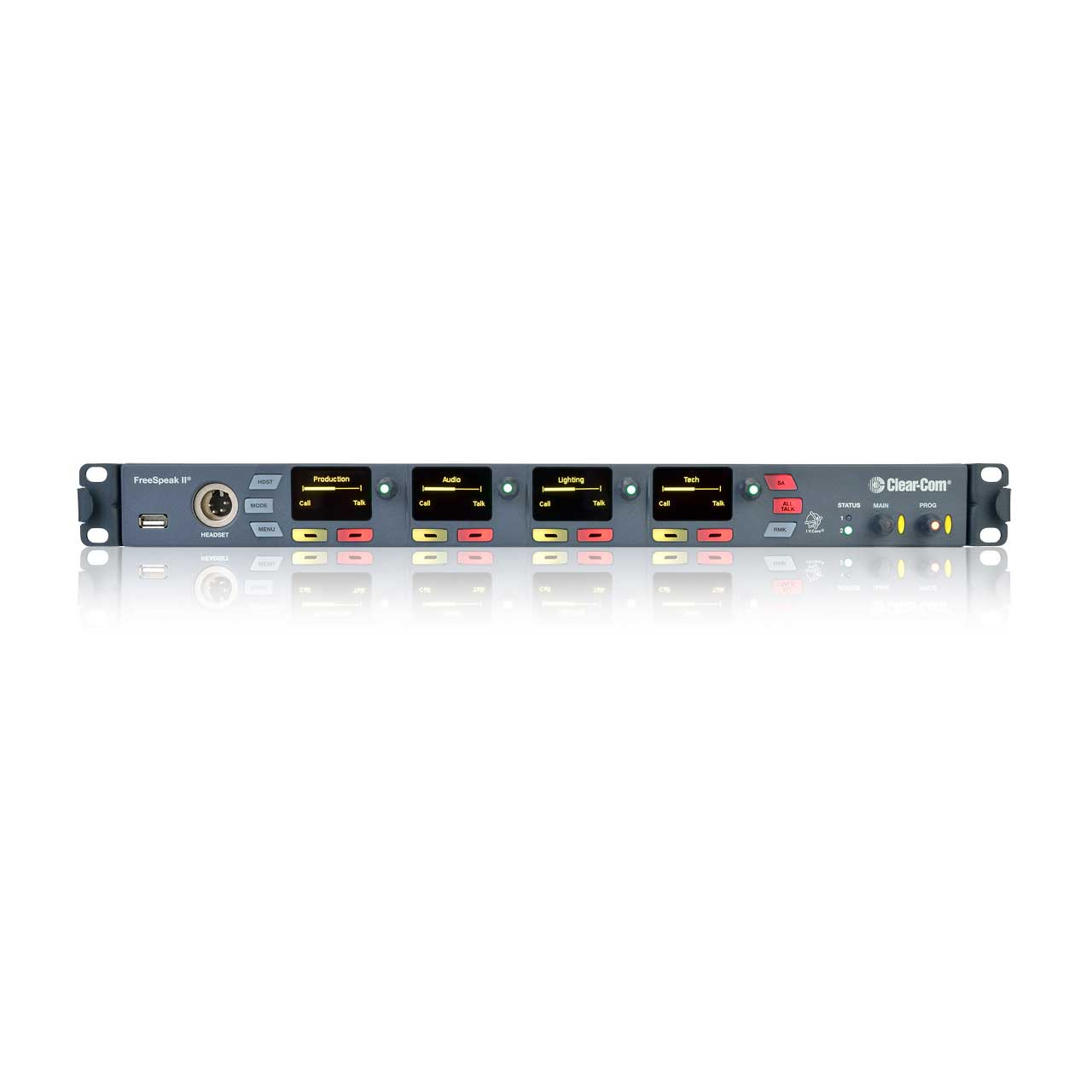

      • Front Panel Displays: 4 OLED's with encoders and assignable soft keys
      • Front Panel Indicators: Antenna Status, Beltpack Status
      • External Power Supply Connection: 12VDC
      • Base Station Programming/Editing: Push-to-enter rotary encoder
      • Power Input: 100-240V AC, 1.4A max
      • Output: 12V DC. 60W, 5A Current Draw: 12V, 4A max, 48W max
    • GTIN:
