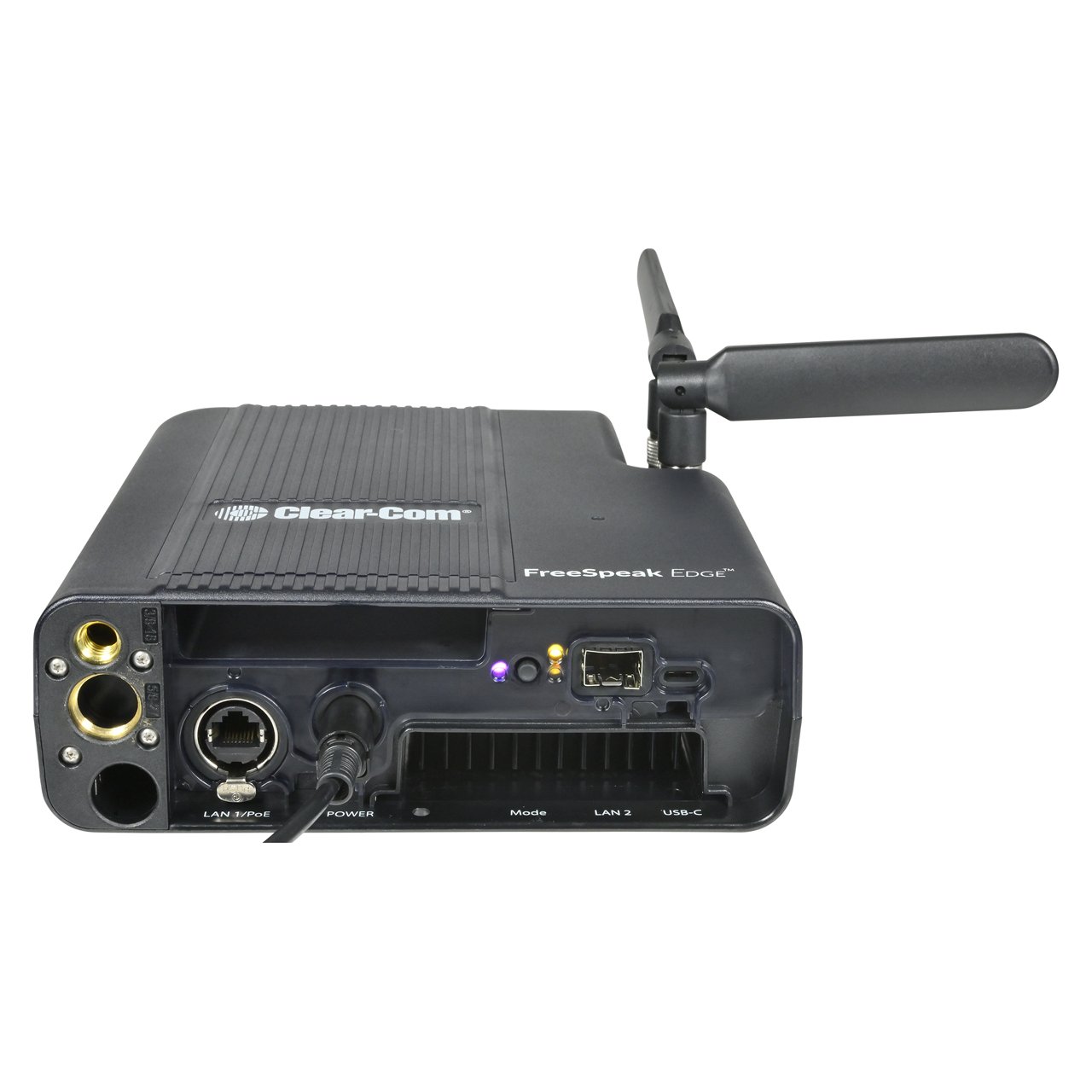

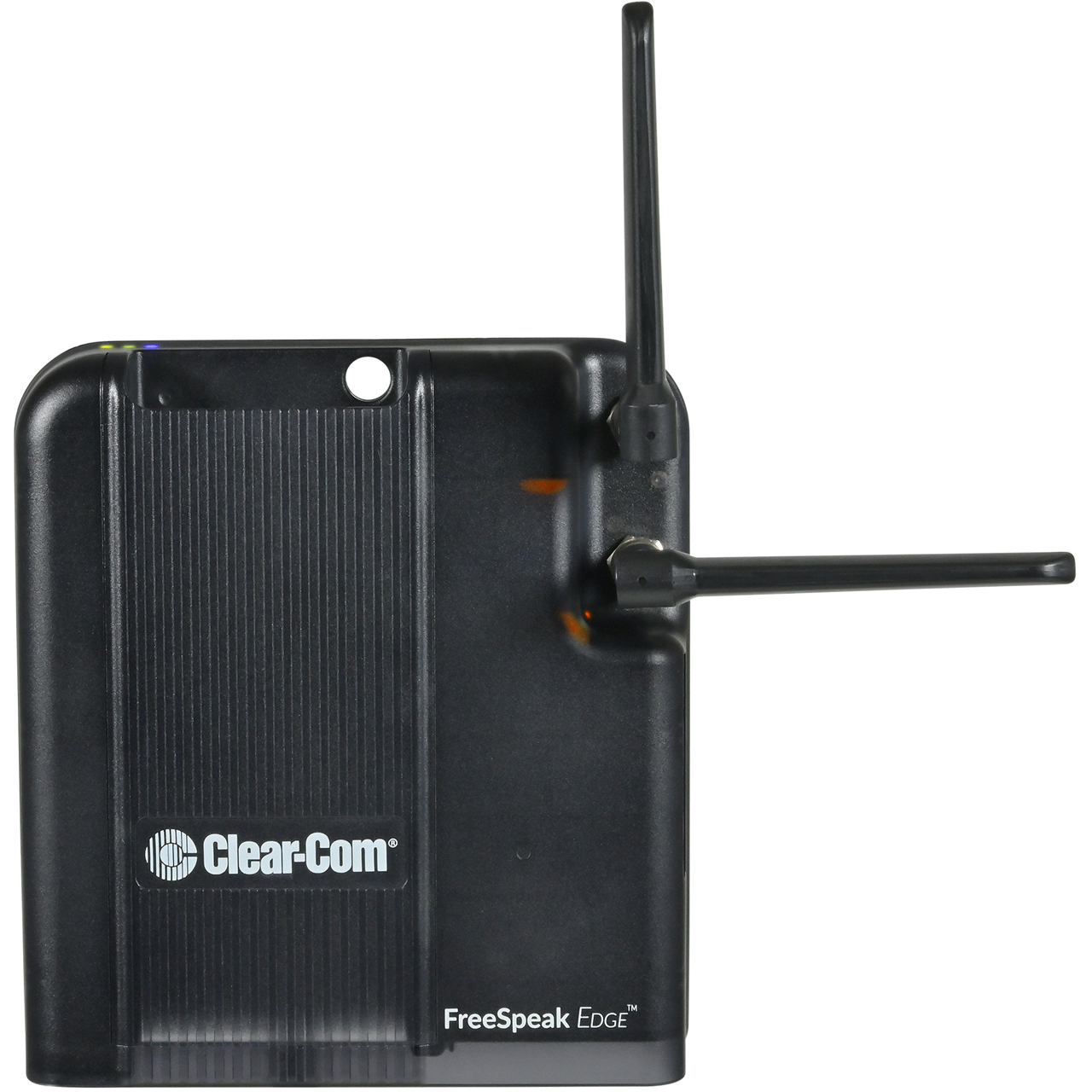

Clear-Com FSE-TCVR-50-IP-US FreeSpeak Edge IP Connected Intercom Transceiver

ITEM #: CLCM-FSE-TCV50IP MFG #: FSE-TCVR-50-IP-US

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,390.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FSE-TCVR-50-IP-US - Overview

    Beyond Wireless Intercom in the 5GHz Bandwidth!

    The ClearCom FreeSpeak Edge Intercom System FSE-TCVR-50-IP is an active IP transceiver antenna for the FreeSpeak Edge Wireless Intercom System. FreeSpeak Edge™ is a multi-channel, duplex digital wireless intercom system which is part of the FreeSpeak™ family of products. The transceiver delivers duplex communications from the Eclipse® HX matrix system via the E-IPA-HX interface card to the FreeSpeak Edge beltpacks. Each transceiver can support up to ten FSE-BP50 beltpacks. When supported with an E-IPA-HX card with 64 licensed ports, up to 64 FreeSpeak Edge beltpacks and 64 transceivers can be deployed with one Eclipse HX matrix system.

    The FSE-TCVR-50-IP allows transceivers and beltpacks to be placed anywhere there is an AES67 IP network connection. The FSE-TCVR-50-IP connects to the E-IPA-HX card via copper or fiber over an AES67 compliant network switch. Transceivers can be connected by copper (etherCON RJ45) or fiber (high speed SFP cage). Power The FSE-TCVR-50-IP can be powered from a Power-over-Ethernet (PoE) switch, or locally via supplied external power supply.

    The FSE-TCVR-50-IP is IP53 rated for water and dust resistance. The transceiver has a mount for wall, microphone stand or tripod spigot. The wall mounting bracket enables easy installation and removal. Multi-color status lights are visible from either mounting orientation.

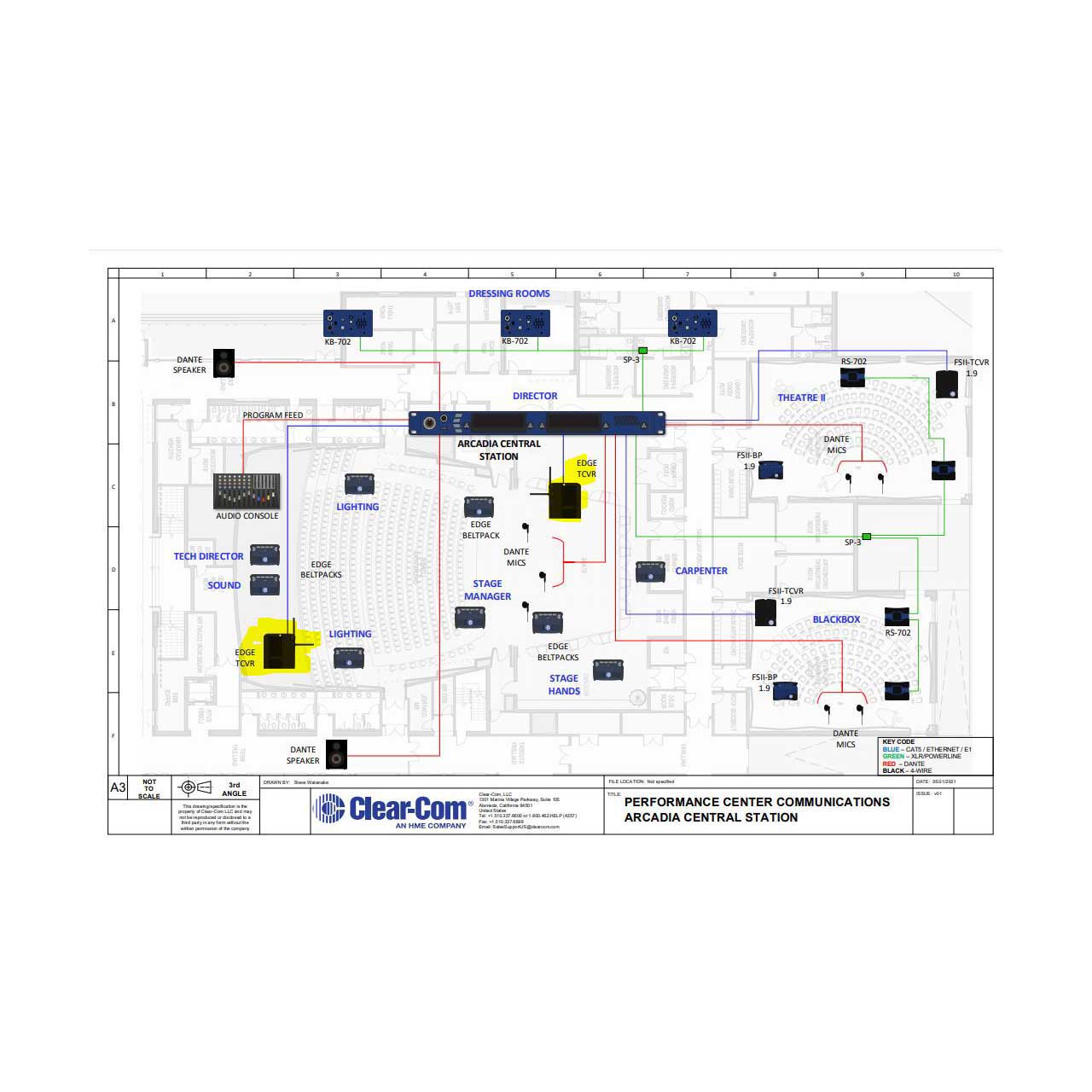

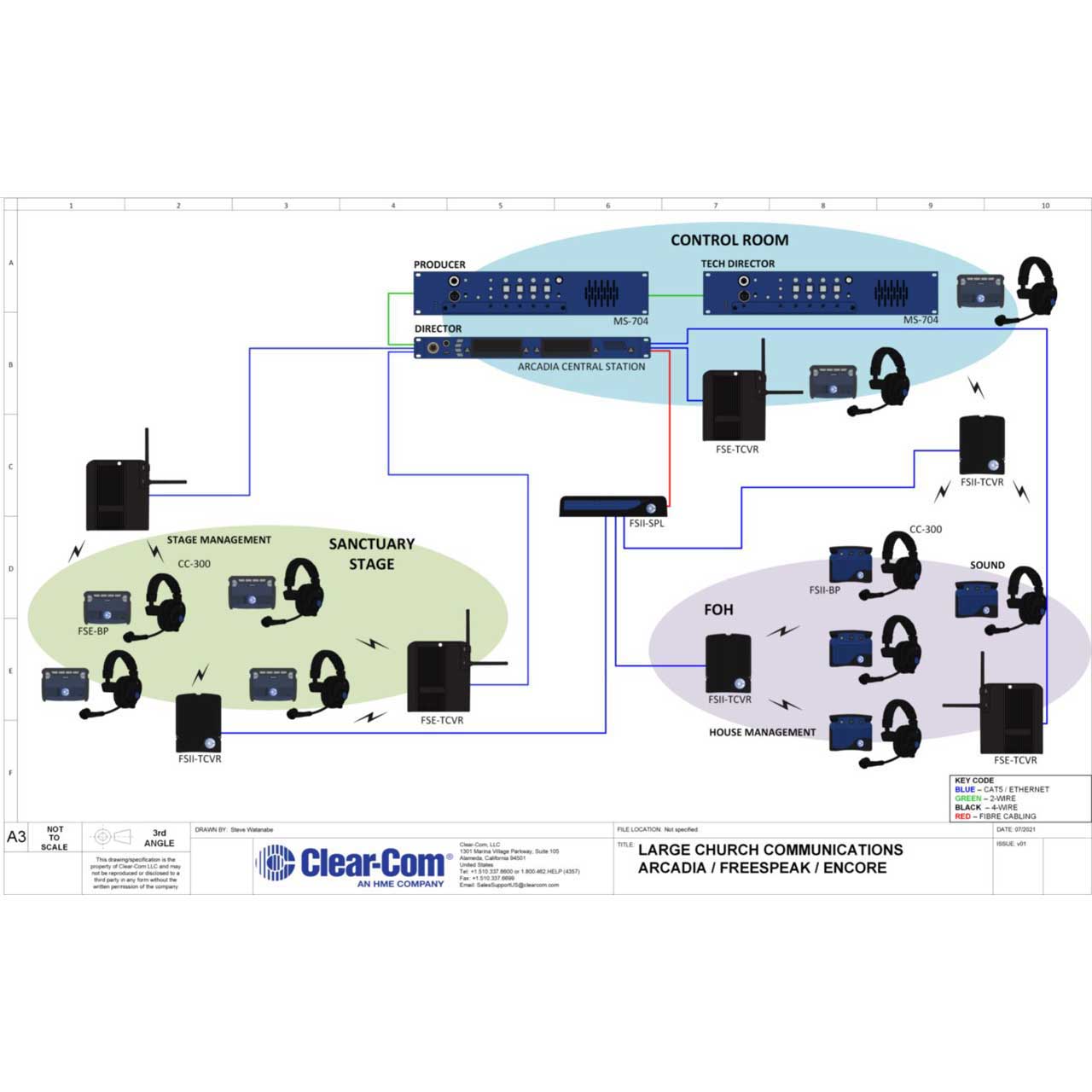

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • Transceiver
      • LED status indicators on top and bottom of transceiver
      • External omnidirectional antennas for the transceiver
      • Dual redundant radios per beltpack and transceiver
      • Separate radios for RF and radar scanning

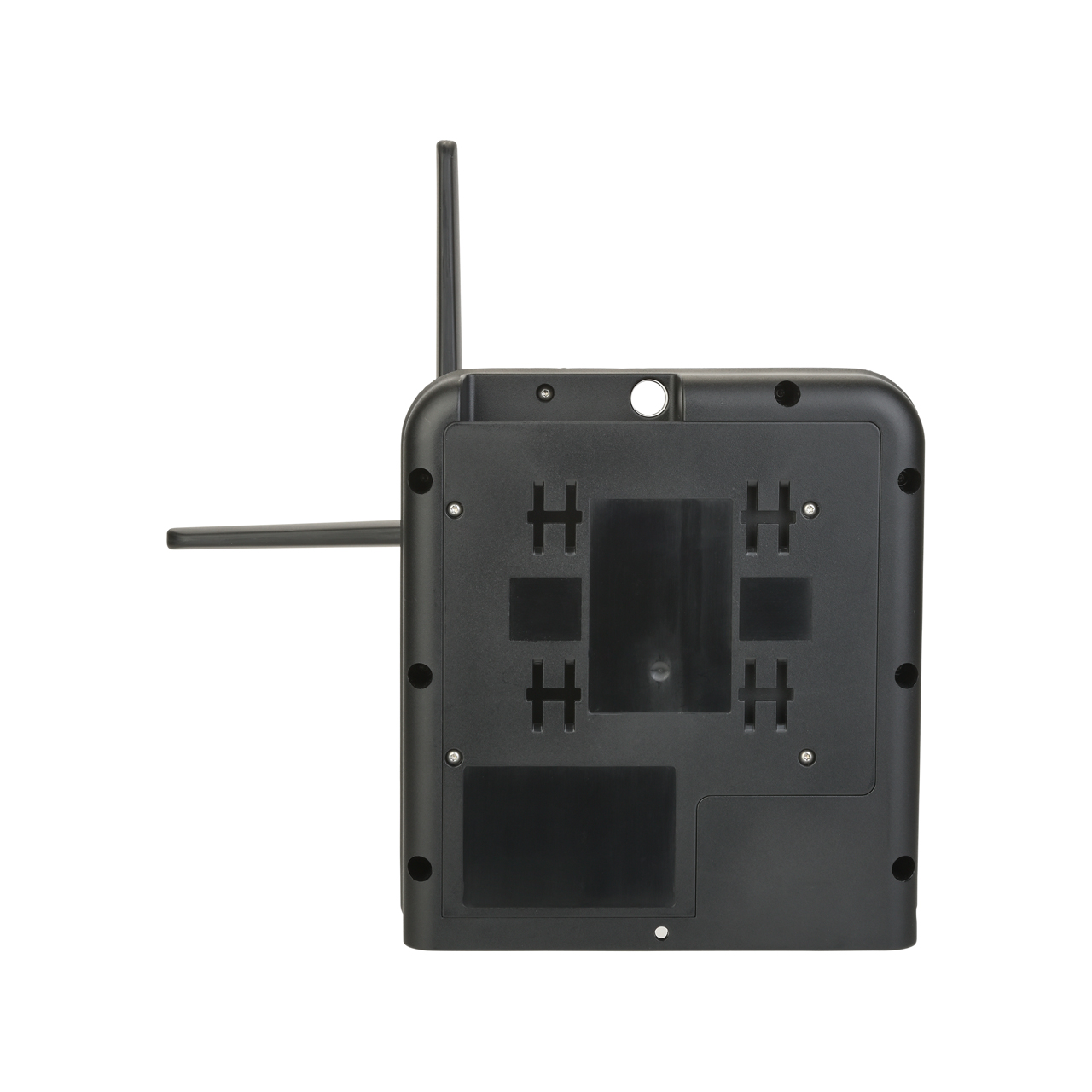

      • Wall-mount plate
      • Microphone stand mounts (metric and imperial threads)
      • Tripod spigot mount

      • Connectivity
      • Supports 10 FreeSpeak Edge beltpacks per transceiver
      • Supports up to 64 transceivers on an Eclipse HX matrix system with 64 port E-IPA-HX card
      • Robust radio link works in high multipath or reflective environments
      • Wi-Fi coexistence
      • Standalone mode for site survey and demo
      • AES256 shared key encryption
      • Dual network connections
      • etherCON RJ45 network connection
      • High speed SFP fiber cage
      • Power-over-Ethernet (PoE) up to 330ft (100m)
      • Daisy-chaining up to three locally powered transceivers

      • Mechanical
      • IP53 rating for wet and dusty conditions


    FSE-TCVR-50-IP-US - Required Accessories
