CNDLive A1 4K HDMI NDI Bi-Directional Converter with Tally Light

ITEM #: CND-A1 MFG #: A1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$569.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


A1 - Overview

Turn your USB Camera to a NDI Camera!

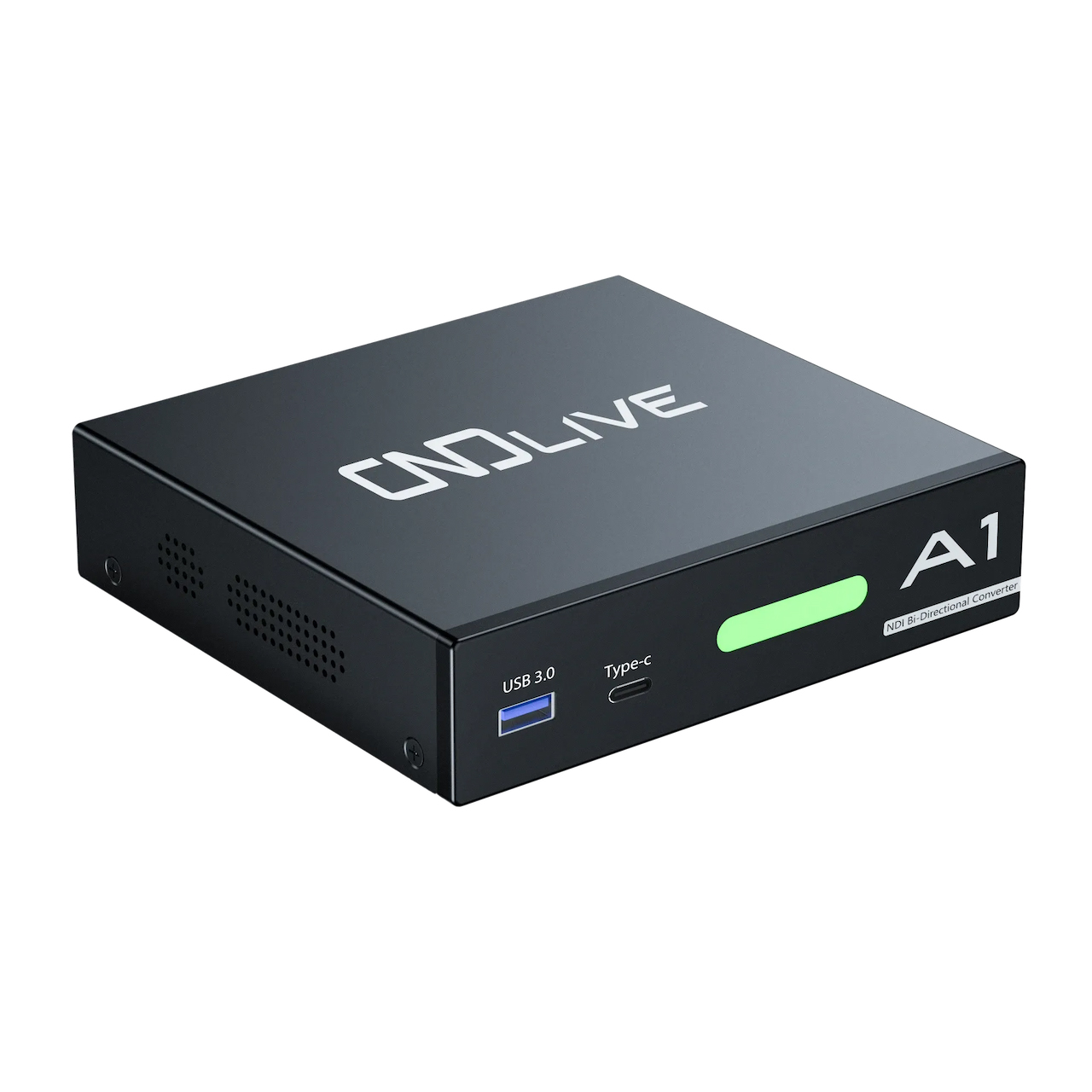

The CNDLive A1 HDMI NDI Converter is a compact, professional-grade codec engineered to balance high performance with cost-efficiency. It stands out with its ability to perform simultaneous encoding and decoding at 1080p60, offering exceptional versatility for live events, broadcast production, and video conferencing. Equipped with three HDMI 2.0 interfaces, the A1 supports video processing up to 4Kp60, providing a stable, all-in-one solution for high-quality IP video conversion.

All for NDI High Bandwidth, NDI HX2 and NDI HX3
The A1 is capable of encoding or decoding NDI full standards, including NDI High Bandwidth, NDI HX2, and NDI HX3. No worries for your NDI source type, the A1 will automatically recognize and do the job you wish.

Turn Your USB Camera to NDI Camera
Easily convert your USB camera to NDI and integrate it with the popular video conferencing applications such as Microsoft Teams, Zoom, Google Meet, GoToMeeting, and more. Bring your USB video source to the NDI world as simply as possible!

  • Features:

    • Simultaneous Processing: uniquely supports encoding and decoding at the same time (up to 1080p60)
    • Broad Protocol Support: Fully compatible with NDI|HX 2/3 (H.264/H.265) and Full NDI (NDI|HB)
    • High-Resolution Capability:
      - Encoding: Up to 4Kp60 (NDI|HX) or 4Kp30 (Full NDI)
      - Decoding: Up to 4Kp60 for all protocols
    • Legacy Compatibility: Supports interlaced signal decoding (1080i) for traditional broadcast equipment

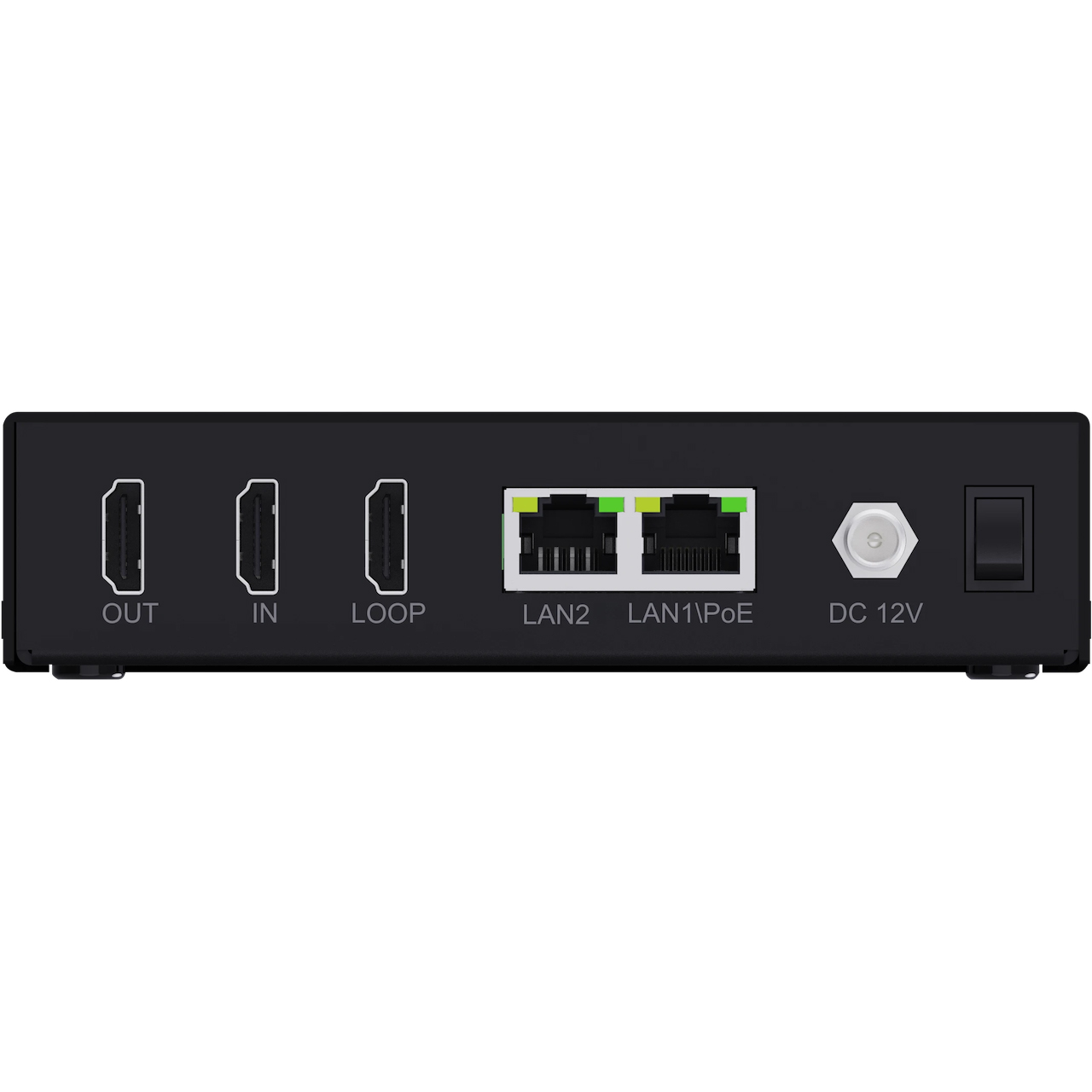

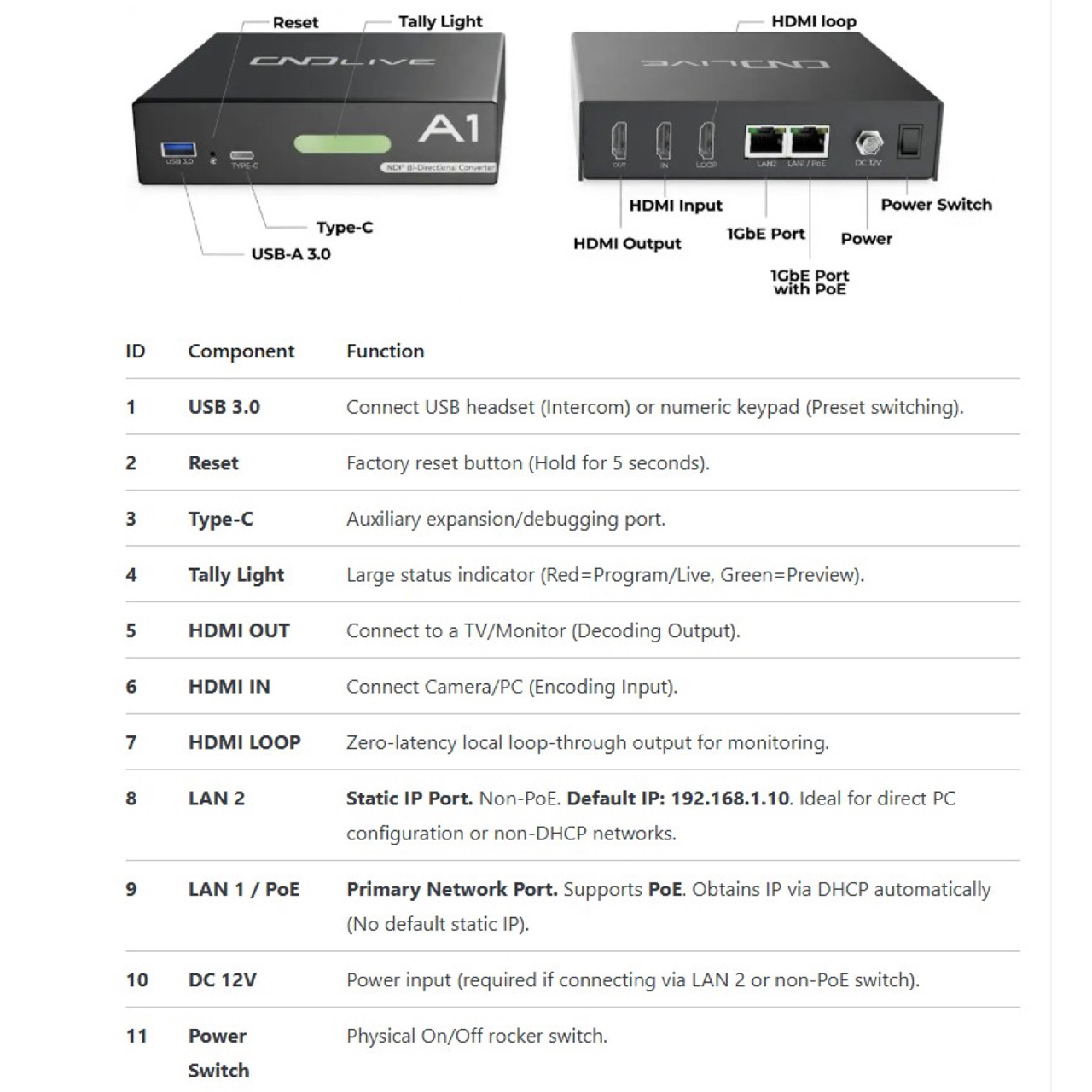

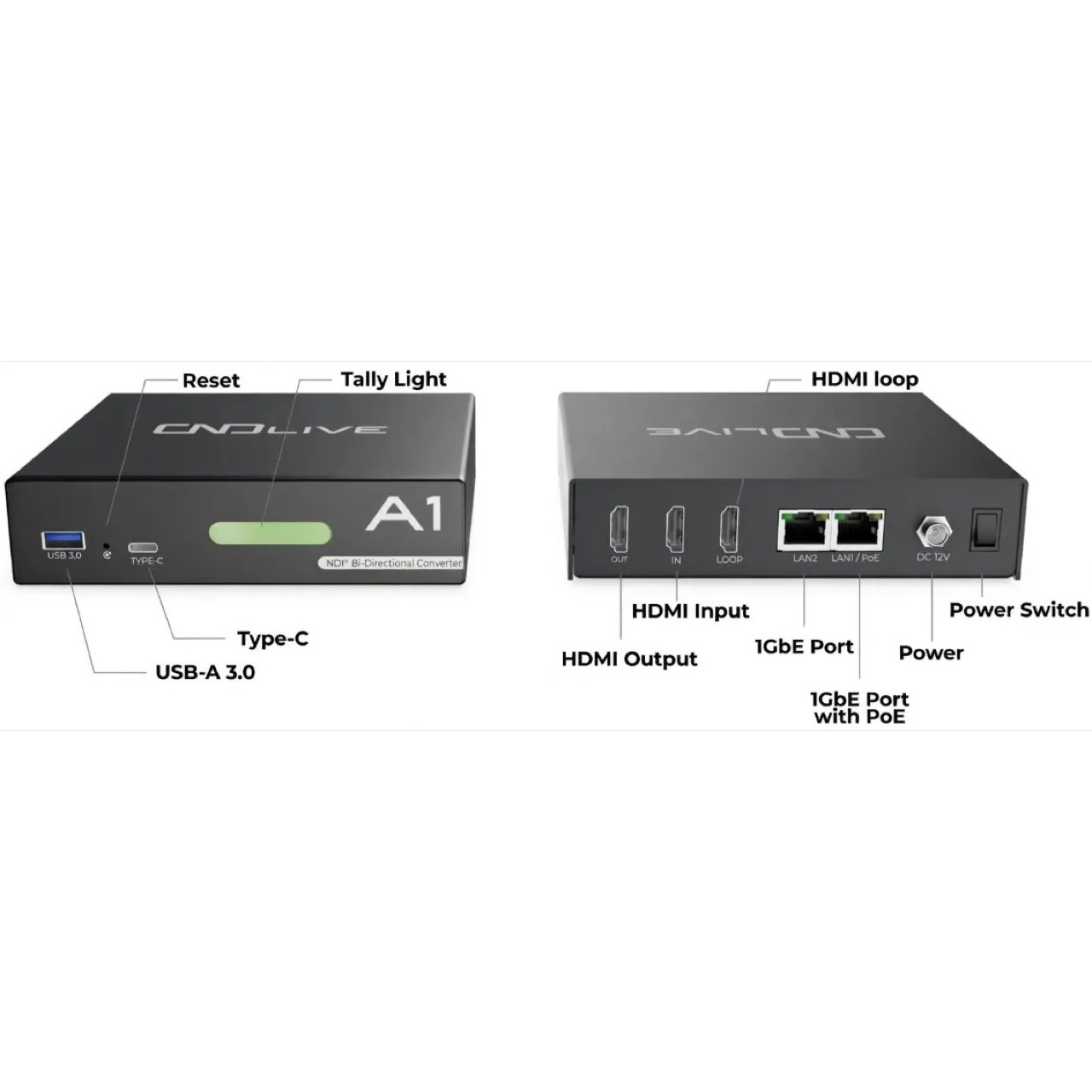

    • Professional Interfaces: Features 3x HDMI 2.0 ports (Input, Output, Loop) for flexible integration
    • Visual Monitoring: Large Tally light provides immediate device status visibility
    • Connectivity: Dual Gigabit Ethernet ports with PoE support for simplified cabling
    • Expansion: USB 3.0 and Type-C interfaces allow for local recording and peripheral connection
    • Audio & Intercom: Supports up to 8-channel audio I/O and integrated intercom systems
    • Recording: Supports local recording to USB or Type-C external storage
    • Control: Flexible management via Web UI (with preview), CNDLive Manager, or optional hardware controllers

  • Specifications:

    • Video Interface: 3x HDMI 2.0 (Input, Output, Loop)
    • Network: 2x 10/100/1000M Ethernet (Includes 1x PoE port)
    • Protocols:
      - NDI
      - HX 2/3
      - Full NDI (NDI HB)
    • Encoding Format: H.264/H.265
    • Audio: Max 8 Channels (Encoding & Decoding)
    • Management:
      - Web UI
      - CNDLive Manager
      - CNDLive Manager Max
    • Power Supply: DC 12V 2A/9W (or PoE)
    • Dimensions (LxWxH): 5.62" x 3.54" x 1.25" (143mm x 90mm x 32mm)
    • NDI|HX Encoding Only:
      - 3840x2160p @ 25/30/60
      - 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60
      - 1920x1080i @ 50/59.94/60
      - 1280x720p @ 25/29.97/30/50/59.94/60
    • NDI|HB Encoding Only:
      - 3840x2160p @ 25/30
      - 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60
      - 1920x1080i @ 50/59.94/60
      - 1280x720p @ 25/29.97/30/50/59.94/60
    • NDI|HB/HX Decoding Only:
      - 3840x2160p @ 25/30/60
      - 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60
      - 1920x1080i @ 50/59.94/60
      - 1280x720p @ 25/29.97/30/50/59.94/60
    • NDI|HB/HX Simultaneous Encoding & Decoding:
      - 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60
      - 1920x1080i @ 50/59.94/60
      - 1280x720p @ 25/29.97/30/50/59.94/60
    • Dimensions (LxWxH): 5.62" x 3.54" x 1.25" (143mm x 90mm x 32mm)
    • Weight: 1lb (0.45kg)

  • Item Includes:

    • 1x A1 4K HDMI NDI Bi-Directional Converter
    • 1x Warranty Card
    • 1x Power Adapter
    • 1x Quick Start Guide
    • 1x Certificate of Conformity

  • GTIN:

    0774882279600
