Contemporary Research QIP-SDI HDMI IPTV Encoder with H.264 - HD-SDI/HDMI/Composite/Analog Stereo/SPDIF Inputs


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    QIP-SDI HDMI - Overview

    The dual-program QIP-SDI HDMI, with one SDI and one HDMI input, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Encoding as MPEG2 or H.264, the QMOD-SDI HDMI can output the content as two SPST Multicast or Unicast IPTV streams. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, and NTSC video sources.

    This unit includes a universal rack mount kit, which is a combination of the RK1 & RK2EZ that will allow you to mount the unit into a 1RU or 2RU slot in your Rack right out of the box.

    • Features:

      • Sources
      • HD-SDI input, 3G Level A 1080p and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 video; also accepts embedded 608/708 captioning and AES, AAC and AC-3 audio
      • HDMI input (non-encrypted), 480p to 1080p, embedded PCM audio, pass-through AAC and AC-3
      • Two Composite/CC video inputs for encoding, captioning, or EAS use
      • Two analog Stereo and two SPDIF coax audio inputs

      • Encoding
      • Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
      • Converts stereo and PCM to stereo AAC or MP12, passes through or AC-3 and AAC
      • Can create SAP dual-language audio for each program
      • Accepts 608.708 embedded captioning, decodes Line 21 captioning from composite video inputs
      • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution
      • Dual-program operation is standard

      • Operation
      • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
      • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
      • Updates firmware via USB and Ethernet
      • Fan cooled, with adjustable speed
      • Saves power and rack space using efficient design
      • Includes compact switching power supply
      • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19" rack kits
      • Meets RoHS safety and California energy standards
    • Specifications:

      • Physical
      • 8.5" [216mm] wide x 1.73" [62mm] height (1RU) x 6.0" [153mm] deep
      • 1.5 lbs [0.68kg]
      • +32° to 122° F operating temperature, convection cooled
      • Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
      • For HRF Half-Racks, use the RK2EZ kit to mount each tuner
      • Fan cooled, with adjustable speed

      • Scaling
      • Dual hardware scalers
      • Accepts 1080p - 480i and VGA resolutions, 29.97 - 60 Hz US and PAL refresh rates
      • Edge to edge presentation with zoom, shrink and X/Y axis positioning
      • Auto-sync or sales to fixed output resolution, 1080p scaled to 1080i

      • Encoding
      • H.264 or MPEG2 for HD, MP@ML for SD, 1080i, 720p, 480p, and 480i output resolution
      • MPEG 2 Video Encoding bitrate 10-25 Mbps, HD, 5-6 Mps 480i, or variable bitrate
      • H.264 Video Encoding bitrate 5-12 Mbps, HD, 2-3 Mps 480i, or variable bitrate
      • PCM or analog audio output s MPEG1 Layer2 or AAC
      • Pass-through AAC and AC-3 aud

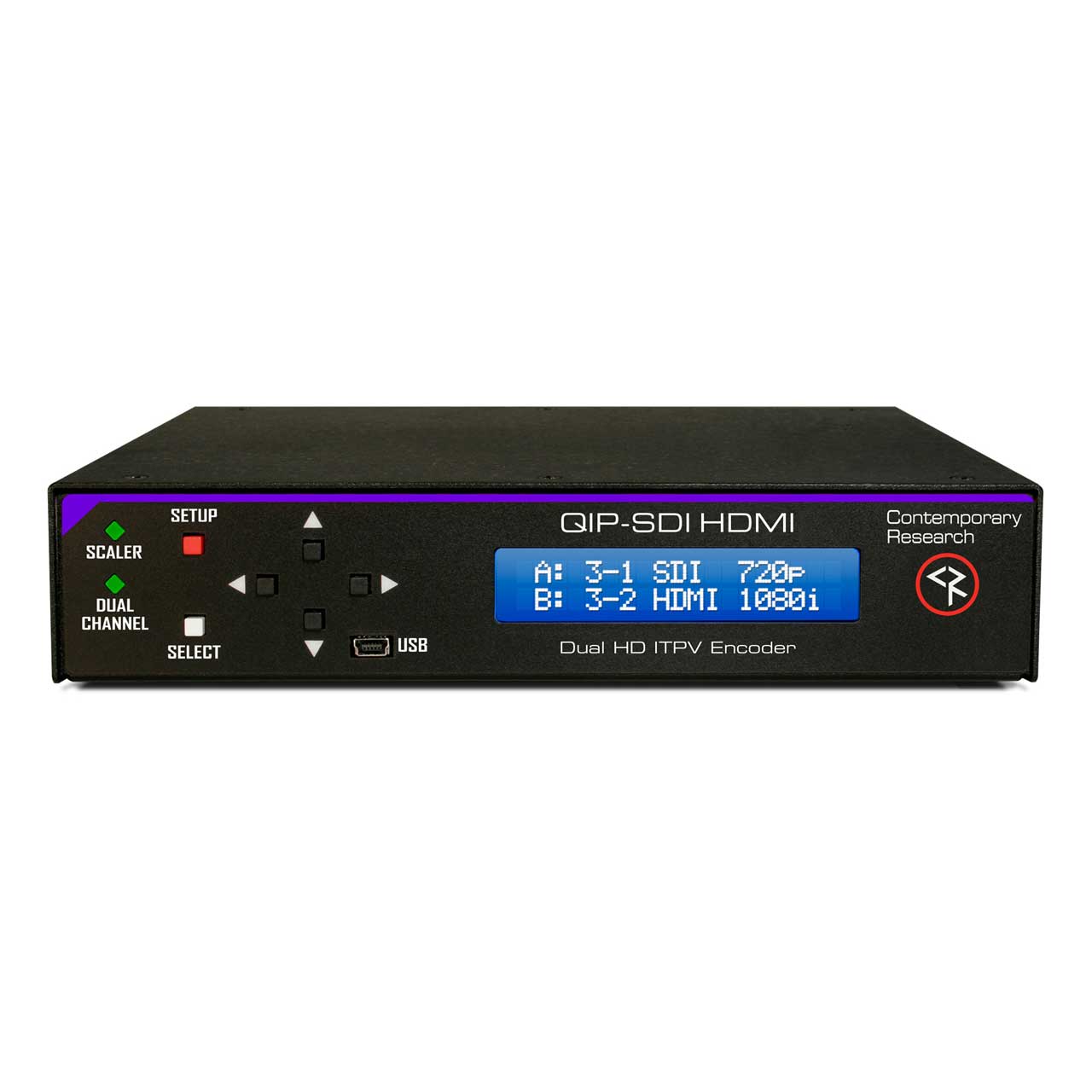

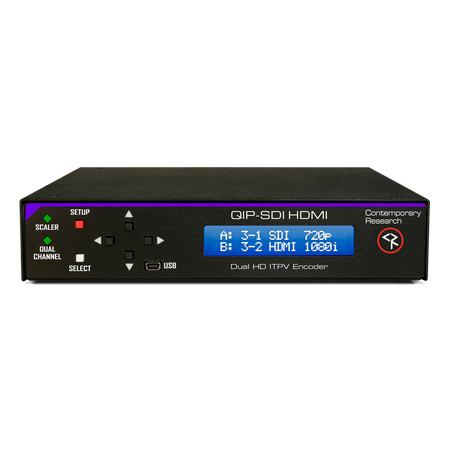

      • Front Panel
      • Select and directional buttons for menu setup
      • Menu LCD, Blue with 2 lines of 20 white characters each

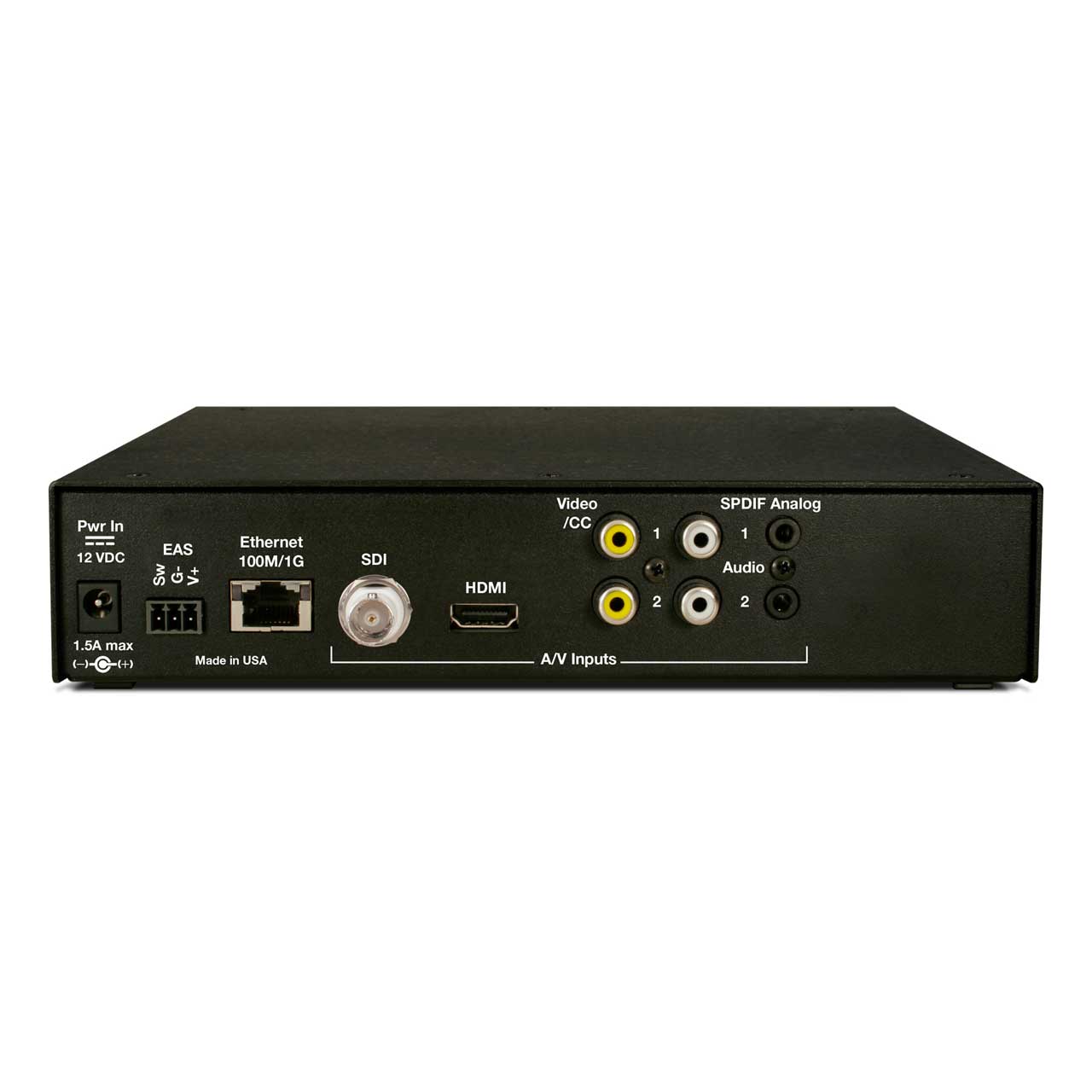

      • Back Panel
      • Power: 2.1mm coaxial jack (inside center conductor positive)
      • 1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
      • EAS: 3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
      • Ethernet: RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTV and internal Web page

      • SDI Inputs: BNC Female
      • SD-SDI @ 270Mb/s, HD-SDI @ 1.485Gb/s, 3G SDI Level A @ 2.970Gb/s
      • Coax cable auto-equalizer for SD up to 460m, HD up to 230m (RG6)
      • Resolutions 1080p at 59.94Hz, 1080i/720p at 59.94/60Hz, or SD 480i at 29.97Hz
      • Video Format YCbCr 4:2:2
      • Accepts SDI embedded Stereo/AC-3/AAC 48KHz audio
      • Widescreen option for 480i

      • HDMI: (non-HDCP), up to 1080p, embedded PCM and AC-3 audio

      • Composite Video/CC Inputs: RCA female (480i), 29.97 Hz, supplies line 21 Captioning
      • Audio Inputs: Two coax SPDIF digital audio inputs
      • Analog L and R: 2 stereo mini jacks
      • Inputs assignable to video inputs
    • Item Includes:

      • QIP-SDI HDMI unit
      • PS12-2 Switching power supply, 2A 12 VDC, standard AC cord for power strips

      • Free option to include PS12-8Y power supply with every 3-4 encoders when ordered in lieu of PS12-2
