Cabletronix CT-HDVD-EXT-IR180 HD & Infrared Control Over a Single Cat5e / 6

ITEM #: CT-HDVD-EXTIR180 MFG #: CT-HDVD-EXT-IR180

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$150.00

Our Price:

$124.99

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    CT-HDVD-EXT-IR180 - Overview

    The CT-HDVD-EXT-IR180 kit has the ability to transmit and receive a 1080p HD source up to 180 feet along with Infrared control over a single Cat5e / Cat6 4 Pair UTP Cable. With a single low cost CAT-5e/6 cable, users can readily extend HDTV sources from DVD players, PS3, PC, and many other sources compliant with TMDS HDMI to distant display monitors including HD enabled TV sets or LCD PC monitors. This cost effective flexibility allows HDCP compliant DVD players or PS3 to transmit high quality video and audio with a greater distance at a minimal cost.

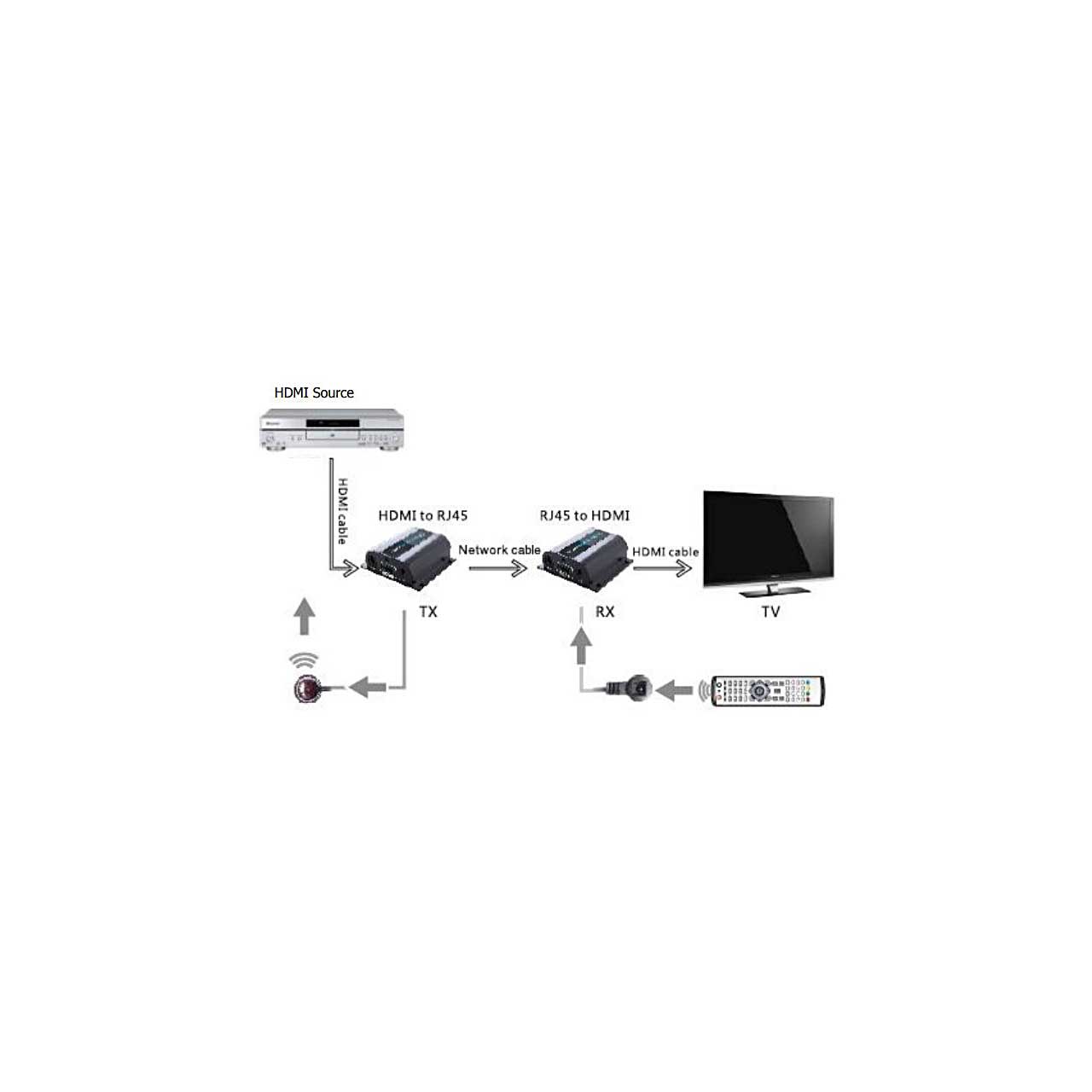

    The transmitting unit is used to capture the input HD signal and carry the signal over a single RJ-45 connector through the Cat-5e / 6 cable. The receiving unit is responsible for receiving and equalizing the transmitted TMDS HDMI multimedia data.

    • Features:

      • Distributes HDMI signal over a single Cat5e or Cat6ÿ4ÿPairÿcable
      • Extends transmission distance up to 180' from sourcesÿupÿtoÿ1080p
      • No settings or adjustments required
      • Uses a single UTP LAN cable (CAT-5e / 6)
      • Auto-adjustment of feedback, equalization & amplification
      • HDMI V1.3 supported
      • HDCP compliant
      • Supports 1080p @ 60Hz @ 48 b/pixels, 3D and 4Kx2K
      • LED indicators indicate power and video signal status
      • Internal ESD protection
      • Wall mountable
      • Supports two way Infrared control signals
      • Units can be cascaded

    • Specifications:

      • Input Video Signal: 0.5-1.0 volts p-p
      • Input DDC Signal: 5 volts p-p (TTL)
      • Video Format Supported: [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60Hz / DTV/HDTV: 1080p/1080i/
      • Output Video: HDMI 1.3+HDCP
      • Output Audio: Support DTS-HD, Dolby-HD
      • Maximum Transmission Distance Video format up to 1080p 60Hz 36bpp: Up to 180 Feet using Cat6
      • Operating Temperature Range: 32°F to +140°F
      • Operating Humidity Range: 5 to 90 % RH (no condensation)
      • Power Supply: 5VDC, 1A
      • Power Consumption Transmitter: 2 Watts (Max.)
      • Power Consumption Receiver: 2 Watts (Max.)
      • Dimensions: 2.85" (W) x 1.0" (H) x 2.65" (D)
      • Weight: TX-0.4 lbs., RX-0.4 lbs.

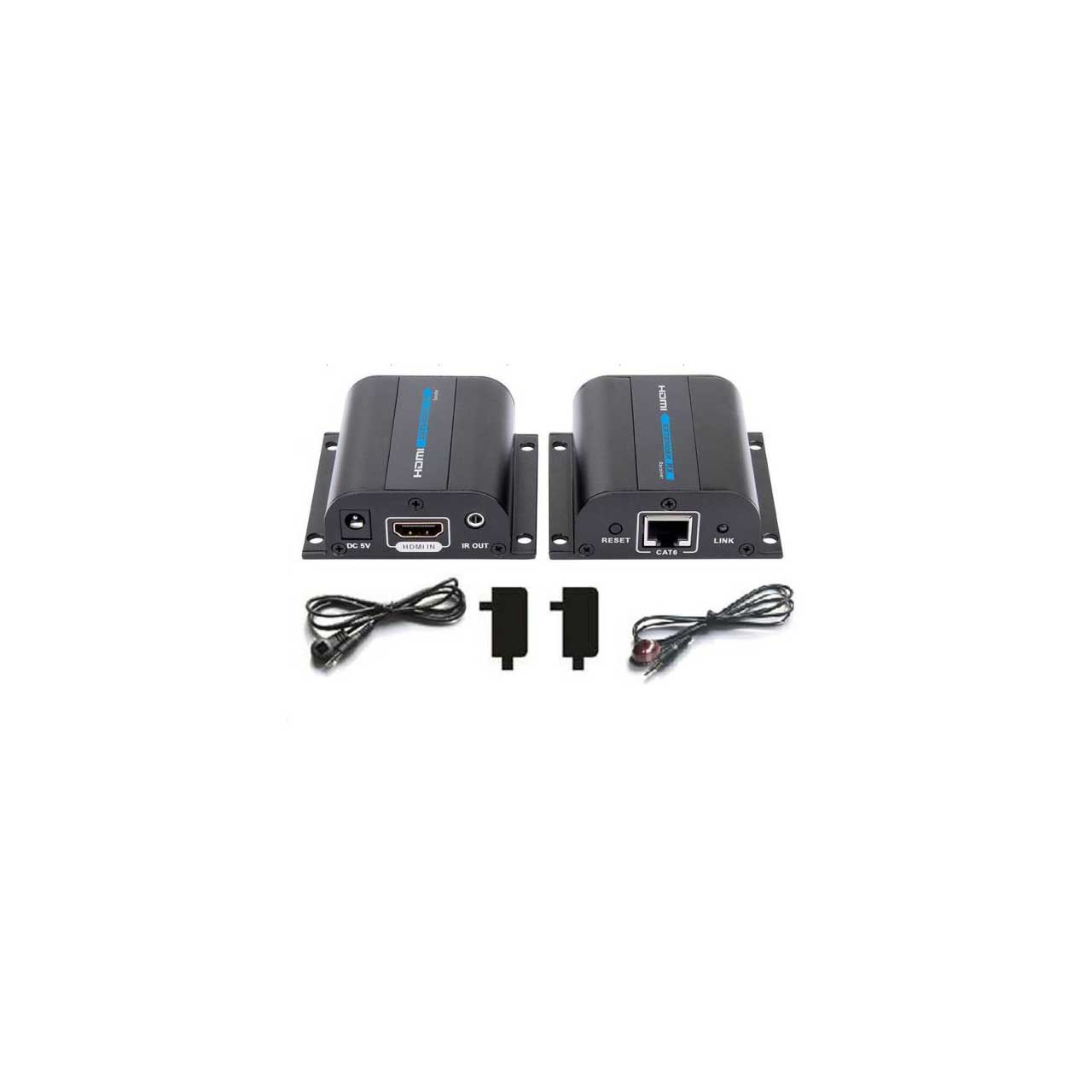

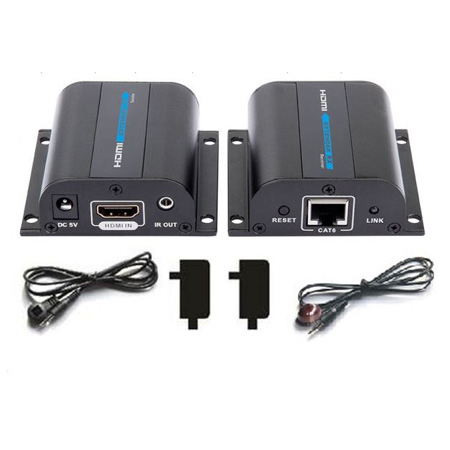

    • Item Includes:

      • 1x - Base transmission unit
      • 1x - Base receive unit
      • 1x - Operating Instructions
      • 2x - 5VDC power supply
      • 1x - IR emitter cable
      • 1x - IR target cable
