City Theatrical 5940 Multiverse Studio Add On DMX Kit w/6x Receivers / 6x USB-A to USB-C Cables / 1x PowerCON Power Cord

ITEM #: CTYTH-5940 MFG #: 5940

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$5,162.85

Our Price:

$4,388.42

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


5940 - Overview

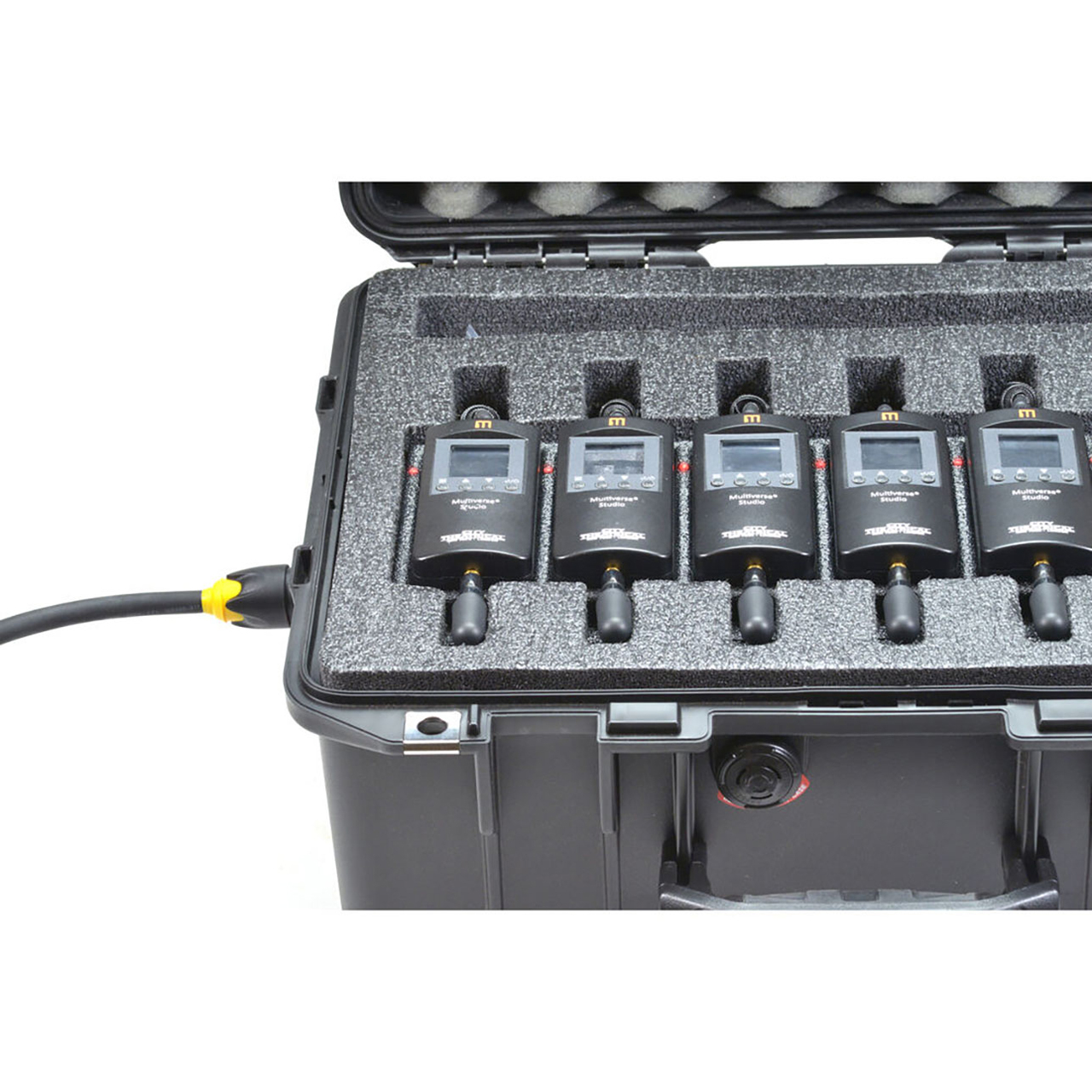

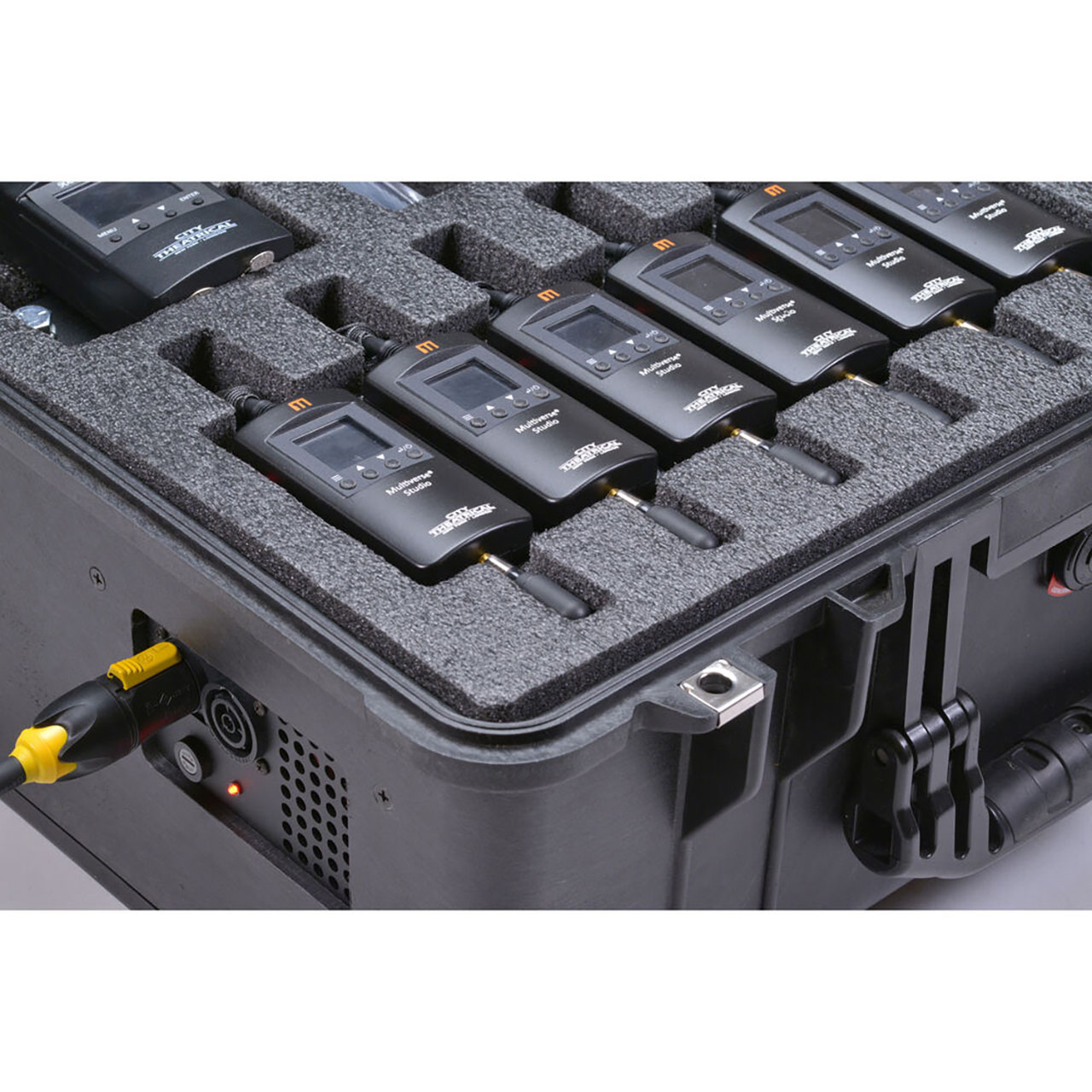

City Theatrical's 5940 Multiverse Studio Add On Kit brings the advanced technology of the Multiverse wireless DMX/RDM system to the film and video world, featuring Receivers with 20 hour battery life and contactless charging in an easy to use kit. Just drop the Multiverse Studio Receiver onto its slot in the case, and it will begin charging. Individual chargers and USB cables are also included to enable charging or powering individual units outside the case. The Multiverse Studio Add On Kit provides six additional Multiverse Studio Receivers for users to expand upon their full Multiverse Studio Kits.

User Selectable SHoW IDs
City Theatrical has always produced wireless DMX products that allow the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping.

Adaptive Spread Spectrum Frequency Hopping
Adaptive Spread Spectrum Frequency Hopping identifies and masks off hopping channels that contain interference, replacing them in the hop sequence with alternate channels.

Adjustable Output Power
Sometimes an application calls for the most available broadcast power, but many entertainment systems can utilize lower output power to reduce detrimental effects on other radio systems in the venue, reduce reflections, and improve performance.

  • Features:

    • Contactless Charging
    • Rugged and Splashproof
    • Ultra Low Latency
    • mDMX (Multiverse SHoW IDs only)
    • mRDM (Multiverse SHoW IDs only)
    • SHoW Key Security (Multiverse SHoW IDs only)
    • Forward Error Correction (Multiverse SHoW IDs only)
    • Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM
    • Compatible with all Multiverse and SHoW DMX Neo products
    • User can select a single universe to receive
    • Simple user interface to set SHoW ID, universe, and other features
    • RDM proxy and responder functions
    • USB-Power Adaptor and USB-A to USB-C cable included
    • Selectable display timeout and brightness level
    • Selectable Auto Off Timeout
    • Battery Time Remaining displayed in both hours/minutes and percent

  • Specifications:

    • IO
      - 1x XLR 5-Pin (DMX) Female Output
      - 1x USB-C (Power) Input
    • Maximum Concurrent Universes: 1-9
    • Frequency Range: 2400MHz - 2480MHz; 902MHz - 928MHz
    • Input Power: 100V - 240V AC 50/60Hz
    • Max Draw: 0.95A
    • Latency: 4ms average
    • RF Sensitivity: -95dBm
    • Loss of Data Behavior: Output stops
    • Broadcast Power: 3.2mW, 10mW, 32mW, 100mW EIRP
    • Broadcast Modes: Adaptive, Full, Low, Mid, High, Max
    • Show IDs: Multiverse: 307; Neo: 70
    • RDM Features: RDM Proxy, RDM Responder
    • IP Rating: IP20
    • Compliance: Kit: UL 508A
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)

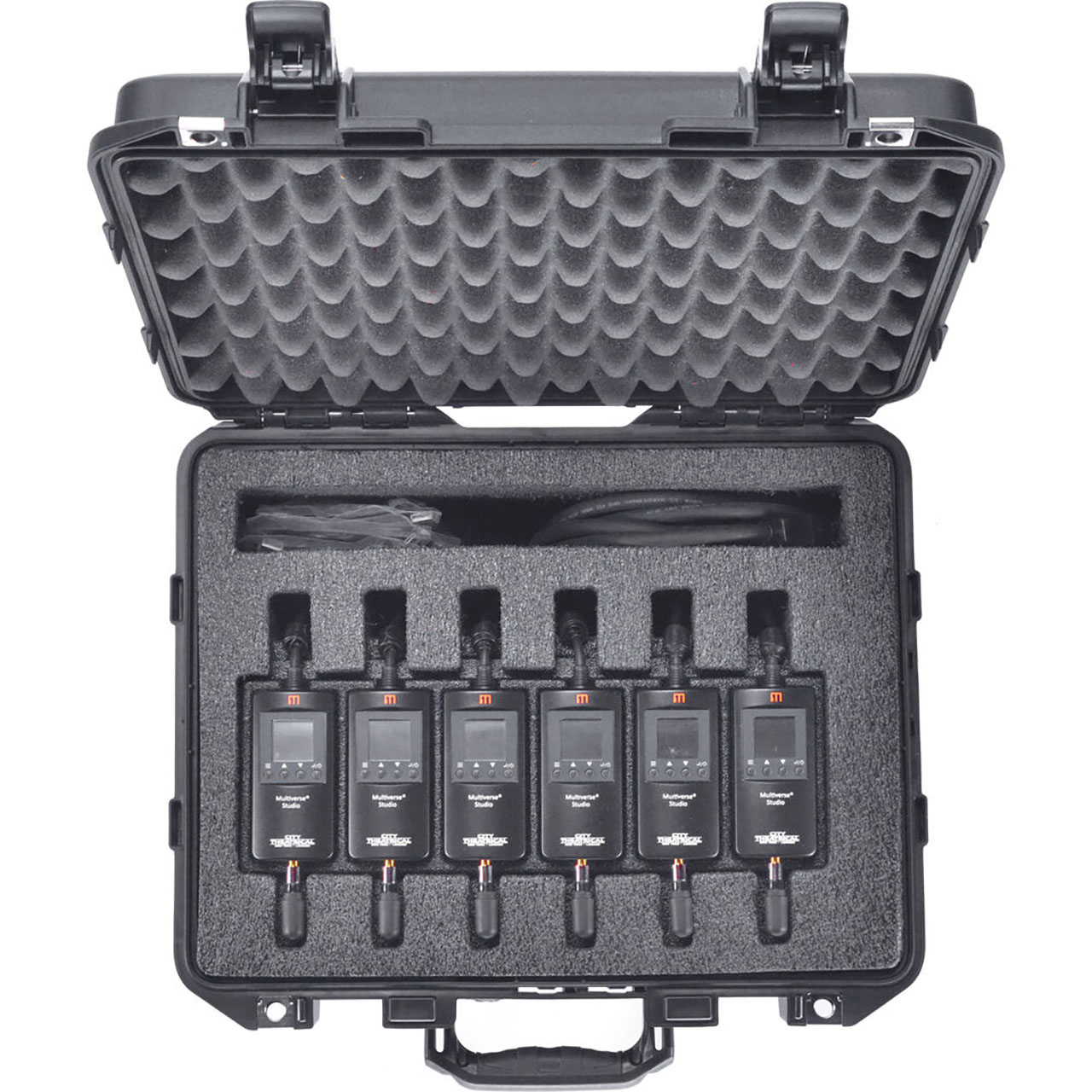

  • Item Includes:

    • 6x Multiverse Studio Receivers, 900MHz/2.4GHz
    • 6x USB-A to USB-C cable, 1m
    • 6x Power Supplies, 100-240VAC input, 5VDC output
    • 1x Power Cord, PowerCON True 1, 8' long

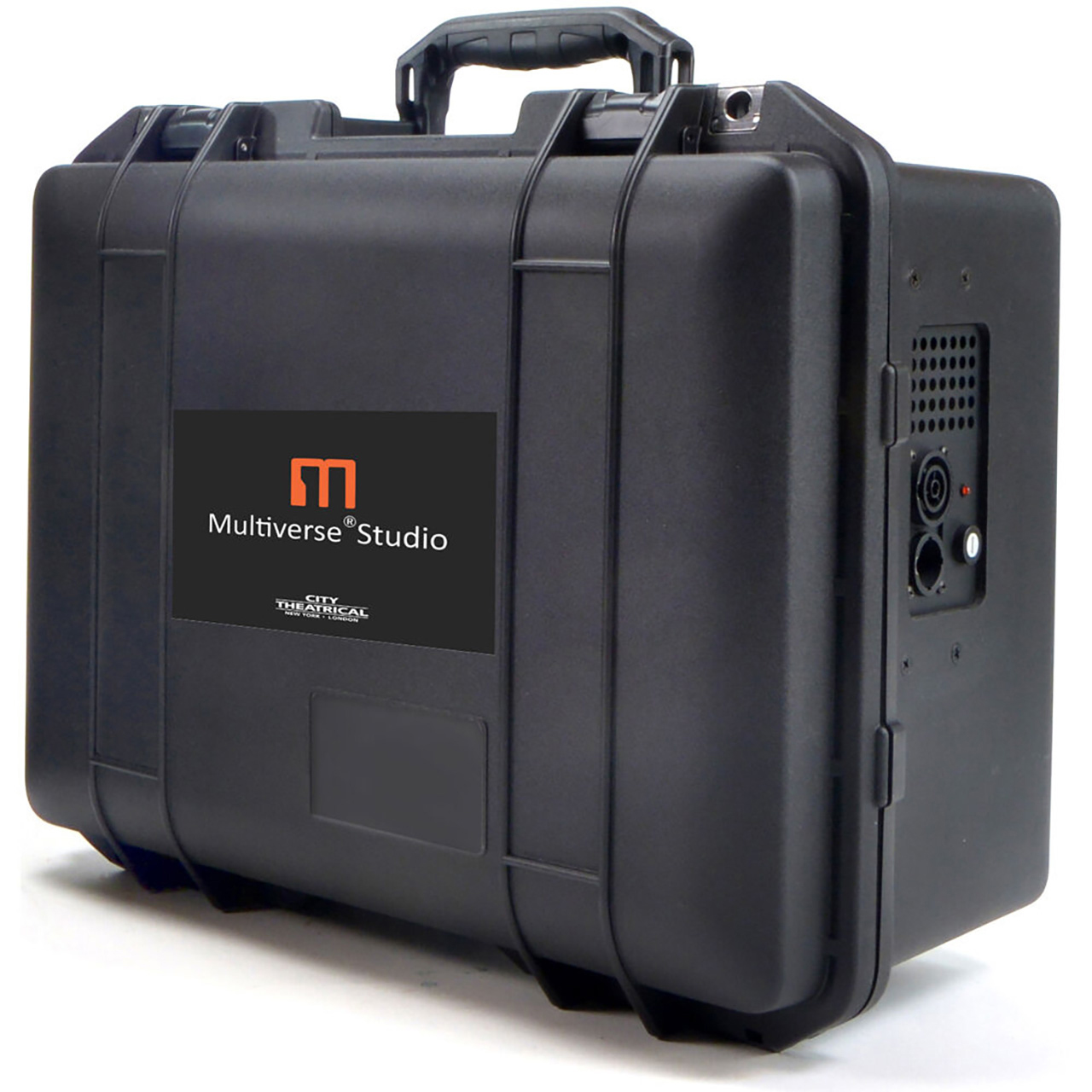

    • 1x Pelican case with contactless charging

  • Warranty:

    • 1 Year Limited Warranty
