DC-001-00022-8-K - Overview

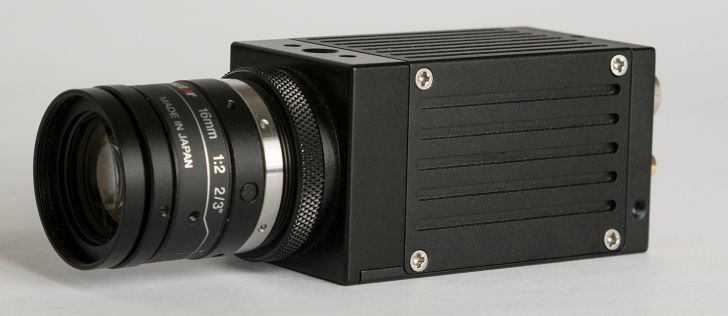

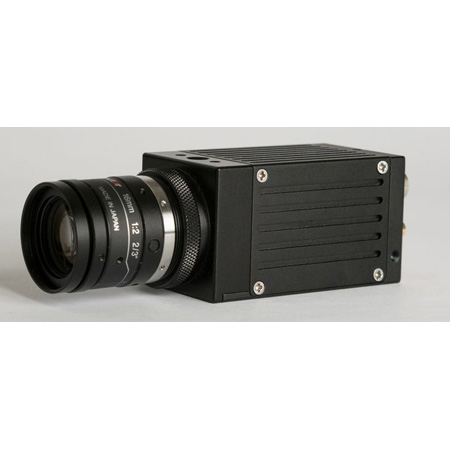

The Dream Chip Atom One DC-001-00022-8-K is a 4K Mini11 Rolling Shutter Camera with Fixed C-Mount 8mm Lens, 2SDI output Genlock, and RS485. It is the smallest 4k 2/3inch camera with TV Lens Compatibility.

  • Features:

    • Low Latency (<100 ohms/microseconds)
    • Defect Pixel Correction (auto/manual)
    • Black Level, White Level, Master Black
    • White Balance / Auto White Balance
    • Flare Compensation
    • Lens Shading Correction
    • High Quality Color Interpolation (debayer)
    • Color Matrix / Color Correction
    • Color Temperature Settings / Profiles
    • Multi-Matrix Color Correction (12/24/32 Angles)
    • RGB LUT Programmable
    • Knee Function
    • Denoise Filter
    • Detail Filter
    • Color Post Processing (lumi, contr, sat, hue)
    • SDI Range Adjustable (black/white)
    • Mirror/Flip
    • Image Statistics (white balance, exposure)
    • Auto Exposure / Auto Gain


  • Specifications:

    • Overview
    • Resolution: 4K 4096 x 2160
    • Mount: C Mount + CS Mount
    • Size: 36mm x 36mm x 79mm
    • Weight: 0.26 lbs
    • Mount Points: 2x 1/4inch, 5x M3
    • Microphone: Stereo Mic

      Sensor
    • Type: 2/3inch
    • Pixel Size: 2.4um
    • Diameter: 11mm
    • Filter: IR Cut
    • Shutter Type: Rolling
    • Dynamic: 10 bit / 57 dB
    • Sensitivity ISO: Analog 45 - 1013 / Digital 6400
    • Sensitivity 2000 Lx 50Hz: F8
    • Maximum FOV (H): 76° @ 6mm Lens

      Electric

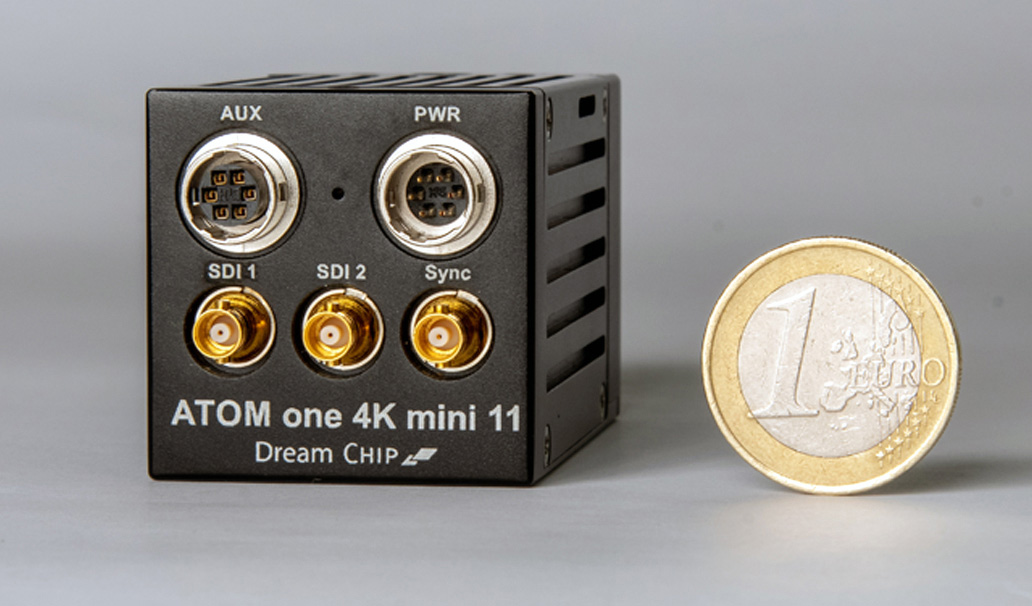

    • SDI Output: 2x HD-BNC / 12G SDI
    • Control: RS485
    • Genlock: Trilevel Sync in / out
    • Embedded Time Code: Yes
    • Voltage Range: 9V-36V
    • Power: 7.6watt 630mA@12V
    • Power Supply: 9V-36V
    • Cooling: Active

      Camera Features
    • Color Control Unit: Yes
    • 4K to 2K down-scale with oversampling: Yes
    • Independent LUT: Yes

      Video Formats
    • 10 bitYUV422: Yes
    • RAW: Yes
    • 1920x1080 Full HD Framerates: No (can downscale to 1080 i/p)
    • 3840x2160 UHD: 23.98, 24, 25, 29.97, 30, 48, 47.96, 50, 59.94, 60, 50i, 59.94i, 60i
    • 4096x2160 4K Framerates: 23.98, 24, 25, 29.97, 30, 48, 47.96, 50, 59.94, 60, 50i, 59.94i, 60i
