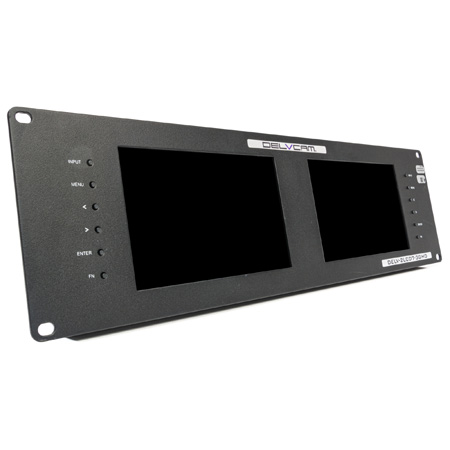

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the DELV-2LCD73GHDBS

DELV-2LCD73GHDBS - Overview

Super Reliable and Low-Cost 3G-HD Broadcast Performance with Multiformat Flexibility!

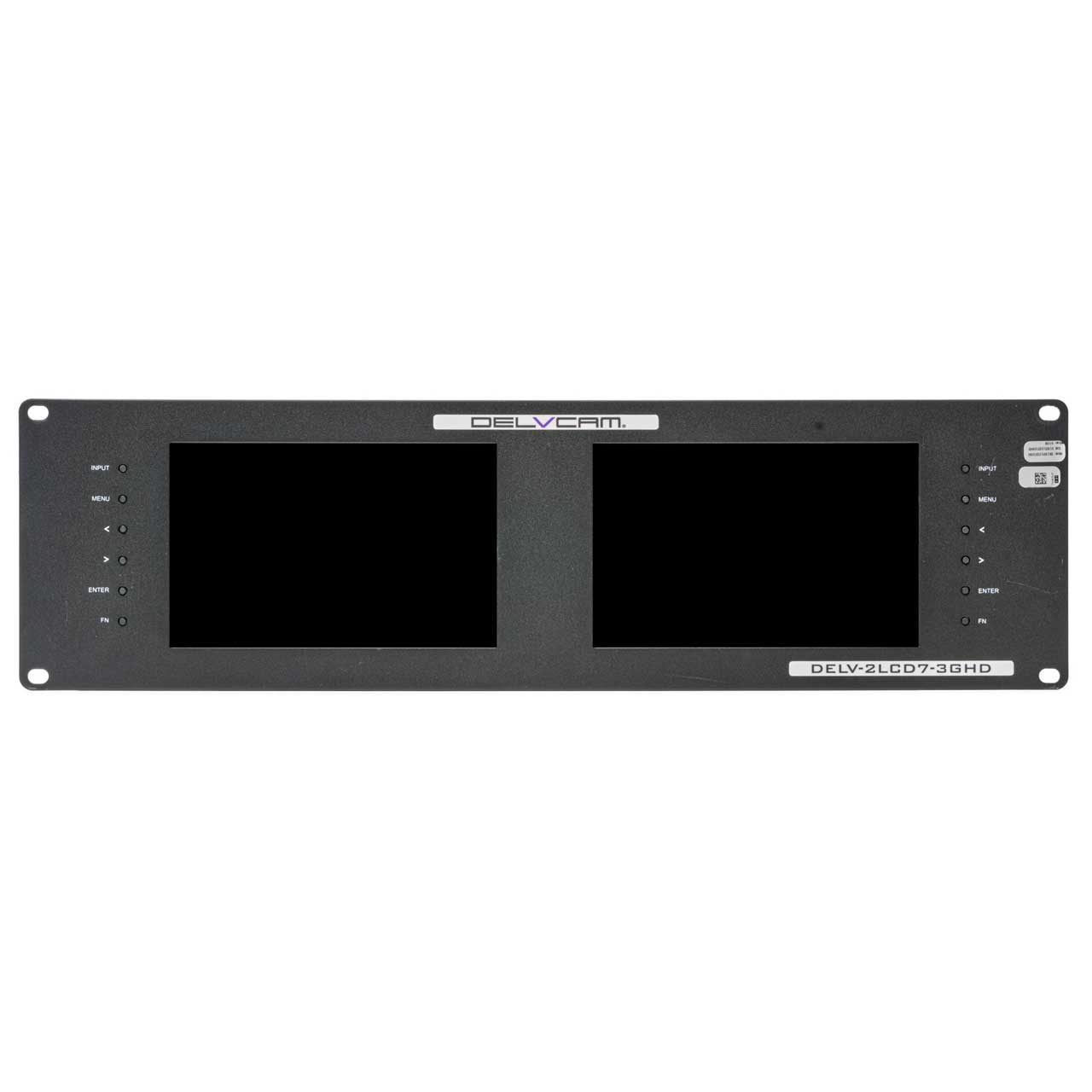

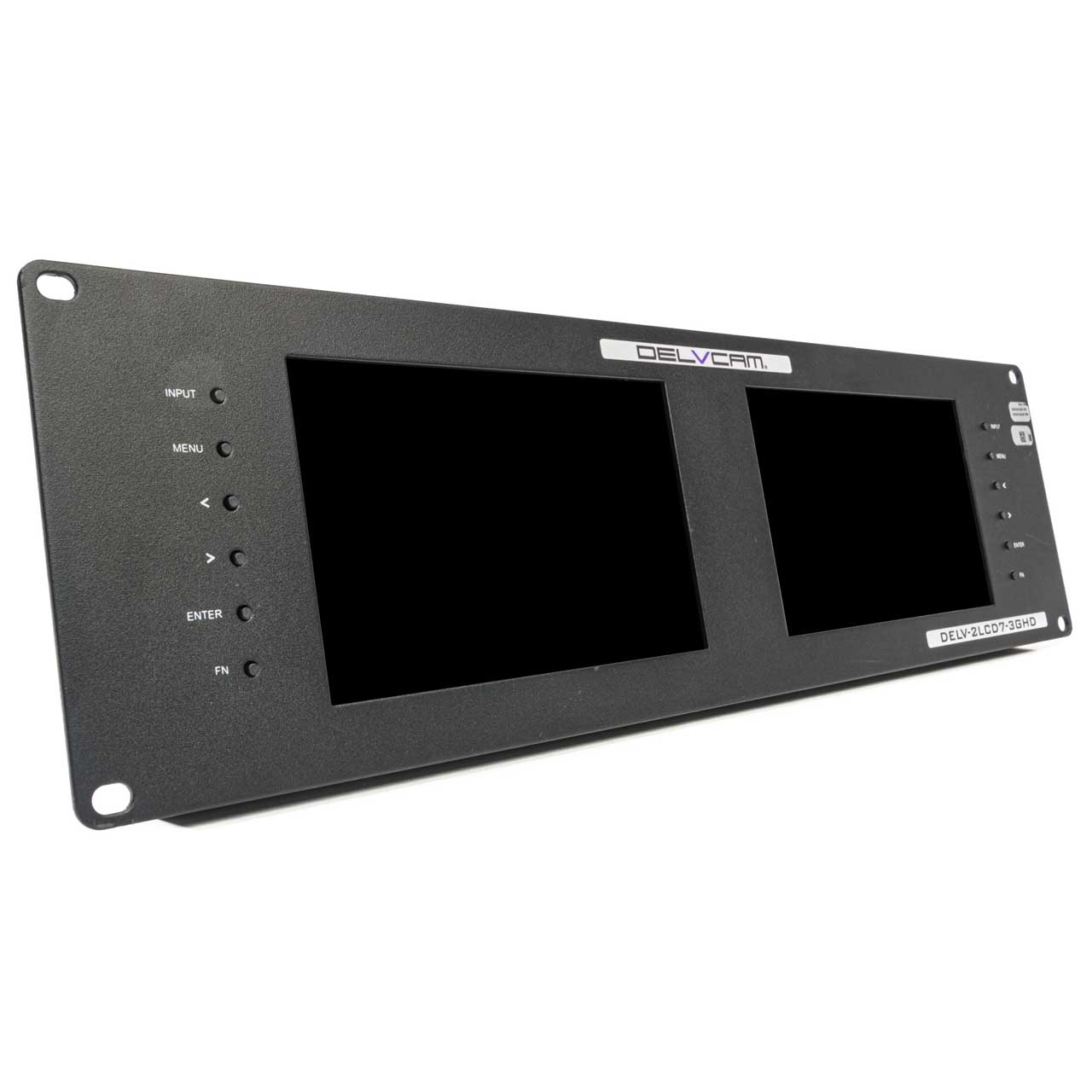

The Delvcam DELV-2LCD7-3GHD brings 3G-HD broadcast quality & multiformat flexibility together in a low-cost rackmount video production monitor. With dual 7" IPS screens, SD, HDMI, HD and 3G-SDI multiformat capability and tally interface, it's the perfect professional video monitoring solution in the studio, live broadcast truck or fly-pack. The composite inputs are NTSC/ATSC and SECAM compatible.

Ultra Slim Dual 7" Displays
Dual 7" IPS panels with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast and fast response time.

Please Note: Bstock item. Unit is fully functional but has scratches on screen and case.

  • Features:

    • Dual 7" Rackmount
    • SDI ,HDMI, Composite or Component
    • TALLY interface with Indicating Light
    • Resolution: 1280x800
    • 3RU Metal Housing
    • 178° Wide Viewing Angles
    • High Brightness: 400cd/
    • High Contrast: 800:1
    • Fast Response Time
    • Ultra-slim Design
    • Active Buffered Outputs

      Please Note: Bstock item. Unit is fully functional but has scratches on screen and case.


  • Specifications:

    • Panel: 7"x2 LED backlit
    • Physical Resolution: 1280x800
    • Aspect Ratio: 16:9
    • Brightness: 400cd
    • Contrast: 800: 1
    • Viewing Angle: 178°/ 178°(H/V) (IPS)

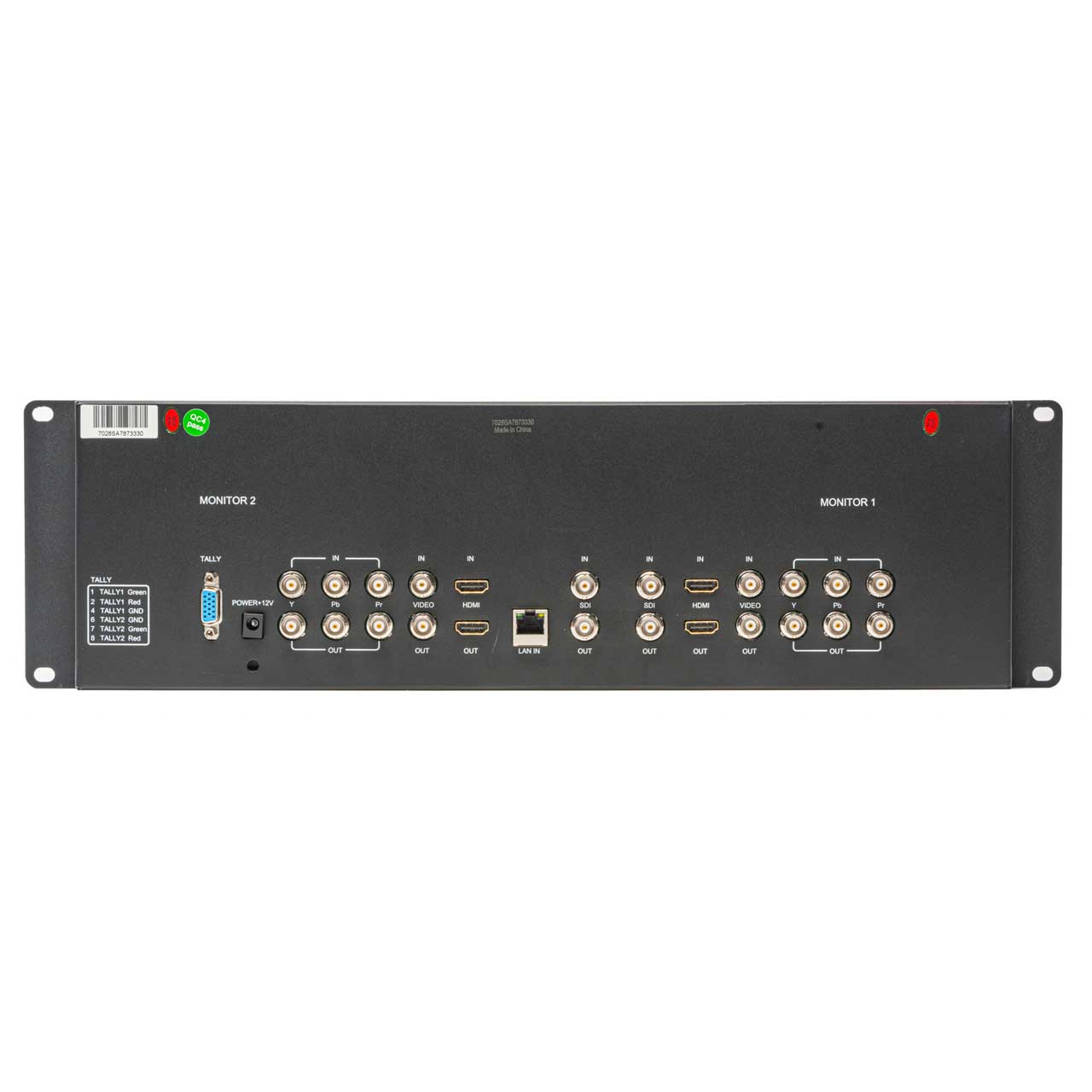

    • Input Signals: 3G-SDIx2, HDMIx2, YPbPrx6(BNC), Compositex2, TALLYx2, LANx1(coming soon), USB2.0(mini)x1
    • Output Signal: 3G-SDIx2, HDMIx2, YPbPrx6(BNC), Compositex2
    • Current: 1500mA

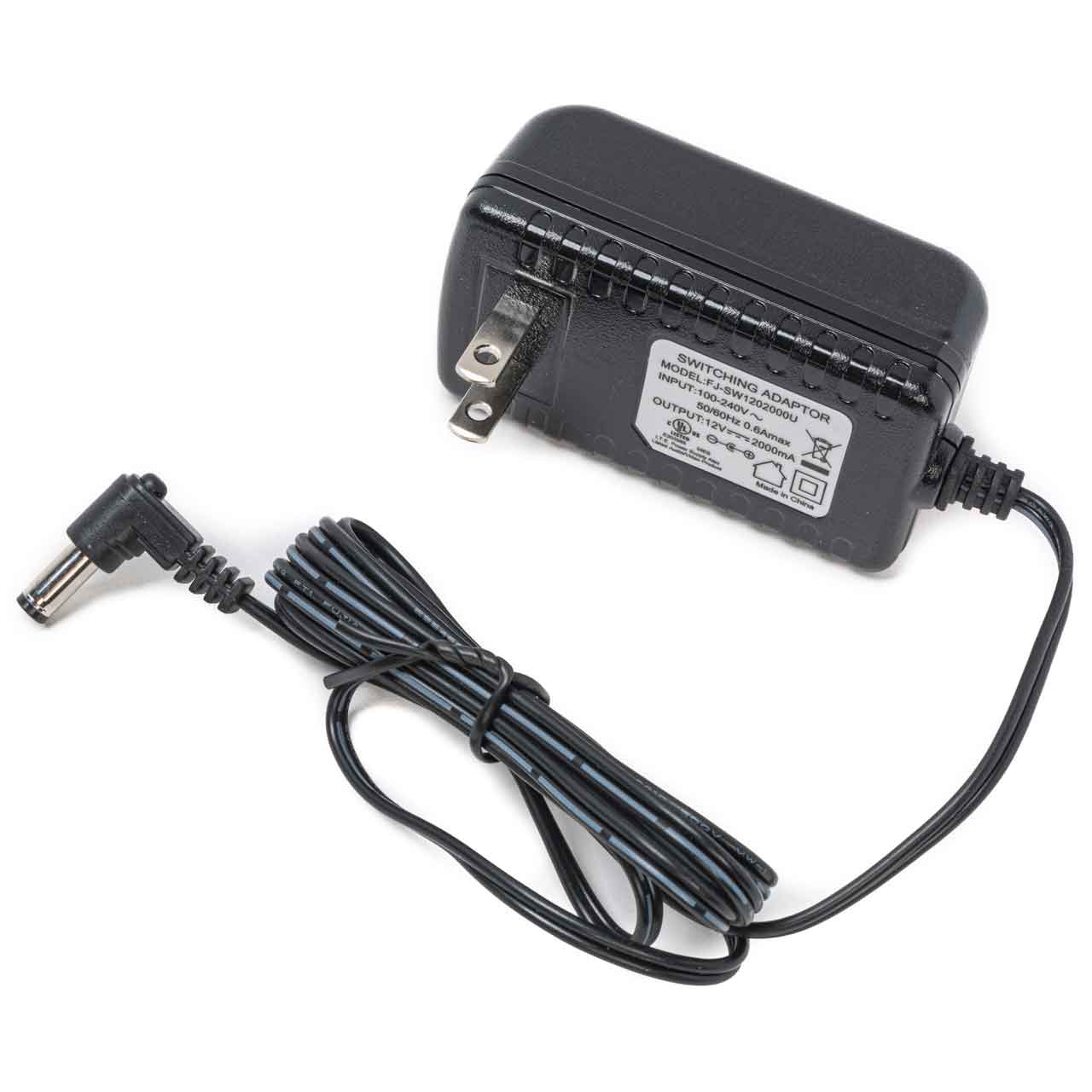

    • Input Voltage: DC 12V
    • Power Consumption: =18W
    • Operating Temperature: -20~60
    • Storage Temperature: -30~70
    • Dimension(LWD): 482.5x133.5x25.3mm
    • Weight: 2885g
