Vaxis VS19-3000DV-TR01 Storm 3000 DV Transmitter and Receiver Wireless Video Kit

ITEM #: DF-VS19-3000DVTR MFG #: VS19-3000DV-TR01

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$5,980.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    VS19-3000DV-TR01 - Overview

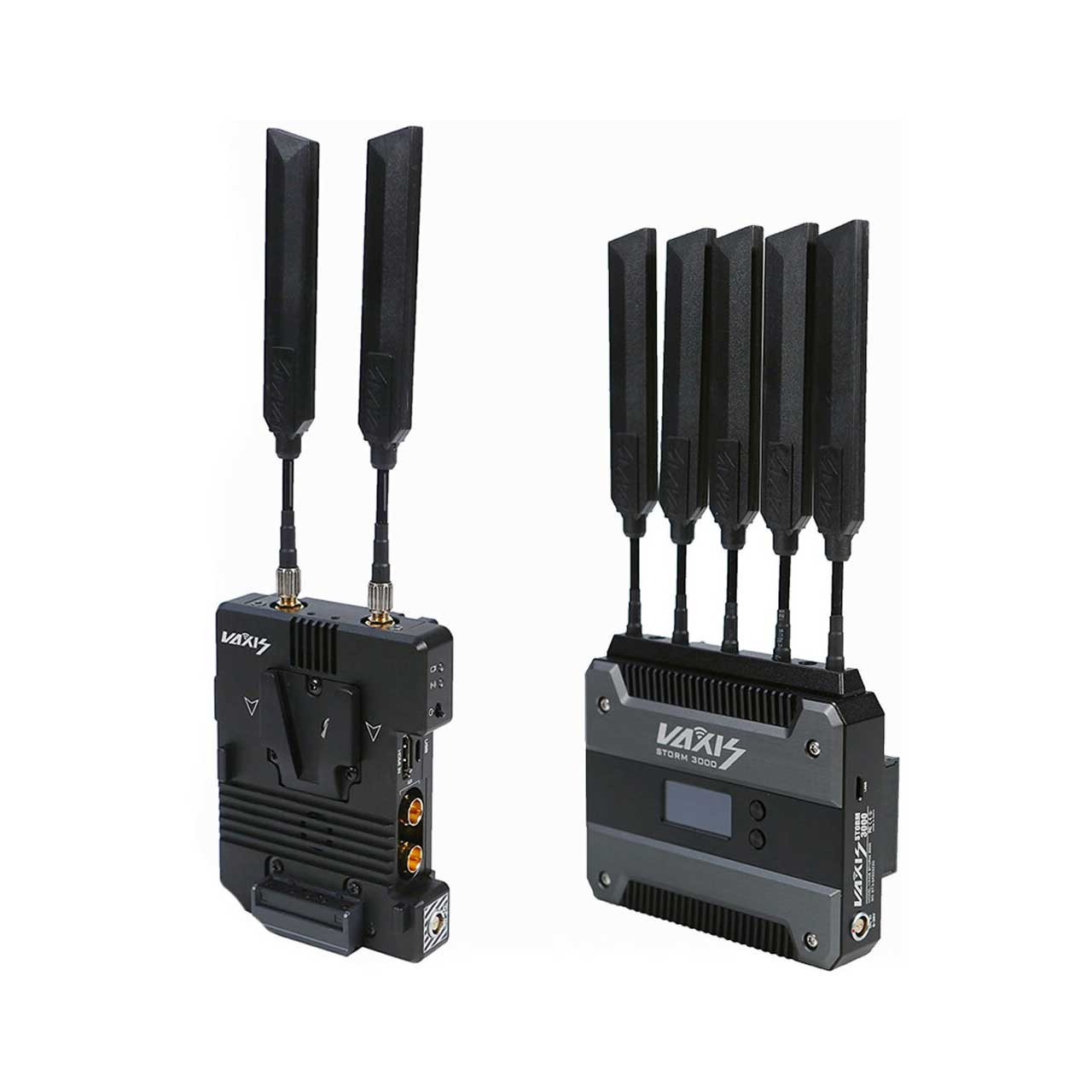

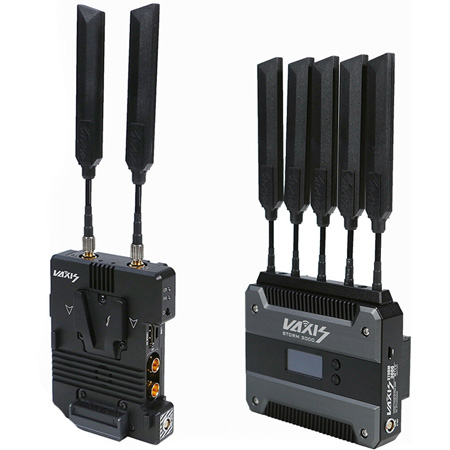

    With the VS19-3000DV-TR013000 DV Transmitter and Receiver Kit from Vaxis you can transmit visually lossless, uncompressed video signals to the Vaxis Storm receiver with zero latency. The included blade antennas transmit and receive a powerful line-of-sight signal up to 3000'.

    The transmitter features one HDMI input, one SDI input, and one SDI loop-through output. The receiver features two SDI outputs and one HDMI output, and together they support up to 1080p60 video transmissions. The transmitter also supports cross conversion from HDMI input to SDI loop output. Each unit can be secured to a camera or other SDI/HDMI video source via a built-in 1/4"-20 threaded hole.

    The receiver features an integrated V-mount battery plate, and the transmitter features a dual V-mount plate which allows you to attach it to the V-mount plate on your camera and mount a V-mount battery on the other side, providing pass-through power to both the transmitter and the camera simultaneously. Each unit can be powered using its 2-pin LEMO-type connector with a separately available cable and AC or DC source.

    The Storm 3000 system features 20 selectable 40 MHz channels, a 5.1 to 5.9 GHz wireless frequency range, and each unit features a bright LED display showing connection status and channel information. Two D-Tap to 2-pin LEMO power cables and a standard BNC cable are included so you can plug in right out of the box

    • Features:

      • Transmits Wireless Video up to 3000'
      • Supports up to 1080p Uncompressed Video
      • 1 x Storm Wireless Receiver
      • SDI and HDMI Inputs, SDI Loop Output
      • V-Mount Battery Plate on Receiver
      • Dual V-Mount Pass-Through on Transmitter
      • HDMI/SDI Cross Conversion on TX
      • 1/4"-20 Mounting Thread
      • Transmitter and receiver set transmits up to 1080p wireless video up to 3000'
      • Transmitter features one SDI and one HDMI input, and one SDI loop output; receiver features two SDI outputs and one HDMI output
      • Units can be powered by a V-mount battery with their integrated plates, or with separately available external sources via their 2-pin LEMO-type ports
      • HDMI/SDI cross-conversion support on transmitter
      • Bright LCD screen on each unit for settings, status, and to scan for open frequencies on 5.1 to 5.9 GHz range
      • Each unit mounts on rig using 1/4"-20 thread

    • Item Includes:

      • 1x Vaxis VS19-3000DV-TR01 Storm 3000 DV Transmitter and Receiver Wireless Video Kit
